CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

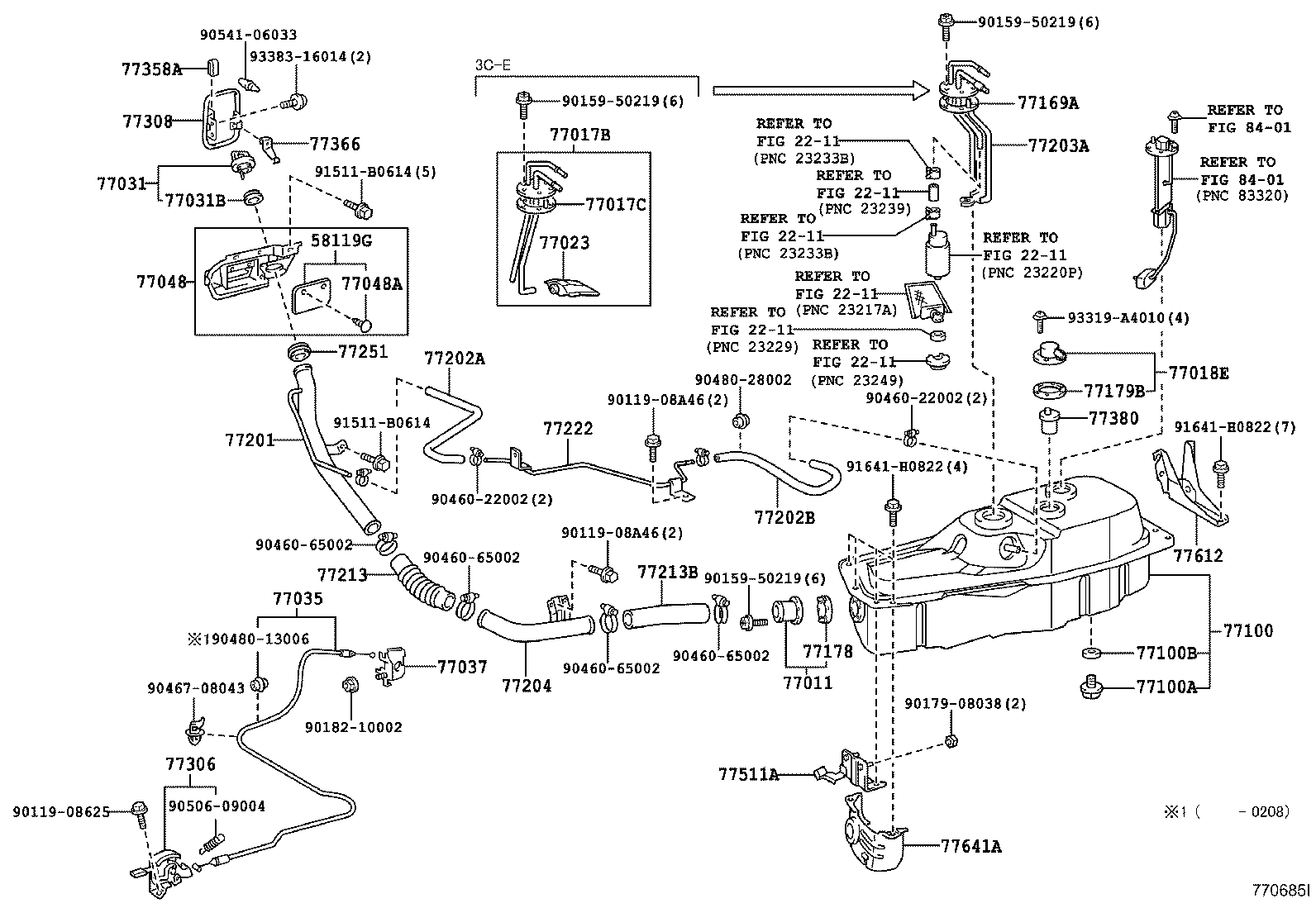

ILLUST NO. 1 OF 2(9906- )

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ

diagram 2211 2211 2211 2211 2211 2211 2211 58119G 77011 77017B 77017C 77018E 77023 77031 77031B 77035 77037 77048 77048A 77100 77100A 77100B 77169A 77178 77179B 77201 77202A 77202B 77203A 77204 77213 77213B 77222 77251 77306 77308 77358A 77366 77380 77511A 77612 77641A 8401 8401 9011908625 9011908A46 9011908A46 9015950219 9015950219 9015950219 9017908038 9018210002 9046022002 9046022002 9046065002 9046065002 9046065002 9046065002 9046708043 9048013006 9048028002 9050609004 9054106033 91511B0614 91511B0614 91641H0822 91641H0822 93319A4010 9338316014
Part # Description Qty Price
58119G - COVER, REAR FLOOR SIDE, FRONT
58119-95700

CM7#,8#

 1
58119-95700

CM7#,8#,KM7#,8#

 1
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-27020

CM7#,8#

 1
77011-27020

CM7#,8#,KM7#,8#

 1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-27250

CM7#,8#

 1
77017-27250

CM7#,8#

 1
77017C - GASKET, FUEL TANK VENT
77169-32010

CM7#,8#

 1
77169-32010

CM7#,8#

 1
77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018-27110

CM7#,8#

 1
77018-27110

CM7#,8#,KM7#,8#

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-32040

CM7#,8#

 1
77023-32040

CM7#,8#

 1
77031 - CAP ASSY, FUEL TANK
77310-35061

CM7#,8#

 1
77310-35061

CM7#,8#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

CM7#,8#

 1
77316-12050

CM7#,8#,KM7#,8#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-27050

CM7#,8#

 1
77035-27030

CM7#,8#,KM7#,8#

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-95700

CM7#,8#,KM7#,8#

 1
77037-95700

CM7#,8#

 1
77048 - SEAL SUB-ASSY, FUEL INLET PIPE, UPPER
77048-95701

CM7#,8#

 1
77048-95701

CM7#,8#,KM7#,8#

 1
77048A - CLIP (FOR FUEL INLET PIPE SEAL)
90467-0501401

CM7#,8#,KM7#,8#

BLACK,TRIM1#

 2
77100 - TANK ASSY, FUEL
77001-27450

CM7#,8#,KM7#,8#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

CM7#,8#

 1
90105-12116

CM7#,8#,KM7#,8#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

CM7#,8#

 1
90430-12245

CM7#,8#,KM7#,8#

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20010

CM7#,8#

 1
77178-20010

CM7#,8#,KM7#,8#

 1
77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE
77179-26010

CM7#,8#

 1
77179-26010

CM7#,8#,KM7#,8#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-27171

CM7#,8#,KM7#,8#

 1
77201-27171

CM7#,8#

 1
77201-27170

CM7#,8#,KM7#,8#

 1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
95313-13020

CM7#,8#

長さ=200

 1
90445-22002

CM7#,8#,KM7#,8#

長さ=200

 1
77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE)
77259-27250

CM7#,8#,KM7#,8#

 1
77259-27250

CM7#,8#

 1
77204 - PIPE SUB-ASSY, FUEL TANK FILLER, CENTER
77204-27020

CM7#,8#,KM7#,8#

 1
77204-27021

CM7#,8#

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-12131

CM7#,8#,KM7#,8#

長さ=227

 1
77213-27160

CM7#,8#

長さ=227

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-27150

CM7#,8#

 1
77213-27050

CM7#,8#,KM7#,8#

 1
77222 - TUBE, FUEL TANK BREATHER, NO.2
77013-27090

CM7#,8#,KM7#,8#

 1
77013-27090

CM7#,8#

 1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77251-10010

CM7#,8#

 1
77251-10010

CM7#,8#,KM7#,8#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-27010

CM7#,8#

 1
77306-27010

CM7#,8#,KM7#,8#

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77305-95701

CM7#,8#,KM7#,8#

 1
77305-95701

CM7#,8#

 1
77358A - STOPPER, FUEL FILLER OPENING LID
77358-87001

CM7#,8#

 1
77358-87001

CM7#,8#,KM7#,8#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-95702

CM7#,8#,KM7#,8#

 1
77366-95702

CM7#,8#

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

CM7#,8#,KM7#,8#

 1
77380-26010

CM7#,8#

 1
77511A - BRACKET, FUEL TANK
77511-27090

CM7#,8#,KM7#,8#

 1
77511-27090

CM7#,8#

 1
77612 - BRACKET SUB-ASSY, FUEL TANK
77512-27040

CM7#,8#,KM7#,8#

 1
77512-27040

CM7#,8#

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-27030

CM7#,8#

 1
77641-27030

CM7#,8#,KM7#,8#

 1
Common parts
90119-08625
90119-08A46
90159-50219
90179-08038
90182-10002
90460-22002
90460-65002
90467-08043
90480-13006
90480-28002
90506-09004
90541-06033
91511-B0614
91641-H0822
93319-A4010
93383-16014
Linked diagrams
2211
8401

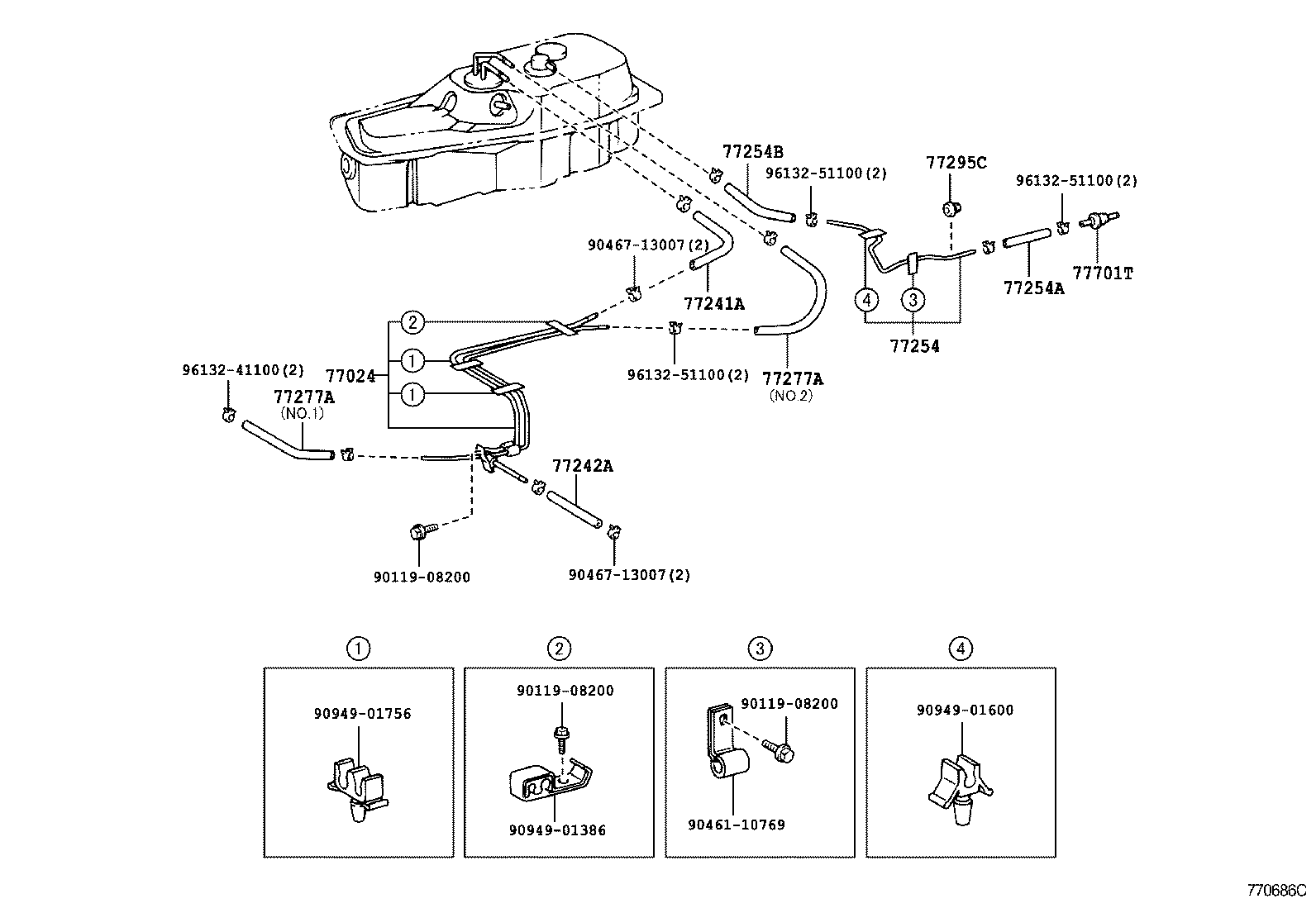

ILLUST NO. 2 OF 2(9906- )CM7#,8#

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ

diagram 77024 77241A 77242A 77254 77254A 77254B 77277A 77277A 77295C 77701T 9011908200 9011908200 9011908200 9046110769 9046713007 9046713007 9094901386 9094901600 9094901756 9613241100 9613251100 9613251100 9613251100
Part # Description Qty Price
77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT
77024-27050

CM7#,8#

 1
77024-27050

CM7#,8#

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95333-08020

CM7#,8#

*H,L=180,内径=7.6

 1
95333-08020

CM7#,8#

*H,L=180,内径=7.6

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95333-08030

CM7#,8#

*H,L=220,内径=7.6

 1
95333-08030

CM7#,8#

*H,L=220,内径=7.6

 1
77254 - TUBE, FUEL EMISSION, NO.1
77027-27050

CM7#,8#

 1
77027-27050

CM7#,8#

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95333-06020

CM7#,8#

*H,L=130

 1
95333-06020

CM7#,8#

*H,L=130

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95333-06030

CM7#,8#

*H,L=300

 1
95333-06030

CM7#,8#,KM7#,8#

*H,L=300

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23274-64030

CM7#,8#

NO.1

 1
95333-06030

CM7#,8#,KM7#,8#

*H,L=240,NO.2

 1
23274-64030

CM7#,8#

NO.1

 1
95333-06030

CM7#,8#

*H,L=240,NO.2

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23274-64030

CM7#,8#

NO.1

 1
95333-06030

CM7#,8#,KM7#,8#

*H,L=240,NO.2

 1
23274-64030

CM7#,8#

NO.1

 1
95333-06030

CM7#,8#

*H,L=240,NO.2

 1
77295C - GROMMET, FUEL TUBE
77295-27010

CM7#,8#

 1
77295-27010

CM7#,8#

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10067

CM7#,8#

 1
90917-10067

CM7#,8#

 1
Common parts
90119-08200
90461-10769
90467-13007
90949-01386
90949-01600
90949-01756
96132-41100
96132-51100
