CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )

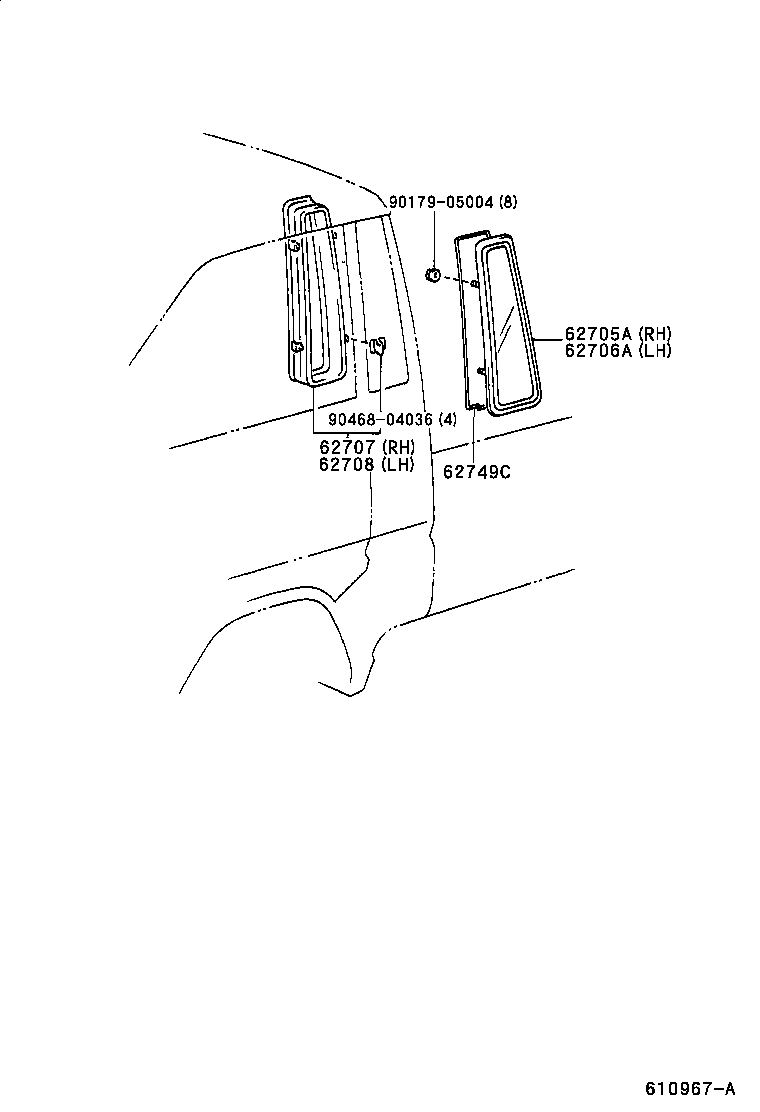

Click highlighted areas on diagram

diagram 62705A 62706A 62707 62708 62749C 9017905004 9046804036
Part # Description Qty Price
62705A - FRAME SUB-ASSY, QUARTER WINDOW, RH
62705-27020

CM7#,8#,KM7#,8#..DX

 1
62705-27020

CM7#,8#

 1
62706A - FRAME SUB-ASSY, QUARTER WINDOW, LH
62706-27020

CM7#,8#

 1
62706-27020

CM7#,8#,KM7#,8#..DX

 1
62707 - FRAME SUB-ASSY, QUARTER WINDOW, INNER RH
62707-95704B1

CM7#,8#,KM7#,8#..DX

MD.CHARCOAL,TRIM1#

 1
62707-95703B1

CM85..TS;CM7#,80,KM7#,8#

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1#

 1
62708 - FRAME SUB-ASSY, QUARTER WINDOW, INNER LH
62708-95704B1

CM7#,8#,KM7#,8#..DX

MD.CHARCOAL,TRIM1#

 1
62708-95703B1

CM85..TS;CM7#,80,KM7#,8#

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1#

 1
62749C - SEAL, QUARTER WINDOW, UPPER
62749-95705

CM7#,8#,KM7#,8#

 2
Common parts
90179-05004
90468-04036
