CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

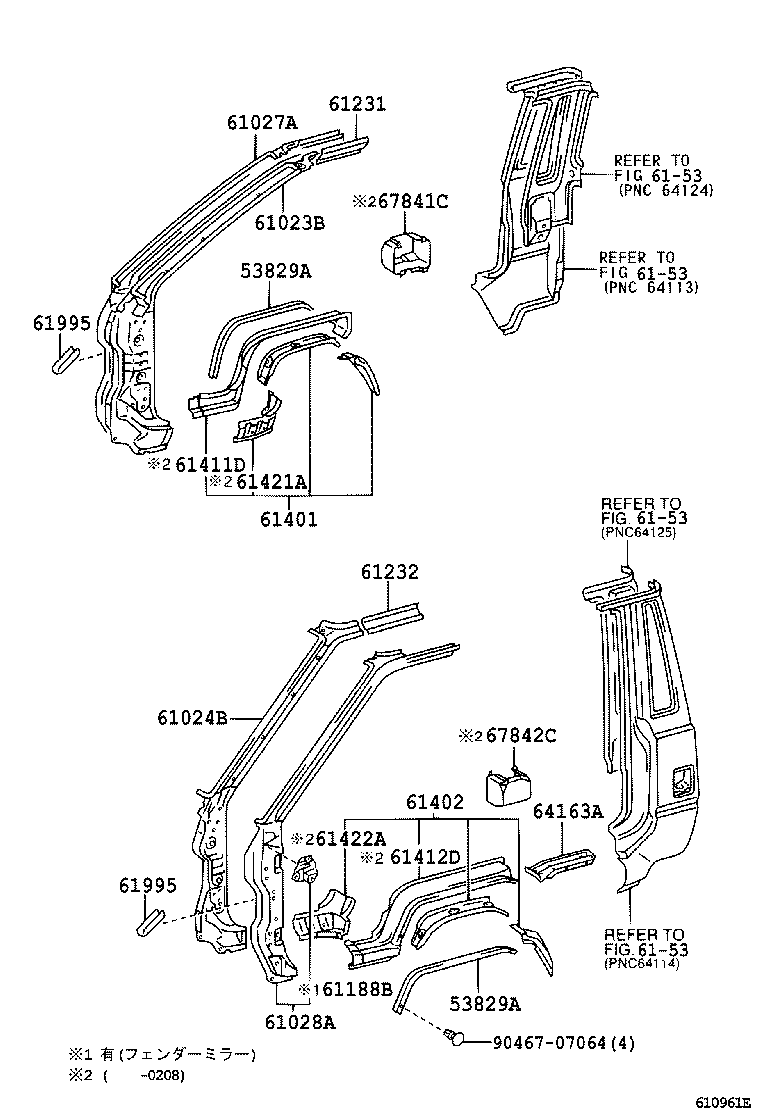

ILLUST NO. 1 OF 2(9906- )

Click highlighted areas on diagram

diagram 53829A 53829A 61023B 61024B 61027A 61028A 61188B 61231 61232 61401 61402 61411D 61412D 61421A 61422A 6153 6153 6153 6153 61995 61995 64163A 67841C 67842C 9046707064
Part # Description Qty Price
53829A - PROTECTOR, FRONT FENDER, LOWER
53839-95700

CM7#,8#

左側

 1
53839-95700

CM7#,8#,KM7#,8#

左側

 1
53829-95700

CM7#,8#,KM7#,8#

右側

 1
53829-95700

CM7#,8#

右側

 1
53829A - PROTECTOR, FRONT FENDER, LOWER
53839-95700

CM7#,8#

左側

 1
53839-95700

CM7#,8#,KM7#,8#

左側

 1
53829-95700

CM7#,8#,KM7#,8#

右側

 1
53829-95700

CM7#,8#

右側

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-27080

CM7#,8#

 1
61023-27080

CM7#,8#,KM7#,8#

 1
61023-27020

CM7#,8#,KM7#,8#

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-27110

CM7#,8#

 1
61024-27020

CM7#,8#,KM7#,8#

 1
61024-27110

CM7#,8#,KM7#,8#

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-27010

CM7#,8#,KM7#,8#

 1
61027-27070

CM7#,8#

 1
61027-27011

CM7#,8#,KM7#,8#

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-27110

CM7#,8#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
61028-27010

CM7#,8#,KM7#,8#

 1
61028-27011

CM7#,8#,KM7#,8#

 1
61028-27120

CM7#,8#,KM7#,8#..CBU,IV3

 1
61188B - RETAINER, MIRROR BASE, LH
61188-95700

CM7#,8#

 1
61188-95700

CM7#,8#,KM7#,8#..DX

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-95705

CM7#,8#,KM7#,8#

 1
61231-95705

CM7#,8#

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-95704

CM7#,8#

 1
61232-95704

CM7#,8#,KM7#,8#

 1
61401 - PANEL SUB-ASSY, FENDER, RH
61403-27020

CM7#,8#,KM7#,8#

 1
61403-27010

CM7#,8#

 1
61403-95701

CM7#,8#,KM7#,8#

 1
61402 - PANEL SUB-ASSY, FENDER, LH
61404-27020

CM7#,8#,KM7#,8#

 1
61404-27010

CM7#,8#

 1
61404-95702

CM7#,8#,KM7#,8#

 1
61411D - PANEL, FENDER, OUTER RH
61411-95702

CM7#,8#,KM7#,8#

 1
61412D - PANEL, FENDER, OUTER LH
61412-95702

CM7#,8#,KM7#,8#

 1
61421A - PANEL, FENDER, INNER RH
61421-95702

CM7#,8#,KM7#,8#

 1
61422A - PANEL, FENDER, INNER LH
61422-95702

CM7#,8#,KM7#,8#

 1
61995 - DAM, FRONT BODY PILLAR, OUTER
61995-95700

CM7#,8#,KM7#,8#

 2
61995-95700

CM7#,8#

 2
61995 - DAM, FRONT BODY PILLAR, OUTER
61995-95700

CM7#,8#,KM7#,8#

 2
61995-95700

CM7#,8#

 2
64163A - COVER, BACK CORNER, INNER
64164-95700

CM7#,8#

 1
64164-95700

CM7#,8#,KM7#,8#

 1
67841C - COVER, QUARTER SERVICE HOLE, RH
67841-27010

CM7#,8#,KM7#,8#

 1
67842C - COVER, QUARTER SERVICE HOLE, LH
67842-27010

CM7#,8#,KM7#,8#

 1
Common parts
90467-07064
Linked diagrams
6153

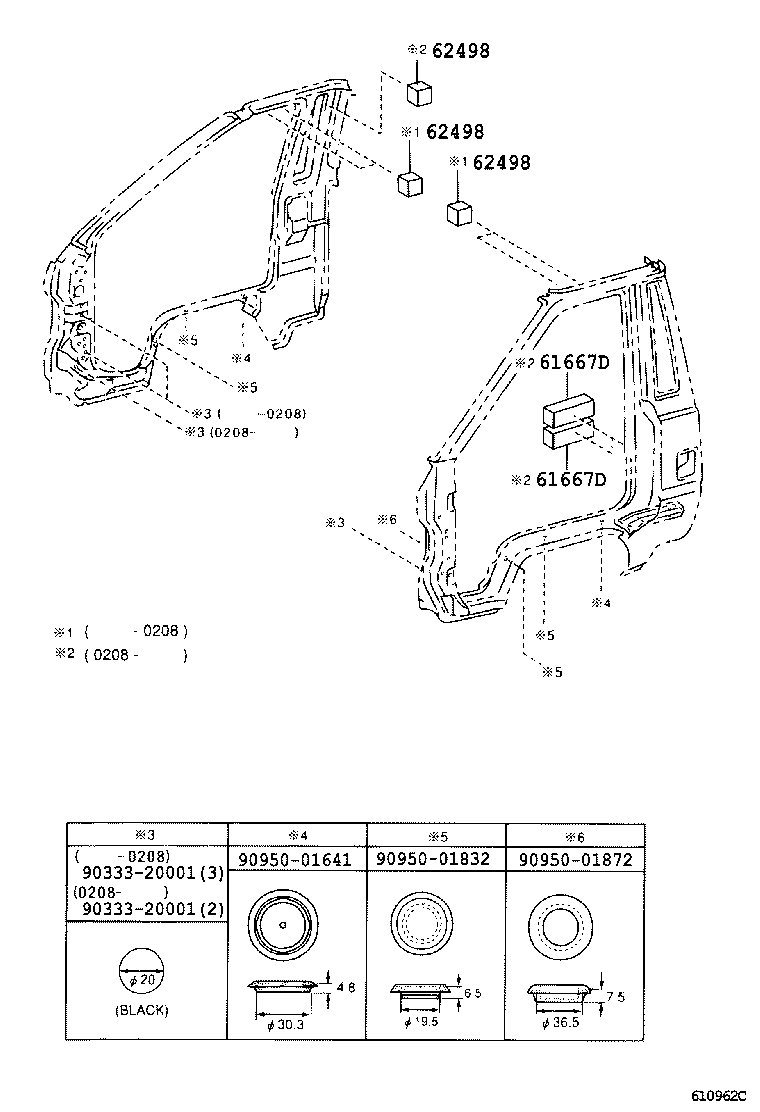

ILLUST NO. 2 OF 2(9906- )

Click highlighted areas on diagram

ﾌﾟﾗｸﾞ ﾎｰﾙ

diagram 61667D 61667D 62498 62498 62498 9033320001 9033320001 9095001641 9095001832 9095001872
Part # Description Qty Price
61667D - SEAL, QUARTER PANEL
61667-27010

CM7#,8#,KM7#,8#

 2
61667-27020

CM7#,8#

 2
61667D - SEAL, QUARTER PANEL
61667-27010

CM7#,8#,KM7#,8#

 2
61667-27020

CM7#,8#

 2
62498 - SEAL, ROOF SIDE, INNER REAR
62498-95700

CM7#,8#

 1
62498-95700

CM7#,8#,KM7#,8#

 4
62498-95700

CM7#,8#,KM7#,8#

 2
62498 - SEAL, ROOF SIDE, INNER REAR
62498-95700

CM7#,8#

 1
62498-95700

CM7#,8#,KM7#,8#

 4
62498-95700

CM7#,8#,KM7#,8#

 2
62498 - SEAL, ROOF SIDE, INNER REAR
62498-95700

CM7#,8#

 1
62498-95700

CM7#,8#,KM7#,8#

 4
62498-95700

CM7#,8#,KM7#,8#

 2
Common parts
90333-20001
90950-01641
90950-01832
90950-01872
