CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )

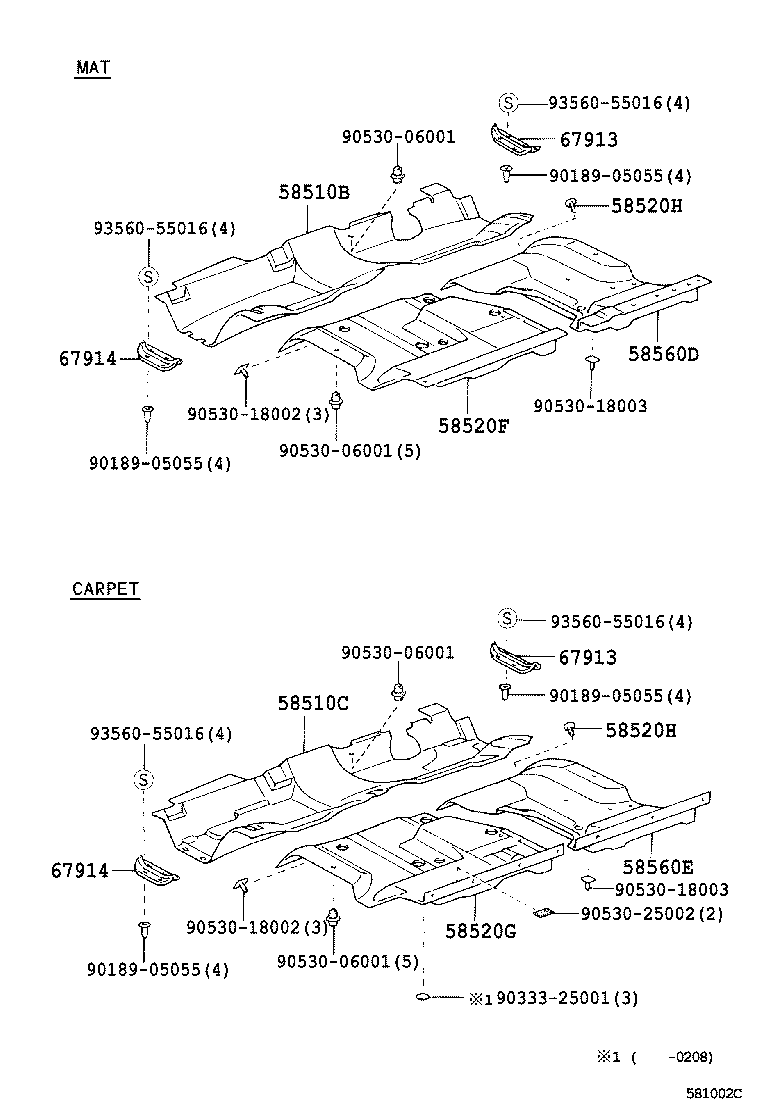

Click highlighted areas on diagram

diagram 58510B 58510C 58520F 58520G 58520H 58520H 58560D 58560E 67913 67913 67914 67914 9018905055 9018905055 9018905055 9018905055 9033325001 9053006001 9053006001 9053006001 9053006001 9053018002 9053018002 9053018003 9053018003 9053025002 9356055016 9356055016 9356055016 9356055016
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-27070B0

CM7#,8#,KM7#,8#..DX

DARK CHARCOAL,TRIM1#

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-27080B0

CM85..TS;CM7#,80,KM7#,8#

DARK CHARCOAL,TRIM1#

 1
58520F - MAT ASSY, ENGINE COVER
58520-27150B0

CM70,8#..JL;CM75..IV3,IV6

ｱﾘ(ﾌﾛﾝﾄｾﾊﾟﾚ-ﾄｼ-ﾄ (1+1 ﾀｲﾌﾟ)),DARK CHARCOAL,TRIM1#

 1
58520-27110B0

CM7#,8#

DARK CHARCOAL,TRIM1#

 1
58520-27110B0

CM7#..SJL;CM85..CBU,IV3

DARK CHARCOAL,TRIM1#

 1
58520G - CARPET ASSY, ENGINE COVER
58520-27130B0

CM7#,80;CM85..TS

DARK CHARCOAL,TRIM1#

 1
58520H - CLIP(FOR ENGINE COVER MAT)
90467-08056B1

CM7#,8#

DK.CHARCOAL,TRIM1#

 1
90467-08056B1

CM75,85;CM70..SJL

DK.CHARCOAL,TRIM1#

 1
58520H - CLIP(FOR ENGINE COVER MAT)
90467-08056B1

CM7#,8#

DK.CHARCOAL,TRIM1#

 1
90467-08056B1

CM75,85;CM70..SJL

DK.CHARCOAL,TRIM1#

 1
58560D - MAT ASSY, SEAT FLOOR
58560-27050B0

CM7#,8#

DARK CHARCOAL,TRIM1#

 1
58560-27110B0

CM70,8#..JL;CM75..IV3,IV6

ｱﾘ(ﾌﾛﾝﾄｾﾊﾟﾚ-ﾄｼ-ﾄ (1+1 ﾀｲﾌﾟ)),DARK CHARCOAL,TRIM1#

 1
58560-27050B0

CM7#..SJL;CM85..CBU,IV3

DARK CHARCOAL,TRIM1#

 1
58560E - CARPET ASSY, SEAT FLOOR
58560-27070B0

CM7#,80;CM85..TS

DARK CHARCOAL,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-27010B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
67913-95702B1

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-27010B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
67913-95702B1

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-95702B1

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
67914-27010B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-95702B1

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
67914-27010B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
Common parts
90189-05055
90333-25001
90530-06001
90530-18002
90530-18003
90530-25002
93560-55016
