CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9906- )

Click highlighted areas on diagram

diagram 55301 55305B 55306C 55330B 55351A 55394B 55443A 55445C 55445C 55445C 55445C 55445C 55445C 55448B 55506C 55506C 55506E 55506E 55512A 55512A 55611 73970A 86214B 9015460043 9017908102 9018305103 91511B0614 91621B0816 91621J0814 9162660825 9165160620 9356855016
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55300-27030B0

CM7#,8#,KM7#,8#

ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),DK.CHARCOAL,TRIM1#

 1
55300-27020B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
55305B - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1
55305-27010

CM7#,8#

 1
55305-27010

CM7#,8#,KM7#,8#

 1
55306C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.2
55306-27010

CM7#,8#

 1
55306-27010

CM7#,8#,KM7#,8#

 1
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-27010

CM7#,8#,KM7#,8#

 1
55330-27020

CM7#,8#,KM7#,8#

ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ)

 1
55330-27021

CM7#,8#

ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ)

 1
55330-27011

CM7#,8#,KM7#,8#

 1
55330-27021

CM7#,8#,KM7#,8#

ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ)

 1
55330-27011

CM7#,8#

 1
55351A - BRACE, INSTRUMENT PANEL TO FLOOR
55351-27010

CM7#,8#,KM7#,8#

 1
55351-27010

CM7#,8#

 1
55394B - BOLT, INSTRUMENT PANEL
55394-27010

CM7#,8#

 5
55394-27010

CM7#,8#,KM7#,8#

 5
55443A - COVER, INSTRUMENT PANEL BOX DOOR
55443-27010B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
55445C - PLATE, INSTRUMENT PANEL BOX
55445-27010

CM7#,8#

 3
55445-27010

CM7#,8#,KM7#,8#

 3
55445C - PLATE, INSTRUMENT PANEL BOX
55445-27010

CM7#,8#

 3
55445-27010

CM7#,8#,KM7#,8#

 3
55445C - PLATE, INSTRUMENT PANEL BOX
55445-27010

CM7#,8#

 3
55445-27010

CM7#,8#,KM7#,8#

 3
55445C - PLATE, INSTRUMENT PANEL BOX
55445-27010

CM7#,8#

 3
55445-27010

CM7#,8#,KM7#,8#

 3
55445C - PLATE, INSTRUMENT PANEL BOX
55445-27010

CM7#,8#

 3
55445-27010

CM7#,8#,KM7#,8#

 3
55445C - PLATE, INSTRUMENT PANEL BOX
55445-27010

CM7#,8#

 3
55445-27010

CM7#,8#,KM7#,8#

 3
55448B - COVER, OIL RESERVOIR TANK, RH
55448-27020B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
55506C - COMPARTMENT SUB-ASSY, GLOVE
55506-27030B0

CM7#,8#,KM7#,8#

ｱﾘ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),DK.CHARCOAL,TRIM1#

 1
55506-27020B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
55506C - COMPARTMENT SUB-ASSY, GLOVE
55506-27030B0

CM7#,8#,KM7#,8#

ｱﾘ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),DK.CHARCOAL,TRIM1#

 1
55506-27020B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
55506E - CLIP(FOR GLOVE COMPARTMENT)
90467-09145B0

CM7#,8#,KM7#,8#

BLUISH GRAY,TRIM1#

 1
55506E - CLIP(FOR GLOVE COMPARTMENT)
90467-09145B0

CM7#,8#,KM7#,8#

BLUISH GRAY,TRIM1#

 1
55512A - PLATE, GLOVE COMPARTMENT
55512-27020B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
55512A - PLATE, GLOVE COMPARTMENT
55512-27020B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
55611 - TRAY, INSTRUMENT PANEL UNDER
55611-27020B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-27010

CM7#,8#,KM7#,8#

 1
73970-27010

CM7#,8#

 1
86214B - BRACKET, RADIO EARTH
86214-27010

CM7#,8#,KM7#,8#

 1
86214-27010

CM7#,8#

 1
Common parts
90154-60043
90179-08102
90183-05103
91511-B0614
91621-B0816
91621-J0814
91626-60825
91651-60620
93568-55016

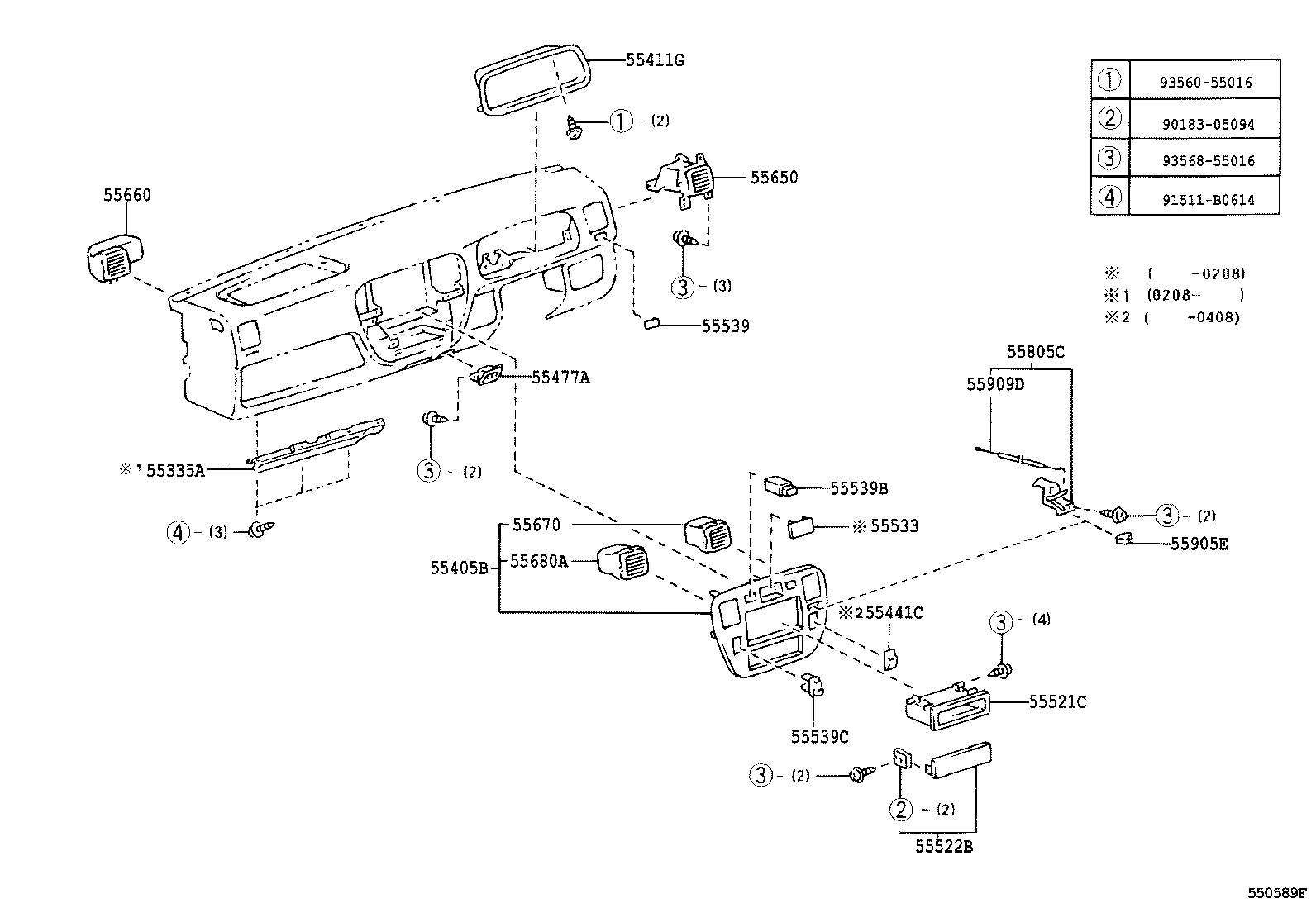

ILLUST NO. 2 OF 2(9906- )

Click highlighted areas on diagram

diagram 55335A 55405B 55411G 55441C 55477A 55521C 55522B 55533 55539 55539B 55539C 55650 55660 55670 55680A 55805C 55905E 55909D 9018305094 91511B0614 9356055016 9356855016
Part # Description Qty Price
55335A - REINFORCEMENT, INSTRUMENT PANEL, LWR LH
55335-27010

CM7#,8#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-27030C0

CM7#,8#,KM7#,8#

BLACK,TRIM1#

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-27020C0

CM7#,8#,KM7#,8#

BLACK,TRIM1#

 1
55441C - BOX, INSTRUMENT PANEL COIN
55441-20140C0

CM7#,8#,KM7#,8#

BLACK,TRIM1#

 1
55441-20140C0

CM7#,8#,KM7#,8#

BLACK,TRIM1#

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-27010

CM7#,8#

 1
55477-27010

CM7#,8#,KM7#,8#

 1
55521C - COVER, STEREO OPENING
55521-16030

CM7#,8#,KM7#,8#

 1
55521-16030

CM7#,8#

 1
55522B - COVER, RADIO TUNER OPENING
55522-20070

CM7#,8#,KM7#,8#

 1
55533 - COVER, AUTO CLOCK HOLE
55533-27010C0

CM7#,8#,KM7#,8#..DX

BLACK,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-95J00B3

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
55539-95J00

CM7#,8#..CBU,IV3

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-27010C0

CM7#,8#,KM7#,8#

BLACK,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-37010C0

CM7#,8#,KM7#,8#

BLACK,TRIM1#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-27020B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-27020B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-27010C0

CM7#,8#,KM7#,8#

BLACK,TRIM1#

 1
55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4
55680-27010C0

CM7#,8#,KM7#,8#

BLACK,TRIM1#

 1
55805C - BRACKET SUB-ASSY, AIR DAMPER CONTROL LEVER
55805-27020

CM7#,8#,KM7#,8#

 1
55805-27020

CM7#,8#

 1
55905E - KNOB SUB-ASSY, CONTROL
55905-27010C0

CM7#,8#,KM7#,8#

BLACK,TRIM1#

 1
55909D - CABLE SUB-ASSY, BOOST VENTILATOR CONTROL
55909-27030

CM7#,8#,KM7#,8#

 1
55909-27030

CM7#,8#

 1
Common parts
90183-05094
91511-B0614
93560-55016
93568-55016
