CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)

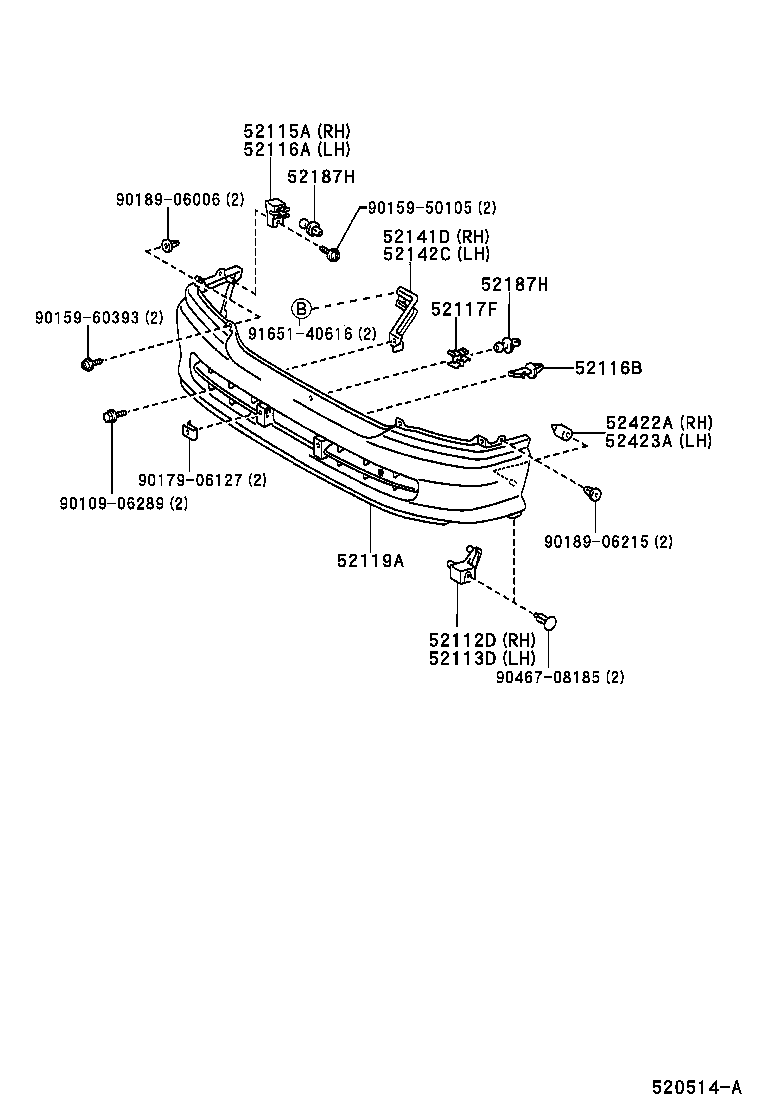

Click highlighted areas on diagram

diagram 52112D 52113D 52115A 52116A 52116B 52117F 52119A 52141D 52142C 52187H 52187H 52422A 52423A 9010906289 9015950105 9015960393 9017906127 9018906006 9018906215 9046708185 9165140616
Part # Description Qty Price
52112D - EXTENSION, FRONT BUMPER, RH
52112-27010

CM7#,8#,KM7#,8#

 1
52112-27010

CM7#,8#,KM7#,8#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-27010

CM7#,8#,KM7#,8#

 1
52113-27010

CM7#,8#,KM7#,8#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-27010

CM7#,8#,KM7#,8#

 1
52115-27010

CM7#,8#,KM7#,8#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-27010

CM7#,8#,KM7#,8#

 1
52115-27010

CM7#,8#,KM7#,8#

 1
52116B - RETAINER, FRONT BUMPER
52116-27010

CM7#,8#,KM7#,8#

 2
52116-27010

CM7#,8#,KM7#,8#

 2
52117F - SUPPORT, FRONT BUMPER, UPPER
52117-27010

CM7#,8#,KM7#,8#

 1
52117-27010

CM7#,8#,KM7#,8#

 1
52119A - COVER, FRONT BUMPER
52119-27060B0

KM70..GUT;KM70,80..3SO;CM7#,8#,KM75,85

GRAY,素地 ﾊﾞﾝﾊﾟ

 1
52141D - STAY, FRONT BUMPER, RH
52141-27050

CM7#,8#,KM7#,8#

 1
52141-27040

CM7#,8#,KM7#,8#

 1
52142C - STAY, FRONT BUMPER, LH
52142-27030

CM7#,8#,KM7#,8#

 1
52142-27020

CM7#,8#,KM7#,8#

 1
52187H - GUIDE, FRONT BUMPER LOCATION
52187-45010

CM7#,8#,KM7#,8#

 3
52187-45010

CM7#,8#,KM7#,8#

 3
52187H - GUIDE, FRONT BUMPER LOCATION
52187-45010

CM7#,8#,KM7#,8#

 3
52187-45010

CM7#,8#,KM7#,8#

 3
52422A - PAD, FRONT BUMPER, RH
52421-27010

CM7#,8#,KM7#,8#

 1
52421-27010

CM7#,8#,KM7#,8#

 1
52423A - PAD, FRONT BUMPER, LH
52421-27010

CM7#,8#,KM7#,8#

 1
52421-27010

CM7#,8#,KM7#,8#

 1
Common parts
90109-06289
90159-50105
90159-60393
90179-06127
90189-06006
90189-06215
90467-08185
91651-40616

(0208- )

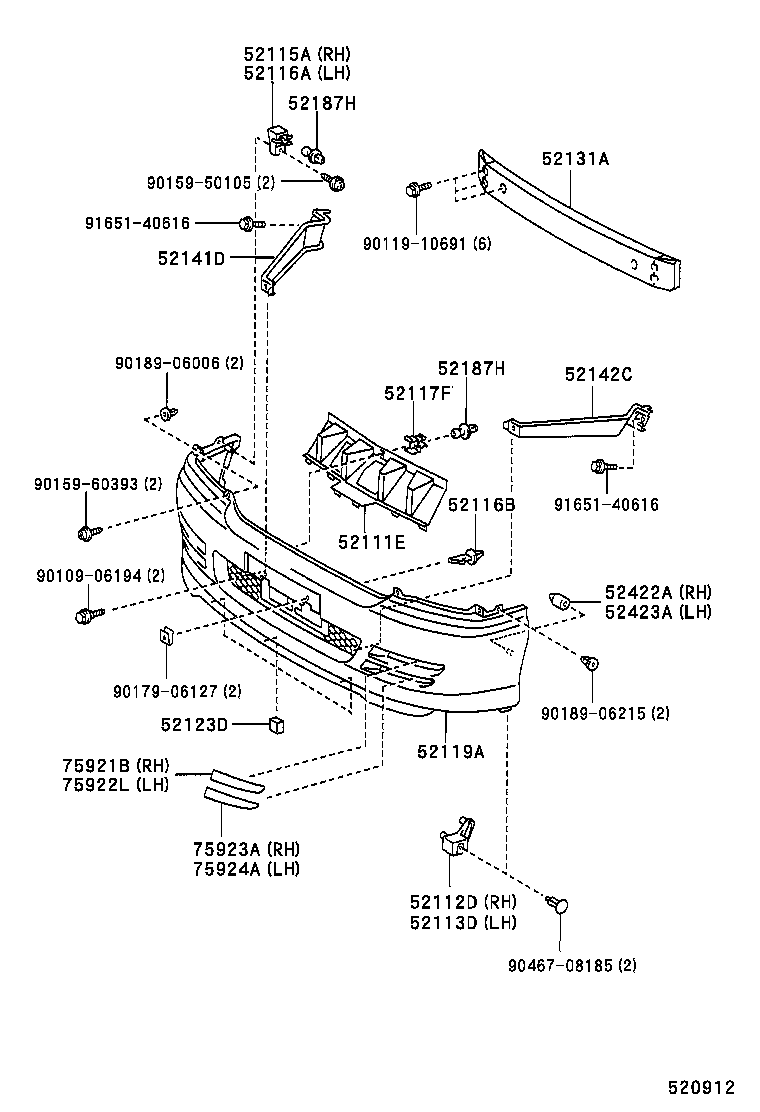

Click highlighted areas on diagram

diagram 52111E 52112D 52113D 52115A 52116A 52116B 52117F 52119A 52123D 52131A 52141D 52142C 52187H 52187H 52422A 52423A 75921B 75922L 75923A 75924A 9010906194 9011910691 9015950105 9015960393 9017906127 9018906006 9018906215 9046708185 9165140616 9165140616
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-27020

CM7#,8#,KM7#,8#

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-27010

CM7#,8#,KM7#,8#

 1
52112-27010

CM7#,8#,KM7#,8#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-27010

CM7#,8#,KM7#,8#

 1
52113-27010

CM7#,8#,KM7#,8#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-27010

CM7#,8#,KM7#,8#

 1
52115-27010

CM7#,8#,KM7#,8#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-27010

CM7#,8#,KM7#,8#

 1
52115-27010

CM7#,8#,KM7#,8#

 1
52116B - RETAINER, FRONT BUMPER
52116-27010

CM7#,8#,KM7#,8#

 2
52116-27010

CM7#,8#,KM7#,8#

 2
52117F - SUPPORT, FRONT BUMPER, UPPER
52117-27010

CM7#,8#,KM7#,8#

 1
52117-27010

CM7#,8#,KM7#,8#

 1
52119A - COVER, FRONT BUMPER
52119-27060B0

KM70..GUT;KM70,80..3SO;CM7#,8#,KM75,85

GRAY,素地 ﾊﾞﾝﾊﾟ

 1
52123D - PLATE, FRONT BUMPER REINFORCEMENT
52123-27010

CM7#,8#,KM7#,8#

 3
52131A - REINFORCEMENT, FRONT BUMPER
52131-27020

CM7#,8#

 1
52141D - STAY, FRONT BUMPER, RH
52141-27050

CM7#,8#,KM7#,8#

 1
52141-27040

CM7#,8#,KM7#,8#

 1
52142C - STAY, FRONT BUMPER, LH
52142-27030

CM7#,8#,KM7#,8#

 1
52142-27020

CM7#,8#,KM7#,8#

 1
52187H - GUIDE, FRONT BUMPER LOCATION
52187-45010

CM7#,8#,KM7#,8#

 3
52187-45010

CM7#,8#,KM7#,8#

 3
52187H - GUIDE, FRONT BUMPER LOCATION
52187-45010

CM7#,8#,KM7#,8#

 3
52187-45010

CM7#,8#,KM7#,8#

 3
52422A - PAD, FRONT BUMPER, RH
52421-27010

CM7#,8#,KM7#,8#

 1
52421-27010

CM7#,8#,KM7#,8#

 1
52423A - PAD, FRONT BUMPER, LH
52421-27010

CM7#,8#,KM7#,8#

 1
52421-27010

CM7#,8#,KM7#,8#

 1
Common parts
90109-06194
90119-10691
90159-50105
90159-60393
90179-06127
90189-06006
90189-06215
90467-08185
91651-40616
