CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)

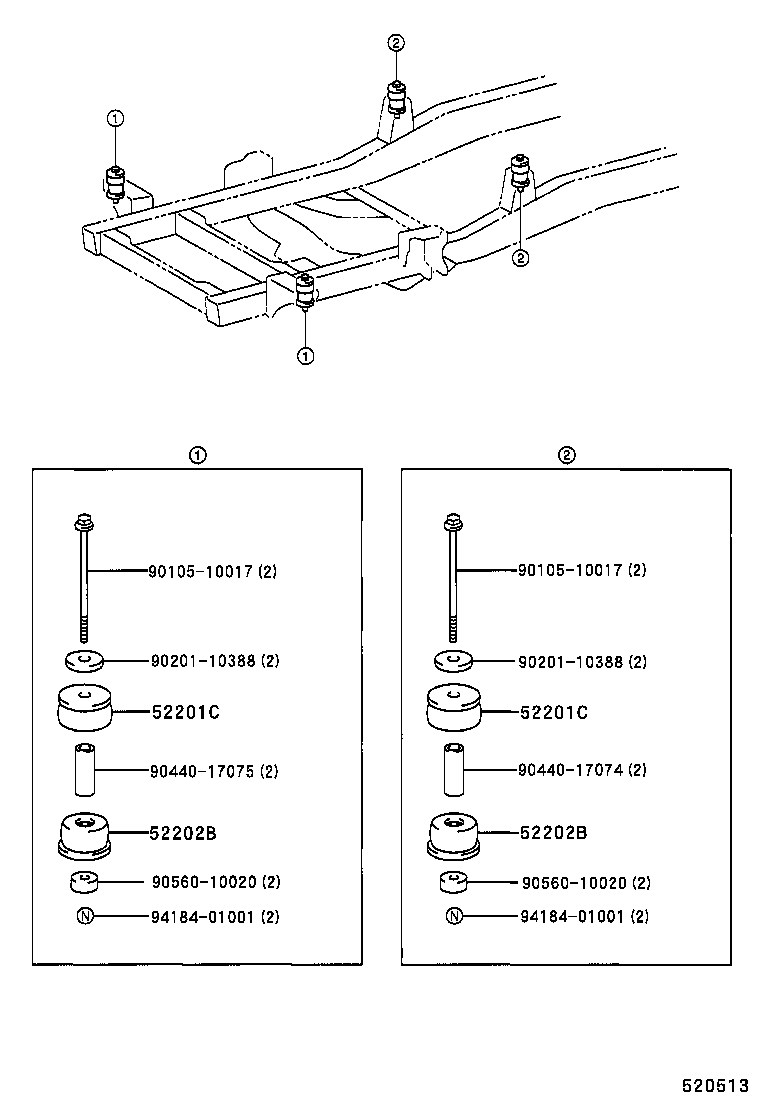

Click highlighted areas on diagram

diagram 52201C 52201C 52202B 52202B 9010510017 9010510017 9020110388 9020110388 9044017074 9044017075 9056010020 9056010020 9418401001 9418401001
Part # Description Qty Price
52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52201-27030

CM7#,8#,KM7#,8#

 4
52201-27030

CM7#,8#

NO.2

 2
52201-25040

CM7#,8#

NO.1

 2
52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52201-27030

CM7#,8#,KM7#,8#

 4
52201-27030

CM7#,8#

NO.2

 2
52201-25040

CM7#,8#

NO.1

 2
52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52202-27060

CM7#,8#,KM7#,8#

 4
52202-25040

CM7#,8#

NO.1

 2
52202-27060

CM7#,8#

NO.2

 2
52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52202-27060

CM7#,8#,KM7#,8#

 4
52202-25040

CM7#,8#

NO.1

 2
52202-27060

CM7#,8#

NO.2

 2
Common parts
90105-10017
90201-10388
90440-17074
90440-17075
90560-10020
94184-01001

(0208- )

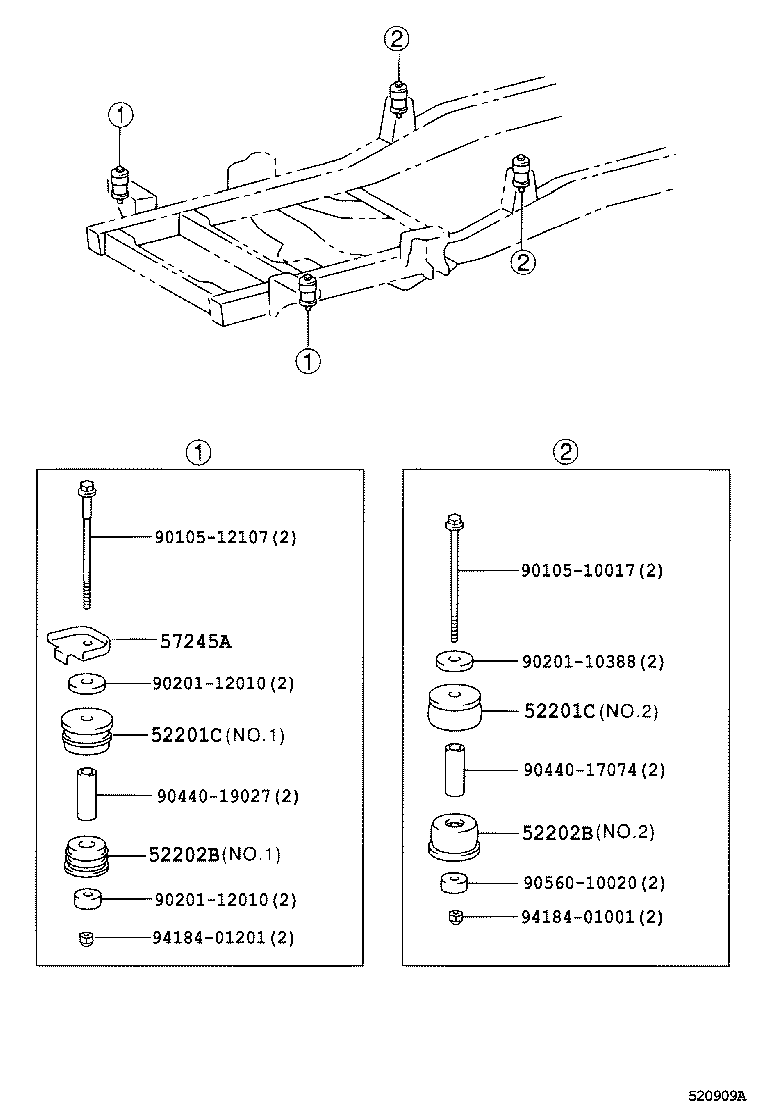

Click highlighted areas on diagram

diagram 52201C 52201C 52202B 52202B 57245A 9010510017 9010512107 9020110388 9020112010 9020112010 9044017074 9044019027 9056010020 9418401001 9418401201
Part # Description Qty Price
52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52201-27030

CM7#,8#,KM7#,8#

 4
52201-27030

CM7#,8#

NO.2

 2
52201-25040

CM7#,8#

NO.1

 2
52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52201-27030

CM7#,8#,KM7#,8#

 4
52201-27030

CM7#,8#

NO.2

 2
52201-25040

CM7#,8#

NO.1

 2
52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52202-27060

CM7#,8#,KM7#,8#

 4
52202-25040

CM7#,8#

NO.1

 2
52202-27060

CM7#,8#

NO.2

 2
52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52202-27060

CM7#,8#,KM7#,8#

 4
52202-25040

CM7#,8#

NO.1

 2
52202-27060

CM7#,8#

NO.2

 2
57245A - PLATE, ANCHOR SIDE STRENGTH
57245-27010

CM7#,8#

 2
Common parts
90105-10017
90105-12107
90201-10388
90201-12010
90440-17074
90440-19027
90560-10020
94184-01001
94184-01201
