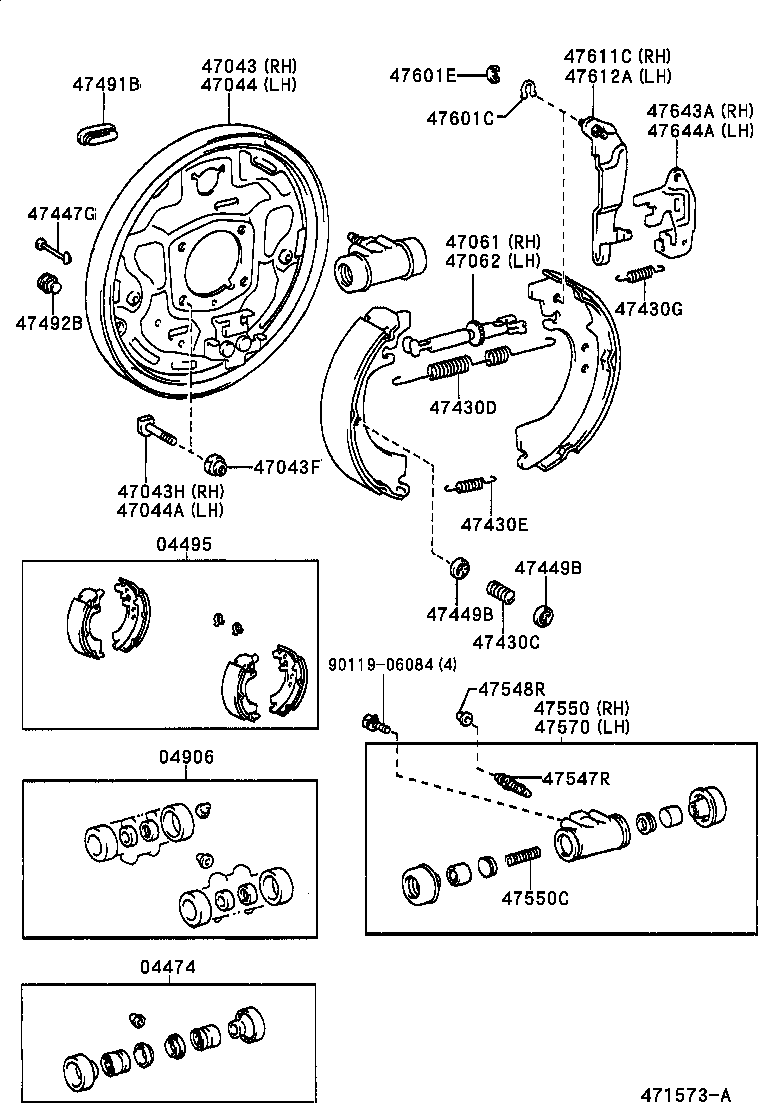

CM75-TLQDE3 (1999)
Toyota Lite/Townace
(9906-0208)CM7#,KM7# ; (0208- )CM7#,KM7#..CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-22030 |
CM7#,KM7# |
2 | ||
| 04474-22040 |
CM7#,KM7#..CBU,IV3 |
2 | ||
| 04474-28020 |
CM75,8#,KM75,8#..JL |
2 | ||
| 04474-28030 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-28120 |
CM75,8#..JL ﾏｰｸ NBK LN512 |
1 | ||
| 04495-27060 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 04495-44020 |
CM7#..CBU,IV3 ﾏｰｸ NBK LN512 |
1 | ||
| 04495-44010 |
CM7#,KM7# ﾏｰｸ NBK LN512 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-28020 |
CM75,8#..JL |
1 | ||
| 04906-22040 |
CM7#,KM7# |
1 | ||
| 04906-22040 |
CM7#..CBU,IV3 |
1 | ||
| 04906-28030 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-28130 |
CM7#..CBU,IV3 |
1 | ||
| 47043-28130 |
CM7#,KM7# |
1 | ||
| 47043-35061 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47043-28100 |
CM75,8#..JL |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10150 |
CM7#,8#,KM7#,8# |
8 | ||
| 90179-10067 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
8 | ||
| 90179-10150 |
CM7#,8# |
8 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 42184-28010 |
CM7#,8#,KM7#,8# |
4 | ||
| 42184-28010 |
CM7#,8# |
4 | ||
| 90114-10002 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-28130 |
CM7#,KM7# |
1 | ||
| 47044-35051 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47044-28100 |
CM75,8#..JL |
1 | ||
| 47044-28130 |
CM7#..CBU,IV3 |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10002 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
4 | ||
| 42184-28010 |
CM7#,8# |
4 | ||
| 42184-28010 |
CM7#,8#,KM7#,8# |
4 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-35020 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47061-43010 |
CM7#..CBU,IV3 |
1 | ||
| 47062-30030 |
CM75,8#..JL |
1 | ||
| 47061-43010 |
CM7#,KM7# |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47061-30030 |
CM75,8#..JL |
1 | ||
| 47062-43010 |
CM7#,KM7# |
1 | ||
| 47062-43010 |
CM7#..CBU,IV3 |
1 | ||
| 47062-35020 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20604 |
CM7#,8#,KM7#,8# |
4 | ||
| 90501-20604 |
CM7#,8# |
4 | ||
| 90501-20756 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-20005 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 90506-29008 |
CM7#..CBU,IV3 右側 |
1 | ||
| 90506-29009 |
CM7#,KM7# 左側 |
1 | ||
| 90506-29008 |
CM7#,KM7# 右側 |
1 | ||
| 90506-29009 |
CM7#..CBU,IV3 左側 |
1 | ||
| 90506-23003 |
CM75,8#..JL |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12015 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 90506-18076 |
CM7#,8# |
2 | ||
| 90506-18076 |
CM7#,8#,KM7#,8# |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-12480 |
CM75,8#..JL |
2 | ||
| 90506-12011 |
CM7#,KM7# |
2 | ||
| 90506-12011 |
CM7#..CBU,IV3 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20030 |
CM7#..CBU,IV3 |
4 | ||
| 47447-30020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
4 | ||
| 47447-30020 |
CM75,8#..JL |
4 | ||
| 47447-20030 |
CM7#,KM7# |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
CM7#,8# |
8 | ||
| 47449-30020 |
CM7#,8#,KM7#,8# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
CM7#,8# |
8 | ||
| 47449-30020 |
CM7#,8#,KM7#,8# |
8 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
CM7#,8#,KM7#,8# |
2 | ||
| 47491-20011 |
CM7#,8# |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
CM7#,8#,KM7#,8# |
2 | ||
| 47492-28010 |
CM7#,8# |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-26010 |
CM7#..CBU,IV3 |
2 | ||
| 47547-12010 |
CM75,8#..JL |
2 | ||
| 47547-26010 |
CM7#,KM7# |
2 | ||
| 47547-20030 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
CM7#,8# |
2 | ||
| 31478-30010 |
CM7#,8#,KM7#,8# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-22100 |
CM7#,KM7# |
1 | ||
| 47550-28070 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09079 |
CM7#,KM7# |
2 | ||
| 90501-09079 |
CM7#..CBU,IV3 |
2 | ||
| 90029-60011 |
CM75,8#..JL |
2 | ||
| 90029-60011 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-22100 |
CM7#,KM7# |
1 | ||
| 47550-28070 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
CM7#,8# 厚さ=1.2 |
2 | ||
| 90213-06013 |
CM7#,KM7# 厚さ=1.2 |
2 | ||
| 90213-07010 |
CM75,85..IV3 厚さ=1.6,ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 90213-07010 |
CM75,8#..JL 厚さ=1.6 |
2 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
CM7#,KM7#;CM85..IV3 |
2 | ||
| 96160-00500 |
CM7#..CBU,IV3 |
2 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-35020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47611-43010 |
CM7#..CBU,IV3 |
1 | ||
| 47611-43010 |
CM7#,KM7# |
1 | ||
| 47601-28010 |
CM75,8#..JL |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-43010 |
CM7#,KM7# |
1 | ||
| 47602-28010 |
CM75,8#..JL |
1 | ||
| 47612-35020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47612-43010 |
CM7#..CBU,IV3 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-33010 |
CM7#,KM7# |
1 | ||
| 47643-35020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47643-33010 |
CM7#..CBU,IV3 |
1 | ||
| 47644-30010 |
CM75,8#..JL |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-33010 |
CM7#,KM7# |
1 | ||
| 47643-30010 |
CM75,8#..JL |
1 | ||
| 47644-35020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47644-33010 |
CM7#..CBU,IV3 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||

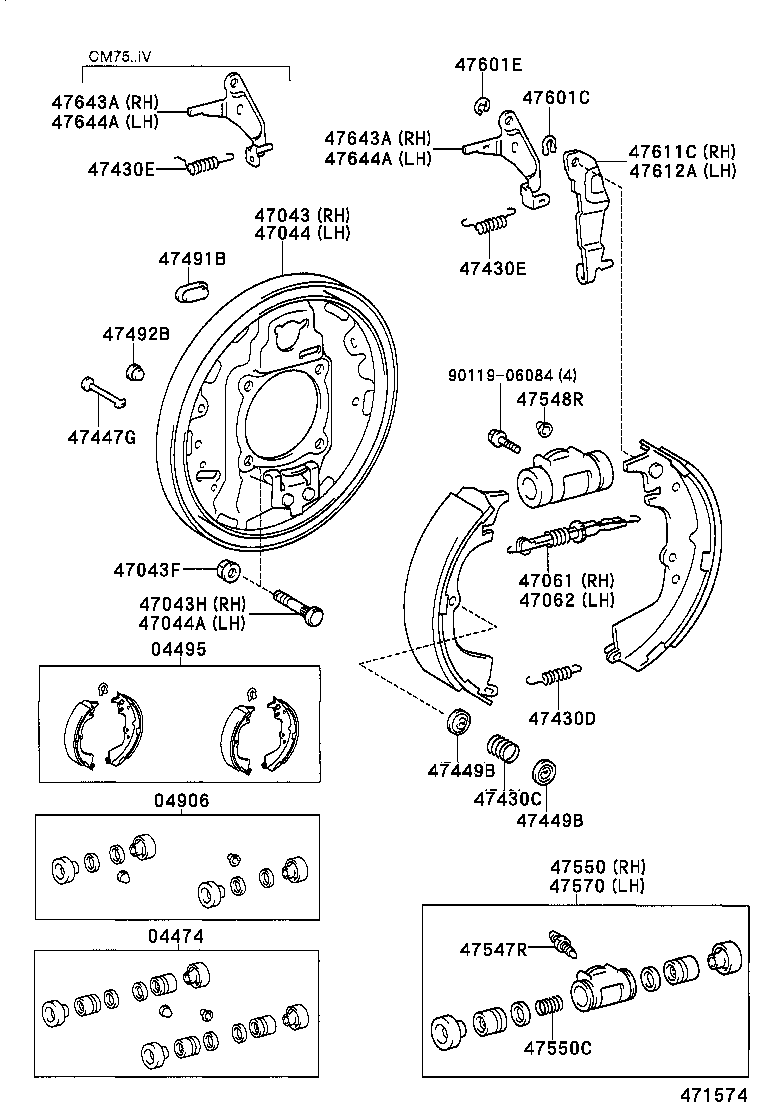

(9906-0208)CM75,85..IV3
ﾔﾏﾄORｺｳｼﾖｾﾝﾖｳｼﾔｼOR(ﾔﾏﾄ&ｺｳｼﾖｾﾝﾖｳｼﾔｼ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-22030 |
CM7#,KM7# |
2 | ||
| 04474-22040 |
CM7#,KM7#..CBU,IV3 |
2 | ||
| 04474-28020 |
CM75,8#,KM75,8#..JL |
2 | ||
| 04474-28030 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-28120 |
CM75,8#..JL ﾏｰｸ NBK LN512 |
1 | ||
| 04495-27060 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 04495-44020 |
CM7#..CBU,IV3 ﾏｰｸ NBK LN512 |
1 | ||
| 04495-44010 |
CM7#,KM7# ﾏｰｸ NBK LN512 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-28020 |
CM75,8#..JL |
1 | ||
| 04906-22040 |
CM7#,KM7# |
1 | ||
| 04906-22040 |
CM7#..CBU,IV3 |
1 | ||
| 04906-28030 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-28130 |
CM7#..CBU,IV3 |
1 | ||
| 47043-28130 |
CM7#,KM7# |
1 | ||
| 47043-35061 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47043-28100 |
CM75,8#..JL |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10150 |
CM7#,8#,KM7#,8# |
8 | ||
| 90179-10067 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
8 | ||
| 90179-10150 |
CM7#,8# |
8 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 42184-28010 |
CM7#,8#,KM7#,8# |
4 | ||
| 42184-28010 |
CM7#,8# |
4 | ||
| 90114-10002 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-28130 |
CM7#,KM7# |
1 | ||
| 47044-35051 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47044-28100 |
CM75,8#..JL |
1 | ||
| 47044-28130 |
CM7#..CBU,IV3 |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10002 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
4 | ||
| 42184-28010 |
CM7#,8# |
4 | ||
| 42184-28010 |
CM7#,8#,KM7#,8# |
4 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-35020 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47061-43010 |
CM7#..CBU,IV3 |
1 | ||
| 47062-30030 |
CM75,8#..JL |
1 | ||
| 47061-43010 |
CM7#,KM7# |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47061-30030 |
CM75,8#..JL |
1 | ||
| 47062-43010 |
CM7#,KM7# |
1 | ||
| 47062-43010 |
CM7#..CBU,IV3 |
1 | ||
| 47062-35020 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20604 |
CM7#,8#,KM7#,8# |
4 | ||
| 90501-20604 |
CM7#,8# |
4 | ||
| 90501-20756 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-20005 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 90506-29008 |
CM7#..CBU,IV3 右側 |
1 | ||
| 90506-29009 |
CM7#,KM7# 左側 |
1 | ||
| 90506-29008 |
CM7#,KM7# 右側 |
1 | ||
| 90506-29009 |
CM7#..CBU,IV3 左側 |
1 | ||
| 90506-23003 |
CM75,8#..JL |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12015 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 90506-18076 |
CM7#,8# |
2 | ||
| 90506-18076 |
CM7#,8#,KM7#,8# |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12015 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 90506-18076 |
CM7#,8# |
2 | ||
| 90506-18076 |
CM7#,8#,KM7#,8# |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20030 |
CM7#..CBU,IV3 |
4 | ||
| 47447-30020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
4 | ||
| 47447-30020 |
CM75,8#..JL |
4 | ||
| 47447-20030 |
CM7#,KM7# |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
CM7#,8# |
8 | ||
| 47449-30020 |
CM7#,8#,KM7#,8# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
CM7#,8# |
8 | ||
| 47449-30020 |
CM7#,8#,KM7#,8# |
8 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
CM7#,8#,KM7#,8# |
2 | ||
| 47491-20011 |
CM7#,8# |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
CM7#,8#,KM7#,8# |
2 | ||
| 47492-28010 |
CM7#,8# |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-26010 |
CM7#..CBU,IV3 |
2 | ||
| 47547-12010 |
CM75,8#..JL |
2 | ||
| 47547-26010 |
CM7#,KM7# |
2 | ||
| 47547-20030 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
CM7#,8# |
2 | ||
| 31478-30010 |
CM7#,8#,KM7#,8# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-22100 |
CM7#,KM7# |
1 | ||
| 47550-28070 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09079 |
CM7#,KM7# |
2 | ||
| 90501-09079 |
CM7#..CBU,IV3 |
2 | ||
| 90029-60011 |
CM75,8#..JL |
2 | ||
| 90029-60011 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-22100 |
CM7#,KM7# |
1 | ||
| 47550-28070 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
CM7#,8# 厚さ=1.2 |
2 | ||
| 90213-06013 |
CM7#,KM7# 厚さ=1.2 |
2 | ||
| 90213-07010 |
CM75,85..IV3 厚さ=1.6,ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 90213-07010 |
CM75,8#..JL 厚さ=1.6 |
2 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
CM7#,KM7#;CM85..IV3 |
2 | ||
| 96160-00500 |
CM7#..CBU,IV3 |
2 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-35020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47611-43010 |
CM7#..CBU,IV3 |
1 | ||
| 47611-43010 |
CM7#,KM7# |
1 | ||
| 47601-28010 |
CM75,8#..JL |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-43010 |
CM7#,KM7# |
1 | ||
| 47602-28010 |
CM75,8#..JL |
1 | ||
| 47612-35020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47612-43010 |
CM7#..CBU,IV3 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-33010 |
CM7#,KM7# |
1 | ||
| 47643-35020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47643-33010 |
CM7#..CBU,IV3 |
1 | ||
| 47644-30010 |
CM75,8#..JL |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-33010 |
CM7#,KM7# |
1 | ||
| 47643-35020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47643-33010 |
CM7#..CBU,IV3 |
1 | ||
| 47644-30010 |
CM75,8#..JL |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-33010 |
CM7#,KM7# |
1 | ||
| 47643-30010 |
CM75,8#..JL |
1 | ||
| 47644-35020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47644-33010 |
CM7#..CBU,IV3 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-33010 |
CM7#,KM7# |
1 | ||
| 47643-30010 |
CM75,8#..JL |
1 | ||
| 47644-35020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47644-33010 |
CM7#..CBU,IV3 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
(9906-0208)CM8#,KM8# ; (0208- )CM75,8#,KM75,8#..JL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-22030 |
CM7#,KM7# |
2 | ||
| 04474-22040 |
CM7#,KM7#..CBU,IV3 |
2 | ||
| 04474-28020 |
CM75,8#,KM75,8#..JL |
2 | ||
| 04474-28030 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-28120 |
CM75,8#..JL ﾏｰｸ NBK LN512 |
1 | ||
| 04495-27060 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 04495-44020 |
CM7#..CBU,IV3 ﾏｰｸ NBK LN512 |
1 | ||
| 04495-44010 |
CM7#,KM7# ﾏｰｸ NBK LN512 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-28020 |
CM75,8#..JL |
1 | ||
| 04906-22040 |
CM7#,KM7# |
1 | ||
| 04906-22040 |
CM7#..CBU,IV3 |
1 | ||
| 04906-28030 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-28130 |
CM7#..CBU,IV3 |
1 | ||
| 47043-28130 |
CM7#,KM7# |
1 | ||
| 47043-35061 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47043-28100 |
CM75,8#..JL |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10150 |
CM7#,8#,KM7#,8# |
8 | ||
| 90179-10067 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
8 | ||
| 90179-10150 |
CM7#,8# |
8 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 42184-28010 |
CM7#,8#,KM7#,8# |
4 | ||
| 42184-28010 |
CM7#,8# |
4 | ||
| 90114-10002 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-28130 |
CM7#,KM7# |
1 | ||
| 47044-35051 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47044-28100 |
CM75,8#..JL |
1 | ||
| 47044-28130 |
CM7#..CBU,IV3 |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10002 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
4 | ||
| 42184-28010 |
CM7#,8# |
4 | ||
| 42184-28010 |
CM7#,8#,KM7#,8# |
4 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-35020 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47061-43010 |
CM7#..CBU,IV3 |
1 | ||
| 47062-30030 |
CM75,8#..JL |
1 | ||
| 47061-43010 |
CM7#,KM7# |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47061-30030 |
CM75,8#..JL |
1 | ||
| 47062-43010 |
CM7#,KM7# |
1 | ||
| 47062-43010 |
CM7#..CBU,IV3 |
1 | ||
| 47062-35020 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20604 |
CM7#,8#,KM7#,8# |
4 | ||
| 90501-20604 |
CM7#,8# |
4 | ||
| 90501-20756 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-20005 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 90506-29008 |
CM7#..CBU,IV3 右側 |
1 | ||
| 90506-29009 |
CM7#,KM7# 左側 |
1 | ||
| 90506-29008 |
CM7#,KM7# 右側 |
1 | ||
| 90506-29009 |
CM7#..CBU,IV3 左側 |
1 | ||
| 90506-23003 |
CM75,8#..JL |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12015 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 90506-18076 |
CM7#,8# |
2 | ||
| 90506-18076 |
CM7#,8#,KM7#,8# |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-12480 |
CM75,8#..JL |
2 | ||
| 90506-12011 |
CM7#,KM7# |
2 | ||
| 90506-12011 |
CM7#..CBU,IV3 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20030 |
CM7#..CBU,IV3 |
4 | ||
| 47447-30020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
4 | ||
| 47447-30020 |
CM75,8#..JL |
4 | ||
| 47447-20030 |
CM7#,KM7# |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
CM7#,8# |
8 | ||
| 47449-30020 |
CM7#,8#,KM7#,8# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
CM7#,8# |
8 | ||
| 47449-30020 |
CM7#,8#,KM7#,8# |
8 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
CM7#,8#,KM7#,8# |
2 | ||
| 47491-20011 |
CM7#,8# |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
CM7#,8#,KM7#,8# |
2 | ||
| 47492-28010 |
CM7#,8# |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-26010 |
CM7#..CBU,IV3 |
2 | ||
| 47547-12010 |
CM75,8#..JL |
2 | ||
| 47547-26010 |
CM7#,KM7# |
2 | ||
| 47547-20030 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
CM7#,8# |
2 | ||
| 31478-30010 |
CM7#,8#,KM7#,8# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-22100 |
CM7#,KM7# |
1 | ||
| 47550-28070 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09079 |
CM7#,KM7# |
2 | ||
| 90501-09079 |
CM7#..CBU,IV3 |
2 | ||
| 90029-60011 |
CM75,8#..JL |
2 | ||
| 90029-60011 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-22100 |
CM7#,KM7# |
1 | ||
| 47550-28070 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47601B - SHIM, REAR PARKING BRAKE SHOE LEVER | ||||
| 90564-09184 |
CM75,8#..JL 厚さ=0.3 |
1 | ||
| 90564-09003 |
CM75,8#..JL 厚さ=0.5 |
1 | ||
| 90564-09002 |
CM75,8#..JL 厚さ=0.4 |
1 | ||
| 90564-09001 |
CM75,8#..JL 厚さ=0.2 |
1 | ||
| 90564-09186 |
CM75,8#..JL 厚さ=0.9 |
1 | ||
| 90564-09185 |
CM75,8#..JL 厚さ=0.6 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
CM7#,8# 厚さ=1.2 |
2 | ||
| 90213-06013 |
CM7#,KM7# 厚さ=1.2 |
2 | ||
| 90213-07010 |
CM75,85..IV3 厚さ=1.6,ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 90213-07010 |
CM75,8#..JL 厚さ=1.6 |
2 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
CM7#,8# 厚さ=1.2 |
2 | ||
| 90213-06013 |
CM7#,KM7# 厚さ=1.2 |
2 | ||
| 90213-07010 |
CM75,85..IV3 厚さ=1.6,ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 90213-07010 |
CM75,8#..JL 厚さ=1.6 |
2 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-35020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47611-43010 |
CM7#..CBU,IV3 |
1 | ||
| 47611-43010 |
CM7#,KM7# |
1 | ||
| 47601-28010 |
CM75,8#..JL |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-43010 |
CM7#,KM7# |
1 | ||
| 47602-28010 |
CM75,8#..JL |
1 | ||
| 47612-35020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47612-43010 |
CM7#..CBU,IV3 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-33010 |
CM7#,KM7# |
1 | ||
| 47643-35020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47643-33010 |
CM7#..CBU,IV3 |
1 | ||
| 47644-30010 |
CM75,8#..JL |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-33010 |
CM7#,KM7# |
1 | ||
| 47643-30010 |
CM75,8#..JL |
1 | ||
| 47644-35020 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 47644-33010 |
CM7#..CBU,IV3 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
