CM75-TLQDE3 (1999)
Toyota Lite/Townace

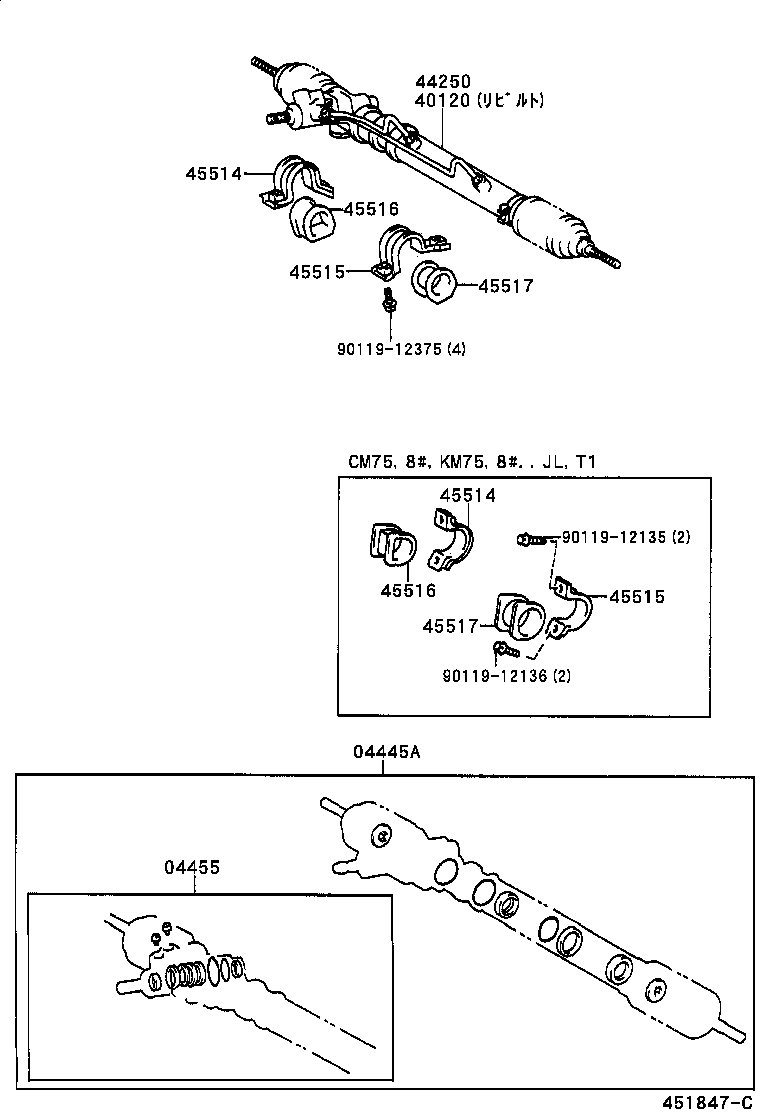

ILLUST NO. 2 OF 4(9906- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-27060 |
CM7#,8#,KM7#,8# |
1 | ||
| 04445-27060 |
CM7#,8#,KM7#,8# |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-27010 |
CM7#,8#,KM7#,8# |
1 | ||
| 04455-27011 |
CM7#,8#,KM7#,8# |
1 | ||
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-27110 |
CM7#,KM7# TOYODA KOKI |
1 | ||
| 40120-27110 |
CM7#,KM7#..CBU,IV3 TOYODA KOKI |
1 | ||
| 40120-27120 |
CM75,8#,KM75,8#..JL TOYODA KOKI |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-27120 |
CM75,8#..JL |
1 | ||
| 44250-27110 |
CM7#..CBU,IV3 |
1 | ||
| 44250-27110 |
CM7#,KM7# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-27080 |
CM7#,KM7# |
1 | ||
| 45514-27081 |
CM7#,KM7# |
1 | ||
| 45514-27023 |
CM75,8#..JL |
1 | ||
| 45514-27081 |
CM7#..CBU,IV3 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-27080 |
CM7#,KM7# |
1 | ||
| 45514-27081 |
CM7#,KM7# |
1 | ||
| 45514-27023 |
CM75,8#..JL |
1 | ||
| 45514-27081 |
CM7#..CBU,IV3 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-27032 |
CM75,8#..JL |
1 | ||
| 45515-27070 |
CM7#,KM7# |
1 | ||
| 45515-27070 |
CM7#..CBU,IV3 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-27032 |
CM75,8#..JL |
1 | ||
| 45515-27070 |
CM7#,KM7# |
1 | ||
| 45515-27070 |
CM7#..CBU,IV3 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-27010 |
CM7#..CBU,IV3 |
1 | ||
| 45516-27010 |
CM7#,KM7# |
1 | ||
| 45516-28010 |
CM75,8#..JL |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-27010 |
CM7#..CBU,IV3 |
1 | ||
| 45516-27010 |
CM7#,KM7# |
1 | ||
| 45516-28010 |
CM75,8#..JL |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-27020 |
CM7#,KM7# |
1 | ||
| 45517-27020 |
CM7#..CBU,IV3 |
1 | ||
| 45517-28010 |
CM75,8#..JL |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-27020 |
CM7#,KM7# |
1 | ||
| 45517-27020 |
CM7#..CBU,IV3 |
1 | ||
| 45517-28010 |
CM75,8#..JL |
1 | ||
| Common parts | ||||
| 90119-12135 | ||||
| 90119-12136 | ||||
| 90119-12375 | ||||

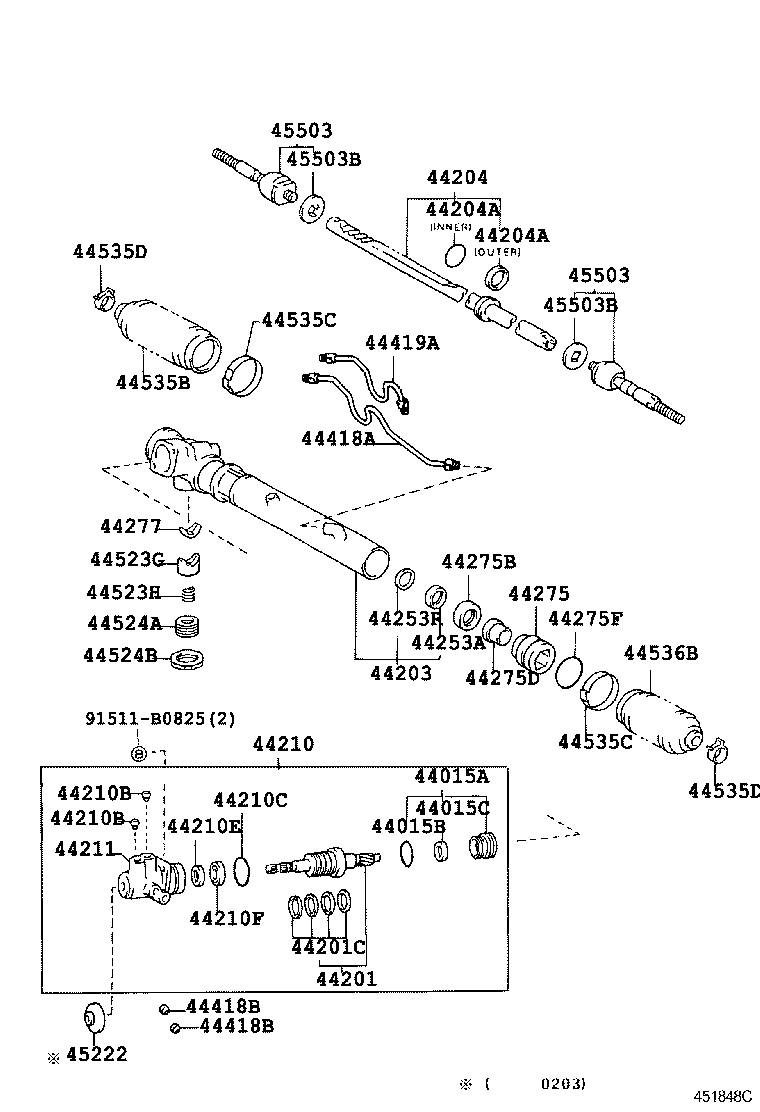

ILLUST NO. 3 OF 4(9906- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-22020 |
CM7#,8#,KM7#,8# |
1 | ||
| 44015-22020 |
CM7#,8# |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
CM7#,8# |
1 | ||
| 90301-43002 |
CM7#,8#,KM7#,8# |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
CM7#,8#,KM7#,8# |
1 | ||
| 90310-25004 |
CM7#,8# |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-27100 |
CM75,8#..JL |
1 | ||
| 44201-27090 |
CM7#,KM7# |
1 | ||
| 44201-27090 |
CM7#..CBU,IV3 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
CM7#,8# |
4 | ||
| 90562-33007 |
CM7#,8#,KM7#,8# |
4 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-27070 |
CM7#..CBU,IV3 |
1 | ||
| 44203-27070 |
CM7#,KM7# |
1 | ||
| 44203-27090 |
CM75,8#..JL |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-27030 |
CM75,8#..JL |
1 | ||
| 44204-27020 |
CM7#..CBU,IV3 |
1 | ||
| 44204-27020 |
CM7#,KM7# |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-43001 |
CM7#,8# 外側 |
1 | ||
| 90301-39003 |
CM7#,8# 内側 |
1 | ||
| 90301-39003 |
CM7#,8#,KM7#,8# 内側 |
1 | ||
| 90562-43001 |
CM7#,8#,KM7#,8# 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-43001 |
CM7#,8# 外側 |
1 | ||
| 90301-39003 |
CM7#,8# 内側 |
1 | ||
| 90301-39003 |
CM7#,8#,KM7#,8# 内側 |
1 | ||
| 90562-43001 |
CM7#,8#,KM7#,8# 外側 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-27090 |
CM7#..CBU,IV3 |
1 | ||
| 44210-27090 |
CM7#,KM7# |
1 | ||
| 44210-27100 |
CM75,8#..JL |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
CM7#,8# |
2 | ||
| 90410-06005 |
CM7#,8#,KM7#,8# |
2 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
CM7#,8# |
2 | ||
| 90410-06005 |
CM7#,8#,KM7#,8# |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
CM7#,8#,KM7#,8# |
1 | ||
| 90301-51001 |
CM7#,8# |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
CM7#,8#,KM7#,8# |
1 | ||
| 90311-19002 |
CM7#,8# |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
CM7#,8# |
1 | ||
| 90363-19003 |
CM7#,8#,KM7#,8# |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-27020 |
CM7#,8#,KM7#,8# |
1 | ||
| 44211-27020 |
CM7#,8# |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30011 |
CM7#,8# |
1 | ||
| 90310-30011 |
CM7#,8#,KM7#,8# |
1 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-30007 |
CM7#,8#,KM7#,8# |
1 | ||
| 90560-30007 |
CM7#,8# |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-27030 |
CM7#,8#,KM7#,8# |
1 | ||
| 44275-27030 |
CM7#,8# |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-30011 |
CM7#,8#,KM7#,8# |
1 | ||
| 90310-30011 |
CM7#,8# |
1 | ||
| 44275D - BUSH(FOR CYLINDER END STOPPER) | ||||
| 90386-30001 |
CM7#,8# |
1 | ||
| 90386-30001 |
CM7#,8#,KM7#,8# |
1 | ||
| 44275F - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-41004 |
CM7#,8# |
1 | ||
| 90301-41004 |
CM7#,8#,KM7#,8# |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-28010 |
CM7#,8#,KM7#,8# |
1 | ||
| 44277-28010 |
CM7#,8# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-27030 |
CM7#,KM7# |
1 | ||
| 44418-27040 |
CM75,8#..JL |
1 | ||
| 44418-27030 |
CM7#..CBU,IV3 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
CM7#,8#,KM7#,8# |
2 | ||
| 90410-04002 |
CM7#,8# |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
CM7#,8#,KM7#,8# |
2 | ||
| 90410-04002 |
CM7#,8# |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-27040 |
CM7#,KM7# |
1 | ||
| 44419-27040 |
CM7#..CBU,IV3 |
1 | ||
| 44419-27050 |
CM75,8#..JL |
1 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-28010 |
CM7#,8#,KM7#,8# |
1 | ||
| 45523-28010 |
CM7#,8# |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
CM7#,8#,KM7#,8# |
1 | ||
| 90501-23024 |
CM7#,8# |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
CM7#,8#,KM7#,8# |
1 | ||
| 45524-20040 |
CM7#,8# |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
CM7#,8#,KM7#,8# |
1 | ||
| 90179-36002 |
CM7#,8# |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-28020 |
CM7#,8# |
1 | ||
| 45535-28020 |
CM7#,8#,KM7#,8# |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-55016 |
CM7#,8# |
2 | ||
| 90460-55016 |
CM7#,8#,KM7#,8# |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-55016 |
CM7#,8# |
2 | ||
| 90460-55016 |
CM7#,8#,KM7#,8# |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-19019 |
CM7#,8#,KM7#,8# |
2 | ||
| 90467-19019 |
CM7#,8# |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-19019 |
CM7#,8#,KM7#,8# |
2 | ||
| 90467-19019 |
CM7#,8# |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-28020 |
CM7#,8#,KM7#,8# |
1 | ||
| 45535-28020 |
CM7#,8# |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32010 |
CM7#,8#,KM7#,8# |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29395 |
CM7#,KM7# |
2 | ||
| 45503-29395 |
CM7#..CBU,IV3 |
2 | ||
| 45503-29755 |
CM75,8#..JL |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29395 |
CM7#,KM7# |
2 | ||
| 45503-29395 |
CM7#..CBU,IV3 |
2 | ||
| 45503-29755 |
CM75,8#..JL |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
CM7#,8# 外径=41 |
2 | ||
| 90214-14005 |
CM7#,8#,KM7#,8# 外径=41 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
CM7#,8# 外径=41 |
2 | ||
| 90214-14005 |
CM7#,8#,KM7#,8# 外径=41 |
2 | ||
| Common parts | ||||
| 91511-B0825 | ||||

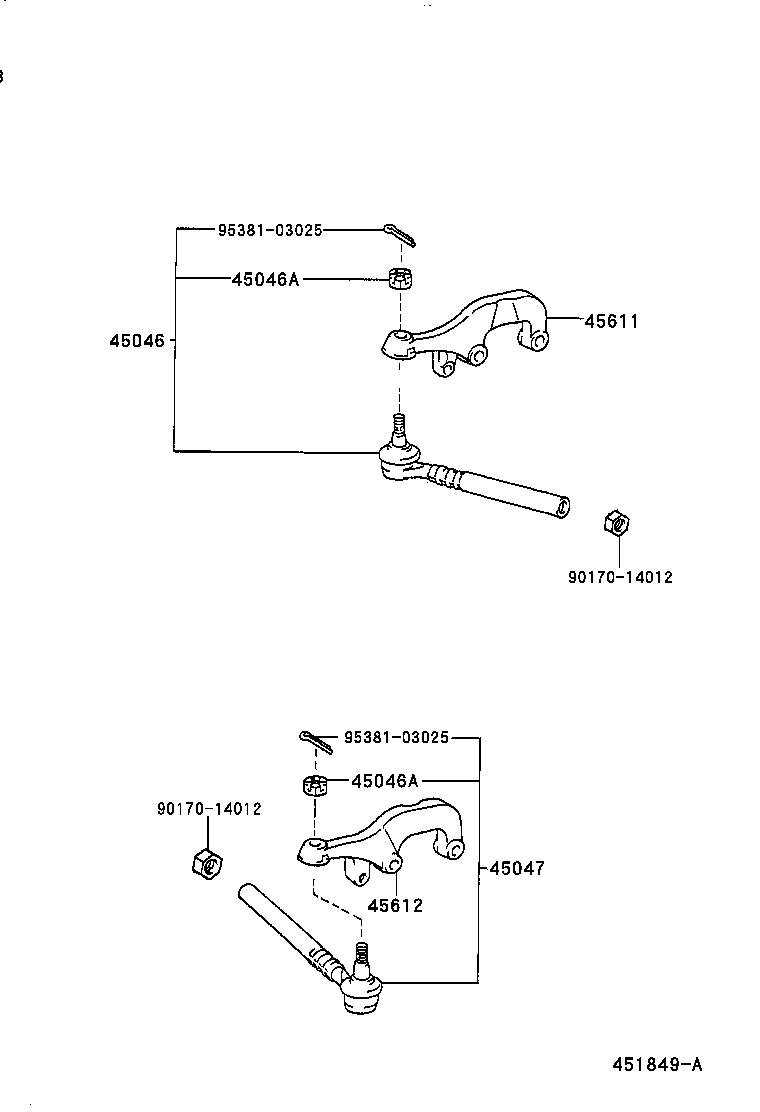

ILLUST NO. 4 OF 4(9906- )CM7#,KM7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29185 |
CM7#,KM7# |
1 | ||
| 45046-29185 |
CM7#..CBU,IV3 |
1 | ||
| 45046-29355 |
CM75,8#..JL |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CM7#,8#,KM7#,8# |
2 | ||
| 90171-12028 |
CM7#,8# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CM7#,8#,KM7#,8# |
2 | ||
| 90171-12028 |
CM7#,8# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29185 |
CM7#,KM7# |
1 | ||
| 45047-29115 |
CM75,8#..JL |
1 | ||
| 45046-29185 |
CM7#..CBU,IV3 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-28040 |
CM7#..CBU,IV3 |
1 | ||
| 45611-28040 |
CM7#,KM7# |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-28040 |
CM7#..CBU,IV3 |
1 | ||
| 45612-28040 |
CM7#,KM7# |
1 | ||
| Common parts | ||||
| 90170-14012 | ||||
| 95381-03025 | ||||

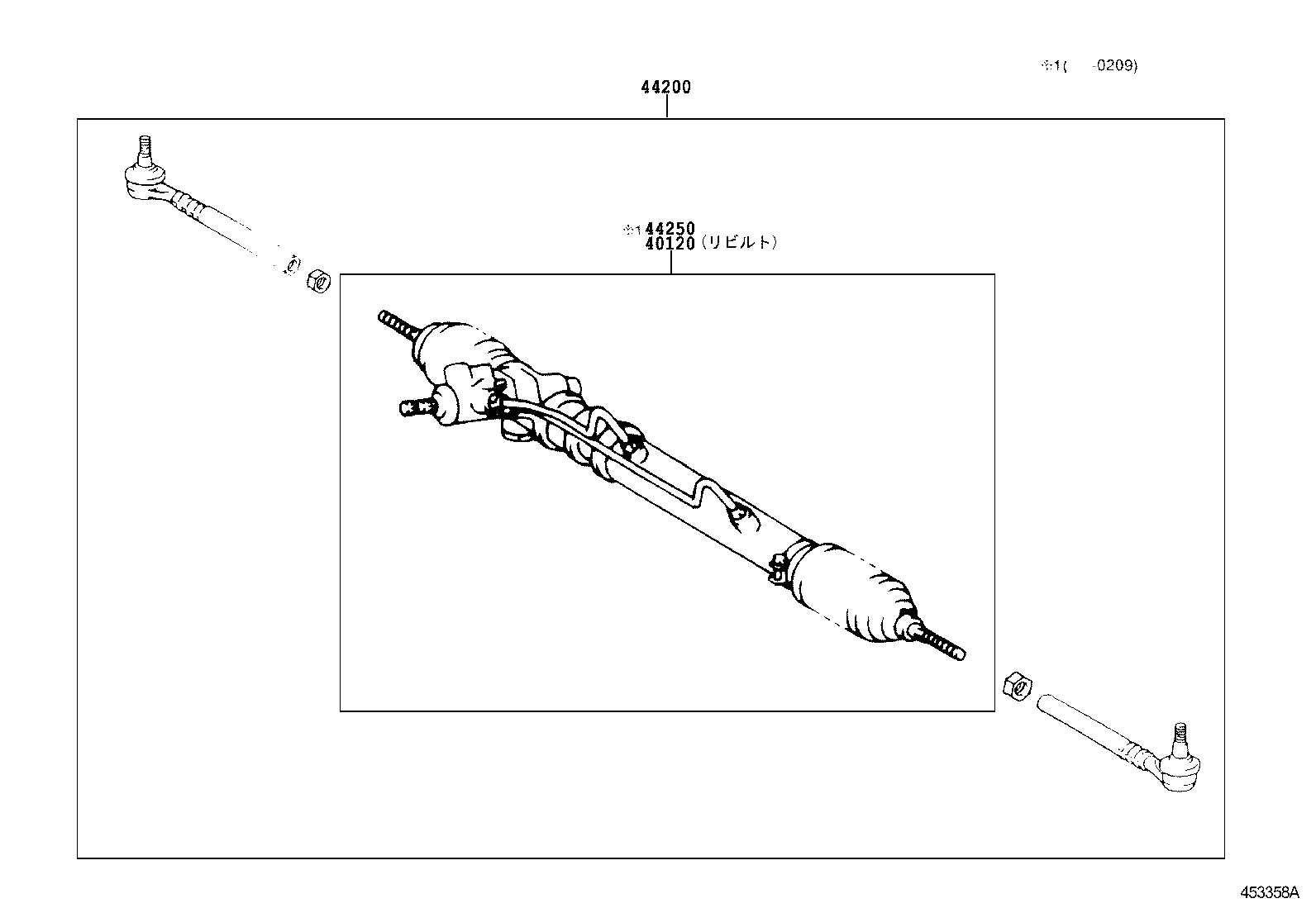

ILLUST NO. 1 OF 4(9906- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-27110 |
CM7#,KM7# TOYODA KOKI |
1 | ||
| 40120-27110 |
CM7#,KM7#..CBU,IV3 TOYODA KOKI |
1 | ||
| 40120-27120 |
CM75,8#,KM75,8#..JL TOYODA KOKI |
1 | ||
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-27120 |
CM7#..CBU,IV3 |
1 | ||
| 44200-27120 |
CM7#,KM7# |
1 | ||
| 44200-27130 |
CM75,8#..JL |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-27120 |
CM75,8#..JL |
1 | ||
| 44250-27110 |
CM7#..CBU,IV3 |
1 | ||
| 44250-27110 |
CM7#,KM7# |
1 | ||
