CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45105 45107 45130 45136F 45146 45180 45201P 9015940182 9015950238 9354014014 9354014014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-27140B0

CM7#,8#,KM7#,8#

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.CHARCOAL,TRIM1#

 1
45100-32310B2

CM7#,8#,KM7#,8#

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.CHARCOAL,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-12230

CM7#,8#,KM7#,8#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-12010

CM7#,8#,KM7#,8#

 1
45130 - BUTTON ASSY, HORN
45130-44030B1

CM7#,8#,KM7#,8#

ｱﾘ(*80),DK.CHARCOAL,TRIM1#

 1
45130-12810B2

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
45136F - PLATE, HORN BUTTON CONTACT, NO.1
45136-32130

CM7#,8#,KM7#,8#

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-32080

CM7#,8#,KM7#,8#

 3
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-12170B2

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

CM7#,8#,KM7#,8#

 1
90179-12071

CM7#,8#

 1
Common parts
90159-40182
90159-50238
93540-14014

(9906- )

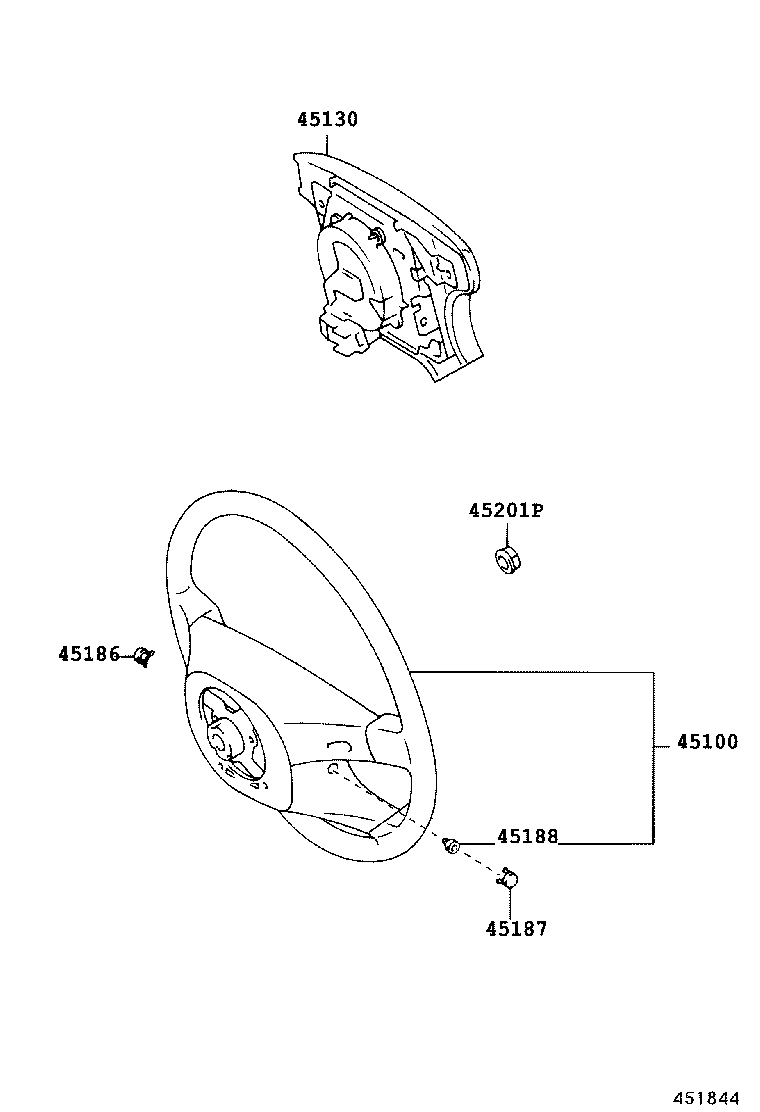

Click highlighted areas on diagram

4-SPOKE,ｱﾘ(*80)

diagram 45100 45130 45186 45187 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-27140B0

CM7#,8#,KM7#,8#

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.CHARCOAL,TRIM1#

 1
45100-32310B2

CM7#,8#,KM7#,8#

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.CHARCOAL,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-44030B1

CM7#,8#,KM7#,8#

ｱﾘ(*80),DK.CHARCOAL,TRIM1#

 1
45130-12810B2

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010B5

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-44010B5

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

CM7#,8#

長さ=18

 2
90148-60007

CM7#,8#,KM7#,8#

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

CM7#,8#,KM7#,8#

 1
90179-12071

CM7#,8#

 1
