Toyota Lite/townace CM75 POWER STEERING TUBE

CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004

Engine 3CE

Transmission 5H MTM

Displacement 2500cc

Power 168 HP (125 kW)

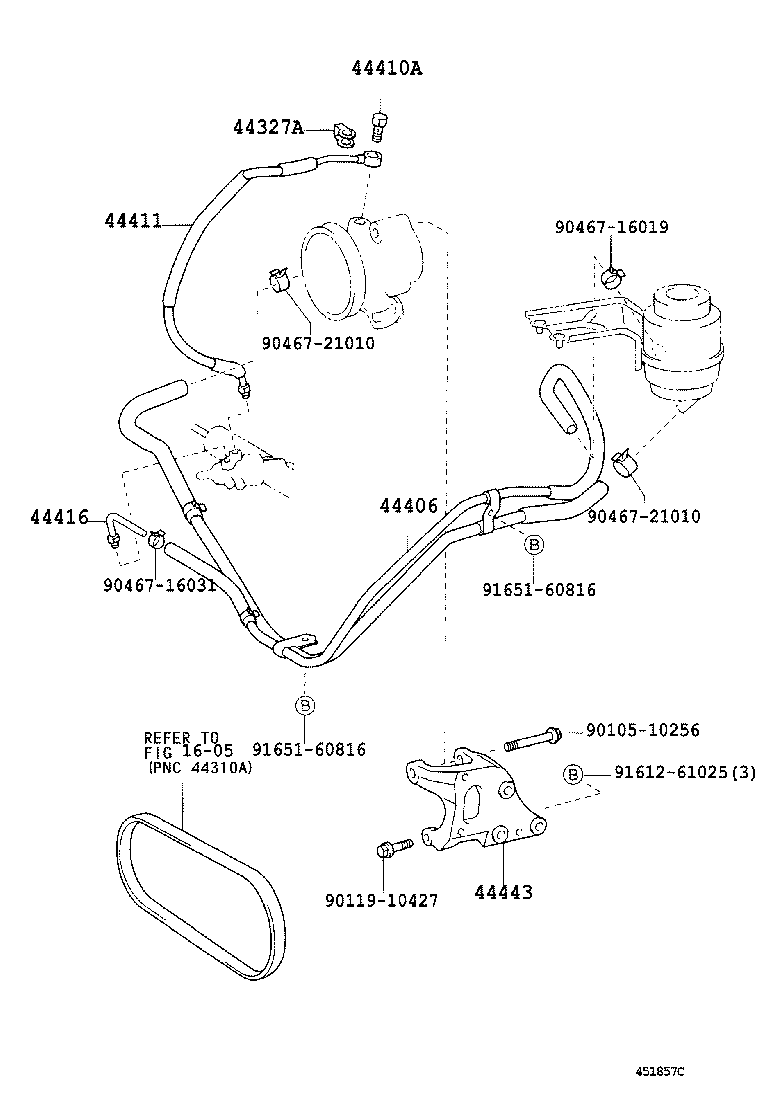

Click highlighted areas on diagram

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-26020	CM7#,8#,KM7#,8#	08/2002 - 11/2003	1
44327-30040	CM7#,8#	12/2003 - 08/2004	1
44327-26020	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
44406 - TUBE SUB-ASSY, RETURN
44406-27080	CM7#	06/1999 - 08/2002	1
44406-27120	CM75,8#..JL	08/2002 - 08/2004	1
44406-27080	CM7#..CBU,IV3	08/2002 - 08/2004	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16034	CM7#,8#	08/2002 - 08/2004	1
90401-16034	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
44411 - HOSE, PRESSURE FEED
44411-27070	CM7#	06/1999 - 08/2002	1
44411-27070	CM7#..CBU,IV3	08/2002 - 08/2004	1
44411-27080	CM75,8#..JL	08/2002 - 08/2004	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-27100	CM7#,KM7#	06/1999 - 08/2002	1
44416-27100	CM7#..CBU,IV3	08/2002 - 08/2004	1
44416-27110	CM75,8#..JL	08/2002 - 08/2004	1
44443 - BRACKET, PUMP
44443-28030	CM7#,8#	06/1999 - 08/2002	1
44443-28030	CM7#,8#	08/2002 - 08/2004	1
Common parts
90105-10256
90119-10427
90467-16019
90467-16031
90467-21010
91612-61025
91651-60816
Linked diagrams
1605

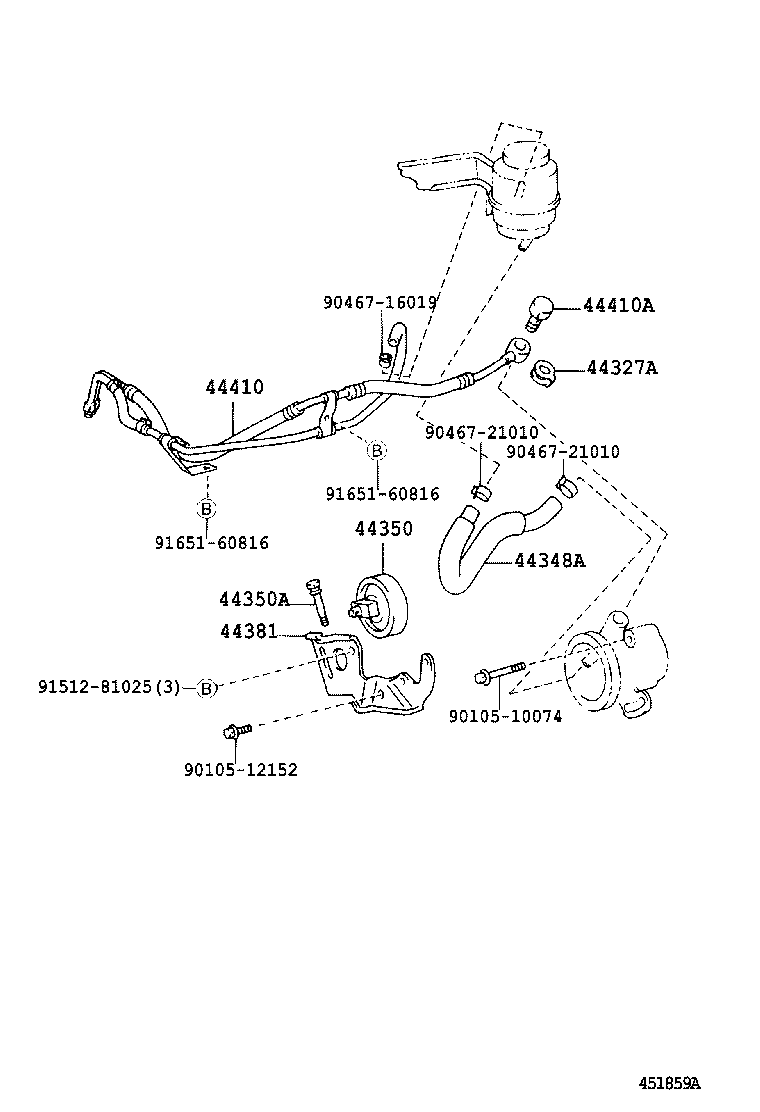

Click highlighted areas on diagram

ﾚｲﾄｳｼﾔ

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-26020	CM7#,8#,KM7#,8#	08/2002 - 11/2003	1
44327-30040	CM7#,8#	12/2003 - 08/2004	1
44327-26020	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-27200	CM7#,85..IV3	06/1999 - 08/2002	1
44348-27200	CM7#,85..IV3	08/2002 - 08/2004	1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-27020	CM7#,85..IV3	06/1999 - 08/2002	1
44350-27020	CM7#,85..IV3	08/2002 - 08/2004	1
44350A - BOLT(FOR POWER STEERING IDLE PULLEY)
90109-08106	CM7#,85..IV3	06/1999 - 08/2002	1
90109-08106	CM7#,85..IV3	08/2002 - 08/2004	1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-27010	CM7#,85..IV3	06/1999 - 08/2002	1
44381-27010	CM7#,85..IV3	08/2002 - 08/2004	1
44410 - TUBE ASSY, PRESSURE FEED
44410-27311	CM7#..IV3 ﾚｲﾄｳｼﾔ	11/1999 - 08/2002	1
44410-27311	CM7#..IV3 ﾚｲﾄｳｼﾔ	08/2002 - 08/2004	1
44410-27310	CM7#..IV3 ﾚｲﾄｳｼﾔ	06/1999 - 11/1999	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16034	CM7#,8#	08/2002 - 08/2004	1
90401-16034	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
Common parts
90105-10074
90105-12152
90467-16019
90467-21010
91512-81025
91651-60816
