CM75-TLQDE3 (1999)
Toyota Lite/Townace
(9906- )CM7#,KM7#..CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

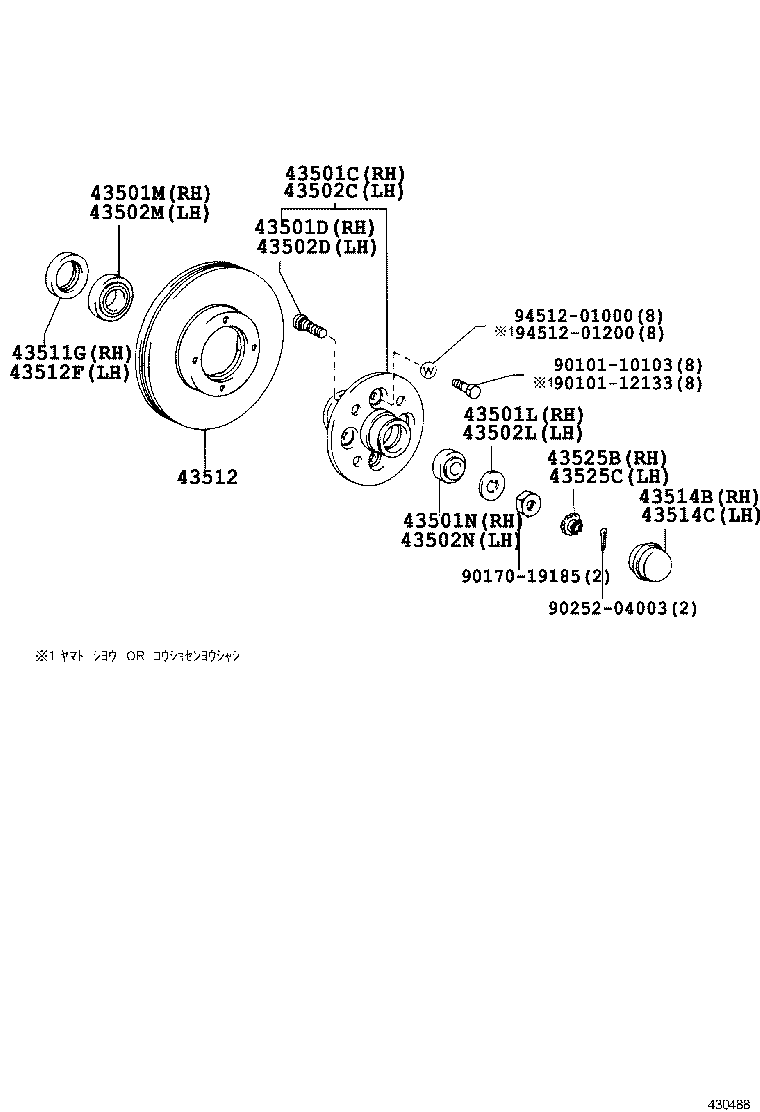

| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-28030 |
CM75..IV3 14ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ |
1 | ||
| 43502-28050 |
CM75,8#..JL |
1 | ||
| 43502-20010 |
CM7#..CBU,IV3 ﾅｼ(ABS) |
1 | ||
| 43503-28020 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 43503-28020 |
CM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 43502-20010 |
KM75;CM7#,KM70..(JL,SJL)..(TB,TS)..DX ﾅｼ(ABS) |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02048 |
CM7#,KM7#..CBU,IV3 |
4 | ||
| 90942-02048 |
CM7#,KM7# |
4 | ||
| 90942-02049 |
CM75,8#,KM75,8#..JL |
5 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-20005 |
CM7#..CBU,IV3 |
1 | ||
| 90214-20005 |
CM7#,KM7# |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90368-31067 |
CM7#,KM7# |
1 | ||
| 90368-31067 |
CM7#..CBU,IV3 |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90368-19037 |
CM7#,KM7# |
1 | ||
| 90368-19037 |
CM7#..CBU,IV3 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-28030 |
CM75..IV3 14ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ |
1 | ||
| 43502-20010 |
CM7#..CBU,IV3 ﾅｼ(ABS) |
1 | ||
| 43502-20010 |
KM75;CM7#,KM70..(JL,SJL)..(TB,TS)..DX ﾅｼ(ABS) |
1 | ||
| 43502-28050 |
CM75,8#..JL |
1 | ||
| 43503-28020 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 43503-28020 |
CM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02048 |
CM7#,KM7#..CBU,IV3 |
4 | ||
| 90942-02049 |
CM75,8#,KM75,8#..JL |
5 | ||
| 90942-02048 |
CM7#,KM7# |
4 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-20005 |
CM7#..CBU,IV3 |
1 | ||
| 90214-20005 |
CM7#,KM7# |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90368-31067 |
CM7#,KM7# |
1 | ||
| 90368-31067 |
CM7#..CBU,IV3 |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90368-19037 |
CM7#,KM7# |
1 | ||
| 90368-19037 |
CM7#..CBU,IV3 |
1 | ||
| 43511G - SEAL, OIL (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90311-48001 |
CM7#,KM7# |
1 | ||
| 90311-48001 |
CM7#..CBU,IV3 |
1 | ||
| 90311-61001 |
CM75,8#..JL |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-28130 |
CM75..IV3 14ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ |
2 | ||
| 43512-28150 |
CM7#,KM7# |
2 | ||
| 43512F - SEAL, OIL (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90311-48001 |
CM7#,KM7# |
1 | ||
| 90311-48001 |
CM7#..CBU,IV3 |
1 | ||
| 90311-61001 |
CM75,8#..JL |
1 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-22020 |
CM7#,KM7# |
1 | ||
| 43514-22020 |
CM7#..CBU,IV3 |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-22020 |
CM7#..CBU,IV3 |
1 | ||
| 43514-22020 |
CM7#,KM7# |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-20030 |
CM75,8#..JL |
1 | ||
| 43525-22010 |
CM7#..CBU,IV3 |
1 | ||
| 43525-22010 |
CM7#,KM7# |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-22010 |
CM7#..CBU,IV3 |
1 | ||
| 43525-22010 |
CM7#,KM7# |
1 | ||
| 43525-20030 |
CM75,8#..JL |
1 | ||
| Common parts | ||||
| 90101-10103 | ||||
| 90101-12133 | ||||
| 90170-19185 | ||||
| 90252-04003 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
(9906- )CM75,8#,KM75,8#..JL,T1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43246A - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH | ||||
| 43246-28010 |
CM75,8#..JL |
1 | ||
| 43246B - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH | ||||
| 43246-28010 |
CM75,8#..JL |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-28030 |
CM75..IV3 14ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ |
1 | ||
| 43502-28050 |
CM75,8#..JL |
1 | ||
| 43502-20010 |
CM7#..CBU,IV3 ﾅｼ(ABS) |
1 | ||
| 43503-28020 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 43503-28020 |
CM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 43502-20010 |
KM75;CM7#,KM70..(JL,SJL)..(TB,TS)..DX ﾅｼ(ABS) |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02048 |
CM7#,KM7#..CBU,IV3 |
4 | ||
| 90942-02048 |
CM7#,KM7# |
4 | ||
| 90942-02049 |
CM75,8#,KM75,8#..JL |
5 | ||
| 43501E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90369-43007 |
CM75,8#..JL |
1 | ||
| 43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-82002 |
CM75,8#..JL |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-28030 |
CM75..IV3 14ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ |
1 | ||
| 43502-20010 |
CM7#..CBU,IV3 ﾅｼ(ABS) |
1 | ||
| 43502-20010 |
KM75;CM7#,KM70..(JL,SJL)..(TB,TS)..DX ﾅｼ(ABS) |
1 | ||
| 43502-28050 |
CM75,8#..JL |
1 | ||
| 43503-28020 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 43503-28020 |
CM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02048 |
CM7#,KM7#..CBU,IV3 |
4 | ||
| 90942-02049 |
CM75,8#,KM75,8#..JL |
5 | ||
| 90942-02048 |
CM7#,KM7# |
4 | ||
| 43502E - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90369-43007 |
CM75,8#..JL |
1 | ||
| 43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-82002 |
CM75,8#..JL |
1 | ||
| 43511G - SEAL, OIL (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90311-48001 |
CM7#,KM7# |
1 | ||
| 90311-48001 |
CM7#..CBU,IV3 |
1 | ||
| 90311-61001 |
CM75,8#..JL |
1 | ||
| 43511H - SEAL, OIL (FOR FRONT AXLE HUB INNER RH) | ||||
| 90311-56014 |
CM75,8#..JL |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-28130 |
CM75..IV3 14ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ |
2 | ||
| 43512-28150 |
CM7#,KM7# |
2 | ||
| 43512F - SEAL, OIL (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90311-48001 |
CM7#,KM7# |
1 | ||
| 90311-48001 |
CM7#..CBU,IV3 |
1 | ||
| 90311-61001 |
CM75,8#..JL |
1 | ||
| 43512G - SEAL, OIL (FOR FRONT AXLE HUB INNER LH) | ||||
| 90311-56014 |
CM75,8#..JL |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-20030 |
CM75,8#..JL |
1 | ||
| 43525-22010 |
CM7#..CBU,IV3 |
1 | ||
| 43525-22010 |
CM7#,KM7# |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-22010 |
CM7#..CBU,IV3 |
1 | ||
| 43525-22010 |
CM7#,KM7# |
1 | ||
| 43525-20030 |
CM75,8#..JL |
1 | ||
| Common parts | ||||
| 90178-22001 | ||||
| 90252-04010 | ||||
