CM75-TLQDE3 (1999)
Toyota Lite/Townace
(9906- )

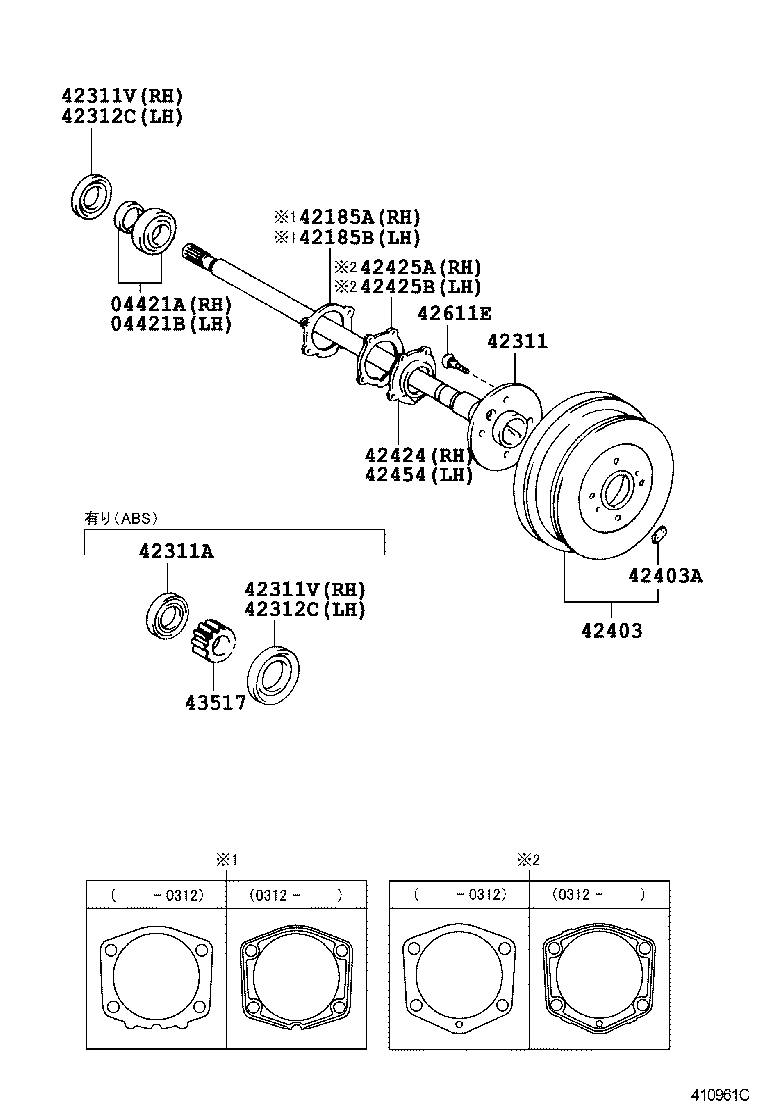

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04421A - BEARING KIT, REAR AXLE SHAFT, RH | ||||
| 04421-30081 |
CM7#,KM7# |
1 | ||
| 04421-30081 |
CM7#..CBU,IV3 |
1 | ||
| 04421-30031 |
CM75,8#..JL |
1 | ||
| 04421B - BEARING KIT, REAR AXLE SHAFT, LH | ||||
| 04421-30081 |
CM7#,KM7# |
1 | ||
| 04421-30031 |
CM75,8#..JL |
1 | ||
| 04421-30081 |
CM7#..CBU,IV3 |
1 | ||
| 42185A - GASKET, REAR AXLE HOUSING END, RH | ||||
| 42185-30061 |
CM7#,KM7#..CBU,IV3 |
1 | ||
| 42185-30061 |
CM7#,KM7# |
1 | ||
| 42185-28030 |
CM75,8#,KM75,8#..JL |
1 | ||
| 42185-43030 |
CM7#,8# |
1 | ||
| 42185B - GASKET, REAR AXLE HOUSING END, LH | ||||
| 42185-30061 |
CM7#,KM7# |
1 | ||
| 42185-28030 |
CM75,8#,KM75,8#..JL |
1 | ||
| 42185-43030 |
CM7#,8# |
1 | ||
| 42185-30061 |
CM7#,KM7#..CBU,IV3 |
1 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-27050 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 42311-27070 |
CM7#..CBU,IV3 ｱﾘ(ABS) |
2 | ||
| 42311-27070 |
CM7#,KM7# ｱﾘ(ABS) |
2 | ||
| 42311-27100 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 42311-22100 |
CM7#..CBU,IV3 ﾅｼ(ABS) |
2 | ||
| 42311-22100 |
CM7#,KM7# ﾅｼ(ABS) |
2 | ||
| 42311-27080 |
CM75,8#..JL |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90312-35002 |
CM7#,8#,KM7#,8# |
2 | ||
| 90312-35002 |
CM7#,8# |
2 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-52059 |
CM7#,8#,KM7#,8# |
1 | ||
| 90311-52059 |
CM7#,8# |
1 | ||
| 90310-50001 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-52059 |
CM7#,8#,KM7#,8# |
1 | ||
| 90311-52059 |
CM7#,8# |
1 | ||
| 90310-50001 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-50001 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 90311-52059 |
CM7#,8#,KM7#,8# |
1 | ||
| 90311-52059 |
CM7#,8# |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-50001 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 90311-52059 |
CM7#,8#,KM7#,8# |
1 | ||
| 90311-52059 |
CM7#,8# |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-14061 |
CM7#,KM7# 4 ｹﾂ |
2 | ||
| 42431-27130 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ);5 ｹﾂ |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01287 |
CM7#,8#,KM7#,8# 10G |
1 | ||
| 90937-01288 |
CM7#,8#,KM7#,8# 20G |
1 | ||
| 90937-01117 |
CM75,85..IV3 10G,ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 90937-01289 |
CM7#,8#,KM7#,8# 30G |
1 | ||
| 90937-01289 |
CM7#,8# 30G |
1 | ||
| 90937-01118 |
CM75,85..IV3 20G,ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 90937-01287 |
CM7#,8# 10G |
1 | ||
| 90937-01119 |
CM75,85..IV3 30G,ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 90937-01288 |
CM7#,8# 20G |
1 | ||
| 42424 - RETAINER, REAR AXLE BEARING, OUTER, RH | ||||
| 42424-30040 |
CM7#,8#,KM7#,8# |
1 | ||
| 42424-30040 |
CM7#,8# |
1 | ||
| 42425A - GASKET, REAR AXLE BEARING RETAINER, RH | ||||
| 42425-43010 |
CM7#,8# |
1 | ||
| 42425-30031 |
CM7#,8#,KM7#,8# |
1 | ||
| 42425-30031 |
CM7#,8#,KM7#,8# |
1 | ||
| 42425B - GASKET, REAR AXLE BEARING RETAINER, LH | ||||
| 42425-43010 |
CM7#,8# |
1 | ||
| 42425-30031 |
CM7#,8#,KM7#,8# |
1 | ||
| 42425-30031 |
CM7#,8#,KM7#,8# |
1 | ||
| 42454 - RETAINER, REAR AXLE BEARING, OUTER, LH | ||||
| 42424-30040 |
CM7#,8#,KM7#,8# |
1 | ||
| 42424-30040 |
CM7#,8# |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
CM75,8#..JL |
10 | ||
| 90942-02047 |
CM7#..CBU,IV3 |
8 | ||
| 90942-02047 |
CM7#,KM7# |
8 | ||
| 90942-02049 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
10 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-28030 |
CM7#,8#,KM7#,8# |
2 | ||
(9906-0208)CM75,85..IV3
ﾔﾏﾄORｺｳｼﾖｾﾝﾖｳｼﾔｼOR(ﾔﾏﾄ&ｺｳｼﾖｾﾝﾖｳｼﾔｼ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-27050 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 42311-27070 |
CM7#..CBU,IV3 ｱﾘ(ABS) |
2 | ||
| 42311-27070 |
CM7#,KM7# ｱﾘ(ABS) |
2 | ||
| 42311-27100 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
2 | ||
| 42311-22100 |
CM7#..CBU,IV3 ﾅｼ(ABS) |
2 | ||
| 42311-22100 |
CM7#,KM7# ﾅｼ(ABS) |
2 | ||
| 42311-27080 |
CM75,8#..JL |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-48001 |
CM75,85..IV3 |
2 | ||
| 90313-54001 |
CM75..IV3 |
2 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90363-40020 |
CM75,85..IV3 |
1 | ||
| 90363-40068 |
CM75..IV3 |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90520-36045 |
CM75,85..IV3 |
1 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-52059 |
CM7#,8#,KM7#,8# |
1 | ||
| 90311-52059 |
CM7#,8# |
1 | ||
| 90310-50001 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90363-40068 |
CM75..IV3 |
1 | ||
| 90363-40020 |
CM75,85..IV3 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-50001 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 90311-52059 |
CM7#,8#,KM7#,8# |
1 | ||
| 90311-52059 |
CM7#,8# |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90520-36045 |
CM75,85..IV3 |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-14061 |
CM7#,KM7# 4 ｹﾂ |
2 | ||
| 42431-27130 |
CM75..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ);5 ｹﾂ |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01287 |
CM7#,8#,KM7#,8# 10G |
1 | ||
| 90937-01288 |
CM7#,8#,KM7#,8# 20G |
1 | ||
| 90937-01117 |
CM75,85..IV3 10G,ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 90937-01289 |
CM7#,8#,KM7#,8# 30G |
1 | ||
| 90937-01289 |
CM7#,8# 30G |
1 | ||
| 90937-01118 |
CM75,85..IV3 20G,ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 90937-01287 |
CM7#,8# 10G |
1 | ||
| 90937-01119 |
CM75,85..IV3 30G,ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
1 | ||
| 90937-01288 |
CM7#,8# 20G |
1 | ||
| 42421D - CASE, REAR AXLE BEARING, RH | ||||
| 42421-35050 |
CM75..IV3 |
1 | ||
| 42421-35030 |
CM75,85..IV3 |
1 | ||
| 42422 - CASE, REAR AXLE BEARING, LH | ||||
| 42421-35030 |
CM75,85..IV3 |
1 | ||
| 42421-35050 |
CM75..IV3 |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-20010 |
CM75,85..IV3 |
1 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-20010 |
CM75,85..IV3 |
1 | ||
| 42424A - RING, O (FOR BEARING RETAINER SET) | ||||
| 90301-88077 |
CM75,85..IV3 |
2 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-26010 |
CM75,85..IV3 |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-26010 |
CM75,85..IV3 |
1 | ||
| 42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH | ||||
| 42443-30010 |
CM75,85..IV3 |
1 | ||
| 42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH | ||||
| 42443-30010 |
CM75,85..IV3 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
CM75,8#..JL |
10 | ||
| 90942-02047 |
CM7#..CBU,IV3 |
8 | ||
| 90942-02047 |
CM7#,KM7# |
8 | ||
| 90942-02049 |
CM75,85..IV3 ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ) |
10 | ||
