CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

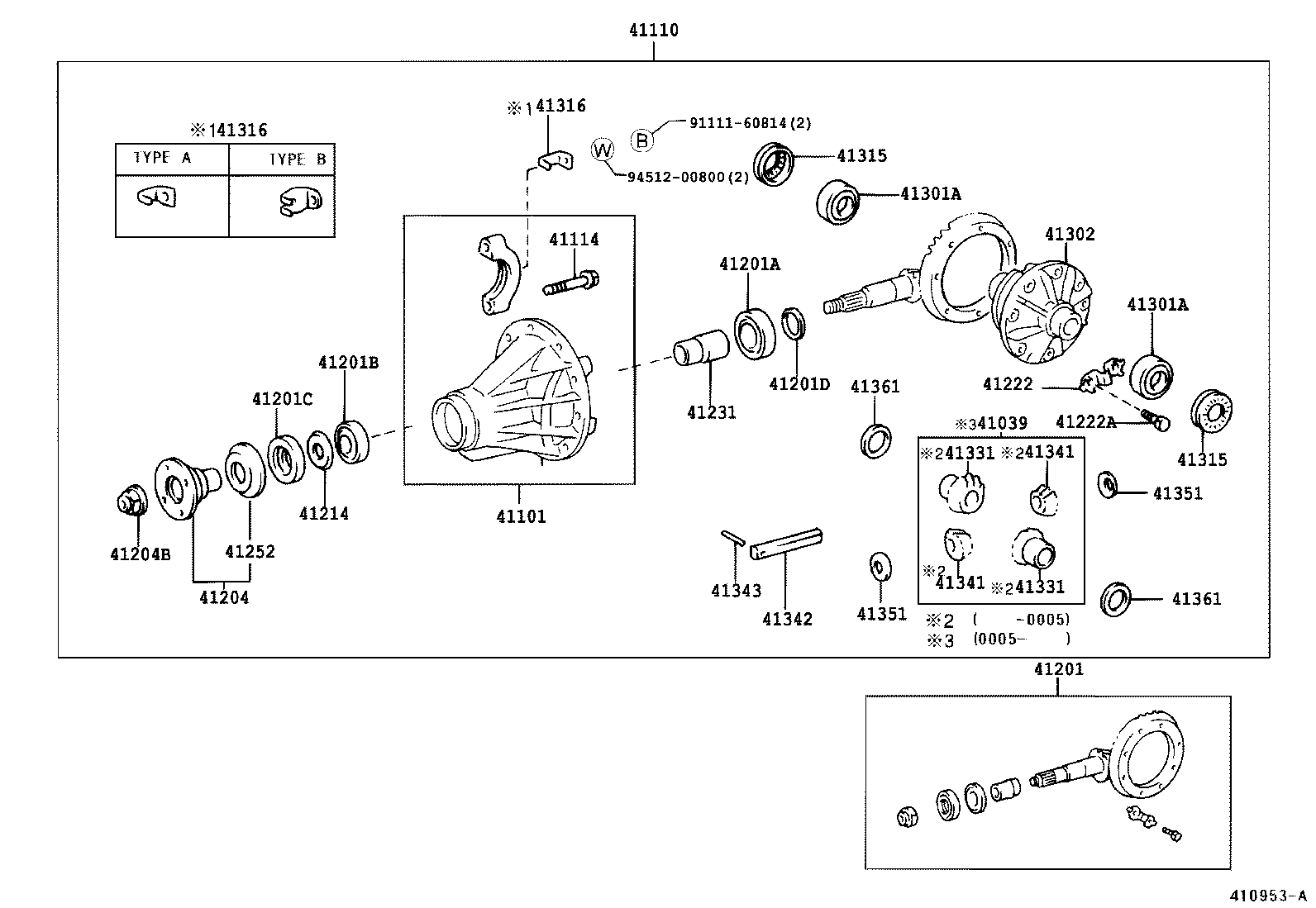

ILLUST NO. 1 OF 2(9906- )CM7#,KM7#

Click highlighted areas on diagram

diagram 41039 41101 41110 41114 41201 41201A 41201B 41201C 41201D 41204 41204B 41214 41222 41222A 41231 41252 41301A 41301A 41302 41315 41315 41316 41316 41331 41331 41341 41341 41342 41343 41351 41351 41361 41361 9111160814 9161160814 9451200800
Part # Description Qty Price
41039 - GEAR KIT, DIFFERENTIAL, REAR
41039-28010

CM7#,KM7#..CBU,IV3

 1
41039-28010

CM7#,KM7#

 1
41039-34090

CM75..IV3;CM8#,KM8#

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-30010

CM7#,KM7#

 1
41101-30031

CM75,8#,KM75,8#..JL

 1
41101-30031

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
41101-30010

CM7#,KM7#..CBU,IV3

 1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-27150

CM75,KM75..5H;CM70,KM70..SJL..4HC

*FGR=41:10=4.100

 1
41110-28080

CM75..IV3

*FGR=41:9=4.555,ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90105-12053

CM75,8#,KM75,8#..JL

 4
90105-12240

CM7#,KM7#

 4
90105-12240

CM7#,KM7#..CBU,IV3

 4
90105-12053

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 4
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-80015

CM75..IV3

*FGR=41:9=4.556

 1
41201-80030

CM75,8#..JL

*FGR=43:9=4.778

 1
41201-39555

CM75,KM75..5H;CM70,KM70..SJL..4HC

*FGR=41:10=4.100

 1
41201-39555

CM75..5H;CM70..SJL..4HC

*FGR=41:10=4.100

 1
41201A - BEARING (FOR REAR DRIVE PINION REAR)
90366-35073

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
90366-35067

CM7#,KM7#

 1
90366-35023

CM7#,8#,KM7#,8#

 1
90366-35023

CM7#,8#,KM7#,8#

 1
90366-35064

CM7#,KM7#

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90366-30055

CM7#,8#,KM7#,8#

 1
90366-30055

CM7#,8#,KM7#,8#

 1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90311-38047

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
90311-38047

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
90311-38133

CM7#,KM7#

 1
41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
90201-35397

CM7#,8#,KM7#,8#

厚さ=2.39,ﾏｰｸ 06

 1
90201-35398

CM7#,8#,KM7#,8#

厚さ=2.42,ﾏｰｸ 07

 1
90201-35403

CM7#,8#,KM7#,8#

厚さ=2.57,ﾏｰｸ 12

 1
90201-35404

CM7#,8#,KM7#,8#

厚さ=2.60,ﾏｰｸ 13

 1
90201-35399

CM7#,8#,KM7#,8#

厚さ=2.43,ﾏｰｸ 08

 1
90201-35401

CM7#,8#,KM7#,8#

厚さ=2.51,ﾏｰｸ 10

 1
90201-35396

CM7#,8#,KM7#,8#

厚さ=2.36,ﾏｰｸ 05

 1
90201-35515

CM7#,8#,KM7#,8#

外径=47,厚さ=2.24,ﾏｰｸ 01

 1
90201-35396

CM7#,8#,KM7#,8#

厚さ=2.36,ﾏｰｸ 05

 1
90201-35399

CM7#,8#,KM7#,8#

厚さ=2.43,ﾏｰｸ 08

 1
90201-35398

CM7#,8#,KM7#,8#

厚さ=2.42,ﾏｰｸ 07

 1
90201-35518

CM7#,8#,KM7#,8#

外径=47,厚さ=2.33,ﾏｰｸ 04

 1
90201-35439

CM7#,8#,KM7#,8#

厚さ=2.66,ﾏｰｸ 15

 1
90201-35438

CM7#,8#,KM7#,8#

厚さ=2.63,ﾏｰｸ 14

 1
90201-35440

CM7#,8#,KM7#,8#

厚さ=2.69,ﾏｰｸ 16

 1
90201-35517

CM7#,8#,KM7#,8#

外径=47,厚さ=2.30,ﾏｰｸ 03

 1
90201-35516

CM7#,8#,KM7#,8#

外径=47,厚さ=2.27,ﾏｰｸ 02

 1
90201-35441

CM7#,8#,KM7#,8#

厚さ=2.72,ﾏｰｸ 17

 1
90201-35401

CM7#,8#,KM7#,8#

厚さ=2.51,ﾏｰｸ 10

 1
90201-35439

CM7#,8#,KM7#,8#

厚さ=2.66,ﾏｰｸ 15

 1
90201-35404

CM7#,8#,KM7#,8#

厚さ=2.60,ﾏｰｸ 13

 1
90201-35402

CM7#,8#,KM7#,8#

厚さ=2.54,ﾏｰｸ 11

 1
90201-35403

CM7#,8#,KM7#,8#

厚さ=2.57,ﾏｰｸ 12

 1
90201-35400

CM7#,8#,KM7#,8#

厚さ=2.48,ﾏｰｸ 09

 1
90201-35402

CM7#,8#,KM7#,8#

厚さ=2.54,ﾏｰｸ 11

 1
90201-35400

CM7#,8#,KM7#,8#

厚さ=2.48,ﾏｰｸ 09

 1
90201-35440

CM7#,8#,KM7#,8#

厚さ=2.69,ﾏｰｸ 16

 1
90201-35438

CM7#,8#,KM7#,8#

厚さ=2.63,ﾏｰｸ 14

 1
90201-35517

CM7#,8#,KM7#,8#

外径=47,厚さ=2.30,ﾏｰｸ 03

 1
90201-35518

CM7#,8#,KM7#,8#

外径=47,厚さ=2.33,ﾏｰｸ 04

 1
90201-35441

CM7#,8#,KM7#,8#

厚さ=2.72,ﾏｰｸ 17

 1
90201-35516

CM7#,8#,KM7#,8#

外径=47,厚さ=2.27,ﾏｰｸ 02

 1
90201-35515

CM7#,8#,KM7#,8#

外径=47,厚さ=2.24,ﾏｰｸ 01

 1
90201-35397

CM7#,8#,KM7#,8#

厚さ=2.39,ﾏｰｸ 06

 1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-35050

CM7#,8#,KM7#,8#

 1
41204-35050

CM7#,8#,KM7#,8#

 1
41204B - NUT (FOR REAR DRIVE PINION)
90179-18020

CM7#,8#,KM7#,8#

外径=33.5

 1
90179-18020

CM7#,8#,KM7#,8#

外径=33.5

 1
41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41214-30021

CM7#,8#,KM7#,8#

 1
41214-30021

CM7#,8#,KM7#,8#

 1
41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-28010

CM7#,KM7#

 4
41222-35030

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 5
41222-28010

CM7#,KM7#..CBU,IV3

 4
41222-35030

CM75,8#,KM75,8#..JL

 5
41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
90101-11353

CM7#,KM7#

 8
90101-11353

CM75,8#,KM75,8#..JL

 10
90101-11353

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 10
90101-11353

CM7#,KM7#..CBU,IV3

 8
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-22020

CM7#,KM7#..CBU,IV3

 1
41231-22010

CM75,8#,KM75,8#..JL

 1
41231-22020

CM7#,KM7#

 1
41231-22010

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-30010

CM7#,8#,KM7#,8#

 1
41252-30010

CM7#,8#,KM7#,8#

 1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-45014

CM7#,KM7#

 2
90368-45014

CM7#,8#,KM7#,8#

 2
90368-45066

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 2
90368-45014

CM7#,8#,KM7#,8#

 2
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-45014

CM7#,KM7#

 2
90368-45014

CM7#,8#,KM7#,8#

 2
90368-45066

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 2
90368-45014

CM7#,8#,KM7#,8#

 2
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41311-30050

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
41311-30050

CM75,8#,KM75,8#..JL

 1
41311-30022

CM7#,KM7#

 1
41311-30022

CM7#,KM7#..CBU,IV3

 1
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-30010

CM7#,KM7#

 2
41315-35010

CM75,8#,KM75,8#..JL

 2
41315-30010

CM7#,KM7#..CBU,IV3

 2
41315-35010

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 2
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-30010

CM7#,KM7#

 2
41315-35010

CM75,8#,KM75,8#..JL

 2
41315-30010

CM7#,KM7#..CBU,IV3

 2
41315-35010

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41317-30010

CM7#,8#,KM7#,8#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
41317-30010

CM7#,8#,KM7#,8#

TYPE B:ｲﾗｽﾄ参照

 2
41316-35010

CM7#,8#,KM7#,8#

TYPE A:ｲﾗｽﾄ参照

 2
41316-35010

CM7#,8#,KM7#,8#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41317-30010

CM7#,8#,KM7#,8#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
41317-30010

CM7#,8#,KM7#,8#

TYPE B:ｲﾗｽﾄ参照

 2
41316-35010

CM7#,8#,KM7#,8#

TYPE A:ｲﾗｽﾄ参照

 2
41316-35010

CM7#,8#,KM7#,8#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-30030

CM75..IV3;CM8#,KM8#

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-30030

CM75..IV3;CM8#,KM8#

 2
41341 - PINION, REAR DIFFERENTIAL
41341-30020

CM75..IV3;CM8#,KM8#

 2
41341 - PINION, REAR DIFFERENTIAL
41341-30020

CM75..IV3;CM8#,KM8#

 2
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-30011

CM7#,KM7#

 1
41342-22021

CM75..IV3;CM8#,KM8#

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
41342-22020

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
41342-30011

CM7#,KM7#..CBU,IV3

 1
41343 - PIN, REAR DIFFERENTIAL PINION SHAFT
90250-06058

CM7#,8#,KM7#,8#

 1
90250-06058

CM7#,8#,KM7#,8#

 1
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-30060

CM75,8#,KM75,8#..JL

 2
41351-30032

CM7#,KM7#

 2
41351-30060

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 2
41351-30032

CM7#,KM7#..CBU,IV3

 2
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-30060

CM75,8#,KM75,8#..JL

 2
41351-30032

CM7#,KM7#

 2
41351-30060

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 2
41351-30032

CM7#,KM7#..CBU,IV3

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22140

CM7#,KM7#

厚さ=0.95,ﾏｰｸ 14

 2
41361-22040

CM7#,KM7#

厚さ=1.20,ﾏｰｸ 04

 2
41361-30040

CM75..IV3;CM8#,KM8#

厚さ=1.0

 2
41361-30040

CM75,8#,KM75,8#..JL

厚さ=1.0

 2
41361-30060

CM75..IV3;CM8#,KM8#

厚さ=1.2

 2
41361-22030

CM7#,KM7#

厚さ=1.10,ﾏｰｸ 03

 2
41361-22160

CM7#,KM7#..CBU,IV3

厚さ=1.15,ﾏｰｸ 16

 2
41361-30070

CM75,8#,KM75,8#..JL

厚さ=1.3

 2
41361-22020

CM7#,KM7#

厚さ=1.00,ﾏｰｸ 02

 2
41361-22160

CM7#,KM7#

厚さ=1.15,ﾏｰｸ 16

 2
41361-30050

CM75,8#,KM75,8#..JL

厚さ=1.1

 2
41361-22030

CM7#,KM7#..CBU,IV3

厚さ=1.10,ﾏｰｸ 03

 2
41361-22150

CM7#,KM7#..CBU,IV3

厚さ=1.05,ﾏｰｸ 15

 2
41361-30070

CM75..IV3;CM8#,KM8#

厚さ=1.3

 2
41361-22150

CM7#,KM7#

厚さ=1.05,ﾏｰｸ 15

 2
41361-30050

CM75..IV3;CM8#,KM8#

厚さ=1.1

 2
41361-30060

CM75,8#,KM75,8#..JL

厚さ=1.2

 2
41361-22040

CM7#,KM7#..CBU,IV3

厚さ=1.20,ﾏｰｸ 04

 2
41361-22140

CM7#,KM7#..CBU,IV3

厚さ=0.95,ﾏｰｸ 14

 2
41361-22020

CM7#,KM7#..CBU,IV3

厚さ=1.00,ﾏｰｸ 02

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22140

CM7#,KM7#

厚さ=0.95,ﾏｰｸ 14

 2
41361-22040

CM7#,KM7#

厚さ=1.20,ﾏｰｸ 04

 2
41361-30040

CM75..IV3;CM8#,KM8#

厚さ=1.0

 2
41361-30040

CM75,8#,KM75,8#..JL

厚さ=1.0

 2
41361-30060

CM75..IV3;CM8#,KM8#

厚さ=1.2

 2
41361-22030

CM7#,KM7#

厚さ=1.10,ﾏｰｸ 03

 2
41361-22160

CM7#,KM7#..CBU,IV3

厚さ=1.15,ﾏｰｸ 16

 2
41361-30070

CM75,8#,KM75,8#..JL

厚さ=1.3

 2
41361-22020

CM7#,KM7#

厚さ=1.00,ﾏｰｸ 02

 2
41361-22160

CM7#,KM7#

厚さ=1.15,ﾏｰｸ 16

 2
41361-30050

CM75,8#,KM75,8#..JL

厚さ=1.1

 2
41361-22030

CM7#,KM7#..CBU,IV3

厚さ=1.10,ﾏｰｸ 03

 2
41361-22150

CM7#,KM7#..CBU,IV3

厚さ=1.05,ﾏｰｸ 15

 2
41361-30070

CM75..IV3;CM8#,KM8#

厚さ=1.3

 2
41361-22150

CM7#,KM7#

厚さ=1.05,ﾏｰｸ 15

 2
41361-30050

CM75..IV3;CM8#,KM8#

厚さ=1.1

 2
41361-30060

CM75,8#,KM75,8#..JL

厚さ=1.2

 2
41361-22040

CM7#,KM7#..CBU,IV3

厚さ=1.20,ﾏｰｸ 04

 2
41361-22140

CM7#,KM7#..CBU,IV3

厚さ=0.95,ﾏｰｸ 14

 2
41361-22020

CM7#,KM7#..CBU,IV3

厚さ=1.00,ﾏｰｸ 02

 2
Common parts
91111-60814
91611-60814
94512-00800

ILLUST NO. 1 OF 2(9906-0208)CM75..IV3

Click highlighted areas on diagram

ﾔﾏﾄORｺｳｼﾖｾﾝﾖｳｼﾔｼOR(ﾔﾏﾄ&ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

diagram 41039 41101 41110 41114 41201 41201A 41201B 41201C 41201D 41204 41204B 41214 41222 41222A 41231 41252 41301A 41301A 41302 41315 41315 41316 41316 41331 41331 41341 41341 41342 41343 41351 41351 41361 41361 9111160814 9451200800
Part # Description Qty Price
41039 - GEAR KIT, DIFFERENTIAL, REAR
41039-28010

CM7#,KM7#..CBU,IV3

 1
41039-28010

CM7#,KM7#

 1
41039-34090

CM75..IV3;CM8#,KM8#

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-30010

CM7#,KM7#

 1
41101-30031

CM75,8#,KM75,8#..JL

 1
41101-30031

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
41101-30010

CM7#,KM7#..CBU,IV3

 1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-27150

CM75,KM75..5H;CM70,KM70..SJL..4HC

*FGR=41:10=4.100

 1
41110-28080

CM75..IV3

*FGR=41:9=4.555,ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90105-12053

CM75,8#,KM75,8#..JL

 4
90105-12240

CM7#,KM7#

 4
90105-12240

CM7#,KM7#..CBU,IV3

 4
90105-12053

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 4
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-80015

CM75..IV3

*FGR=41:9=4.556

 1
41201-80030

CM75,8#..JL

*FGR=43:9=4.778

 1
41201-39555

CM75,KM75..5H;CM70,KM70..SJL..4HC

*FGR=41:10=4.100

 1
41201-39555

CM75..5H;CM70..SJL..4HC

*FGR=41:10=4.100

 1
41201A - BEARING (FOR REAR DRIVE PINION REAR)
90366-35073

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
90366-35067

CM7#,KM7#

 1
90366-35023

CM7#,8#,KM7#,8#

 1
90366-35023

CM7#,8#,KM7#,8#

 1
90366-35064

CM7#,KM7#

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90366-30055

CM7#,8#,KM7#,8#

 1
90366-30055

CM7#,8#,KM7#,8#

 1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90311-38047

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
90311-38047

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
90311-38133

CM7#,KM7#

 1
41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
90201-35397

CM7#,8#,KM7#,8#

厚さ=2.39,ﾏｰｸ 06

 1
90201-35398

CM7#,8#,KM7#,8#

厚さ=2.42,ﾏｰｸ 07

 1
90201-35403

CM7#,8#,KM7#,8#

厚さ=2.57,ﾏｰｸ 12

 1
90201-35404

CM7#,8#,KM7#,8#

厚さ=2.60,ﾏｰｸ 13

 1
90201-35399

CM7#,8#,KM7#,8#

厚さ=2.43,ﾏｰｸ 08

 1
90201-35401

CM7#,8#,KM7#,8#

厚さ=2.51,ﾏｰｸ 10

 1
90201-35396

CM7#,8#,KM7#,8#

厚さ=2.36,ﾏｰｸ 05

 1
90201-35515

CM7#,8#,KM7#,8#

外径=47,厚さ=2.24,ﾏｰｸ 01

 1
90201-35396

CM7#,8#,KM7#,8#

厚さ=2.36,ﾏｰｸ 05

 1
90201-35399

CM7#,8#,KM7#,8#

厚さ=2.43,ﾏｰｸ 08

 1
90201-35398

CM7#,8#,KM7#,8#

厚さ=2.42,ﾏｰｸ 07

 1
90201-35518

CM7#,8#,KM7#,8#

外径=47,厚さ=2.33,ﾏｰｸ 04

 1
90201-35439

CM7#,8#,KM7#,8#

厚さ=2.66,ﾏｰｸ 15

 1
90201-35438

CM7#,8#,KM7#,8#

厚さ=2.63,ﾏｰｸ 14

 1
90201-35440

CM7#,8#,KM7#,8#

厚さ=2.69,ﾏｰｸ 16

 1
90201-35517

CM7#,8#,KM7#,8#

外径=47,厚さ=2.30,ﾏｰｸ 03

 1
90201-35516

CM7#,8#,KM7#,8#

外径=47,厚さ=2.27,ﾏｰｸ 02

 1
90201-35441

CM7#,8#,KM7#,8#

厚さ=2.72,ﾏｰｸ 17

 1
90201-35401

CM7#,8#,KM7#,8#

厚さ=2.51,ﾏｰｸ 10

 1
90201-35439

CM7#,8#,KM7#,8#

厚さ=2.66,ﾏｰｸ 15

 1
90201-35404

CM7#,8#,KM7#,8#

厚さ=2.60,ﾏｰｸ 13

 1
90201-35402

CM7#,8#,KM7#,8#

厚さ=2.54,ﾏｰｸ 11

 1
90201-35403

CM7#,8#,KM7#,8#

厚さ=2.57,ﾏｰｸ 12

 1
90201-35400

CM7#,8#,KM7#,8#

厚さ=2.48,ﾏｰｸ 09

 1
90201-35402

CM7#,8#,KM7#,8#

厚さ=2.54,ﾏｰｸ 11

 1
90201-35400

CM7#,8#,KM7#,8#

厚さ=2.48,ﾏｰｸ 09

 1
90201-35440

CM7#,8#,KM7#,8#

厚さ=2.69,ﾏｰｸ 16

 1
90201-35438

CM7#,8#,KM7#,8#

厚さ=2.63,ﾏｰｸ 14

 1
90201-35517

CM7#,8#,KM7#,8#

外径=47,厚さ=2.30,ﾏｰｸ 03

 1
90201-35518

CM7#,8#,KM7#,8#

外径=47,厚さ=2.33,ﾏｰｸ 04

 1
90201-35441

CM7#,8#,KM7#,8#

厚さ=2.72,ﾏｰｸ 17

 1
90201-35516

CM7#,8#,KM7#,8#

外径=47,厚さ=2.27,ﾏｰｸ 02

 1
90201-35515

CM7#,8#,KM7#,8#

外径=47,厚さ=2.24,ﾏｰｸ 01

 1
90201-35397

CM7#,8#,KM7#,8#

厚さ=2.39,ﾏｰｸ 06

 1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-35050

CM7#,8#,KM7#,8#

 1
41204-35050

CM7#,8#,KM7#,8#

 1
41204B - NUT (FOR REAR DRIVE PINION)
90179-18020

CM7#,8#,KM7#,8#

外径=33.5

 1
90179-18020

CM7#,8#,KM7#,8#

外径=33.5

 1
41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41214-30021

CM7#,8#,KM7#,8#

 1
41214-30021

CM7#,8#,KM7#,8#

 1
41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-28010

CM7#,KM7#

 4
41222-35030

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 5
41222-28010

CM7#,KM7#..CBU,IV3

 4
41222-35030

CM75,8#,KM75,8#..JL

 5
41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
90101-11353

CM7#,KM7#

 8
90101-11353

CM75,8#,KM75,8#..JL

 10
90101-11353

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 10
90101-11353

CM7#,KM7#..CBU,IV3

 8
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-22020

CM7#,KM7#..CBU,IV3

 1
41231-22010

CM75,8#,KM75,8#..JL

 1
41231-22020

CM7#,KM7#

 1
41231-22010

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-30010

CM7#,8#,KM7#,8#

 1
41252-30010

CM7#,8#,KM7#,8#

 1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-45014

CM7#,KM7#

 2
90368-45014

CM7#,8#,KM7#,8#

 2
90368-45066

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 2
90368-45014

CM7#,8#,KM7#,8#

 2
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-45014

CM7#,KM7#

 2
90368-45014

CM7#,8#,KM7#,8#

 2
90368-45066

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 2
90368-45014

CM7#,8#,KM7#,8#

 2
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41311-30050

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
41311-30050

CM75,8#,KM75,8#..JL

 1
41311-30022

CM7#,KM7#

 1
41311-30022

CM7#,KM7#..CBU,IV3

 1
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-30010

CM7#,KM7#

 2
41315-35010

CM75,8#,KM75,8#..JL

 2
41315-30010

CM7#,KM7#..CBU,IV3

 2
41315-35010

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 2
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-30010

CM7#,KM7#

 2
41315-35010

CM75,8#,KM75,8#..JL

 2
41315-30010

CM7#,KM7#..CBU,IV3

 2
41315-35010

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41317-30010

CM7#,8#,KM7#,8#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
41317-30010

CM7#,8#,KM7#,8#

TYPE B:ｲﾗｽﾄ参照

 2
41316-35010

CM7#,8#,KM7#,8#

TYPE A:ｲﾗｽﾄ参照

 2
41316-35010

CM7#,8#,KM7#,8#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41317-30010

CM7#,8#,KM7#,8#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
41317-30010

CM7#,8#,KM7#,8#

TYPE B:ｲﾗｽﾄ参照

 2
41316-35010

CM7#,8#,KM7#,8#

TYPE A:ｲﾗｽﾄ参照

 2
41316-35010

CM7#,8#,KM7#,8#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-30030

CM75..IV3;CM8#,KM8#

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-30030

CM75..IV3;CM8#,KM8#

 2
41341 - PINION, REAR DIFFERENTIAL
41341-30020

CM75..IV3;CM8#,KM8#

 2
41341 - PINION, REAR DIFFERENTIAL
41341-30020

CM75..IV3;CM8#,KM8#

 2
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-30011

CM7#,KM7#

 1
41342-22021

CM75..IV3;CM8#,KM8#

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
41342-22020

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
41342-30011

CM7#,KM7#..CBU,IV3

 1
41343 - PIN, REAR DIFFERENTIAL PINION SHAFT
90250-06058

CM7#,8#,KM7#,8#

 1
90250-06058

CM7#,8#,KM7#,8#

 1
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-30060

CM75,8#,KM75,8#..JL

 2
41351-30032

CM7#,KM7#

 2
41351-30060

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 2
41351-30032

CM7#,KM7#..CBU,IV3

 2
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-30060

CM75,8#,KM75,8#..JL

 2
41351-30032

CM7#,KM7#

 2
41351-30060

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 2
41351-30032

CM7#,KM7#..CBU,IV3

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22140

CM7#,KM7#

厚さ=0.95,ﾏｰｸ 14

 2
41361-22040

CM7#,KM7#

厚さ=1.20,ﾏｰｸ 04

 2
41361-30040

CM75..IV3;CM8#,KM8#

厚さ=1.0

 2
41361-30040

CM75,8#,KM75,8#..JL

厚さ=1.0

 2
41361-30060

CM75..IV3;CM8#,KM8#

厚さ=1.2

 2
41361-22030

CM7#,KM7#

厚さ=1.10,ﾏｰｸ 03

 2
41361-22160

CM7#,KM7#..CBU,IV3

厚さ=1.15,ﾏｰｸ 16

 2
41361-30070

CM75,8#,KM75,8#..JL

厚さ=1.3

 2
41361-22020

CM7#,KM7#

厚さ=1.00,ﾏｰｸ 02

 2
41361-22160

CM7#,KM7#

厚さ=1.15,ﾏｰｸ 16

 2
41361-30050

CM75,8#,KM75,8#..JL

厚さ=1.1

 2
41361-22030

CM7#,KM7#..CBU,IV3

厚さ=1.10,ﾏｰｸ 03

 2
41361-22150

CM7#,KM7#..CBU,IV3

厚さ=1.05,ﾏｰｸ 15

 2
41361-30070

CM75..IV3;CM8#,KM8#

厚さ=1.3

 2
41361-22150

CM7#,KM7#

厚さ=1.05,ﾏｰｸ 15

 2
41361-30050

CM75..IV3;CM8#,KM8#

厚さ=1.1

 2
41361-30060

CM75,8#,KM75,8#..JL

厚さ=1.2

 2
41361-22040

CM7#,KM7#..CBU,IV3

厚さ=1.20,ﾏｰｸ 04

 2
41361-22140

CM7#,KM7#..CBU,IV3

厚さ=0.95,ﾏｰｸ 14

 2
41361-22020

CM7#,KM7#..CBU,IV3

厚さ=1.00,ﾏｰｸ 02

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22140

CM7#,KM7#

厚さ=0.95,ﾏｰｸ 14

 2
41361-22040

CM7#,KM7#

厚さ=1.20,ﾏｰｸ 04

 2
41361-30040

CM75..IV3;CM8#,KM8#

厚さ=1.0

 2
41361-30040

CM75,8#,KM75,8#..JL

厚さ=1.0

 2
41361-30060

CM75..IV3;CM8#,KM8#

厚さ=1.2

 2
41361-22030

CM7#,KM7#

厚さ=1.10,ﾏｰｸ 03

 2
41361-22160

CM7#,KM7#..CBU,IV3

厚さ=1.15,ﾏｰｸ 16

 2
41361-30070

CM75,8#,KM75,8#..JL

厚さ=1.3

 2
41361-22020

CM7#,KM7#

厚さ=1.00,ﾏｰｸ 02

 2
41361-22160

CM7#,KM7#

厚さ=1.15,ﾏｰｸ 16

 2
41361-30050

CM75,8#,KM75,8#..JL

厚さ=1.1

 2
41361-22030

CM7#,KM7#..CBU,IV3

厚さ=1.10,ﾏｰｸ 03

 2
41361-22150

CM7#,KM7#..CBU,IV3

厚さ=1.05,ﾏｰｸ 15

 2
41361-30070

CM75..IV3;CM8#,KM8#

厚さ=1.3

 2
41361-22150

CM7#,KM7#

厚さ=1.05,ﾏｰｸ 15

 2
41361-30050

CM75..IV3;CM8#,KM8#

厚さ=1.1

 2
41361-30060

CM75,8#,KM75,8#..JL

厚さ=1.2

 2
41361-22040

CM7#,KM7#..CBU,IV3

厚さ=1.20,ﾏｰｸ 04

 2
41361-22140

CM7#,KM7#..CBU,IV3

厚さ=0.95,ﾏｰｸ 14

 2
41361-22020

CM7#,KM7#..CBU,IV3

厚さ=1.00,ﾏｰｸ 02

 2
Common parts
91111-60814
94512-00800

ILLUST NO. 2 OF 2(9906- )CM7#,KM7#

Click highlighted areas on diagram

diagram 04412 41110A 42110 42110A 42110B 42110C 42110D 42110E 42139 42139 42181 9017008042 9017008204 9453100800
Part # Description Qty Price
04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER
04412-28070

CM7#,KM7#

 1
04412-27030

CM75,85..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
04412-28070

CM70;CM75..5H

 1
04412-38011

CM75,8#,KM75,8#..JL

 1
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-08235

CM7#,8#,KM7#,8#

ﾈｼﾞ部長さ=12 & 15,長さ=34

 10
90116-08329

CM75,85..IV3

ﾈｼﾞ部長さ=17 & 12,長さ=37

 10
42110 - HOUSING ASSY, REAR AXLE
42110-27290

CM7#,KM7#..SJL,SJLC

ﾅｼ(ABS)

 1
42110-27310

CM7#,KM7#..SJL,SJLC

ｱﾘ(ABS)

 1
42110-27310

CM7#..SJL

ｱﾘ(ABS)

 1
42110-27261

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
42110-27290

CM7#..SJL

ﾅｼ(ABS)

 1
42110-27330

CM75,8#..JL

ｱﾘ(ABS)

 1
42110-27320

CM75,8#..JL

ﾅｼ(ABS)

 1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18006

CM7#,8#,KM7#,8#

 1
90341-18049

CM7#,8#,KM7#,8#

 1
90341-18049

CM7#,8#

 1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010

CM7#,8#

 1
12157-10010

CM7#,8#,KM7#,8#

 1
42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING)
90930-03138

CM7#,8#

 1
90930-03138

CM7#,8#,KM7#,8#

 1
90930-03031

CM7#,8#,KM7#,8#

 1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010

CM7#,8#,KM7#,8#

 1
12157-10010

CM7#,8#

 1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057

CM7#,8#

 1
90341-18057

CM7#,8#,KM7#,8#

 1
42139 - DEFLECTOR, REAR AXLE HOUSING OIL
42108-22030

CM7#..CBU,IV3

 2
42108-22030

CM7#,KM7#

 2
42108-30010

CM75,8#..JL

 2
42108-30010

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 2
42139 - DEFLECTOR, REAR AXLE HOUSING OIL
42108-22030

CM7#..CBU,IV3

 2
42108-22030

CM7#,KM7#

 2
42108-30010

CM75,8#..JL

 2
42108-30010

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 2
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-30020

CM75..IV3

ﾔﾏﾄ ｼﾖｳ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ OR (ﾔﾏﾄ ｼﾖｳ & ｺｳｼﾖｾﾝﾖｳｼﾔｼ)

 1
42181-30010

CM7#..CBU,IV3

 1
42181-30020

CM75,8#..JL

 1
42181-30010

CM7#,KM7#

 1
Common parts
90170-08042
90170-08204
94531-00800
