CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )3CE

Click highlighted areas on diagram

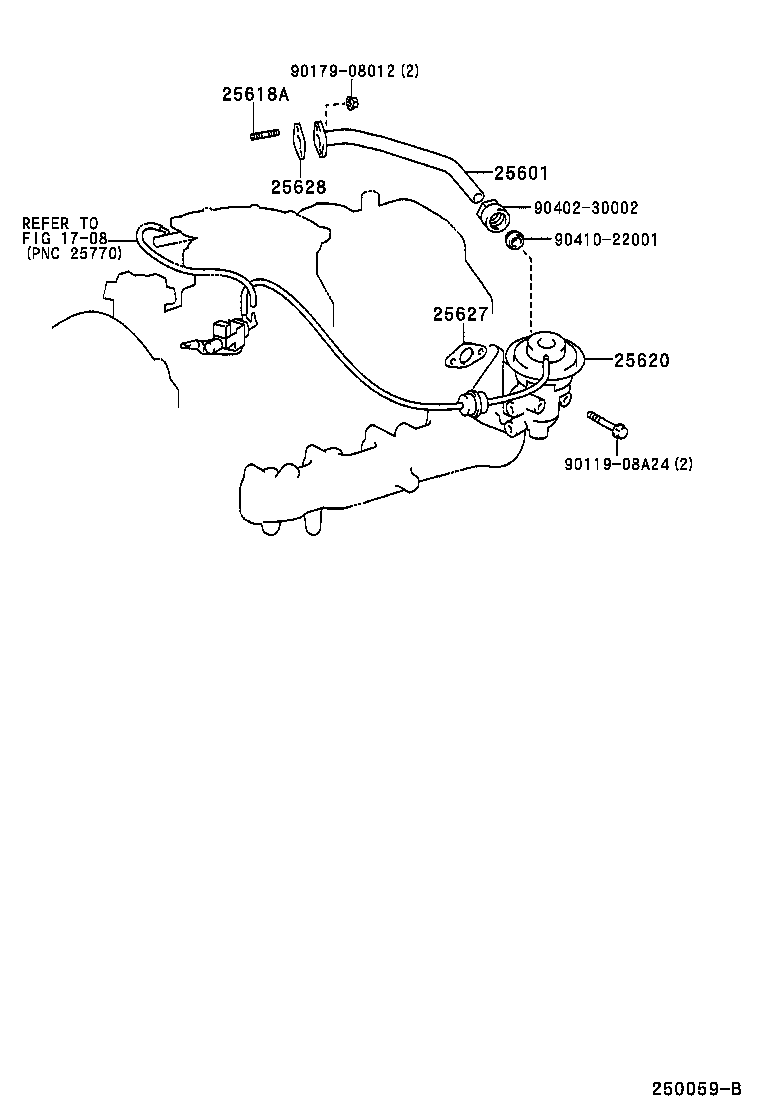

diagram 1708 25601 25618A 25620 25627 25628 9011908A24 9017908012 9040230002 9041022001
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-64041

3CE..CM7#,8#

 1
25601-64041

3CE..CM7#,8#

 1
25618A - BOLT, STUD(FOR EGR INLET)
92122-60822

3CE..CM7#,8#

 2
92122-60822

3CE..CM7#,8#

 2
25620 - VALVE ASSY, EGR
25800-64170

3CE..CM7#,8#

 1
25800-64170

3CE..CM7#,8#

 1
25627 - GASKET, EGR VALVE
25627-64041

3CE..CM7#,8#

 1
25627-64041

3CE..CM7#,8#

 1
25628 - GASKET, EGR INLET
25628-64030

3CE..CM7#,8#

 1
25628-64030

3CE..CM7#,8#

 1
Common parts
90119-08A24
90179-08012
90402-30002
90410-22001
Linked diagrams
1708
