CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )3CE

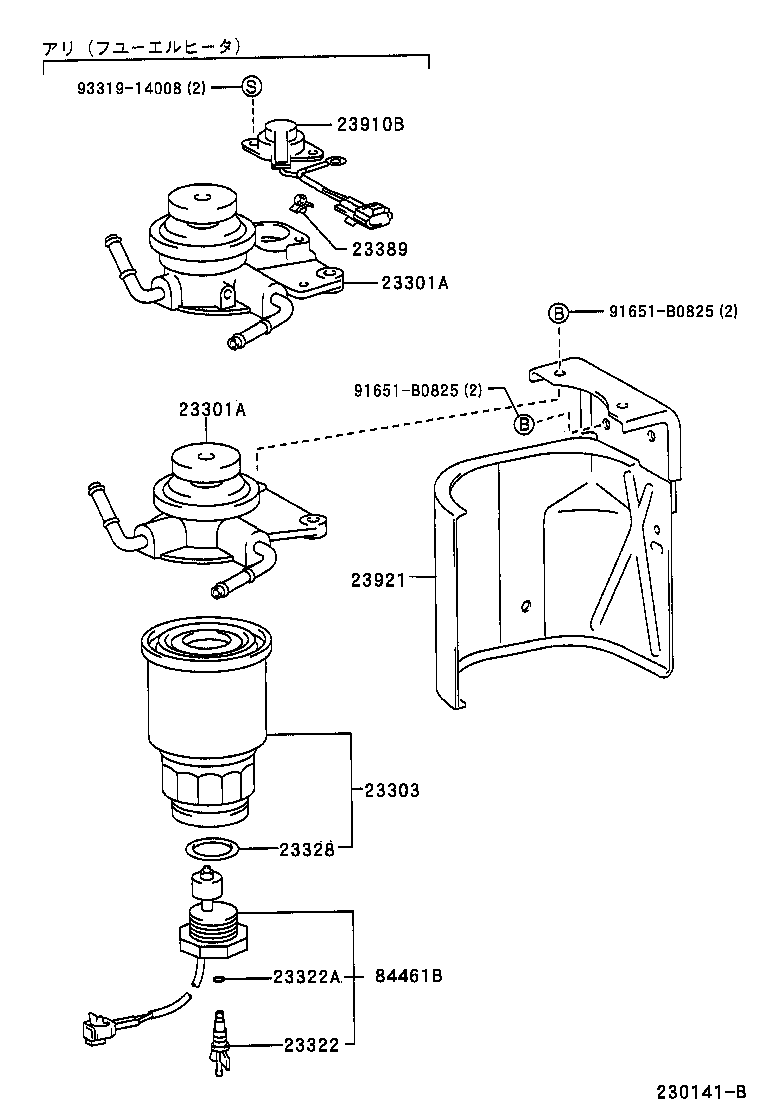

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23328 23389 23910B 23921 84461B 91651B0825 91651B0825 9331914008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23380-64520

3CE..CM7#,8#

 1
23380-64520

3CE..CM7#,8#

 1
23380-64530

3CE..CM7#,8#

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23380-64530

3CE..CM7#,8#

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23301A - CAP ASSY, FUEL FILTER
23380-64520

3CE..CM7#,8#

 1
23380-64520

3CE..CM7#,8#

 1
23380-64530

3CE..CM7#,8#

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23380-64530

3CE..CM7#,8#

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-64450

3CE..CM7#,8#

 1
23390-64450

3CE..CM7#,8#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470

3CE..CM7#,8#

 1
23388-64470

3CE..CM7#,8#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

3CE..CM7#,8#

 1
23344-54010

3CE..CM7#,8#

 1
23328 - GASKET(FOR FUEL FILTER)
23344-64010

3CE..CM7#,8#

 1
23344-64010

3CE..CM7#,8#

 1
23389 - CLAMP, FUEL FILTER
23389-64490

3CE..CM7#,8#

 1
23389-64490

3CE..CM7#,8#

 1
23910B - HEATER ASSY, FUEL
23910-64040

3CE..CM7#,8#

 1
23910-64040

3CE..CM7#,8#

 1
23921 - SUPPORT, FUEL FILTER
23921-64121

3CE..CM7#,8#

 1
23921-64121

3CE..CM7#,8#

 1
84461B - SWITCH, LEVEL WARNING
84461-28040

CM7#,8#

 1
84461-28040

CM7#,8#

 1
Common parts
91651-B0825
93319-14008
