CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )3CE

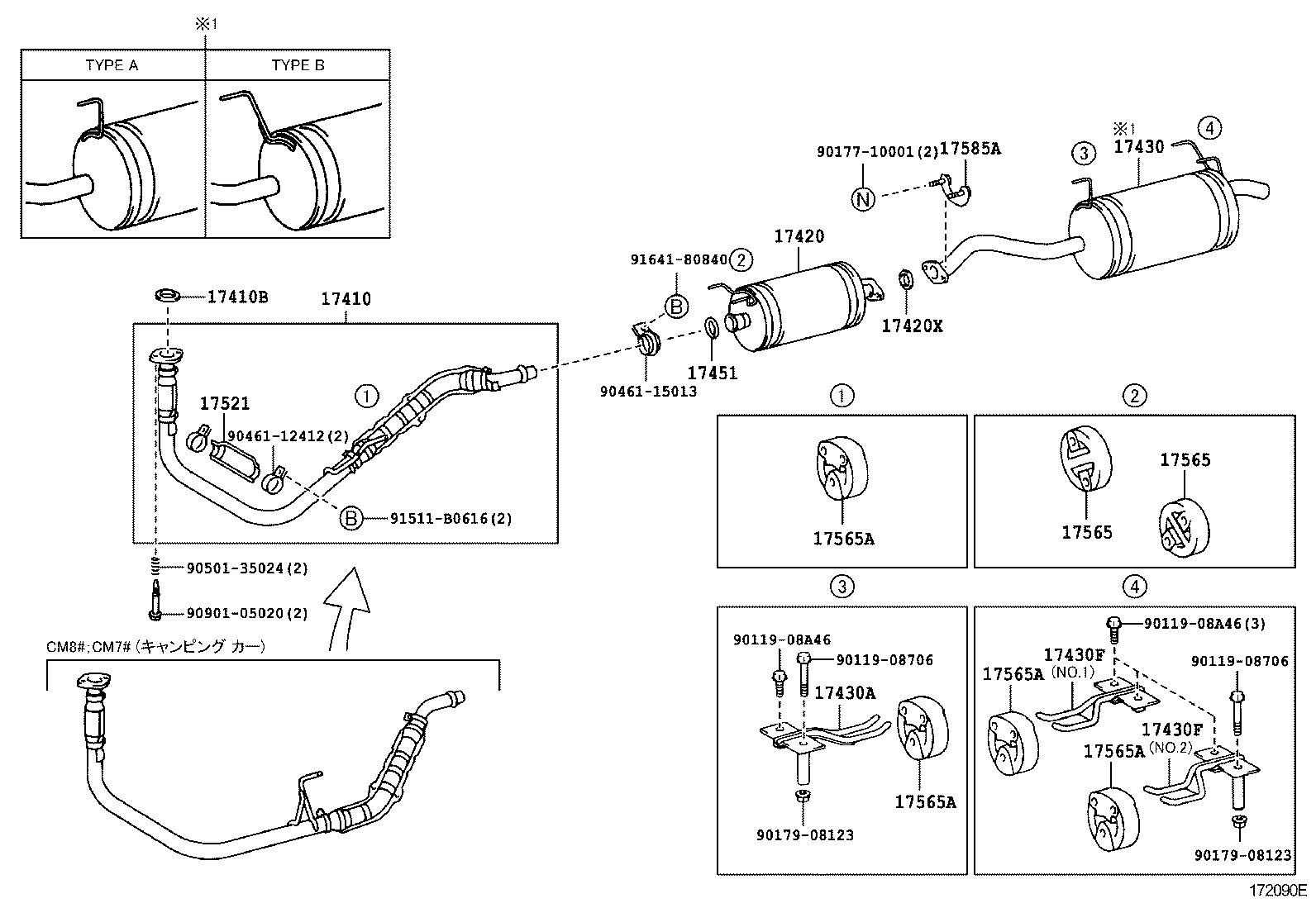

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420X 17430 17430A 17430F 17430F 17451 17521 17565 17565 17565A 17565A 17565A 17565A 17585A 9011908706 9011908706 9011908A46 9011908A46 9017710001 9017908123 9017908123 9046112412 9046115013 9050135024 9090105020 91511B0616 9164180840
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-6A020

3CE..CM7#

 1
17410-6A050

3CE..CM7#

 1
17410B - GASKET, EXHAUST PIPE
90917-06080

3CE..CM7#,8#

 1
90917-06080

3CE..CM7#,8#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-64370

3CE..CM75,85

 1
17420-64370

3CE..CM75,85

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06044

3CE,7KE..CM7#,8#,KM7#,8#

 1
90917-06044

3CE..CM7#,8#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-6A440

3CE..CM7#,8#

TYPE A:ｲﾗｽﾄ参照

 1
17430-6A370

3CE..CM7#,8#

TYPE A:ｲﾗｽﾄ参照

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17574-72031

3CE..CM7#,8#

 1
17574-72031

3CE,7KE..CM7#,8#,KM7#,8#

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17573-64040

3CE..CM7#,8#

NO.2

 1
17575-64020

3CE,7KE..CM7#,8#,KM7#,8#

NO.1

 1
17575-64020

3CE..CM7#,8#

NO.1

 1
17573-64040

3CE,7KE..CM7#,8#,KM7#,8#

NO.2

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17573-64040

3CE..CM7#,8#

NO.2

 1
17575-64020

3CE,7KE..CM7#,8#,KM7#,8#

NO.1

 1
17575-64020

3CE..CM7#,8#

NO.1

 1
17573-64040

3CE,7KE..CM7#,8#,KM7#,8#

NO.2

 1
17451 - GASKET, EXHAUST PIPE
90917-06082

3CE..CM7#,8#

 1
90917-06082

3CE..CM7#,8#

 1
17521 - PROTECTOR, EXHAUST PIPE, FRONT NO.1
17521-64020

3CE..CM7#,8#

 1
17521-64020

3CE..CM7#,8#

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-46010

3CE..CM7#,8#

 2
17565-46010

3CE,7KE..CM7#,8#,KM7#,8#

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-46010

3CE..CM7#,8#

 2
17565-46010

3CE,7KE..CM7#,8#,KM7#,8#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17566-35030

3CE..CM7#,8#

 4
17566-35030

3CE,7KE..CM7#,8#,KM7#,8#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17566-35030

3CE..CM7#,8#

 4
17566-35030

3CE,7KE..CM7#,8#,KM7#,8#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17566-35030

3CE..CM7#,8#

 4
17566-35030

3CE,7KE..CM7#,8#,KM7#,8#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17566-35030

3CE..CM7#,8#

 4
17566-35030

3CE,7KE..CM7#,8#,KM7#,8#

 4
17585A - BRACKET, EXHAUST PIPE NO.2 SUPPORT
17585-64060

3CE..CM7#,8#

 1
17585-64060

3CE,7KE..CM7#,8#,KM7#,8#

 1
Common parts
90119-08706
90119-08A46
90177-10001
90179-08123
90461-12412
90461-15013
90501-35024
90901-05020
91511-B0616
91641-80840
