CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )3CE

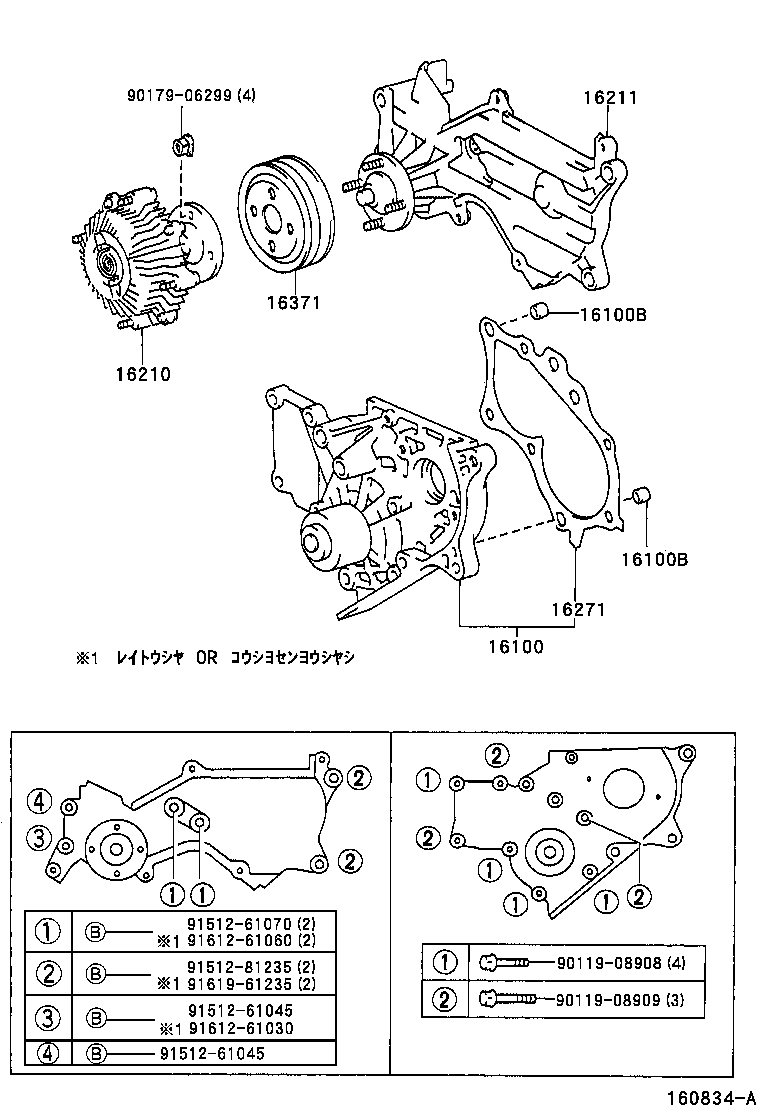

Click highlighted areas on diagram

diagram 16100 16100B 16100B 16210 16211 16271 16371 9011908908 9011908909 9017906299 9151261045 9151261045 9151261070 9151281235 9161261030 9161261060 9161961235
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69435

3CE..CM7#,8#

 1
16100-69435

3CE..CM7#,8#

 1
16100-69298

3CE..CM7#,8#

 1
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

3CE..CM7#,8#

 2
90253-11021

3CE..CM7#,8#

 2
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

3CE..CM7#,8#

 2
90253-11021

3CE..CM7#,8#

 2
16210 - COUPLING ASSY, FLUID
16210-64020

3CE..CM7#,85..IV3

ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ

 1
16210-64060

3CE..CM7#,8#

 1
16210-64060

3CE..CM7#,8#

 1
16210-64020

3CE..CM7#,85..IV3

ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ

 1
16211 - BRACKET, FLUID COUPLING
16307-64032

3CE..CM7#,85..IV3

ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ

 1
16307-64022

3CE..CM7#,8#

 1
16307-64032

3CE..CM7#,85..IV3

ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ

 1
16307-64022

3CE..CM7#,8#

 1
16271 - GASKET, WATER PUMP
16271-64031

3CE..CM7#,8#

 1
16271-64031

3CE..CM7#,8#

 1
16371 - PULLEY, FAN
16371-64050

3CE..CM7#,8#

 1
16371-64050

3CE..CM7#,8#

 1
Common parts
90119-08908
90119-08909
90179-06299
91512-61045
91512-61070
91512-81235
91612-61030
91612-61060
91619-61235
