CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )3CE

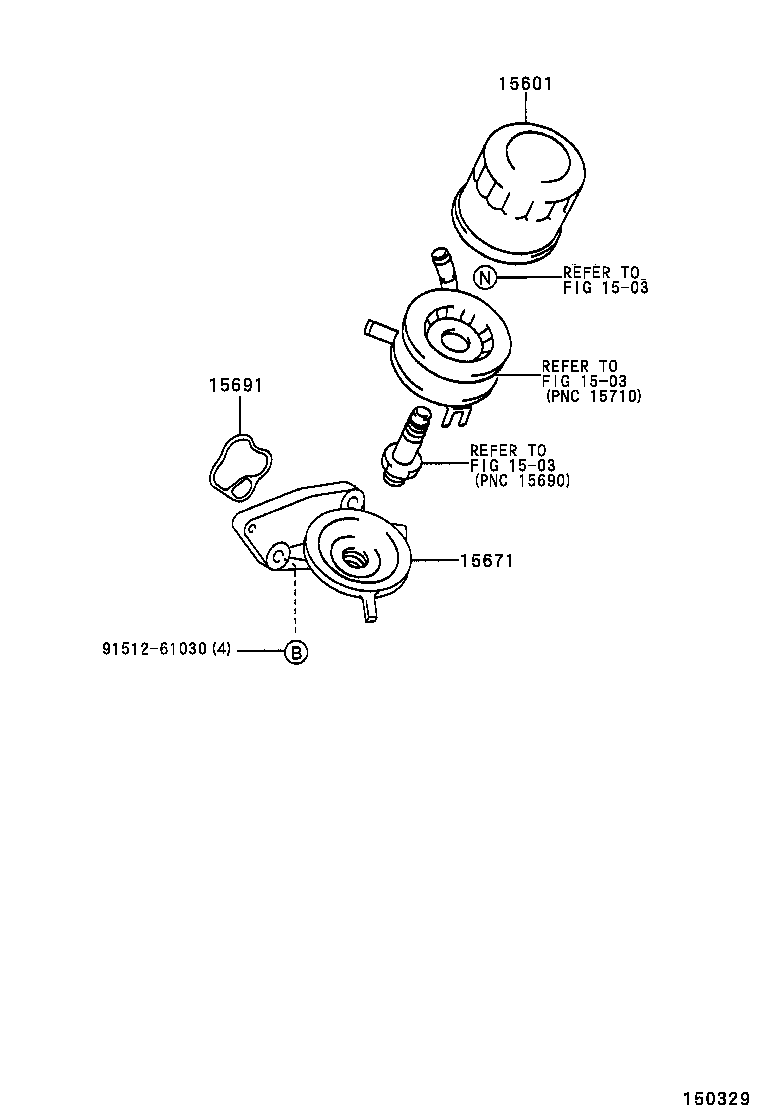

Click highlighted areas on diagram

diagram 1503 1503 1503 15601 15671 15691 9151261030
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-30003

3CE..CM7#,8#

 1
90915-30003

3CE..CM7#,8#

 1
15671 - BRACKET, OIL FILTER
15677-64181

3CE..CM7#,8#

 1
15677-64180

3CE..CM7#,8#

 1
15691 - GASKET, OIL FILTER
15691-64041

3CE..CM7#,8#

 1
15691-64041

3CE..CM7#,8#

 1
Common parts
91512-61030
Linked diagrams
1503
