CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )3CE

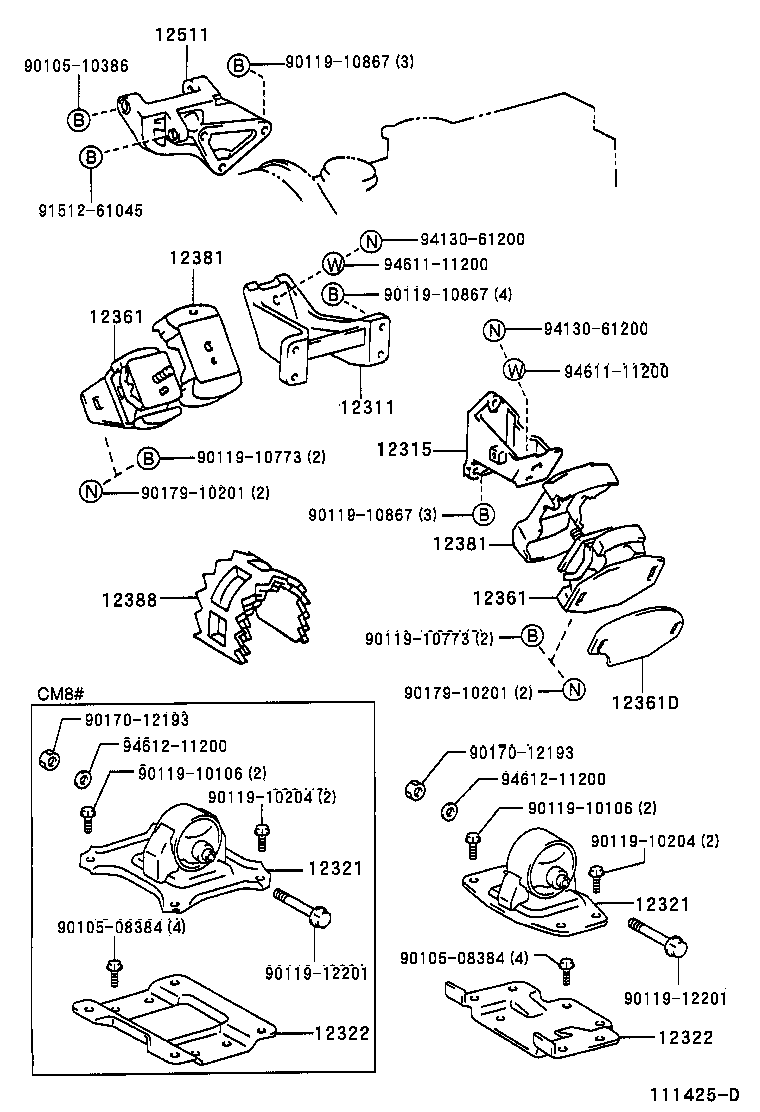

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12322 12322 12361 12361 12361D 12381 12381 12388 12511 9010508384 9010508384 9010510386 9011910106 9011910106 9011910204 9011910204 9011910773 9011910773 9011910867 9011910867 9011910867 9011912201 9011912201 9017012193 9017012193 9017910201 9017910201 9151261045 9413061200 9413061200 9461111200 9461111200 9461211200 9461211200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-64220

3CE..CM7#,8#

 1
12311-64220

3CE..CM7#,8#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-64180

3CE..CM7#,8#

 1
12315-64180

3CE..CM7#,8#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-64200

3CE..CM7#

 1
12303-64200

3CE..CM7#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-64200

3CE..CM7#

 1
12303-64200

3CE..CM7#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-64010

3CE..CM7#..5H

 1
12322-64010

3CE..CM7#..5H

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-64010

3CE..CM7#..5H

 1
12322-64010

3CE..CM7#..5H

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64320

3CE..CM7#,8#

TOYO

 2
12361-64320

3CE..CM7#,8#

 2
12361-64330

3CE..CM7#,8#

東海ｺﾞﾑ

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64320

3CE..CM7#,8#

TOYO

 2
12361-64320

3CE..CM7#,8#

 2
12361-64330

3CE..CM7#,8#

東海ｺﾞﾑ

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64110

3CE..CM7#,8#

 2
12381-64110

3CE..CM7#,8#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64110

3CE..CM7#,8#

 2
12381-64110

3CE..CM7#,8#

 2
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-67011

3CE..CM7#,8#

 1
12388-67011

3CE..CM7#,8#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-64080

3CE..CM7#,8#

 1
12511-64090

3CE..CM7#,85..IV3

ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ

 1
12511-64090

3CE..CM7#,85..IV3

ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ

 1
12511-64080

3CE..CM7#,8#

 1
Common parts
90105-08384
90105-10386
90119-10106
90119-10204
90119-10773
90119-10867
90119-12201
90170-12193
90179-10201
91512-61045
94130-61200
94611-11200
94612-11200
