CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )3CE

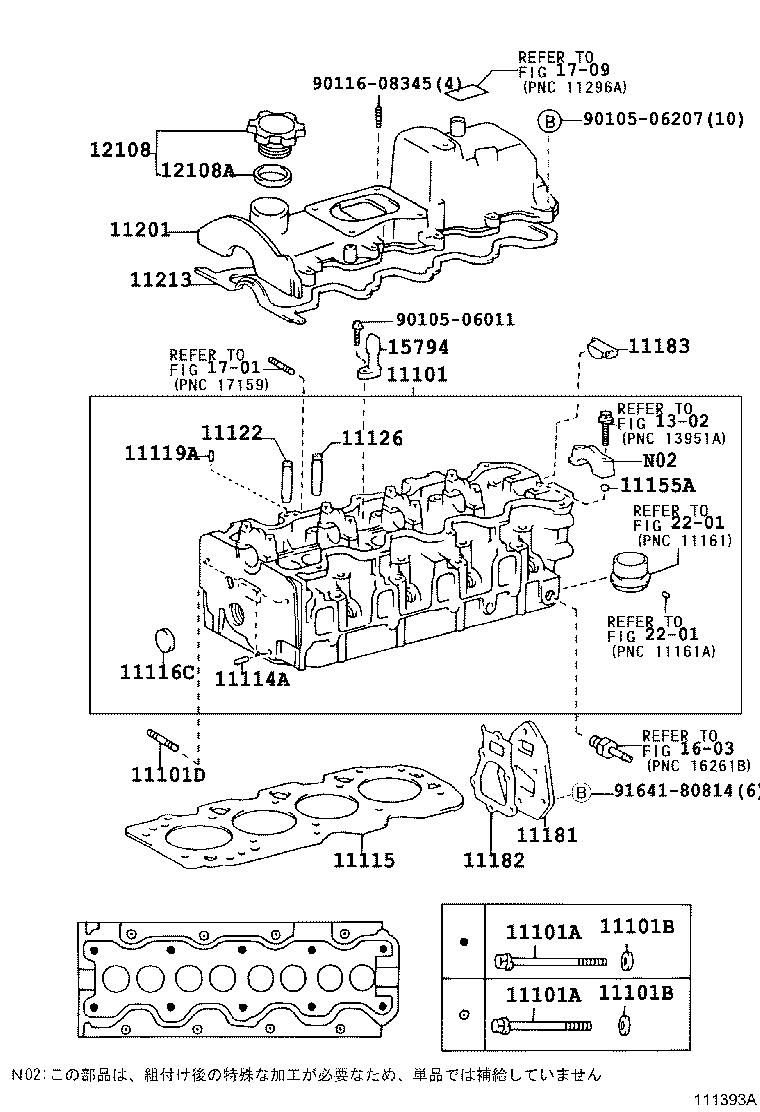

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101B 11101D 11114A 11115 11116C 11119A 11122 11126 11155A 11181 11182 11183 11201 11213 12108 12108A 1302 15794 1603 1701 1709 2201 2201 9010506011 9010506207 9011608345 9164180814
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-64371

3CE..CM7#,8#

 1
11101-64371

3CE..CM7#,8#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02131

3CE..CM7#,8#

*11−1.25PX123−53

 8
90910-02130

3CE..CM7#,8#

*11−1.25PX145−53

 10
90910-02131

3CE..CM7#,8#

*11−1.25PX123−53

 8
90910-02130

3CE..CM7#,8#

*11−1.25PX145−53

 10
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02131

3CE..CM7#,8#

*11−1.25PX123−53

 8
90910-02130

3CE..CM7#,8#

*11−1.25PX145−53

 10
90910-02131

3CE..CM7#,8#

*11−1.25PX123−53

 8
90910-02130

3CE..CM7#,8#

*11−1.25PX145−53

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222

3CE..CM7#,8#

 18
90201-12222

3CE..CM7#,8#

 18
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222

3CE..CM7#,8#

 18
90201-12222

3CE..CM7#,8#

 18
11101D - BOLT, STUD(FOR WATER OUTLET)
92122-60820

3CE..CM7#,8#

 3
92122-60820

3CE..CM7#,8#

 3
11114A - PIN, STRAIGHT
90250-06068

3CE..CM7#,8#

長さ=11,外径=6

 1
90250-06068

3CE..CM7#,8#

長さ=11,外径=6

 1
11115 - GASKET, CYLINDER HEAD
11115-6419003

3CE..CM7#,8#

MARK 3,ﾏｰｸ 3

 1
11115-6419001

3CE..CM7#,8#

MARK 1

 1
11115-6419005

3CE..CM7#,8#

MARK 5

 1
11115-6419005

3CE..CM7#,8#

MARK 5,ﾏｰｸ 5

 1
11115-6419003

3CE..CM7#,8#

MARK 3

 1
11115-6419001

3CE..CM7#,8#

MARK 1,ﾏｰｸ 1

 1
11116C - PLUG, TIGHT, NO.3
96411-63000

3CE..CM7#,8#

 1
96411-63000

3CE..CM7#,8#

 1
11119A - PIN, STRAIGHT, NO.1
90250-06013

3CE..CM7#,8#

長さ=16,外径=6

 2
90250-06068

3CE..CM7#,8#

長さ=11,外径=6

 2
90250-06013

3CE..CM7#,8#

長さ=16,外径=6

 2
90250-06068

3CE..CM7#,8#

長さ=11,外径=6

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-64010

3CE..CM7#,8#

O/S 0.05

 4
11122-64010

3CE..CM7#,8#

STD

 4
11123-64010

3CE..CM7#,8#

O/S 0.05

 4
11122-64010

3CE..CM7#,8#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-64030

3CE..CM7#,8#

STD

 4
11127-64030

3CE..CM7#,8#

O/S 0.05

 4
11126-64030

3CE..CM7#,8#

STD

 4
11127-64030

3CE..CM7#,8#

O/S 0.05

 4
11155A - PIN, RING W/HEAD
90253-11021

3CE..CM7#,8#

 10
90253-11021

3CE..CM7#,8#

 10
11181 - PLATE, CYLINDER HEAD, REAR
11181-64011

3CE..CM7#,8#

 1
11181-64011

3CE..CM7#,8#

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-64021

3CE..CM7#,8#

 1
11182-64021

3CE..CM7#,8#

 1
11183 - PLUG, SEMICIRCULAR
11183-64010

3CE..CM7#,8#

 1
11183-64010

3CE..CM7#,8#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-64190

3CE..CM7#,8#

 1
11201-64190

3CE..CM7#,8#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-64061

3CE..CM7#,8#

 1
11213-64061

3CE..CM7#,8#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

3CE..CM7#,8#

 1
12180-55010

3CE..CM7#,8#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

3CE..CM7#,8#

 1
90430-37140

3CE..CM7#,8#

 1
15794 - NOZZLE, CYLINDER HEAD OIL
15794-64011

3CE..CM7#,8#

 1
15794-64011

3CE..CM7#,8#

 1
Common parts
90105-06011
90105-06207
90116-08345
91641-80814
Linked diagrams
1302
1603
1701
1709
2201
