CM75-TBSDE6 (2002)
Toyota Lite/Townace
Production
Aug 2002
-
Aug 2004
Engine
3CE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0208- )

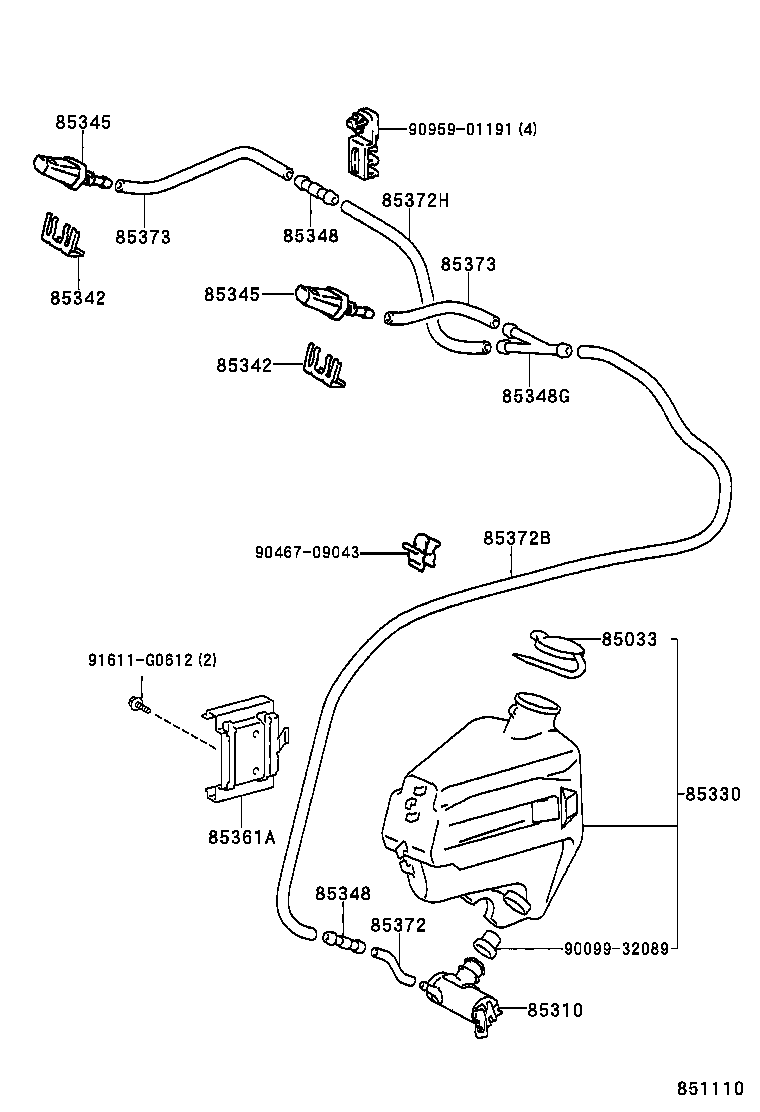

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85033-36120 |
CM7#,8#,KM7#,8# |
1 | ||
| 85033-36120 |
CM7#,8# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
CM7#,8# |
1 | ||
| 85310-95700 |
CM7#,8#,KM7#,8# |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-27010 |
CM7#,8# |
1 | ||
| 85330-95700 |
CM7#,8#,KM7#,8# |
1 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-95J01 |
CM7#,8#,KM7#,8# |
2 | ||
| 85342-95J01 |
CM7#,8# |
2 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-95J01 |
CM7#,8#,KM7#,8# |
2 | ||
| 85342-95J01 |
CM7#,8# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-95714 |
CM7#,8#,KM7#,8# |
2 | ||
| 85035-95714 |
CM7#,8# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-95714 |
CM7#,8#,KM7#,8# |
2 | ||
| 85035-95714 |
CM7#,8# |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
CM7#,8# |
2 | ||
| 85348-12250 |
CM7#,8#,KM7#,8# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
CM7#,8# |
2 | ||
| 85348-12250 |
CM7#,8#,KM7#,8# |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-12250 |
CM7#,8# |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-95A02 |
CM7#,8#,KM7#,8# |
1 | ||
| 85361-95A02 |
CM7#,8# |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
CM7#,8# *H,L=100 |
1 | ||
| 90446-06013 |
CM7#,8#,KM7#,8# *H,L=890 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-07001 |
CM7#,8# *H,L=760 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-06013 |
CM7#,8# *H,L=470 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
CM7#,8#,KM7#,8# *H,L=140 |
1 | ||
| 90099-33299 |
CM7#,8# *H,L=140 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
CM7#,8#,KM7#,8# *H,L=140 |
1 | ||
| 90099-33299 |
CM7#,8# *H,L=140 |
2 | ||
| Common parts | ||||
| 90099-32089 | ||||
| 90467-09043 | ||||
| 90959-01191 | ||||
| 91611-G0612 | ||||
