CM70-TLSDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

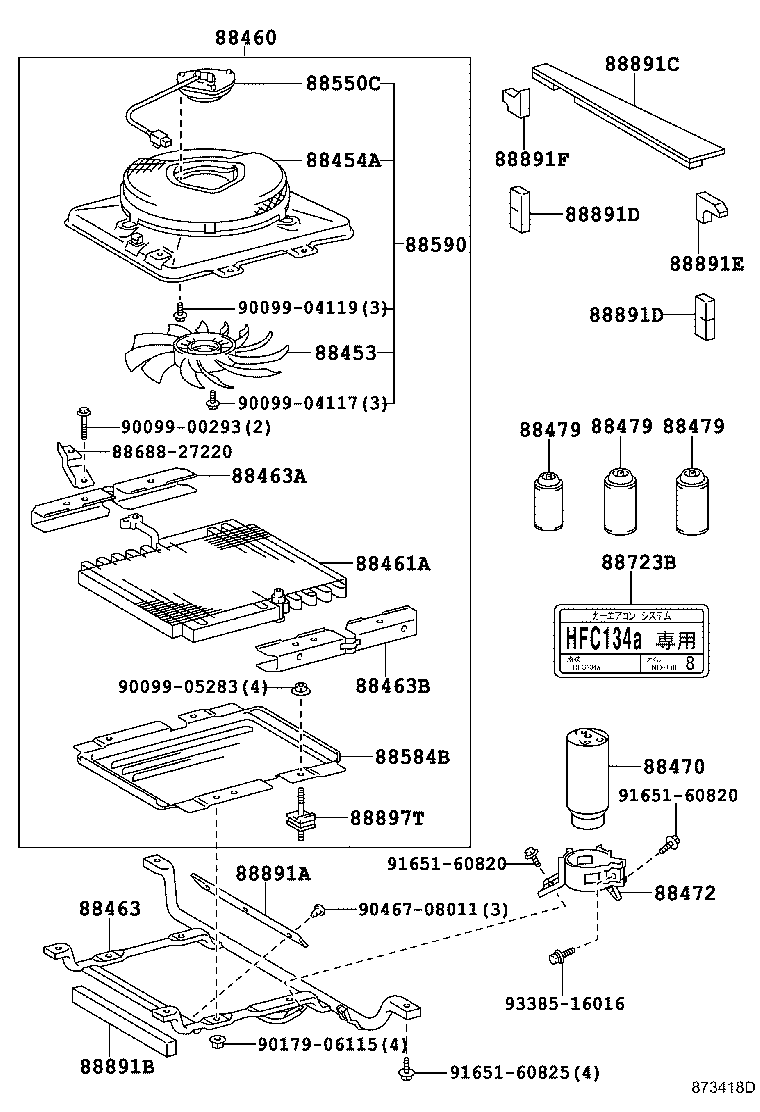

ILLUST NO. 1 OF 2(9906-0208)

Click highlighted areas on diagram

diagram 88453 88454A 88460 88461A 88463 88463A 88463B 88470 88472 88479 88479 88479 88550C 88584B 88590 8868827220 88723B 88891A 88891B 88891C 88891D 88891D 88891E 88891F 88897T 9009900293 9009904117 9009904119 9009905283 9017906115 9046708011 9165160820 9165160820 9165160825 9338516016
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-27010

CM7#,8#

 1
88453-27010

CM7#,8#,KM7#,8#

 1
88454A - SHROUD, FAN
88454-27020

CM7#,8#

 1
88454-27010

CM7#,8#,KM7#,8#

 1
88460 - CONDENSER ASSY, COOLER
88460-27060

CM7#,8#,KM7#,8#

 1
88460-27070

CM7#,8#

 1
88461A - CORE, COOLER CONDENSER
88461-27010

CM7#,8#,KM7#,8#

 1
88461-27030

CM7#,8#

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-27040

CM7#,8#

 1
88463-27010

CM7#,8#,KM7#,8#

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-27030

CM7#,8#,KM7#,8#

 1
88688-27340

CM7#,8#

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-27020

CM7#,8#,KM7#,8#

 1
88688-27350

CM7#,8#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-20050

CM7#,8#,KM7#,8#

 1
88471-34010

CM7#,8#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-27070

CM7#,8#,KM7#,8#

 1
88472-27080

CM7#,8#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007

CM7#,8#,KM7#,8#

250G

 1
90986-02008

CM7#,8#,KM7#,8#

200G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007

CM7#,8#,KM7#,8#

250G

 1
90986-02008

CM7#,8#,KM7#,8#

200G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007

CM7#,8#,KM7#,8#

250G

 1
90986-02008

CM7#,8#,KM7#,8#

200G

 2
88550C - MOTOR ASSY, PRINTED
16363-64080

CM7#,8#

 1
88550-27010

CM7#,8#,KM7#,8#

 1
88584B - GUIDE, COOLER AIR
88584-27010

CM7#,8#,KM7#,8#

 1
88584-27020

CM7#,8#

 1
88590 - BLOWER ASSY, W/SHROUD
88590-27030

CM7#,8#,KM7#,8#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

CM7#,8#,KM7#,8#

 1
88891A - PACKING A (FOR COOLER)
88578-27020

CM7#,8#,KM7#,8#

 1
88891B - PACKING B (FOR COOLER)
88578-27030

CM7#,8#,KM7#,8#

 1
88891D - PACKING D (FOR COOLER)
88578-27060

CM7#,8#,KM7#,8#

 2
88891D - PACKING D (FOR COOLER)
88578-27060

CM7#,8#,KM7#,8#

 2
88891E - PACKING E (FOR COOLER)
88578-27090

CM7#,8#

 1
88891F - PACKING F (FOR COOLER)
88578-27080

CM7#,8#,KM7#,8#

 1
88897T - GROMMET, COOLER
88897-95J09

CM7#,8#,KM7#,8#

 4
88569-27030

CM7#,8#,KM7#,8#

 4
Common parts
88688-27220
90099-00293
90099-04117
90099-04119
90099-05283
90179-06115
90467-08011
91651-60820
91651-60825
93385-16016

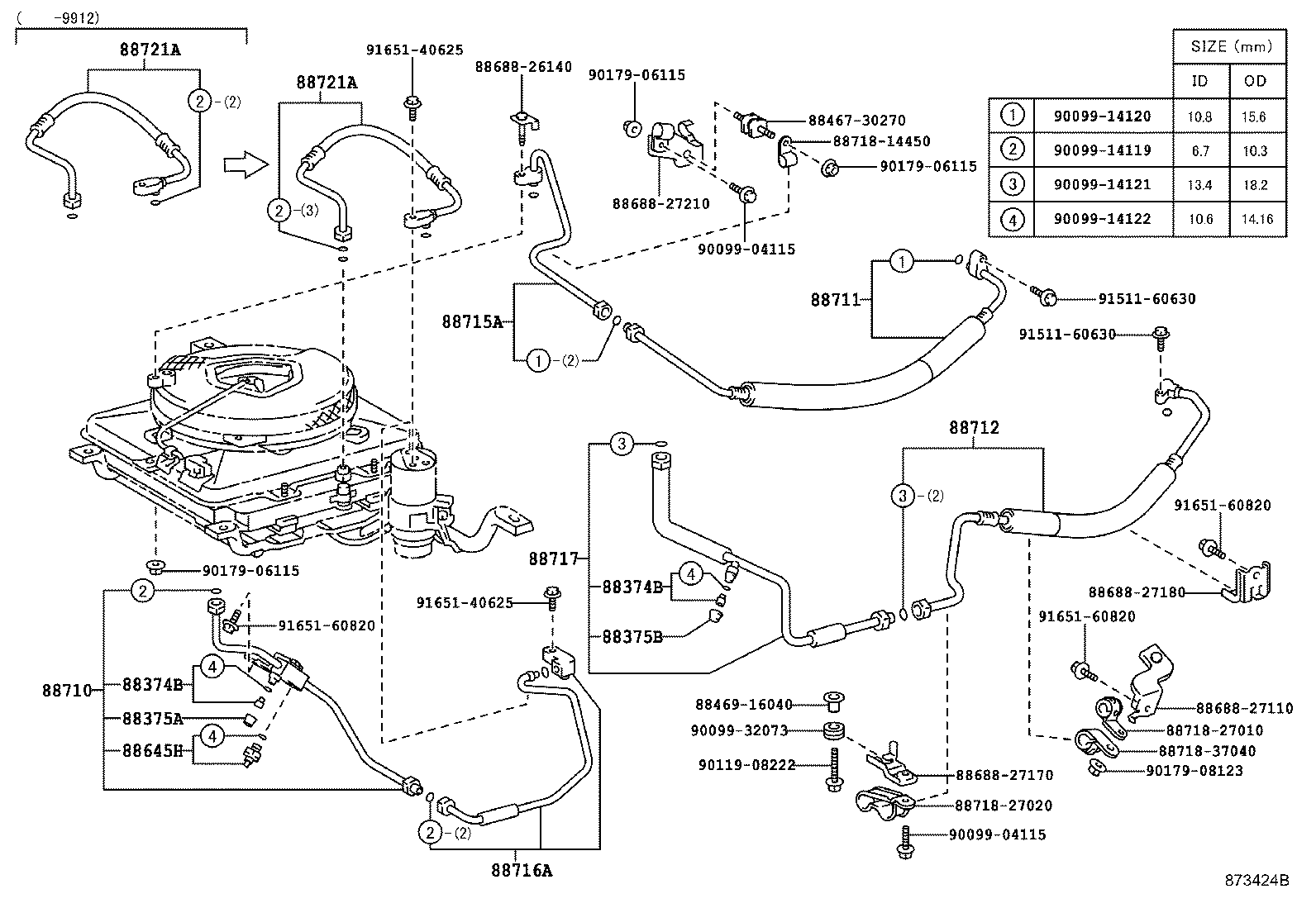

ILLUST NO. 2 OF 2(9906-0208)CM7#

Click highlighted areas on diagram

diagram 88374B 88374B 88375A 88375B 8846730270 8846916040 88645H 8868826140 8868827110 8868827170 8868827180 8868827210 88710 88711 88712 88715A 88716A 88717 8871814450 8871827010 8871827020 8871837040 88721A 88721A 9009904115 9009904115 9009914119 9009914120 9009914121 9009914122 9009932073 9011908222 9017906115 9017906115 9017906115 9017908123 9151160630 9151160630 9165140625 9165140625 9165160820 9165160820 9165160820
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

CM7#,8#,KM7#,8#

 2
88374B - VALVE, SERVICE, NO.1
88374-30010

CM7#,8#,KM7#,8#

 2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CM7#,8#,KM7#,8#

 2
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CM7#,8#,KM7#,8#

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

CM7#,8#,KM7#,8#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-27100

CM7#,8#

 1
88710-27090

CM7#,8#,KM7#,8#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-27320

CM7#,8#

 1
88711-27420

CM7#,8#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-27260

CM7#,8#

 1
88712-27310

CM7#,8#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-27110

CM7#,8#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-27140

CM7#,8#,KM7#,8#

 1
88716-27180

CM7#,8#

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-27060

CM7#,8#,KM7#,8#

 1
88717-27090

CM7#,8#

 1
88717-27061

CM7#,8#,KM7#,8#

 1
88721A - HOSE, LIQUID, A
88716-27160

CM7#,8#,KM7#,8#

 1
88721-27120

CM7#,8#,KM7#,8#

 1
88721A - HOSE, LIQUID, A
88716-27160

CM7#,8#,KM7#,8#

 1
88721-27120

CM7#,8#,KM7#,8#

 1
Common parts
88467-30270
88469-16040
88688-26140
88688-27110
88688-27170
88688-27180
88688-27210
88718-14450
88718-27010
88718-27020
88718-37040
90099-04115
90099-14119
90099-14120
90099-14121
90099-14122
90099-32073
90119-08222
90179-06115
90179-08123
91511-60630
91651-40625
91651-60820

ILLUST NO. 2 OF 2(9906-0208)CM7#

Click highlighted areas on diagram

ﾚｲﾄｳｼﾔ

diagram 88374B 88374B 88375A 88375B 8846730270 8846916040 88645H 8868826140 8868827090 8868827140 8868827170 8868827210 88710 88711 88712 88716A 88717 88717A 8871814450 8871825140 8871827020 8871895J53 88721A 88721A 8889612060 9009904115 9009904115 9009914119 9009914120 9009914121 9009914122 9009932073 9011908222 9017906115 9017906115 9017906115 9017906115 9017906115 9151180820 9151180820 9165140625 9165140625 9165160820 9165160820 9338516020 9338516020
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

CM7#,8#,KM7#,8#

 2
88374B - VALVE, SERVICE, NO.1
88374-30010

CM7#,8#,KM7#,8#

 2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CM7#,8#,KM7#,8#

 2
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CM7#,8#,KM7#,8#

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

CM7#,8#,KM7#,8#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-27100

CM7#,8#

 1
88710-27090

CM7#,8#,KM7#,8#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-27320

CM7#,8#

 1
88711-27420

CM7#,8#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-27260

CM7#,8#

 1
88712-27310

CM7#,8#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-27140

CM7#,8#,KM7#,8#

 1
88716-27180

CM7#,8#

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-27060

CM7#,8#,KM7#,8#

 1
88717-27090

CM7#,8#

 1
88717-27061

CM7#,8#,KM7#,8#

 1
88721A - HOSE, LIQUID, A
88716-27160

CM7#,8#,KM7#,8#

 1
88721-27120

CM7#,8#,KM7#,8#

 1
88721A - HOSE, LIQUID, A
88716-27160

CM7#,8#,KM7#,8#

 1
88721-27120

CM7#,8#,KM7#,8#

 1
Common parts
88467-30270
88469-16040
88688-26140
88688-27090
88688-27140
88688-27170
88688-27210
88718-14450
88718-25140
88718-27020
88718-95J53
88896-12060
90099-04115
90099-14119
90099-14120
90099-14121
90099-14122
90099-32073
90119-08222
90179-06115
91511-80820
91651-40625
91651-60820
93385-16020

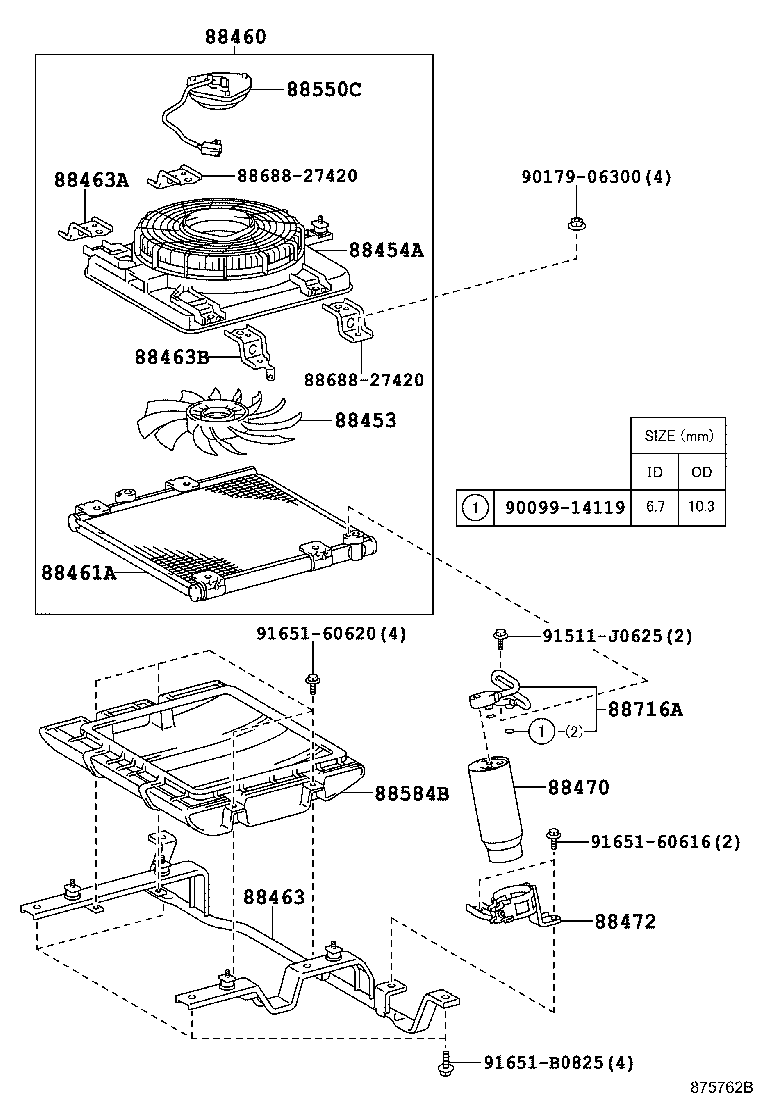

ILLUST NO. 1 OF 2(0208- )

Click highlighted areas on diagram

diagram 88453 88454A 88460 88461A 88463 88463A 88463B 88470 88472 88550C 88584B 8868827420 8868827420 88716A 9009914119 9017906300 91511J0625 9165160616 9165160620 91651B0825
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-27010

CM7#,8#

 1
88453-27010

CM7#,8#,KM7#,8#

 1
88454A - SHROUD, FAN
88454-27020

CM7#,8#

 1
88454-27010

CM7#,8#,KM7#,8#

 1
88460 - CONDENSER ASSY, COOLER
88460-27060

CM7#,8#,KM7#,8#

 1
88460-27070

CM7#,8#

 1
88461A - CORE, COOLER CONDENSER
88461-27010

CM7#,8#,KM7#,8#

 1
88461-27030

CM7#,8#

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-27040

CM7#,8#

 1
88463-27010

CM7#,8#,KM7#,8#

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-27030

CM7#,8#,KM7#,8#

 1
88688-27340

CM7#,8#

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-27020

CM7#,8#,KM7#,8#

 1
88688-27350

CM7#,8#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-20050

CM7#,8#,KM7#,8#

 1
88471-34010

CM7#,8#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-27070

CM7#,8#,KM7#,8#

 1
88472-27080

CM7#,8#

 1
88550C - MOTOR ASSY, PRINTED
16363-64080

CM7#,8#

 1
88550-27010

CM7#,8#,KM7#,8#

 1
88584B - GUIDE, COOLER AIR
88584-27010

CM7#,8#,KM7#,8#

 1
88584-27020

CM7#,8#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-27140

CM7#,8#,KM7#,8#

 1
88716-27180

CM7#,8#

 1
Common parts
88688-27420
90099-14119
90179-06300
91511-J0625
91651-60616
91651-60620
91651-B0825

ILLUST NO. 2 OF 2(0208- )CM7#,8#

Click highlighted areas on diagram

diagram 8868827180 8868827280 8868827320 8868827330 88710 88711 88712 88717 8871826350 8871827010 8871827010 8871827030 8871837040 8871837040 9009914119 9009914120 9009914121 9017906300 9017906300 9017908123 9017908123 9151160630 9151160630 91511G0630 91511J0625 91511J0625 9165160616 91651B0820 91651B0820 91651B0820 91651B0820
Part # Description Qty Price
88710 - TUBE ASSY, AIR CONDITIONER
88710-27100

CM7#,8#

 1
88710-27090

CM7#,8#,KM7#,8#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-27320

CM7#,8#

 1
88711-27420

CM7#,8#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-27260

CM7#,8#

 1
88712-27310

CM7#,8#

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-27060

CM7#,8#,KM7#,8#

 1
88717-27090

CM7#,8#

 1
88717-27061

CM7#,8#,KM7#,8#

 1
Common parts
88688-27180
88688-27280
88688-27320
88688-27330
88718-26350
88718-27010
88718-27030
88718-37040
90099-14119
90099-14120
90099-14121
90179-06300
90179-08123
91511-60630
91511-G0630
91511-J0625
91651-60616
91651-B0820

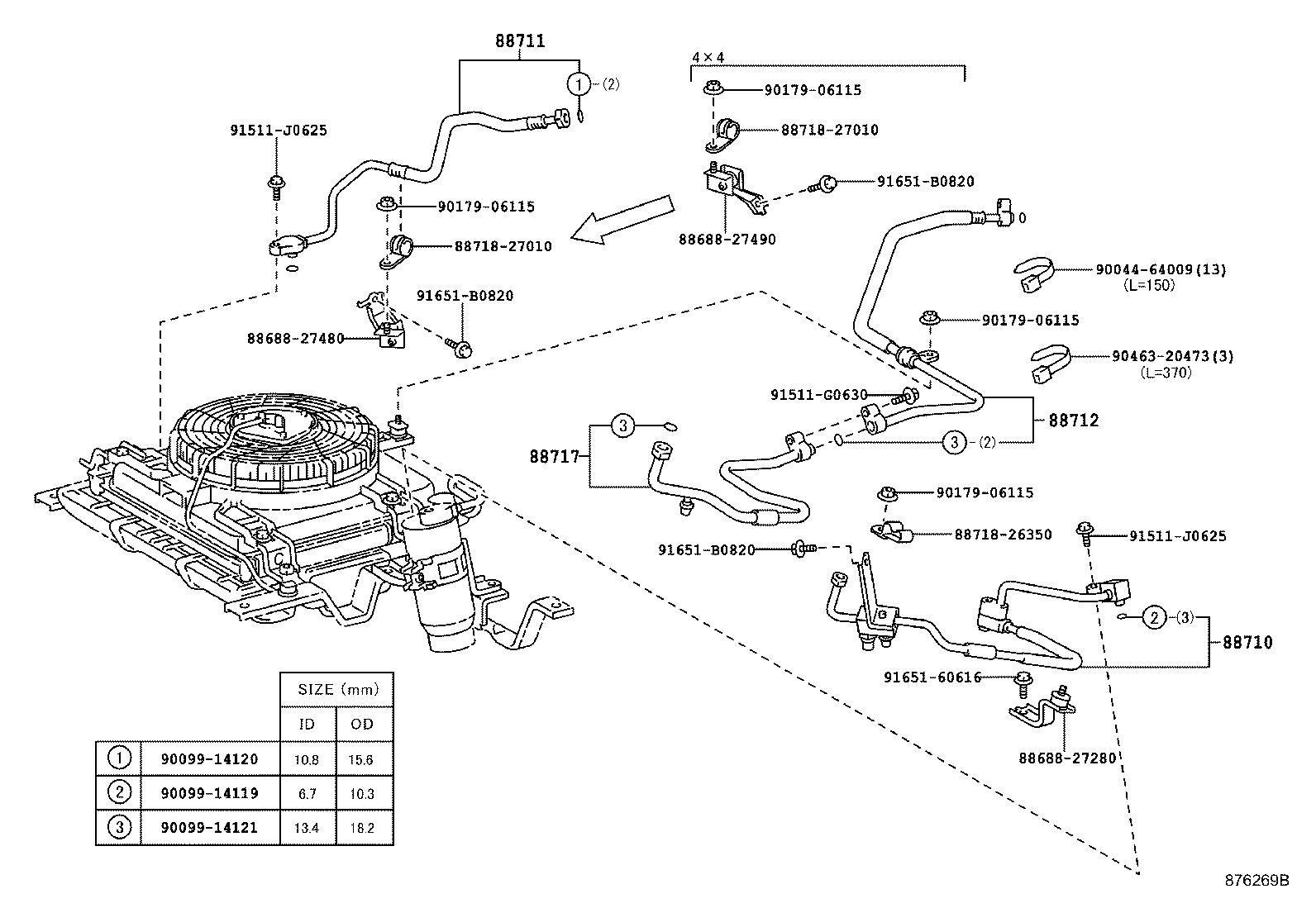

ILLUST NO. 2 OF 2(0208- )CM7#,85

Click highlighted areas on diagram

ﾚｲﾄｳｼﾔ

diagram 8868827280 8868827480 8868827490 88710 88711 88712 88717 8871826350 8871827010 8871827010 9004464009 9009914119 9009914120 9009914121 9017906115 9017906115 9017906115 9017906115 9046320473 91511G0630 91511J0625 91511J0625 9165160616 91651B0820 91651B0820 91651B0820
Part # Description Qty Price
88710 - TUBE ASSY, AIR CONDITIONER
88710-27100

CM7#,8#

 1
88710-27090

CM7#,8#,KM7#,8#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-27320

CM7#,8#

 1
88711-27420

CM7#,8#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-27260

CM7#,8#

 1
88712-27310

CM7#,8#

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-27060

CM7#,8#,KM7#,8#

 1
88717-27090

CM7#,8#

 1
88717-27061

CM7#,8#,KM7#,8#

 1
Common parts
88688-27280
88688-27480
88688-27490
88718-26350
88718-27010
90044-64009
90099-14119
90099-14120
90099-14121
90179-06115
90463-20473
91511-G0630
91511-J0625
91651-60616
91651-B0820
