CM70-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )CM70,80,KM70,80..JL..5H..IV3

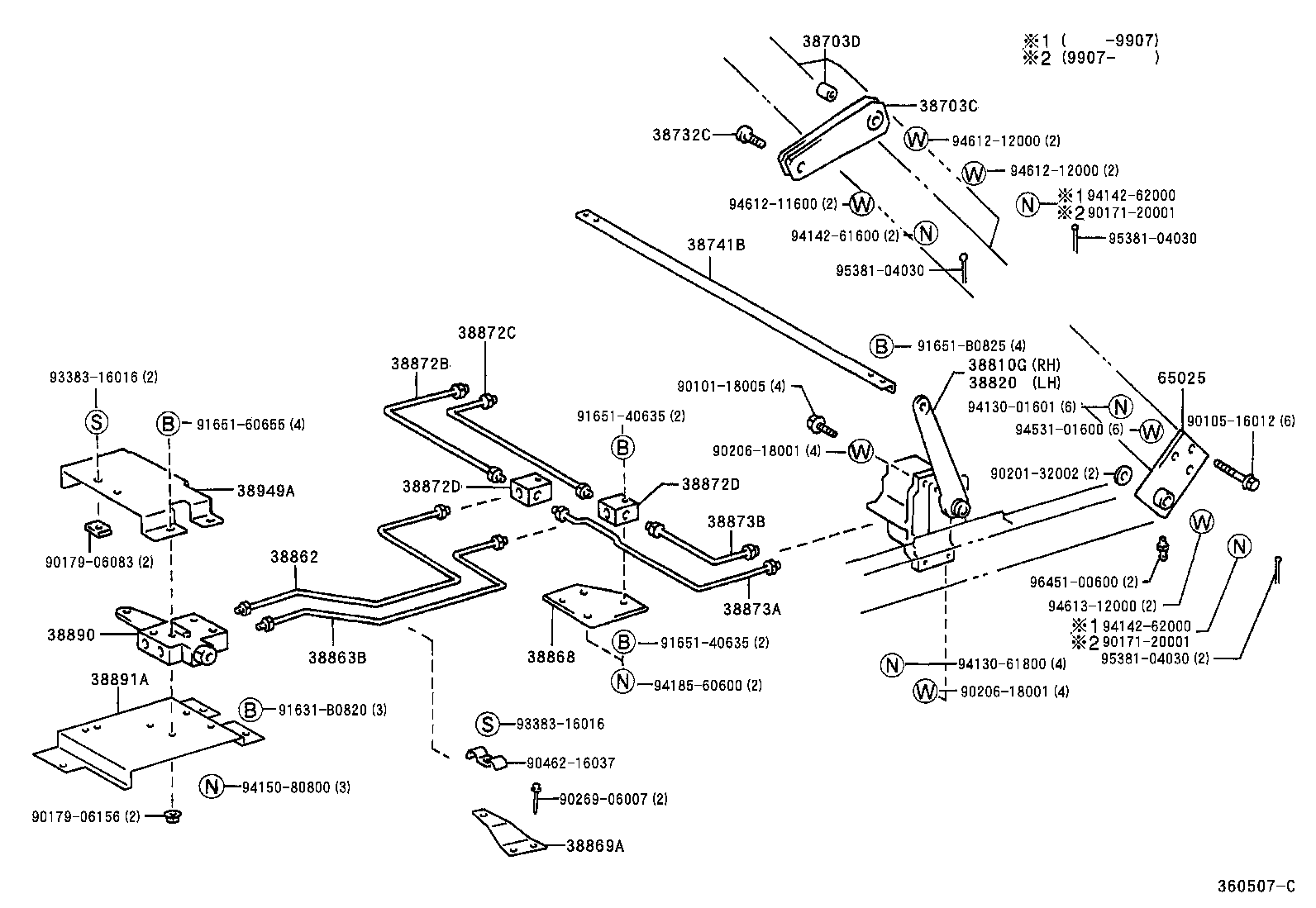

Click highlighted areas on diagram

diagram 38703C 38703D 38732C 38741B 38810G 38820 38862 38863B 38868 38869A 38872B 38872C 38872D 38872D 38873A 38873B 38890 38891A 38949A 65025 9010118005 9010516012 9017120001 9017120001 9017906083 9017906156 9020132002 9020618001 9020618001 9026906007 9046216037 91631B0820 9165140635 9165140635 9165160655 91651B0825 9338316016 9338316016 9413001601 9413061800 9414261600 9414262000 9414262000 9415080800 9418560600 9453101600 9461211600 9461212000 9461212000 9461312000 9538104030 9538104030 9538104030 9645100600
Part # Description Qty Price
38703C - ARM SUB-ASSY, VESSEL LIFT
38703-27010

CM70,80,KM70,80..JL..5H..IV3

 2
38703-27010

CM70,80,KM70,80..JL..5H..IV3

 2
38703D - BUSH, SOLID (FOR VESSEL LIFT ARM)
90380-30001

CM70,80,KM70,80..JL..5H..IV3

 2
90380-30001

CM70,80,KM70,80..JL..5H..IV3

 2
38732C - BOLT, VESSEL LIFT ARM
38732-95700

CM70,80,KM70,80..JL..5H..IV3

 2
38732-95700

CM70,80,KM70,80..JL..5H..IV3

 2
38741B - BAR, DUMP ACTUATOR CONNECT
38741-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38741-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38810G - ACTUATOR ASSY, DUMP, RH
38810-27010

CM70,80,KM70,80..JL..5H..IV3

 1
38810-27010

CM70,80,KM70,80..JL..5H..IV3

 1
38820 - ACTUATOR ASSY, DUMP, LH
38820-27010

CM70,80,KM70,80..JL..5H..IV3

 1
38820-27010

CM70,80,KM70,80..JL..5H..IV3

 1
38862 - TUBE, DUMP CONTROL VALVE TO ACTUATOR, NO.1
38862-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38862-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38863B - TUBE, DUMP CONTROL VALVE TO ACTUATOR, NO.2
38863-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38863-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38868 - BRACKET, DUMP ACTUATOR TUBE WAY
38868-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38868-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38869A - BRACKET, DUMP ACTUATOR TUBE CLAMP
38869-27040

CM70,80,KM70,80..JL..5H..IV3

 1
38869-27040

CM70,80,KM70,80..JL..5H..IV3

 1
38872B - TUBE, DUMP ACTUATOR, RH NO.1
38872-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38872-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38872C - TUBE, DUMP ACTUATOR, RH NO.2
38872-95701

CM70,80,KM70,80..JL..5H..IV3

 1
38872-95701

CM70,80,KM70,80..JL..5H..IV3

 1
38872D - WAY, 3 (FOR DUMP ACTUATOR TUBE)
90413-16002

CM70,80,KM70,80..JL..5H..IV3

 2
90413-16002

CM70,80,KM70,80..JL..5H..IV3

 2
38872D - WAY, 3 (FOR DUMP ACTUATOR TUBE)
90413-16002

CM70,80,KM70,80..JL..5H..IV3

 2
90413-16002

CM70,80,KM70,80..JL..5H..IV3

 2
38873A - TUBE, DUMP ACTUATOR, LH NO.1
38873-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38873-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38873B - TUBE, DUMP ACTUATOR, LH NO.2
38873-95701

CM70,80,KM70,80..JL..5H..IV3

 1
38873-95701

CM70,80,KM70,80..JL..5H..IV3

 1
38890 - VALVE ASSY, DUMP ACTUATOR CONTROL
38890-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38890-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38891A - BRACKET, DUMP ACTUATOR CONTROL VALVE
38891-27010

CM70,80,KM70,80..JL..5H..IV3

 1
38891-27010

CM70,80,KM70,80..JL..5H..IV3

 1
38949A - COVER, DUMP ACTUATOR CONTROL VALVE
38949-95700

CM70,80,KM70,80..JL..5H..IV3

 1
38949-95700

CM70,80,KM70,80..JL..5H..IV3

 1
65025 - BRACKET SUB-ASSY, VESSEL HINGE
65025-95700

CM70,80,KM70,80..JL..5H..IV3

 2
65025-95700

CM70,80,KM70,80..JL..5H..IV3

 2
Common parts
90101-18005
90105-16012
90171-20001
90179-06083
90179-06156
90201-32002
90206-18001
90269-06007
90462-16037
91631-B0820
91651-40635
91651-60655
91651-B0825
93383-16016
94130-01601
94130-61800
94142-61600
94142-62000
94150-80800
94185-60600
94531-01600
94612-11600
94612-12000
94613-12000
95381-04030
96451-00600
