CM70-TLQDE3 (1999)
Toyota Lite/Townace
Production
Jun 1999
-
Aug 2004
Engine
3CE
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9906- )5H

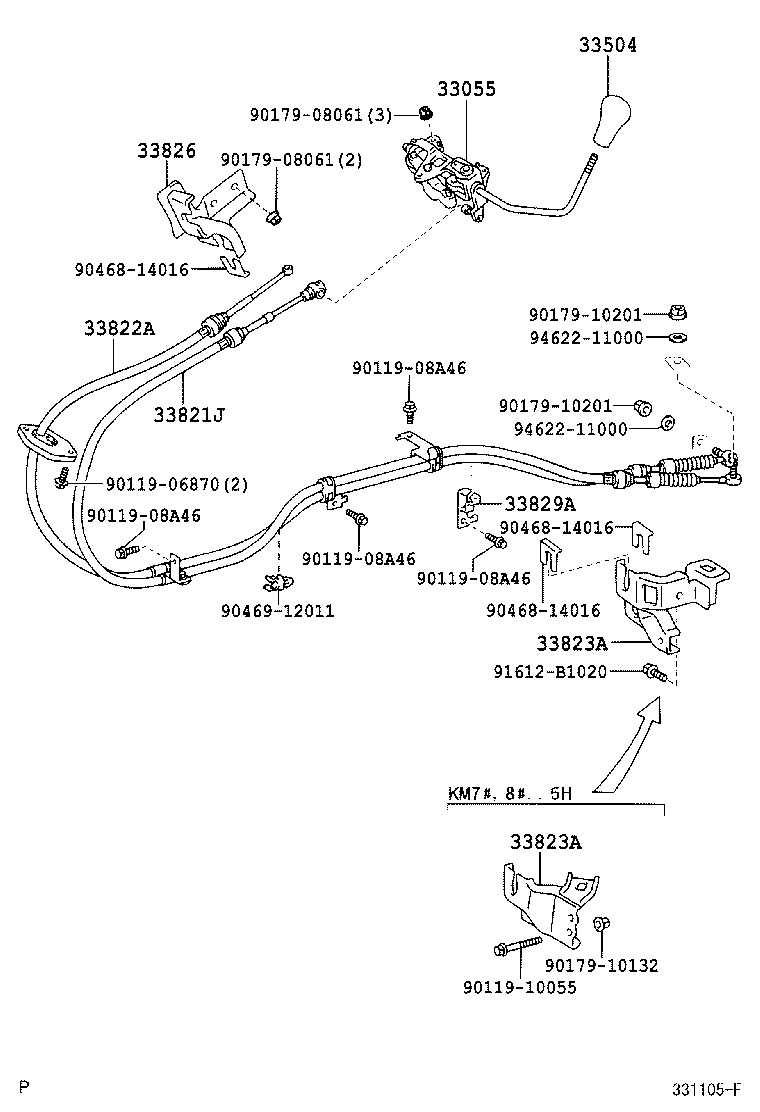

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33055 - LEVER SUB-ASSY, COLUMN SHIFT | ||||
| 33055-27031 |
CM7#,8#,KM7#,8#..5H |
1 | ||
| 33055-27030 |
CM7#,8#,KM7#,8#..5H |
1 | ||
| 33055-27031 |
CM7#,8#..5H |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-27030 |
CM7#,8#,KM7#,8#..5H |
1 | ||
| 33504-27030 |
CM7#,8#..5H |
1 | ||
| 33821J - CABLE, TRANSMISSION CONTROL SHIFT | ||||
| 33821-27200 |
CM7#,8#..5H |
1 | ||
| 33821-27200 |
CM7#,8#..5H |
1 | ||
| 33822A - CABLE, TRANSMISSION CONTROL SELECT | ||||
| 33822-27200 |
CM7#,8#..5H |
1 | ||
| 33822-27200 |
CM7#,8#..5H |
1 | ||
| 33823A - BRACKET, TRANSMISSION CONTROL CABLE | ||||
| 33823-27220 |
CM7#,8#..5H |
1 | ||
| 33823-27220 |
CM7#,8#..5H |
1 | ||
| 33823A - BRACKET, TRANSMISSION CONTROL CABLE | ||||
| 33823-27220 |
CM7#,8#..5H |
1 | ||
| 33823-27220 |
CM7#,8#..5H |
1 | ||
| 33826 - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-27020 |
CM7#,8#,KM7#,8#..5H |
1 | ||
| 33826-27020 |
CM7#,8#,KM7#,8#..5H |
1 | ||
| 33829A - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-27010 |
CM7#,8#,KM7#,8#..5H |
1 | ||
| 33829-27010 |
CM7#,8#,KM7#,8#..5H |
1 | ||
| Common parts | ||||
| 90119-06870 | ||||
| 90119-08A46 | ||||
| 90119-10055 | ||||
| 90179-08061 | ||||
| 90179-10132 | ||||
| 90179-10201 | ||||
| 90468-14016 | ||||
| 90469-12011 | ||||
| 91612-B1020 | ||||
| 94622-11000 | ||||
