CM70-TLQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9906-0408)5H

Click highlighted areas on diagram

diagram 83110 83128 83132 83134 83145 83145A 83145B 83145E 8316120380 8316120440 8316120440 8316120740 831612D080 8316220140 83242 83243A 83247 83247B 83910 86650G 9015940027 9356015016
Part # Description Qty Price

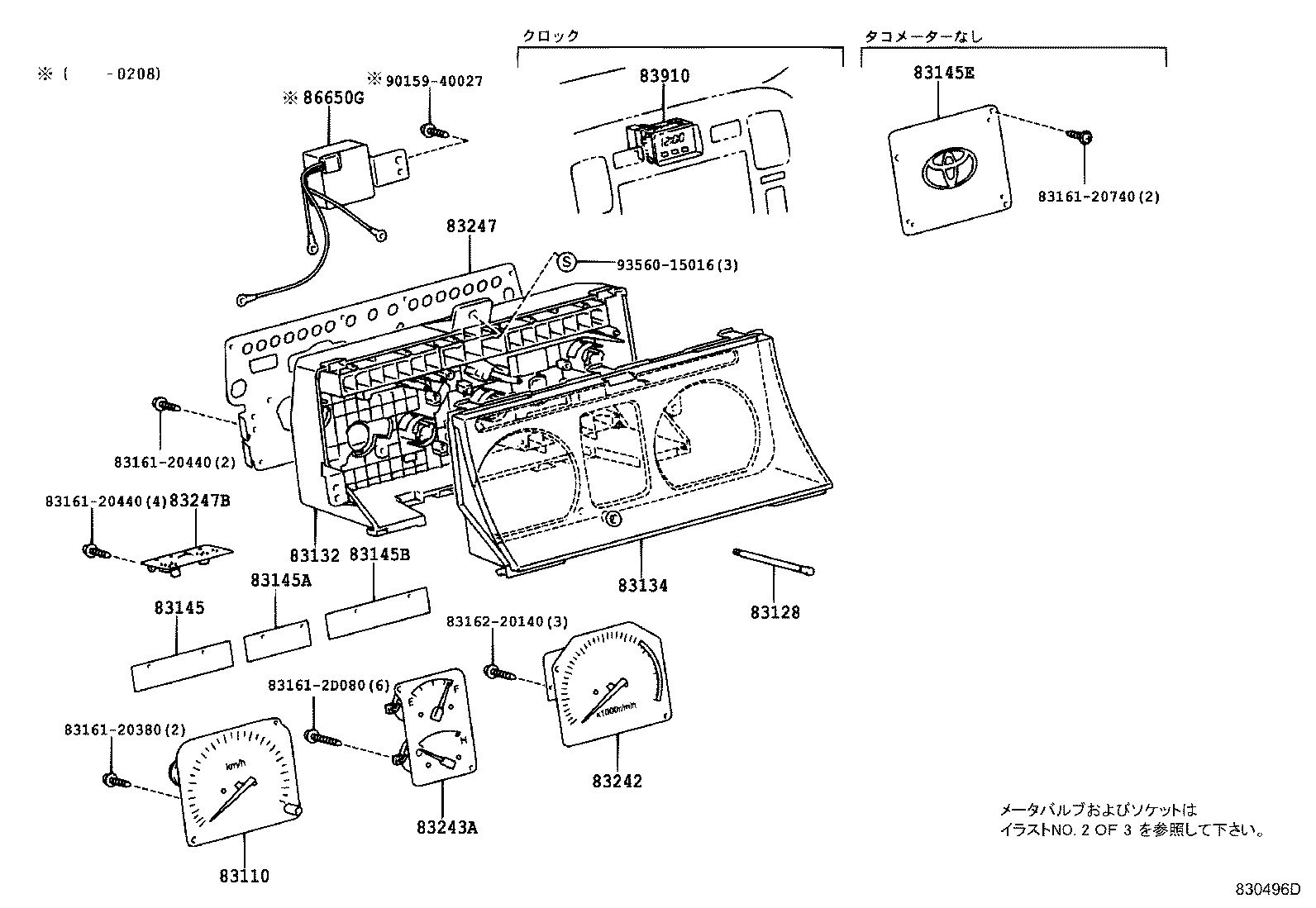

83110 - SPEEDOMETER ASSY
83220-27030

CM7#,8#,KM7#,8#

YAZAKI

 1
83220-27030

CM7#,8#,KM7#,8#

YAZAKI

 1
83128 - KNOB, TRIP COUNTER
83128-95J00

CM7#,8#,KM7#,8#

 1
83128-95J00

CM7#,8#,KM7#,8#

 1
83132 - CASE, COMBINATION METER
83841-27080

CM7#,8#,KM7#,8#

 1
83841-27080

CM7#,8#,KM7#,8#

 1
83134 - COVER, COMBINATION METER, NO.1
83821-27010

CM7#,8#,KM7#,8#

 1
83821-27010

CM7#,8#

 1
83145 - LENS, METER, NO.1
83831-27080

CM85..5H;CM7#,80,KM7#,8#

 1
83831-27080

CM7#,80;CM85..5H

 1
83831-27130

CM85;CM7#,80..CBU,IV3

ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵｲﾙ TEMP)

 1
83831-27140

CM85..5H;CM7#,80,KM7#,8#

ﾅｼ(*80)

 1
83145A - LENS, METER, NO.2
83832-27080

CM7#,8#

 1
83832-27080

CM7#,8#,KM7#,8#

 1
83145B - LENS, METER, NO.3
83833-27080

CM7#,8#

 1
83833-27080

CM7#,8#,KM7#,8#

 1
83145E - LENS, METER, NO.6
83831-27090

CM7#,8#,KM7#,8#..5H..DX

 1
83831-27090

CM7#,8#..5H

 1
83242 - TACHOMETER ASSY, ENGINE
83881-27230

CM7#,8#..5H

 1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83882-27080

CM7#,8#,KM7#,8#

 1
83882-27080

CM7#,8#,KM7#,8#

 1
83247 - PLATE, METER CIRCUIT
83861-27110

CM7#,8#..5H

 1
83861-27110

CM7#,8#..5H

 1
83247B - PLATE, METER CIRCUIT, NO.2
83149-2F070

CM7#,8#

 1
83149-2F070

CM7#,8#,KM7#,8#

 1
83910 - CLOCK ASSY
83910-26020

CM7#,8#

 1
83910-26020

CM7#,8#,KM7#,8#

 1
86650G - BUZZER ASSY
86650-12030

CM7#,8#,KM7#,8#

 1
Common parts
83161-20380
83161-20440
83161-20740
83161-2D080
83162-20140
90159-40027
93560-15016

ILLUST NO. 3 OF 3(9906-0208)

Click highlighted areas on diagram

diagram 827111E260 83189 83710 83770 8379127020 8379127030 8379127040 8379195712 8379195714 9162640818 9162640818 9162640818 9162640818
Part # Description Qty Price
83189 - BRACKET, METER
83189-20020

CM7#,8#,KM7#,8#

 1
83189-20020

CM7#,8#,KM7#,8#

 1

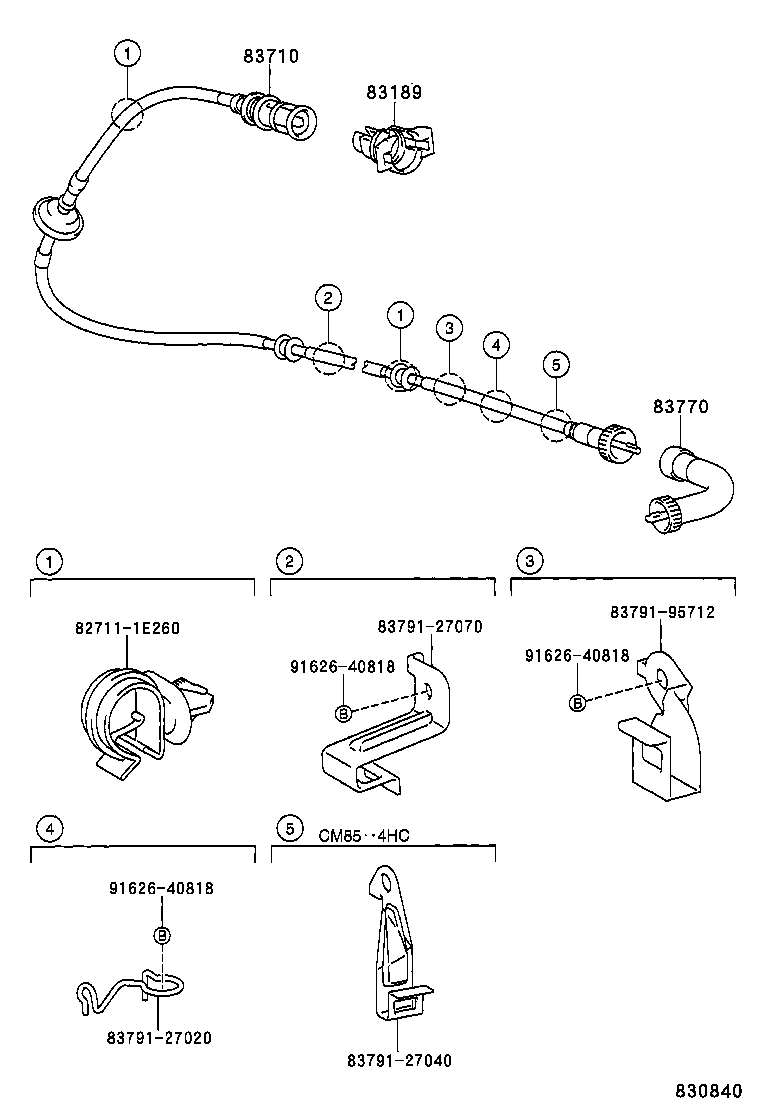

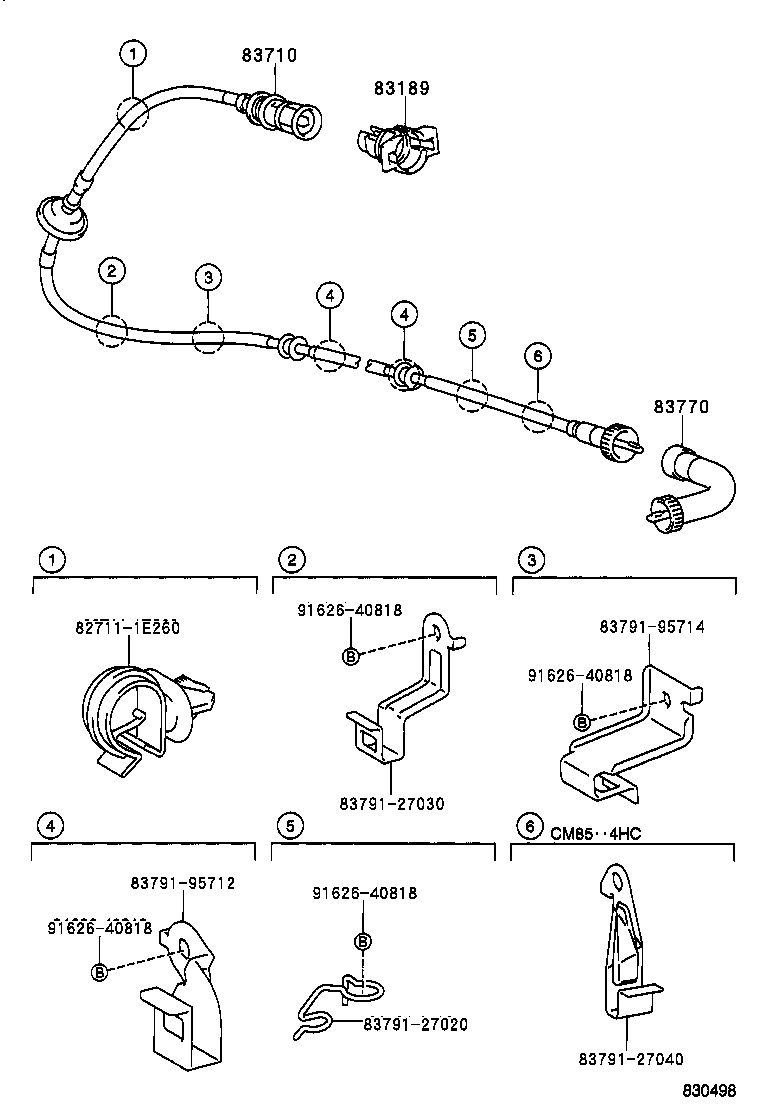

83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-27070

CM7#..5H

 1
83710-27130

CM7#..5H

 1
Common parts
82711-1E260
83791-27020
83791-27030
83791-27040
83791-95712
83791-95714
91626-40818

ILLUST NO. 3 OF 3(0208- )CM7#,8#

Click highlighted areas on diagram

diagram 827111E260 83189 83710 83770 8379127020 8379127040 8379127070 8379195712 9162640818 9162640818 9162640818
Part # Description Qty Price
83189 - BRACKET, METER
83189-20020

CM7#,8#,KM7#,8#

 1
83189-20020

CM7#,8#,KM7#,8#

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-27070

CM7#..5H

 1
83710-27130

CM7#..5H

 1
Common parts
82711-1E260
83791-27020
83791-27040
83791-27070
83791-95712
91626-40818

ILLUST NO. 2 OF 3(9906- )

Click highlighted areas on diagram

diagram 83100B 83100B
Part # Description Qty Price

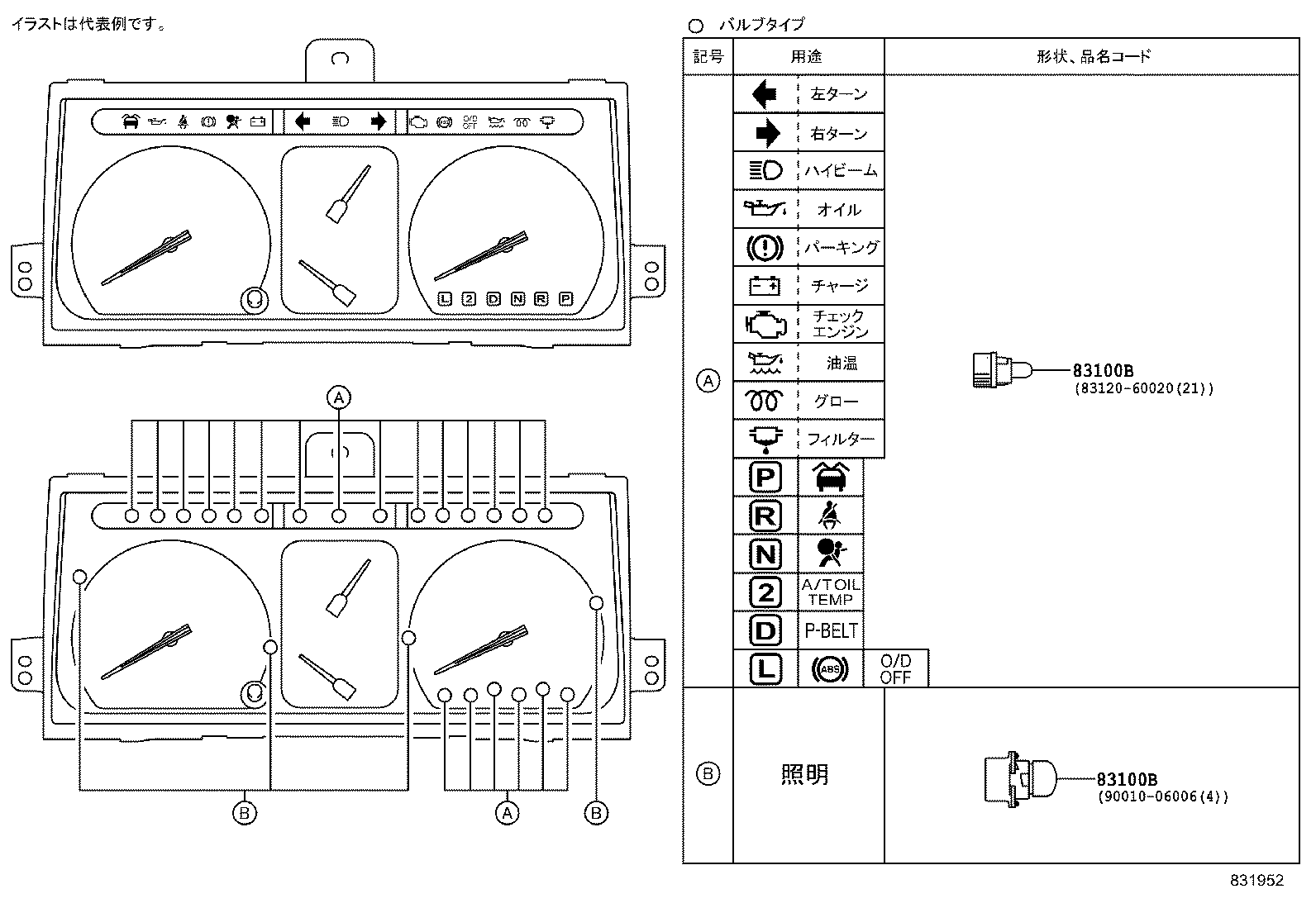

83100B - BULB, COMBINATION METER, NO.1
83120-60020

CM7#,8#..5H

12V 1.4W,ｿｹｯﾄ付き

 14
90010-06006

CM7#,8#,KM7#,8#

12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 4
90010-06006

CM7#,8#

12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
83120-60020

CM7#,8#

12V 1.4W,ｿｹｯﾄ付き

 1
83100B - BULB, COMBINATION METER, NO.1
83120-60020

CM7#,8#..5H

12V 1.4W,ｿｹｯﾄ付き

 14
90010-06006

CM7#,8#,KM7#,8#

12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 4
90010-06006

CM7#,8#

12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
83120-60020

CM7#,8#

12V 1.4W,ｿｹｯﾄ付き

 1
