CM70-TBSDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0408)

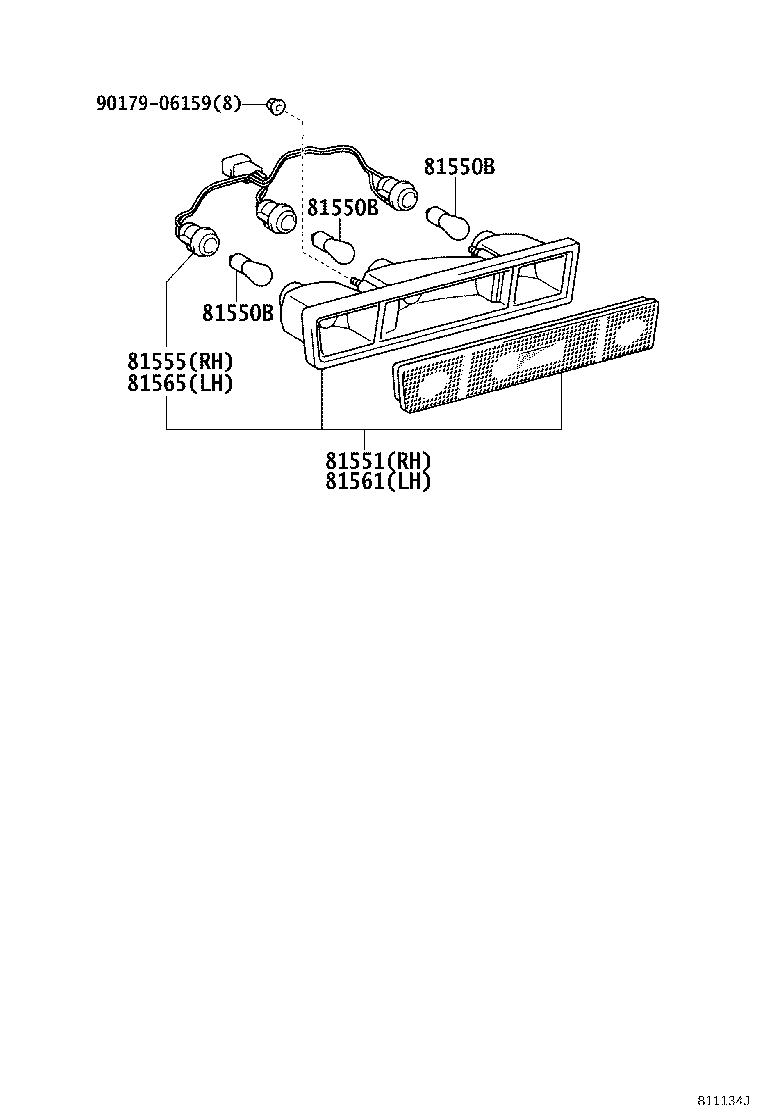

Click highlighted areas on diagram

diagram 81550B 81550B 81550B 81551 81555 81561 81565 9017906159
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-27050

CM7#,8#,KM7#,8#..3SO

 1
81551-27050

KM70..3SO;CM7#,8#,KM75,8#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-27050

CM7#,8#,KM7#,8#..3SO

 1
81555-27050

KM70..3SO;CM7#,8#,KM75,8#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-27050

CM7#,8#,KM7#,8#..3SO

 1
81561-27050

KM70..3SO;CM7#,8#,KM75,8#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-27050

KM70..3SO;CM7#,8#,KM75,8#

 1
81555-27050

CM7#,8#,KM7#,8#..3SO

 1
Common parts
90179-06159
