CM70-TBQDE (1999)
Toyota Lite/Townace

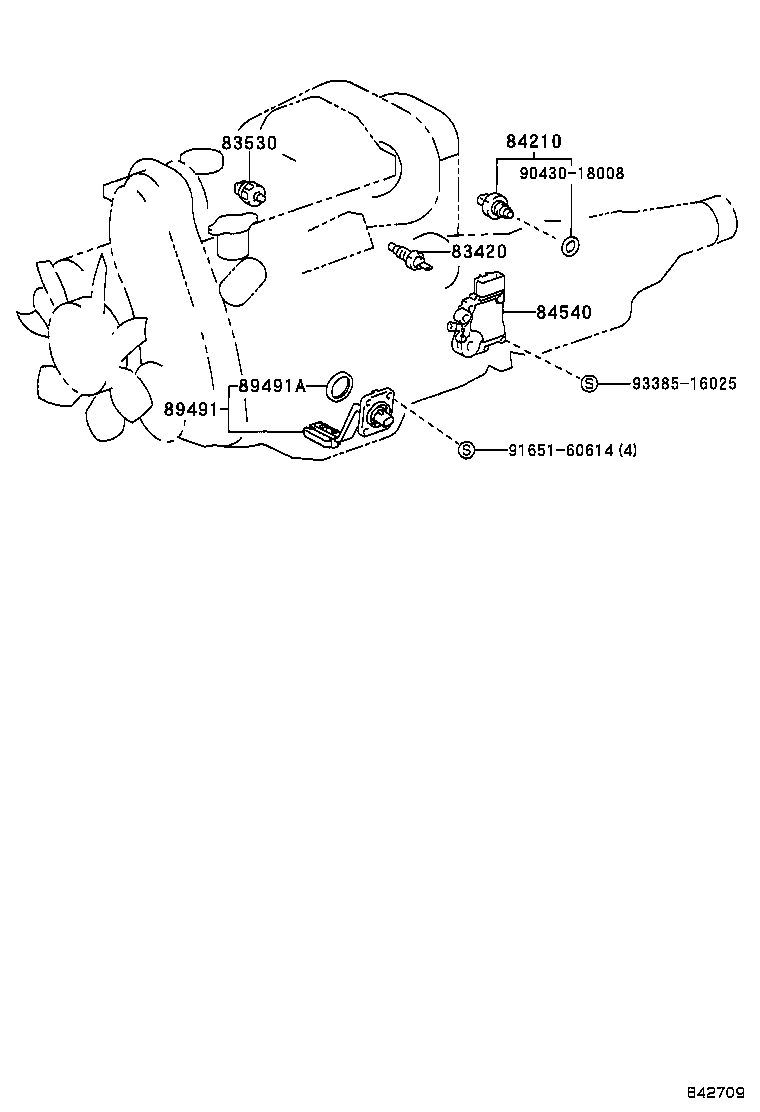

ILLUST NO. 1 OF 6(9906- )CM7#,8#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
CM7#,8#,KM7#,8# |
1 | ||
| 83420-16040 |
CM7#,8#,KM7#,8# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28010 |
CM7#,8# DENSO |
1 | ||
| 83530-60010 |
CM7#,8# YAZAKI |
1 | ||
| 83530-60010 |
CM7#,8# YAZAKI |
1 | ||
| 83530-28010 |
CM7#,8# DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
CM7#,8#,KM7#,8#..5H |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-27040 |
CM7#,8# |
1 | ||
| 89491-27040 |
CM7#,8# |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
CM7#,8#,KM7#,8# |
1 | ||
| 89493-60010 |
CM7#,8# |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-60614 | ||||
| 93385-16025 | ||||

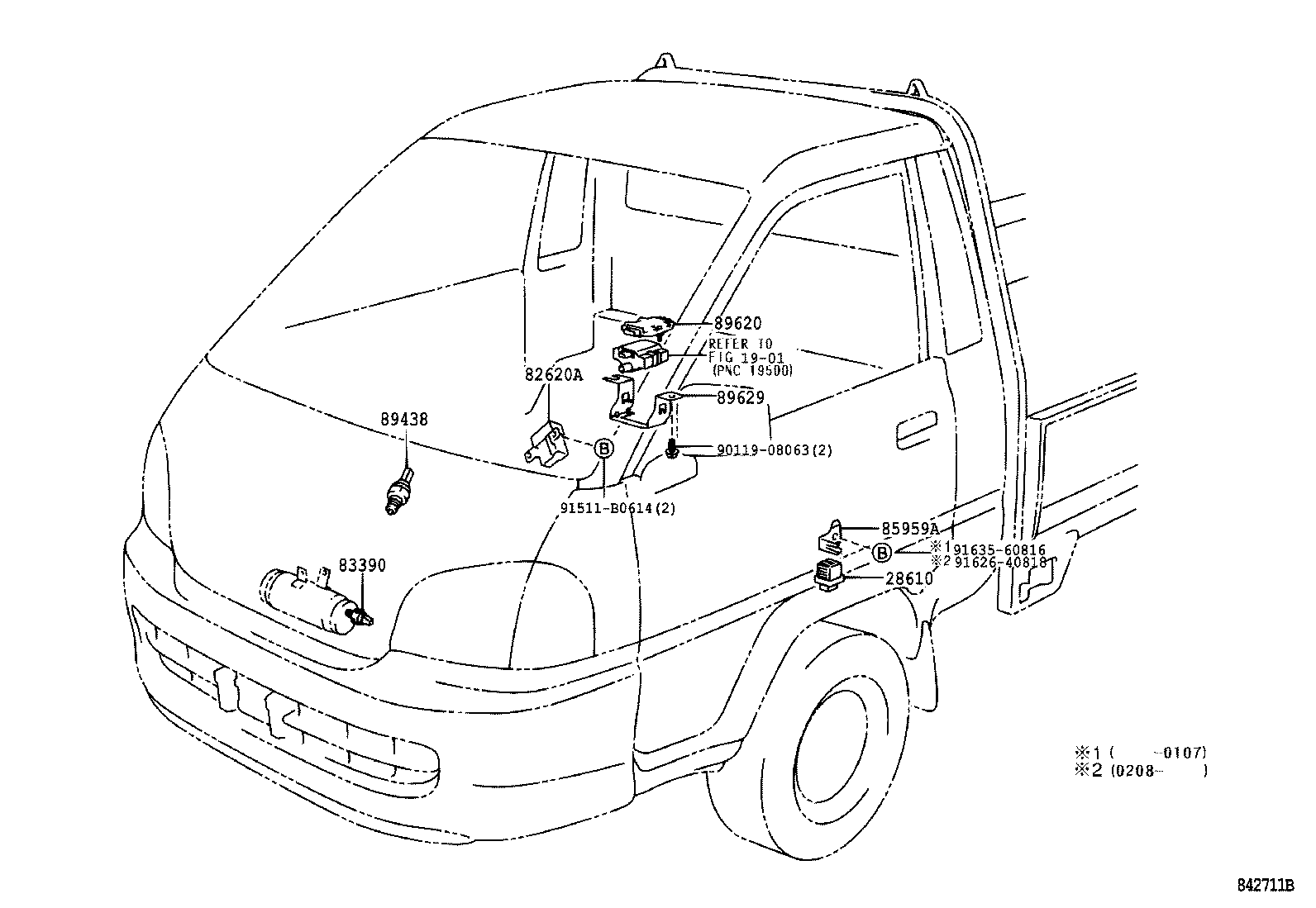

ILLUST NO. 2 OF 6(9906- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
3CE..CM7#,8# |
1 | ||
| 28610-67010 |
3CE..CM7#,8# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-95710 |
CM7#,8#,KM7#,8# |
1 | ||
| 82620-95710 |
CM7#,8# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-32100 |
CM7#,8# |
1 | ||
| 83390-32100 |
CM7#,8# |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-27040 |
CM7#,8# |
1 | ||
| 85959-27040 |
CM7#,8# |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 91511-B0614 | ||||
| 91626-40818 | ||||
| 91635-60816 | ||||
| Linked diagrams | ||||
| 1901 | ||||

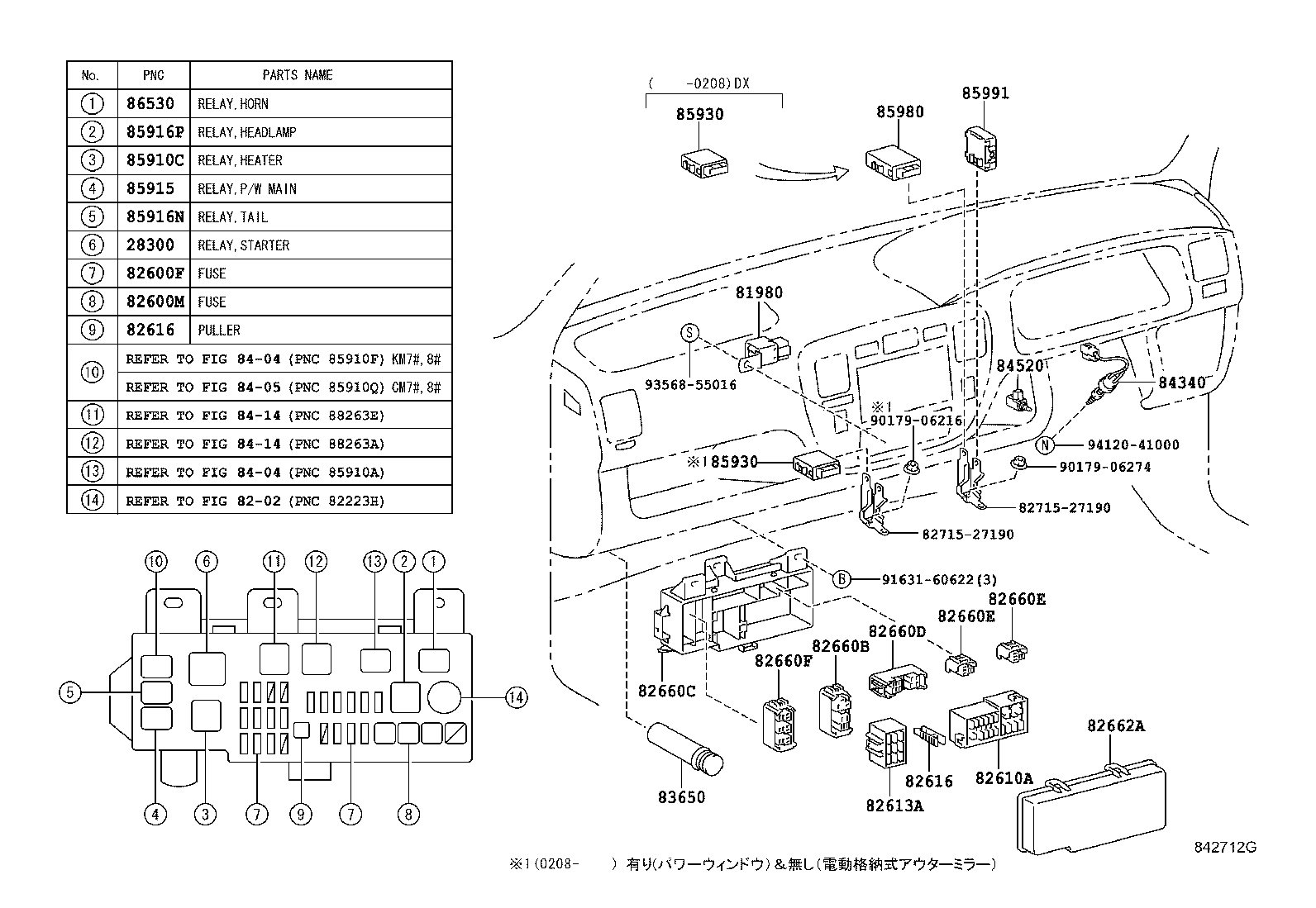

ILLUST NO. 3 OF 6(9906- )
ｶｳﾙ & ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
3CE,7KE..CM7#,8#,KM7#,8# |
1 | ||
| 28300-10020 |
3CE..CM7#,8# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-27010 |
CM7#,8# |
1 | ||
| 81980-27010 |
CM7#,8#,KM7#,8# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
CM7#,8# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
CM7#,8#,KM7#,8# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
CM7#,8#,KM7#,8# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
CM7#,8# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09008 |
CM7#,8# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
CM7#,8# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09010 |
CM7#,8# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
CM7#,8# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09008 |
CM7#,8#,KM7#,8# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
CM7#,8#,KM7#,8# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
CM7#,8# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09011 |
CM7#,8# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
CM7#,8# 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10001 |
CM7#,8#,KM7#,8# 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10001 |
CM7#,8# 30A,ﾋﾟﾝｸ |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-37030 |
CM7#,8# |
1 | ||
| 82610-37030 |
CM7#,8#,KM7#,8# |
1 | ||
| 82610-37030 |
CM7#,8# |
1 | ||
| 82613A - BLOCK, FUSE BASE | ||||
| 82613-42030 |
CM7#,8# |
1 | ||
| 82613-42030 |
CM7#,8# |
1 | ||
| 82613-42030 |
CM7#,8#,KM7#,8# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
CM7#,8# |
1 | ||
| 82616-20010 |
CM7#,8# |
1 | ||
| 82616-20010 |
CM7#,8#,KM7#,8# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
CM7#,8# |
1 | ||
| 82616-20010 |
CM7#,8# |
1 | ||
| 82616-20010 |
CM7#,8#,KM7#,8# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-26080 |
CM7#,8# |
1 | ||
| 82660-26080 |
CM7#,8#,KM7#,8# |
1 | ||
| 82660-26080 |
CM7#,8# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-27020 |
CM7#,8# |
1 | ||
| 82660-27020 |
CM7#,8#,KM7#,8# |
1 | ||
| 82660-27020 |
CM7#,8# |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-27030 |
CM7#,8# |
1 | ||
| 82660-27030 |
CM7#,8#,KM7#,8# |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
CM7#,8# |
1 | ||
| 82660-20340 |
CM7#,8# |
1 | ||
| 82660-20340 |
CM7#,8# |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
CM7#,8# |
1 | ||
| 82660-20340 |
CM7#,8# |
1 | ||
| 82660-20340 |
CM7#,8# |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-26150 |
CM7#,8#,KM7#,8# |
1 | ||
| 82660-26150 |
CM7#,8# |
1 | ||
| 82660-26150 |
CM7#,8# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-27010 |
CM7#,8#,KM7#,8# |
1 | ||
| 82662-27040 |
CM7#,8#,KM7#,8# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
CM7#,8#,KM7#,8# |
1 | ||
| 90986-01005 |
CM7#,8# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
CM7#,8#,KM7#,8# |
1 | ||
| 84340-22072 |
CM7#,8#,KM7#,8# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
CM7#,8#,KM7#,8# |
1 | ||
| 90987-04002 |
CM7#,8# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02012 |
CM7#,8#,KM7#,8# |
1 | ||
| 90987-02012 |
CM7#,8# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
CM7#,8#,KM7#,8# |
1 | ||
| 90987-02012 |
CM7#,8# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
CM7#,8# |
1 | ||
| 90987-02006 |
CM7#,8#,KM7#,8# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-26040 |
CM7#,8# |
1 | ||
| 85930-26040 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-26040 |
CM7#,8# |
1 | ||
| 85930-26040 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-26100 |
CM7#,8# |
1 | ||
| 85991 - RELAY, SEAT BELT WARNING | ||||
| 85991-27010 |
CM7#,8#,KM7#,8# |
1 | ||
| 85991-27010 |
CM7#,8# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
CM7#,8# |
1 | ||
| 90987-02012 |
CM7#,8#,KM7#,8# |
1 | ||
| Common parts | ||||
| 82715-27190 | ||||
| 90179-06216 | ||||
| 90179-06274 | ||||
| 91631-60622 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||

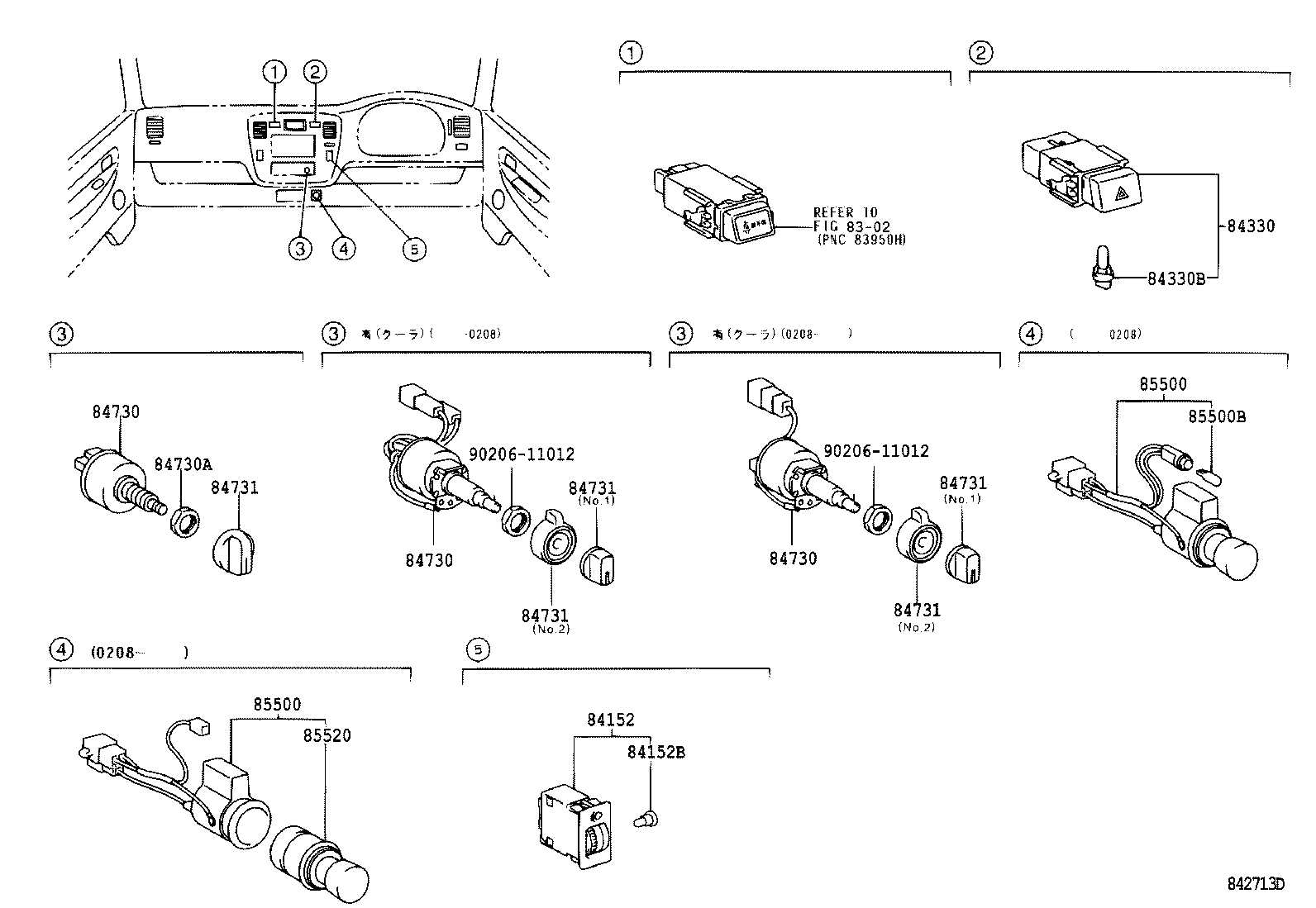

ILLUST NO. 4 OF 6(9906- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-22130 |
CM7#,8# |
1 | ||
| 84332-22130 |
CM7#,8#,KM7#,8# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
CM7#,8#,KM7#,8# 14V 0.91W |
1 | ||
| 84999-10860 |
CM7#,8# 14V 0.91W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12020 |
CM7#,8#,KM7#,8# |
1 | ||
| 84660-95702 |
CM7#,8#,KM7#,8# ｱﾘ(ｸ-ﾗ-) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12020 |
CM7#,8#,KM7#,8# |
1 | ||
| 84660-95702 |
CM7#,8#,KM7#,8# ｱﾘ(ｸ-ﾗ-) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12020 |
CM7#,8#,KM7#,8# |
1 | ||
| 84660-95702 |
CM7#,8#,KM7#,8# ｱﾘ(ｸ-ﾗ-) |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
CM7#,8# |
1 | ||
| 90170-11206 |
CM7#,8#,KM7#,8# |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12032 |
CM7#,8#,KM7#,8# ｱﾘ(ｸ-ﾗ),NO.2 |
1 | ||
| 84731-12010 |
CM7#,8# |
1 | ||
| 84731-20030 |
CM7#,8#,KM7#,8# ｱﾘ(ｸ-ﾗ),NO.1 |
1 | ||
| 84731-12032 |
CM7#,8# ｱﾘ(ｸ-ﾗ),NO.2 |
1 | ||
| 84731-20030 |
CM7#,8# ｱﾘ(ｸ-ﾗ),NO.1 |
1 | ||
| 84731-12010 |
CM7#,8#,KM7#,8# |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12032 |
CM7#,8#,KM7#,8# ｱﾘ(ｸ-ﾗ),NO.2 |
1 | ||
| 84731-12010 |
CM7#,8# |
1 | ||
| 84731-20030 |
CM7#,8#,KM7#,8# ｱﾘ(ｸ-ﾗ),NO.1 |
1 | ||
| 84731-12032 |
CM7#,8# ｱﾘ(ｸ-ﾗ),NO.2 |
1 | ||
| 84731-20030 |
CM7#,8# ｱﾘ(ｸ-ﾗ),NO.1 |
1 | ||
| 84731-12010 |
CM7#,8#,KM7#,8# |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12032 |
CM7#,8#,KM7#,8# ｱﾘ(ｸ-ﾗ),NO.2 |
1 | ||
| 84731-12010 |
CM7#,8# |
1 | ||
| 84731-20030 |
CM7#,8#,KM7#,8# ｱﾘ(ｸ-ﾗ),NO.1 |
1 | ||
| 84731-12032 |
CM7#,8# ｱﾘ(ｸ-ﾗ),NO.2 |
1 | ||
| 84731-20030 |
CM7#,8# ｱﾘ(ｸ-ﾗ),NO.1 |
1 | ||
| 84731-12010 |
CM7#,8#,KM7#,8# |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12032 |
CM7#,8#,KM7#,8# ｱﾘ(ｸ-ﾗ),NO.2 |
1 | ||
| 84731-12010 |
CM7#,8# |
1 | ||
| 84731-20030 |
CM7#,8#,KM7#,8# ｱﾘ(ｸ-ﾗ),NO.1 |
1 | ||
| 84731-12032 |
CM7#,8# ｱﾘ(ｸ-ﾗ),NO.2 |
1 | ||
| 84731-20030 |
CM7#,8# ｱﾘ(ｸ-ﾗ),NO.1 |
1 | ||
| 84731-12010 |
CM7#,8#,KM7#,8# |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12032 |
CM7#,8#,KM7#,8# ｱﾘ(ｸ-ﾗ),NO.2 |
1 | ||
| 84731-12010 |
CM7#,8# |
1 | ||
| 84731-20030 |
CM7#,8#,KM7#,8# ｱﾘ(ｸ-ﾗ),NO.1 |
1 | ||
| 84731-12032 |
CM7#,8# ｱﾘ(ｸ-ﾗ),NO.2 |
1 | ||
| 84731-20030 |
CM7#,8# ｱﾘ(ｸ-ﾗ),NO.1 |
1 | ||
| 84731-12010 |
CM7#,8#,KM7#,8# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37040 |
CM7#,8#,KM7#,8# |
1 | ||
| 85500-25010 |
CM7#,8# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37040 |
CM7#,8#,KM7#,8# |
1 | ||
| 85500-25010 |
CM7#,8# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CM7#,8#,KM7#,8# 14V 1.4W |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-17020 |
CM7#,8# |
1 | ||
| 85520-17020 |
CM7#,8#,KM7#,8# |
1 | ||
| Common parts | ||||
| 90206-11012 | ||||
| Linked diagrams | ||||
| 8302 | ||||

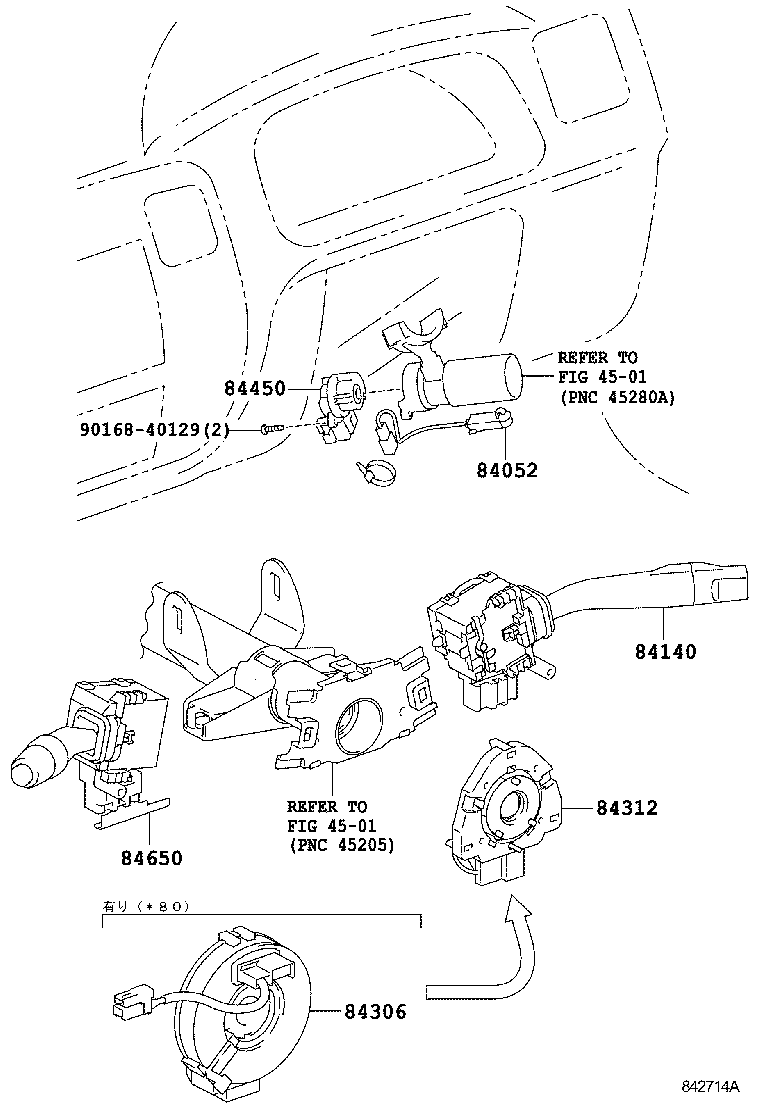

ILLUST NO. 5 OF 6(9906- )
ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-32030 |
CM7#,8#,KM7#,8# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-32220 |
CM7#,8#,KM7#,8# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-27010 |
CM7#,8#,KM7#,8# |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-52010 |
CM7#,8#,KM7#,8# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
CM7#,8#,KM7#,8# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-27330 |
CM7#,8#,KM7#,8# |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

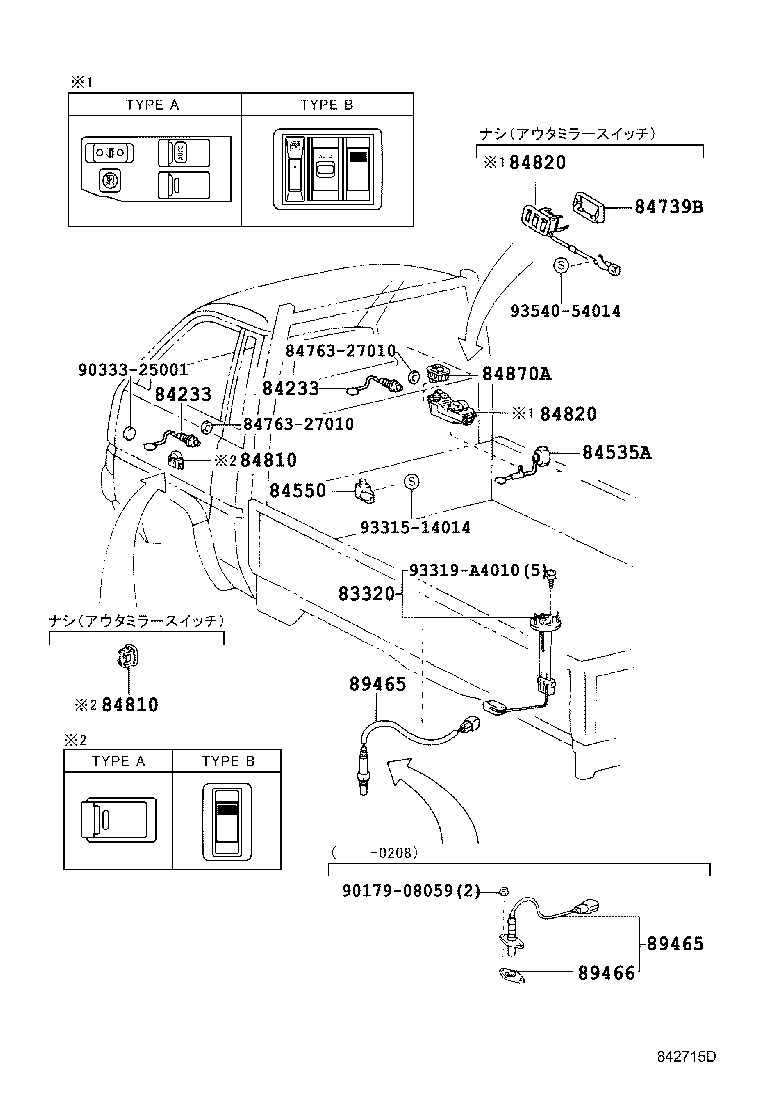

ILLUST NO. 6 OF 6(9906- )1SO,3SO
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾘﾔﾎﾞﾃﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80373 |
CM7#,8#,KM7#,8# |
1 | ||
| 83320-80412 |
CM7#,8#,KM7#,8# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95703 |
CM7#,8#,KM7#,8# 運転席 |
1 | ||
| 84230-95703 |
CM7#,8# ｳﾝﾃﾝｾｷ |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95703 |
CM7#,8#,KM7#,8# 運転席 |
1 | ||
| 84230-95703 |
CM7#,8# ｳﾝﾃﾝｾｷ |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
CM7#,8#,KM7#,8# |
1 | ||
| 84739B - RETAINER, SWITCH | ||||
| 84739-26020B1 |
CM7#,8#,KM7#,8#..DX DK.CHACOAL,TRIM1# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20060B5 |
CM7#,8#,KM7#,8#..DX ﾅｼ(ｱｳﾀ ﾐﾗ- ｽｲﾂﾁ),DK.CHACOAL,TRIM1#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20060B5 |
CM7#,8#,KM7#,8#..DX ﾅｼ(ｱｳﾀ ﾐﾗ- ｽｲﾂﾁ),DK.CHACOAL,TRIM1#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-26041B1 |
CM7#,8#,KM7#,8#..DX ﾅｼ(ｱｳﾀ ﾐﾗ- ｽｲﾂﾁ),DK.CHACOAL,TRIM1#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-26041B1 |
CM7#,8#,KM7#,8#..DX ﾅｼ(ｱｳﾀ ﾐﾗ- ｽｲﾂﾁ),DK.CHACOAL,TRIM1#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 84763-27010 | ||||
| 90179-08059 | ||||
| 90333-25001 | ||||
| 93315-14014 | ||||
| 93319-A4010 | ||||
| 93540-54014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
