CM70-TBQDE (1999)
Toyota Lite/Townace

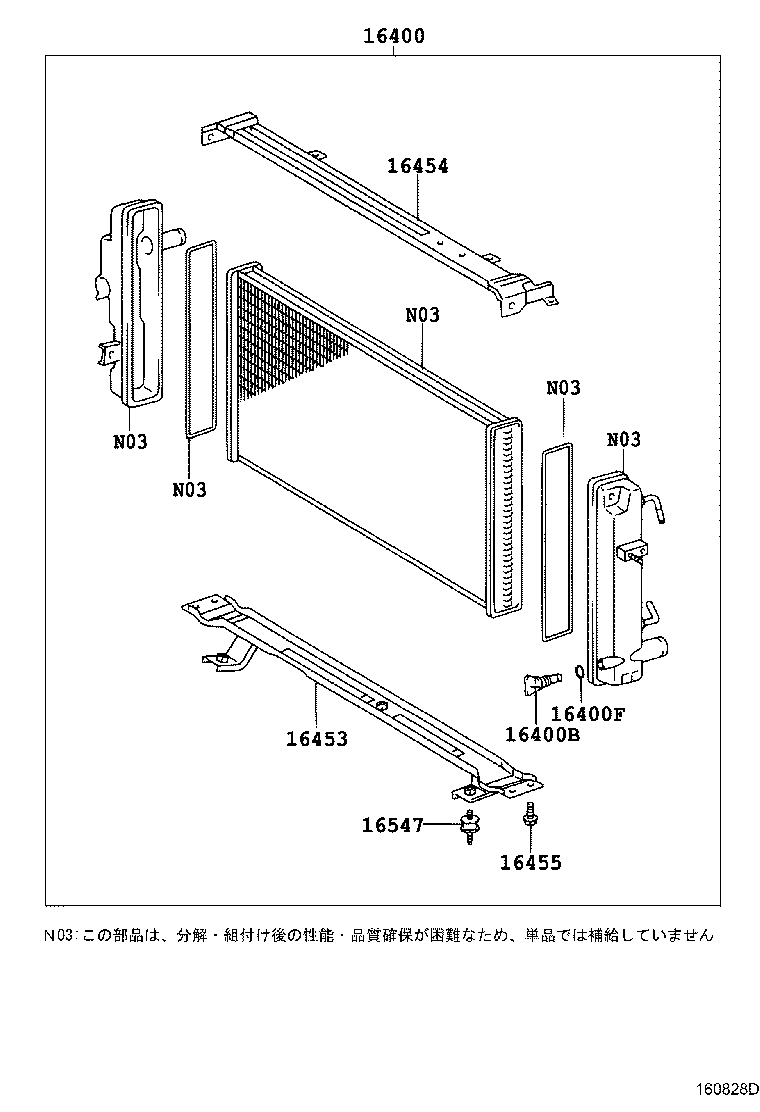

ILLUST NO. 3 OF 3(9906-0208)3CE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-6A240 |
3CE..CM7#..5H |
1 | ||
| 16400-6A320 |
3CE..CM7#..5H |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
3CE..CM7#,8# |
1 | ||
| 16417-15210 |
3CE..CM7#,8# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
3CE..CM7#,8# |
1 | ||
| 16418-15520 |
3CE..CM7#,8# |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-6A250 |
3CE..CM7# |
1 | ||
| 16453-6A250 |
3CE..CM7#..CBU,IV3 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-6A270 |
3CE..CM7#,8# |
1 | ||
| 16454-6A320 |
3CE..CM7#,8# |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
3CE..CM7#,8# |
7 | ||
| 16455-67020 |
3CE..CM7#,8# |
7 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-6A240 |
3CE..CM7#,8# |
2 | ||
| 16547-67040 |
3CE..CM7#,8# |
2 | ||
ILLUST NO. 1 OF 3(9906-0208)3CE

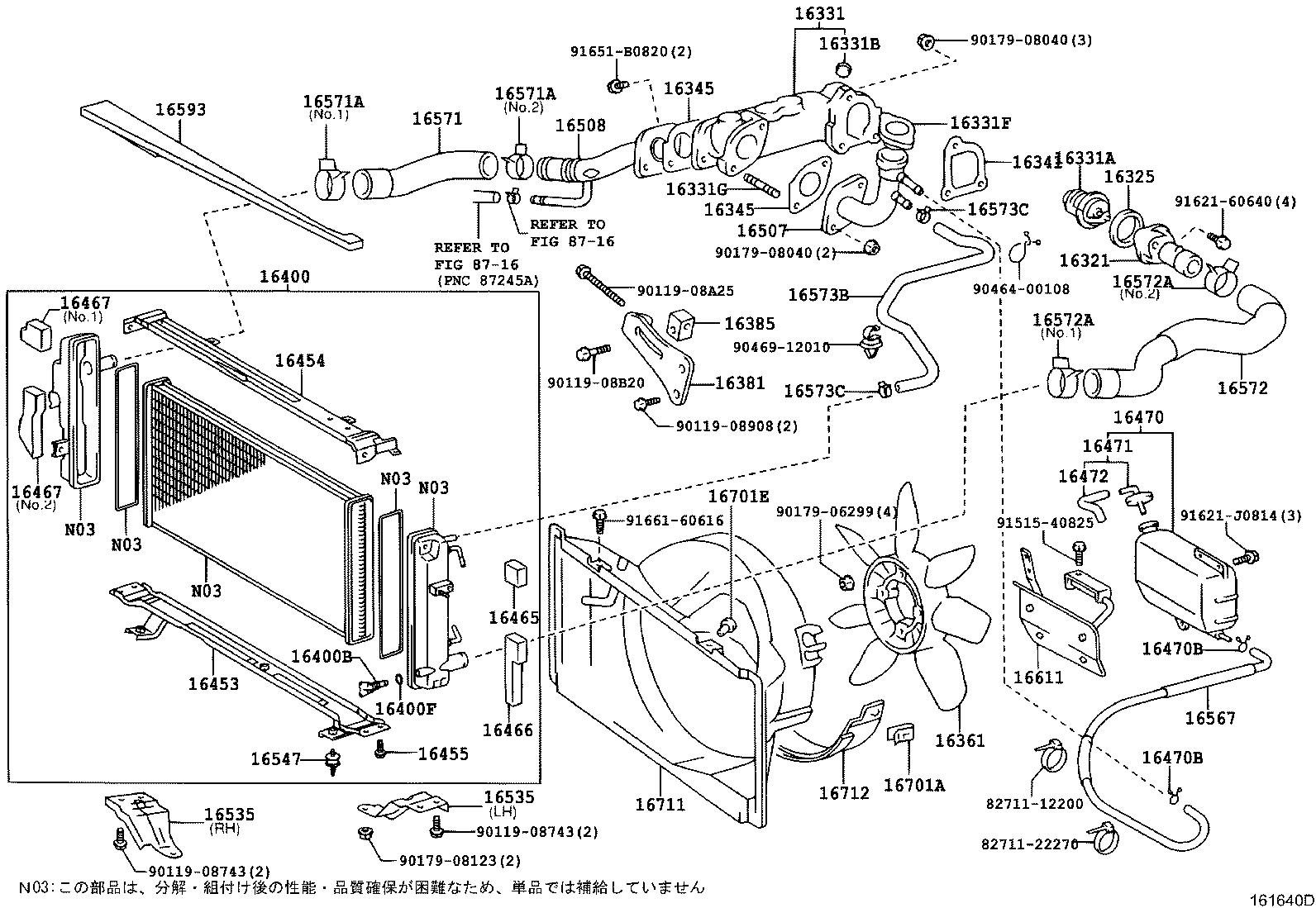

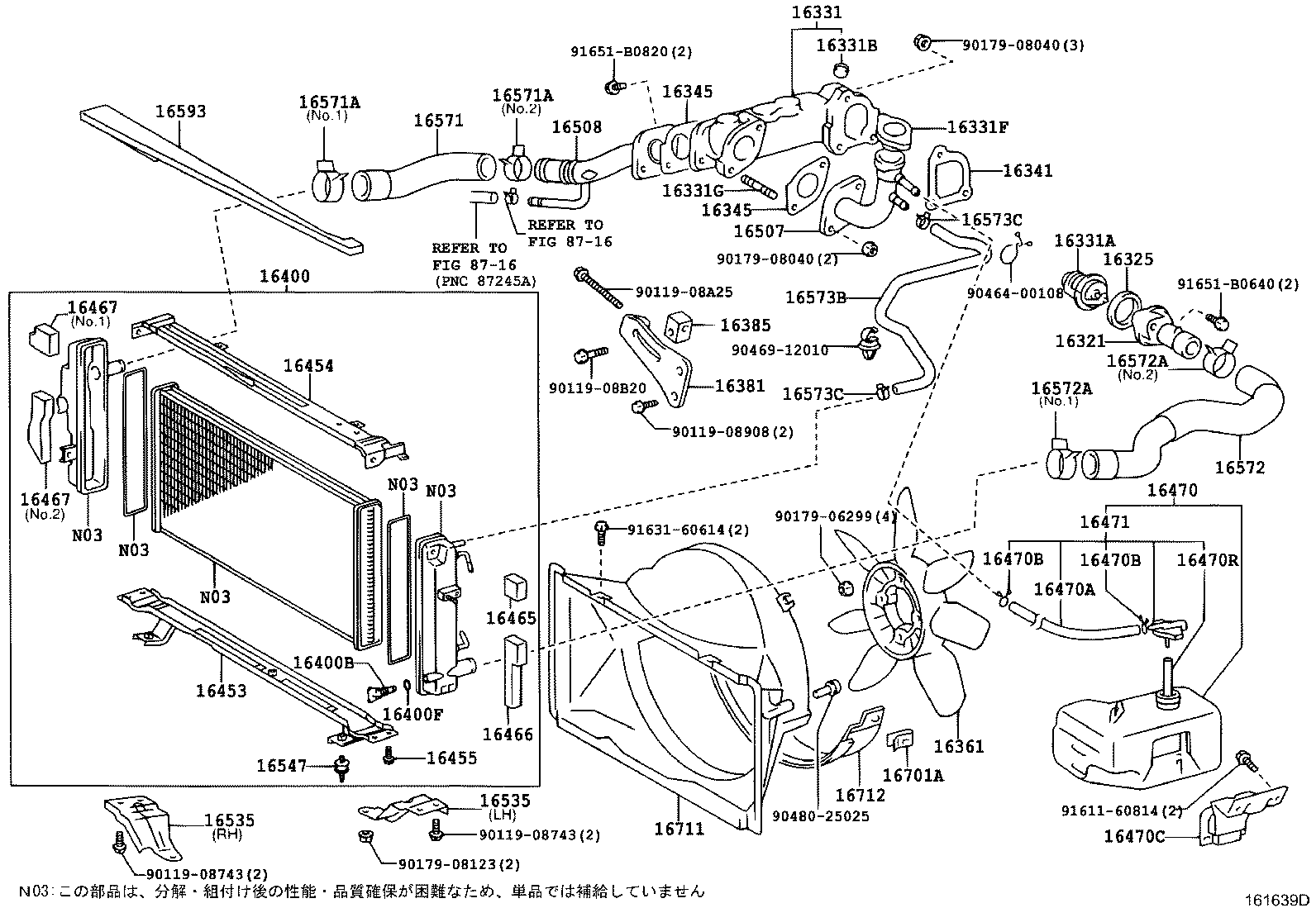

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-64100 |
3CE..CM7#,8# |
1 | ||
| 16321-64100 |
3CE..CM7#,8# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
3CE..CM7#,8# |
1 | ||
| 16325-63011 |
3CE..CM7#,8# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-64030 |
3CE..CM7#,8# |
1 | ||
| 16304-64030 |
3CE..CM7#,8# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
3CE..CM7#,8# *WAX 82−95 |
1 | ||
| 90916-03046 |
3CE..CM7#,8# *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90344-53002 |
3CE..CM7#,8# |
1 | ||
| 90344-53002 |
3CE..CM7#,8# |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-64010 |
3CE..CM7#,8# |
1 | ||
| 16401-64010 |
3CE..CM7#,8# |
1 | ||
| 16331G - BOLT, STUD(FOR WATER INLET) | ||||
| 92122-60816 |
3CE..CM7#,8# |
2 | ||
| 92122-60816 |
3CE..CM7#,8# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-64021 |
3CE..CM7#,8# |
1 | ||
| 16341-64021 |
3CE..CM7#,8# |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16361 - FAN | ||||
| 16361-73030 |
3CE..CM7#,8# |
1 | ||
| 16361-73030 |
3CE..CM7#,8# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64090 |
3CE..CM7#,8# |
1 | ||
| 16381-64090 |
3CE..CM7#,8# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64030 |
3CE..CM7#,8# |
1 | ||
| 16385-64030 |
3CE..CM7#,8# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-6A240 |
3CE..CM7#..5H |
1 | ||
| 16400-6A320 |
3CE..CM7#..5H |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64250 |
3CE..CM7#,8# |
1 | ||
| 16470-64250 |
3CE..CM7#,8# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3CE..CM7#,8# *H,L=430 |
1 | ||
| 90445-12078 |
3CE..CM7#,8# *H,L=430 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 53204-95703 |
3CE..CM7#,8# |
1 | ||
| 53204-95703 |
3CE..CM7#,8# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3CE..CM7#,8# *H,L=105 |
1 | ||
| 90445-12078 |
3CE..CM7#,8# *H,L=105 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-64070 |
3CE..CM7#,8# |
1 | ||
| 16471-64070 |
3CE..CM7#,8# |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-64020 |
3CE..CM7#,8# |
1 | ||
| 16507-64020 |
3CE..CM7#,8# |
1 | ||
| 16508 - PIPE SUB-ASSY, RADIATOR, NO.2 | ||||
| 16508-64060 |
3CE..CM7#,8# |
1 | ||
| 16508-64060 |
3CE..CM7#,8# |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16533-64190 |
3CE..CM7# |
1 | ||
| 16533-64190 |
3CE..CM7#..CBU,IV3 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16533-64190 |
3CE..CM7# |
1 | ||
| 16533-64190 |
3CE..CM7#..CBU,IV3 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64330 |
3CE..CM7#,8# |
1 | ||
| 16571-64330 |
3CE..CM7#,8# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64310 |
3CE..CM7#,8# |
1 | ||
| 16572-64310 |
3CE..CM7#,8# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-64100 |
3CE..CM7#,8# |
1 | ||
| 16573-64100 |
3CE..CM7#,8# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-13128 |
3CE..CM7#,8# |
2 | ||
| 90467-13073 |
3CE..CM7#,8# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-13128 |
3CE..CM7#,8# |
2 | ||
| 90467-13073 |
3CE..CM7#,8# |
2 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
3CE..CM7#,8# |
2 | ||
| 90468-06013 |
3CE..CM7#,8# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-64500 |
3CE..CM7#,8# |
1 | ||
| 16711-64540 |
3CE..CM7#,8# |
1 | ||
| 16711-64540 |
3CE..CM7#,8# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-64220 |
3CE..CM7#,8# |
1 | ||
| 16712-64230 |
3CE..CM7#,8# |
1 | ||
| 16712-64230 |
3CE..CM7#,8# |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||
| 90119-08A25 | ||||
| 90119-08B20 | ||||
| 90179-06036 | ||||
| 90179-08040 | ||||
| 90179-08123 | ||||
| 90464-00108 | ||||
| 90469-12010 | ||||
| 90480-25025 | ||||
| 91611-60814 | ||||
| 91615-60825 | ||||
| 91621-60640 | ||||
| 91621-60818 | ||||
| 91631-60614 | ||||
| Linked diagrams | ||||
| 8716 | ||||

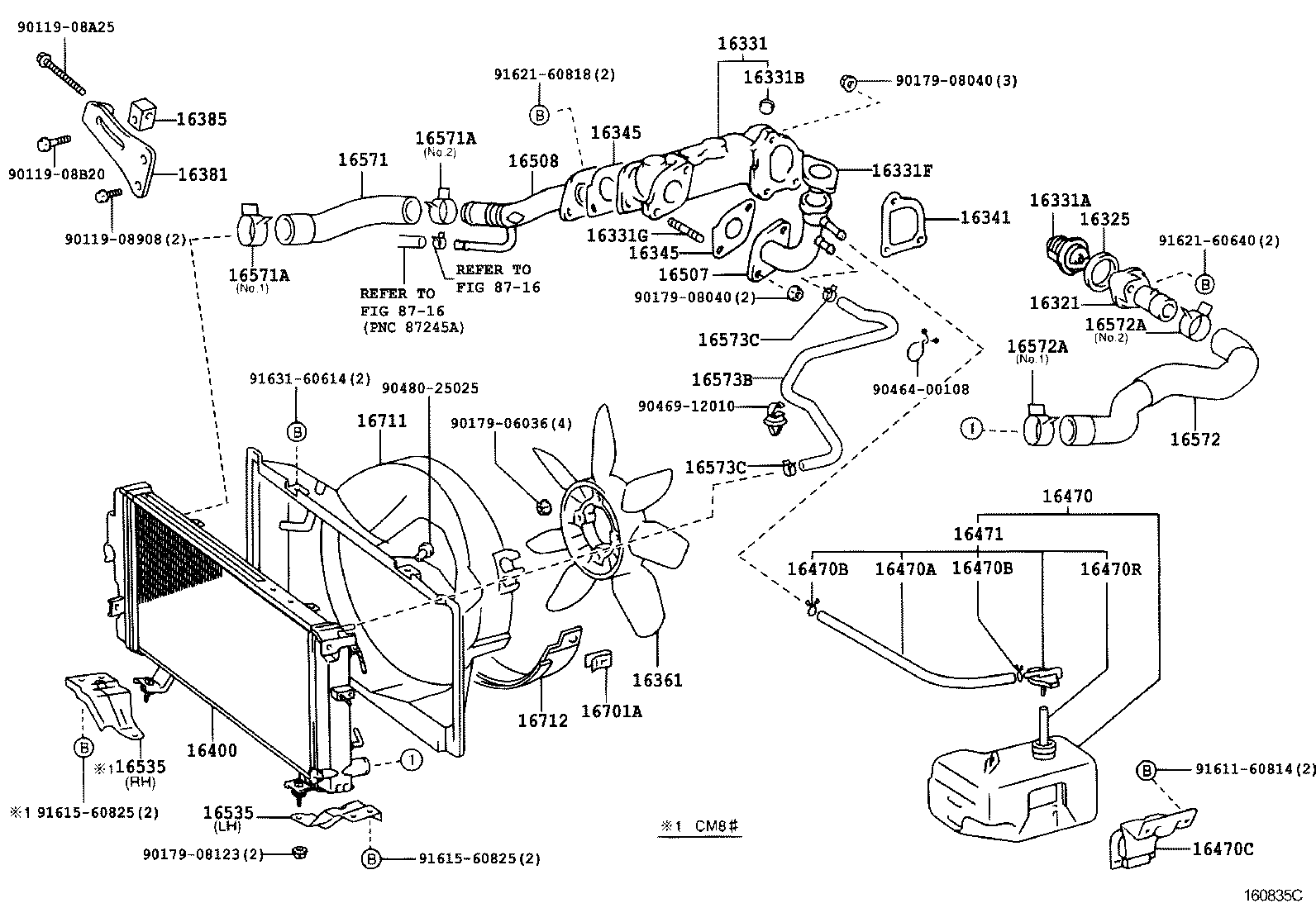

ILLUST NO. 1 OF 3(9906-0208)3CE
ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-64100 |
3CE..CM7#,8# |
1 | ||
| 16321-64100 |
3CE..CM7#,8# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
3CE..CM7#,8# |
1 | ||
| 16325-63011 |
3CE..CM7#,8# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-64030 |
3CE..CM7#,8# |
1 | ||
| 16304-64030 |
3CE..CM7#,8# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
3CE..CM7#,8# *WAX 82−95 |
1 | ||
| 90916-03046 |
3CE..CM7#,8# *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90344-53002 |
3CE..CM7#,8# |
1 | ||
| 90344-53002 |
3CE..CM7#,8# |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-64010 |
3CE..CM7#,8# |
1 | ||
| 16401-64010 |
3CE..CM7#,8# |
1 | ||
| 16331G - BOLT, STUD(FOR WATER INLET) | ||||
| 92122-60816 |
3CE..CM7#,8# |
2 | ||
| 92122-60816 |
3CE..CM7#,8# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-64021 |
3CE..CM7#,8# |
1 | ||
| 16341-64021 |
3CE..CM7#,8# |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16361 - FAN | ||||
| 16361-73030 |
3CE..CM7#,8# |
1 | ||
| 16361-73030 |
3CE..CM7#,8# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64090 |
3CE..CM7#,8# |
1 | ||
| 16381-64090 |
3CE..CM7#,8# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64030 |
3CE..CM7#,8# |
1 | ||
| 16385-64030 |
3CE..CM7#,8# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-6A240 |
3CE..CM7#..5H |
1 | ||
| 16400-6A320 |
3CE..CM7#..5H |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64250 |
3CE..CM7#,8# |
1 | ||
| 16470-64250 |
3CE..CM7#,8# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-64070 |
3CE..CM7#,8# |
1 | ||
| 16471-64070 |
3CE..CM7#,8# |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-64020 |
3CE..CM7#,8# |
1 | ||
| 16507-64020 |
3CE..CM7#,8# |
1 | ||
| 16508 - PIPE SUB-ASSY, RADIATOR, NO.2 | ||||
| 16508-64060 |
3CE..CM7#,8# |
1 | ||
| 16508-64060 |
3CE..CM7#,8# |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16533-64190 |
3CE..CM7# |
1 | ||
| 16533-64190 |
3CE..CM7#..CBU,IV3 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16533-64190 |
3CE..CM7# |
1 | ||
| 16533-64190 |
3CE..CM7#..CBU,IV3 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64330 |
3CE..CM7#,8# |
1 | ||
| 16571-64330 |
3CE..CM7#,8# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64310 |
3CE..CM7#,8# |
1 | ||
| 16572-64310 |
3CE..CM7#,8# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-64100 |
3CE..CM7#,8# |
1 | ||
| 16573-64100 |
3CE..CM7#,8# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-13128 |
3CE..CM7#,8# |
2 | ||
| 90467-13073 |
3CE..CM7#,8# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-13128 |
3CE..CM7#,8# |
2 | ||
| 90467-13073 |
3CE..CM7#,8# |
2 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
3CE..CM7#,8# |
2 | ||
| 90468-06013 |
3CE..CM7#,8# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-64500 |
3CE..CM7#,8# |
1 | ||
| 16711-64540 |
3CE..CM7#,8# |
1 | ||
| 16711-64540 |
3CE..CM7#,8# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-64220 |
3CE..CM7#,8# |
1 | ||
| 16712-64230 |
3CE..CM7#,8# |
1 | ||
| 16712-64230 |
3CE..CM7#,8# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-22270 | ||||
| 90119-08908 | ||||
| 90119-08A25 | ||||
| 90119-08B20 | ||||
| 90179-06036 | ||||
| 90179-08040 | ||||
| 90179-08123 | ||||
| 90464-00108 | ||||
| 90469-12010 | ||||
| 91515-40825 | ||||
| 91615-60825 | ||||
| 91621-60640 | ||||
| 91621-60814 | ||||
| 91621-60818 | ||||
| 91631-60614 | ||||
| Linked diagrams | ||||
| 8716 | ||||
ILLUST NO. 2 OF 3(9906- )3CE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

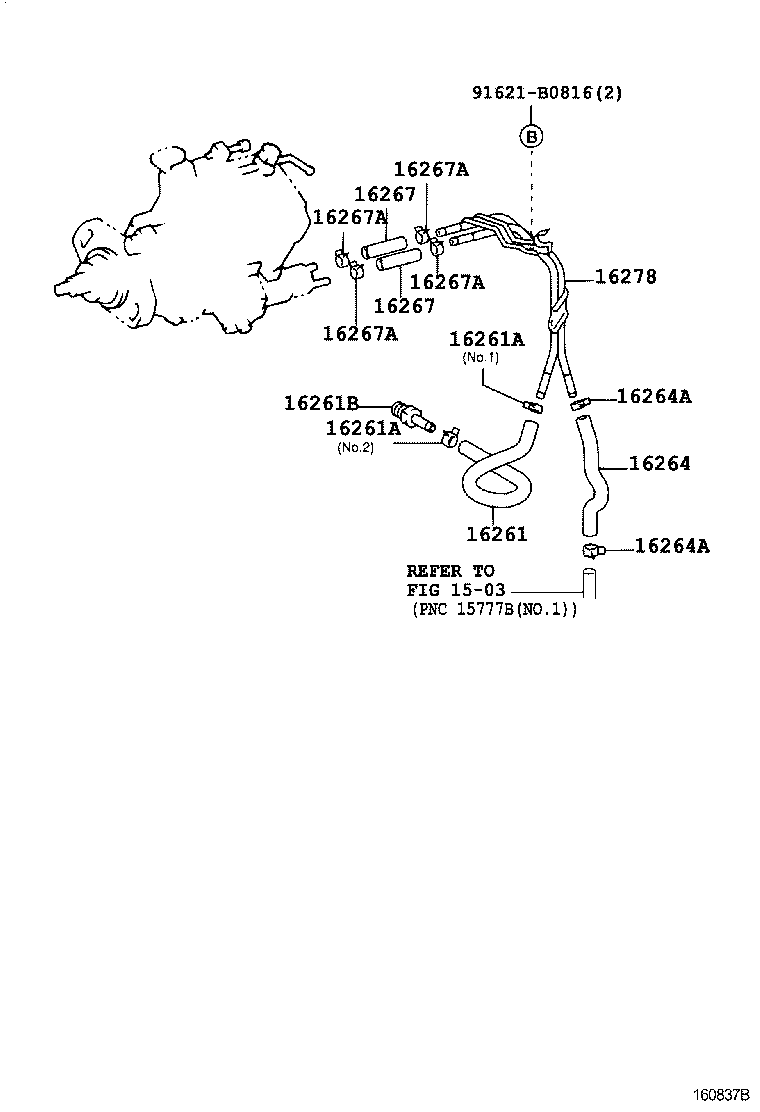

| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64170 |
3CE..CM7#,8# |
1 | ||
| 16261-64170 |
3CE..CM7#,8# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13128 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-15022 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-13073 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-15022 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13128 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-15022 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-13073 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-15022 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53059 |
3CE..CM7#,8# |
1 | ||
| 90404-53059 |
3CE..CM7#,8# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64190 |
3CE..CM7#,8# |
1 | ||
| 16264-64190 |
3CE..CM7#,8# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13073 |
3CE..CM7#,8# |
2 | ||
| 90467-13128 |
3CE..CM7#,8# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13073 |
3CE..CM7#,8# |
2 | ||
| 90467-13128 |
3CE..CM7#,8# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99555-10050 |
3CE..CM7#,8# 長さ=50 |
2 | ||
| 99555-10050 |
3CE..CM7#,8# 長さ=50 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99555-10050 |
3CE..CM7#,8# 長さ=50 |
2 | ||
| 99555-10050 |
3CE..CM7#,8# 長さ=50 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
3CE..CM7#,8# |
4 | ||
| 90467-13073 |
3CE..CM7#,8# |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
3CE..CM7#,8# |
4 | ||
| 90467-13073 |
3CE..CM7#,8# |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
3CE..CM7#,8# |
4 | ||
| 90467-13073 |
3CE..CM7#,8# |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
3CE..CM7#,8# |
4 | ||
| 90467-13073 |
3CE..CM7#,8# |
4 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-64050 |
3CE..CM7#,8# |
1 | ||
| 16278-64050 |
3CE..CM7#,8# |
1 | ||
| Common parts | ||||
| 91621-B0816 | ||||
| Linked diagrams | ||||
| 1503 | ||||
ILLUST NO. 1 OF 3(0208- )3CE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

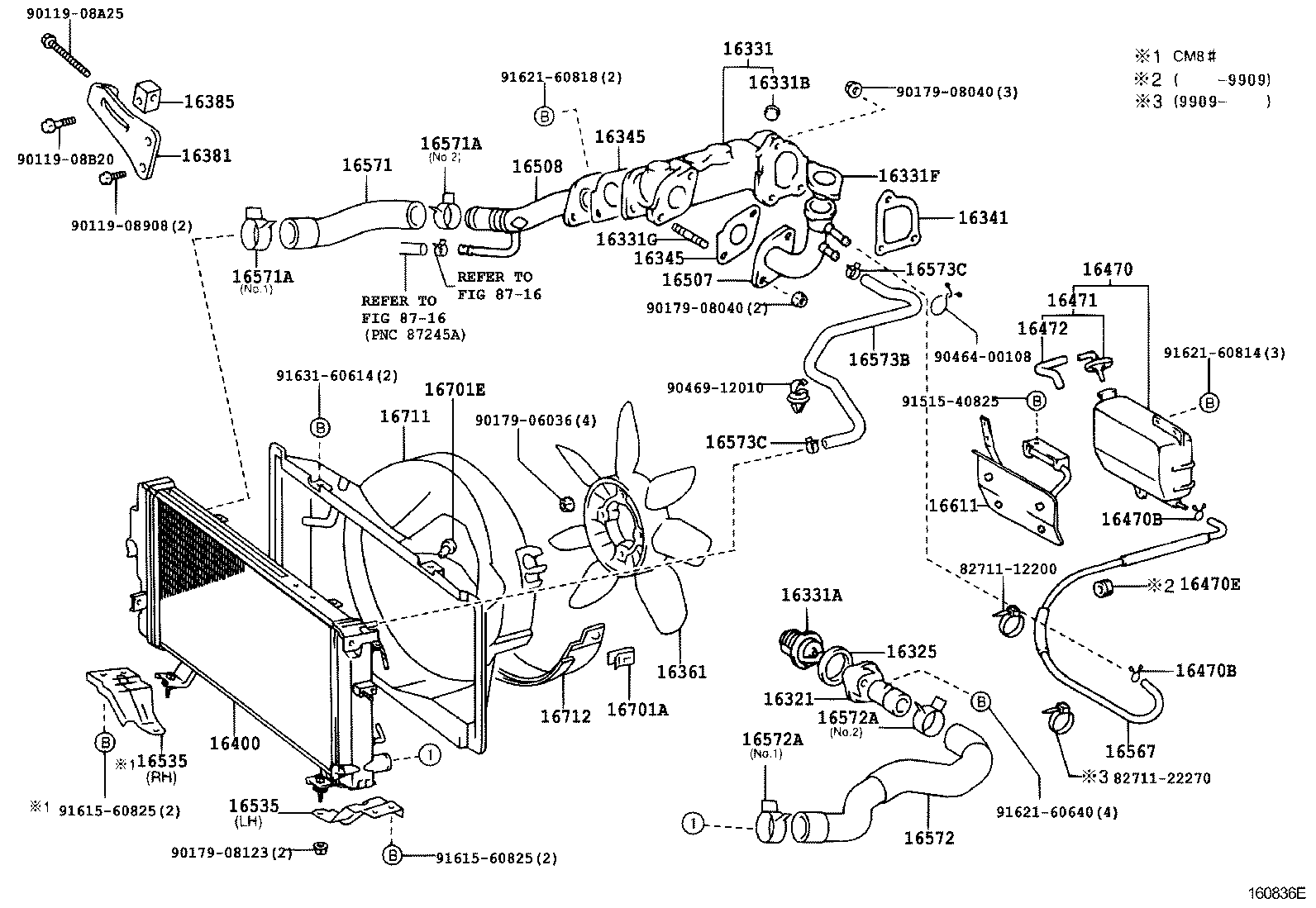

| 16321 - INLET, WATER | ||||
| 16321-64100 |
3CE..CM7#,8# |
1 | ||
| 16321-64100 |
3CE..CM7#,8# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
3CE..CM7#,8# |
1 | ||
| 16325-63011 |
3CE..CM7#,8# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-64030 |
3CE..CM7#,8# |
1 | ||
| 16304-64030 |
3CE..CM7#,8# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
3CE..CM7#,8# *WAX 82−95 |
1 | ||
| 90916-03046 |
3CE..CM7#,8# *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90344-53002 |
3CE..CM7#,8# |
1 | ||
| 90344-53002 |
3CE..CM7#,8# |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-64010 |
3CE..CM7#,8# |
1 | ||
| 16401-64010 |
3CE..CM7#,8# |
1 | ||
| 16331G - BOLT, STUD(FOR WATER INLET) | ||||
| 92122-60816 |
3CE..CM7#,8# |
2 | ||
| 92122-60816 |
3CE..CM7#,8# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-64021 |
3CE..CM7#,8# |
1 | ||
| 16341-64021 |
3CE..CM7#,8# |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16361 - FAN | ||||
| 16361-73030 |
3CE..CM7#,8# |
1 | ||
| 16361-73030 |
3CE..CM7#,8# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64090 |
3CE..CM7#,8# |
1 | ||
| 16381-64090 |
3CE..CM7#,8# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64030 |
3CE..CM7#,8# |
1 | ||
| 16385-64030 |
3CE..CM7#,8# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-6A240 |
3CE..CM7#..5H |
1 | ||
| 16400-6A320 |
3CE..CM7#..5H |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
3CE..CM7#,8# |
1 | ||
| 16417-15210 |
3CE..CM7#,8# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
3CE..CM7#,8# |
1 | ||
| 16418-15520 |
3CE..CM7#,8# |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-6A250 |
3CE..CM7# |
1 | ||
| 16453-6A250 |
3CE..CM7#..CBU,IV3 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-6A270 |
3CE..CM7#,8# |
1 | ||
| 16454-6A320 |
3CE..CM7#,8# |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
3CE..CM7#,8# |
7 | ||
| 16455-67020 |
3CE..CM7#,8# |
7 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-6A320 |
3CE..CM7#,8# |
1 | ||
| 16466 - SEAL, RADIATOR | ||||
| 16466-6A320 |
3CE..CM7#,8# |
1 | ||
| 16467 - SIDE SEAL | ||||
| 16467-6A320 |
3CE..CM7#,8# NO.1 |
1 | ||
| 16468-6A320 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16467 - SIDE SEAL | ||||
| 16467-6A320 |
3CE..CM7#,8# NO.1 |
1 | ||
| 16468-6A320 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64250 |
3CE..CM7#,8# |
1 | ||
| 16470-64250 |
3CE..CM7#,8# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3CE..CM7#,8# *H,L=430 |
1 | ||
| 90445-12078 |
3CE..CM7#,8# *H,L=430 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 53204-95703 |
3CE..CM7#,8# |
1 | ||
| 53204-95703 |
3CE..CM7#,8# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3CE..CM7#,8# *H,L=105 |
1 | ||
| 90445-12078 |
3CE..CM7#,8# *H,L=105 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-64070 |
3CE..CM7#,8# |
1 | ||
| 16471-64070 |
3CE..CM7#,8# |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-64020 |
3CE..CM7#,8# |
1 | ||
| 16507-64020 |
3CE..CM7#,8# |
1 | ||
| 16508 - PIPE SUB-ASSY, RADIATOR, NO.2 | ||||
| 16508-64060 |
3CE..CM7#,8# |
1 | ||
| 16508-64060 |
3CE..CM7#,8# |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16533-64190 |
3CE..CM7# |
1 | ||
| 16533-64190 |
3CE..CM7#..CBU,IV3 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16533-64190 |
3CE..CM7# |
1 | ||
| 16533-64190 |
3CE..CM7#..CBU,IV3 |
1 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-6A240 |
3CE..CM7#,8# |
2 | ||
| 16547-67040 |
3CE..CM7#,8# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64330 |
3CE..CM7#,8# |
1 | ||
| 16571-64330 |
3CE..CM7#,8# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64310 |
3CE..CM7#,8# |
1 | ||
| 16572-64310 |
3CE..CM7#,8# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-64100 |
3CE..CM7#,8# |
1 | ||
| 16573-64100 |
3CE..CM7#,8# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-13128 |
3CE..CM7#,8# |
2 | ||
| 90467-13073 |
3CE..CM7#,8# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-13128 |
3CE..CM7#,8# |
2 | ||
| 90467-13073 |
3CE..CM7#,8# |
2 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-64010 |
3CE..CM7#,8# |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
3CE..CM7#,8# |
2 | ||
| 90468-06013 |
3CE..CM7#,8# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-64500 |
3CE..CM7#,8# |
1 | ||
| 16711-64540 |
3CE..CM7#,8# |
1 | ||
| 16711-64540 |
3CE..CM7#,8# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-64220 |
3CE..CM7#,8# |
1 | ||
| 16712-64230 |
3CE..CM7#,8# |
1 | ||
| 16712-64230 |
3CE..CM7#,8# |
1 | ||
| Common parts | ||||
| 90119-08743 | ||||
| 90119-08908 | ||||
| 90119-08A25 | ||||
| 90119-08B20 | ||||
| 90179-06299 | ||||
| 90179-08040 | ||||
| 90179-08123 | ||||
| 90464-00108 | ||||
| 90469-12010 | ||||
| 90480-25025 | ||||
| 91611-60814 | ||||
| 91631-60614 | ||||
| 91651-B0640 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8716 | ||||
ILLUST NO. 1 OF 3(0208- )3CE
ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-64100 |
3CE..CM7#,8# |
1 | ||
| 16321-64100 |
3CE..CM7#,8# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
3CE..CM7#,8# |
1 | ||
| 16325-63011 |
3CE..CM7#,8# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-64030 |
3CE..CM7#,8# |
1 | ||
| 16304-64030 |
3CE..CM7#,8# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
3CE..CM7#,8# *WAX 82−95 |
1 | ||
| 90916-03046 |
3CE..CM7#,8# *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90344-53002 |
3CE..CM7#,8# |
1 | ||
| 90344-53002 |
3CE..CM7#,8# |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-64010 |
3CE..CM7#,8# |
1 | ||
| 16401-64010 |
3CE..CM7#,8# |
1 | ||
| 16331G - BOLT, STUD(FOR WATER INLET) | ||||
| 92122-60816 |
3CE..CM7#,8# |
2 | ||
| 92122-60816 |
3CE..CM7#,8# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-64021 |
3CE..CM7#,8# |
1 | ||
| 16341-64021 |
3CE..CM7#,8# |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16345-64030 |
3CE..CM7#,8# |
2 | ||
| 16361 - FAN | ||||
| 16361-73030 |
3CE..CM7#,8# |
1 | ||
| 16361-73030 |
3CE..CM7#,8# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64090 |
3CE..CM7#,8# |
1 | ||
| 16381-64090 |
3CE..CM7#,8# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64030 |
3CE..CM7#,8# |
1 | ||
| 16385-64030 |
3CE..CM7#,8# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-6A240 |
3CE..CM7#..5H |
1 | ||
| 16400-6A320 |
3CE..CM7#..5H |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
3CE..CM7#,8# |
1 | ||
| 16417-15210 |
3CE..CM7#,8# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
3CE..CM7#,8# |
1 | ||
| 16418-15520 |
3CE..CM7#,8# |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-6A250 |
3CE..CM7# |
1 | ||
| 16453-6A250 |
3CE..CM7#..CBU,IV3 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-6A270 |
3CE..CM7#,8# |
1 | ||
| 16454-6A320 |
3CE..CM7#,8# |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
3CE..CM7#,8# |
7 | ||
| 16455-67020 |
3CE..CM7#,8# |
7 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-6A320 |
3CE..CM7#,8# |
1 | ||
| 16466 - SEAL, RADIATOR | ||||
| 16466-6A320 |
3CE..CM7#,8# |
1 | ||
| 16467 - SIDE SEAL | ||||
| 16467-6A320 |
3CE..CM7#,8# NO.1 |
1 | ||
| 16468-6A320 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16467 - SIDE SEAL | ||||
| 16467-6A320 |
3CE..CM7#,8# NO.1 |
1 | ||
| 16468-6A320 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64250 |
3CE..CM7#,8# |
1 | ||
| 16470-64250 |
3CE..CM7#,8# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 90467-11085 |
3CE..CM7#,8# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-64070 |
3CE..CM7#,8# |
1 | ||
| 16471-64070 |
3CE..CM7#,8# |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-64020 |
3CE..CM7#,8# |
1 | ||
| 16507-64020 |
3CE..CM7#,8# |
1 | ||
| 16508 - PIPE SUB-ASSY, RADIATOR, NO.2 | ||||
| 16508-64060 |
3CE..CM7#,8# |
1 | ||
| 16508-64060 |
3CE..CM7#,8# |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16533-64190 |
3CE..CM7# |
1 | ||
| 16533-64190 |
3CE..CM7#..CBU,IV3 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16533-64190 |
3CE..CM7# |
1 | ||
| 16533-64190 |
3CE..CM7#..CBU,IV3 |
1 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-6A240 |
3CE..CM7#,8# |
2 | ||
| 16547-67040 |
3CE..CM7#,8# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64330 |
3CE..CM7#,8# |
1 | ||
| 16571-64330 |
3CE..CM7#,8# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64310 |
3CE..CM7#,8# |
1 | ||
| 16572-64310 |
3CE..CM7#,8# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41008 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90467-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90466-41007 |
3CE..CM7#,8# NO.1 |
1 | ||
| 90466-36001 |
3CE..CM7#,8# NO.2 |
1 | ||
| 90467-37005 |
3CE..CM7#,8# NO.2 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-64100 |
3CE..CM7#,8# |
1 | ||
| 16573-64100 |
3CE..CM7#,8# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-13128 |
3CE..CM7#,8# |
2 | ||
| 90467-13073 |
3CE..CM7#,8# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-13128 |
3CE..CM7#,8# |
2 | ||
| 90467-13073 |
3CE..CM7#,8# |
2 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-64010 |
3CE..CM7#,8# |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
3CE..CM7#,8# |
2 | ||
| 90468-06013 |
3CE..CM7#,8# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-64500 |
3CE..CM7#,8# |
1 | ||
| 16711-64540 |
3CE..CM7#,8# |
1 | ||
| 16711-64540 |
3CE..CM7#,8# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-64220 |
3CE..CM7#,8# |
1 | ||
| 16712-64230 |
3CE..CM7#,8# |
1 | ||
| 16712-64230 |
3CE..CM7#,8# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-22270 | ||||
| 90119-08743 | ||||
| 90119-08908 | ||||
| 90119-08A25 | ||||
| 90119-08B20 | ||||
| 90179-06299 | ||||
| 90179-08040 | ||||
| 90179-08123 | ||||
| 90464-00108 | ||||
| 90469-12010 | ||||
| 91515-40825 | ||||
| 91621-60640 | ||||
| 91621-J0814 | ||||
| 91651-B0820 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
