CM70-TBQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )3CE

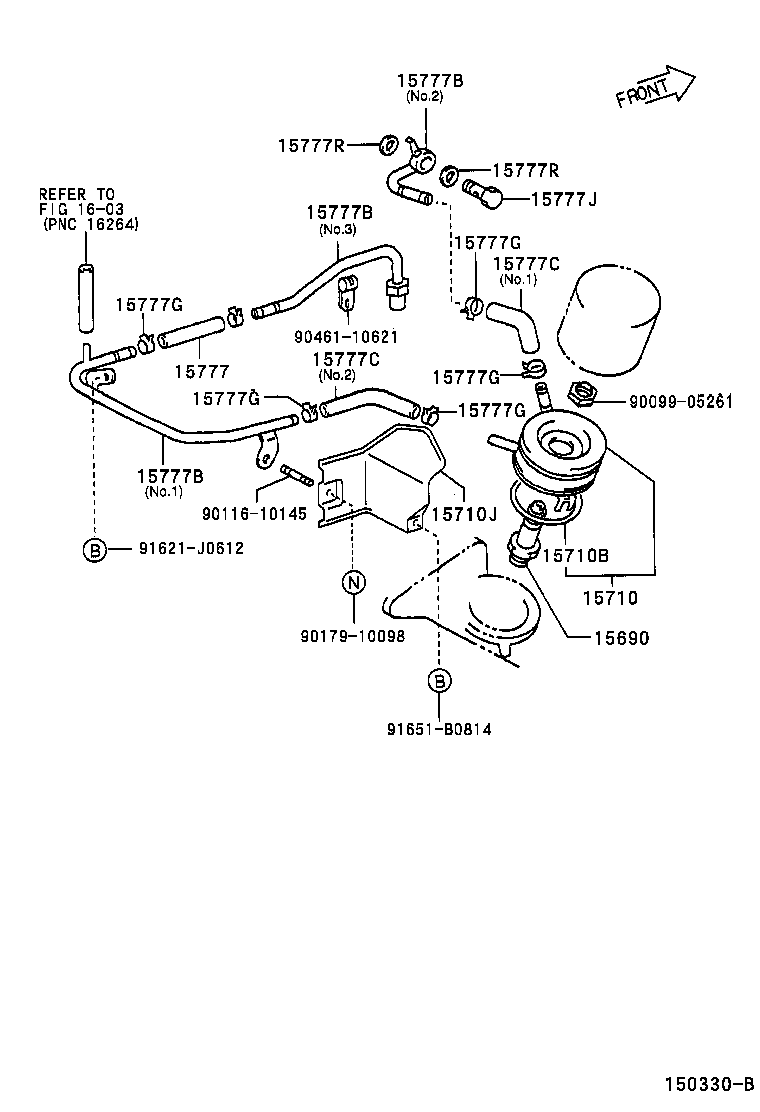

Click highlighted areas on diagram

diagram 15690 15710 15710B 15710J 15777 15777B 15777B 15777B 15777C 15777C 15777G 15777G 15777G 15777G 15777G 15777J 15777R 15777R 1603 9009905261 9011610145 9017910098 9046110621 91621J0612 91651B0814
Part # Description Qty Price
15690 - VALVE ASSY, OIL COOLER RELIEF
15695-64010

3CE..CM7#,8#

 1
15695-64030

3CE..CM7#,8#

 1
15710 - COOLER ASSY, OIL
15710-64230

3CE..CM7#,8#

 1
15710-64220

3CE..CM7#,8#

 1
15710B - RING, O(FOR OIL COOLER)
90301-67004

3CE..CM7#,8#

 1
90301-67004

3CE..CM7#,8#

 1
15710J - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-64130

3CE..CM7#,8#

 1
17168-64130

3CE..CM7#,8#

 1
15777 - HOSE, OIL COOLER
90445-21006

3CE..CM7#,8#

 1
90445-21006

3CE..CM7#,8#

 1
15777B - PIPE, OIL COOLER
15769-64011

3CE..CM7#,8#

NO.3

 1
15768-64140

3CE..CM7#,8#

NO.2

 1
15768-64140

3CE..CM7#,8#

NO.2

 1
15767-64120

3CE..CM7#,8#

NO.1

 1
15767-64120

3CE..CM7#,8#

NO.1

 1
15769-64011

3CE..CM7#,8#

NO.3

 1
15777B - PIPE, OIL COOLER
15769-64011

3CE..CM7#,8#

NO.3

 1
15768-64140

3CE..CM7#,8#

NO.2

 1
15768-64140

3CE..CM7#,8#

NO.2

 1
15767-64120

3CE..CM7#,8#

NO.1

 1
15767-64120

3CE..CM7#,8#

NO.1

 1
15769-64011

3CE..CM7#,8#

NO.3

 1
15777B - PIPE, OIL COOLER
15769-64011

3CE..CM7#,8#

NO.3

 1
15768-64140

3CE..CM7#,8#

NO.2

 1
15768-64140

3CE..CM7#,8#

NO.2

 1
15767-64120

3CE..CM7#,8#

NO.1

 1
15767-64120

3CE..CM7#,8#

NO.1

 1
15769-64011

3CE..CM7#,8#

NO.3

 1
15777C - HOSE, OIL COOLER
15778-64070

3CE..CM7#,8#

NO.2

 1
15777-64090

3CE..CM7#,8#

NO.1

 1
15777-64090

3CE..CM7#,8#

NO.1

 1
15778-64070

3CE..CM7#,8#

NO.2

 1
15777C - HOSE, OIL COOLER
15778-64070

3CE..CM7#,8#

NO.2

 1
15777-64090

3CE..CM7#,8#

NO.1

 1
15777-64090

3CE..CM7#,8#

NO.1

 1
15778-64070

3CE..CM7#,8#

NO.2

 1
15777G - CLAMP OR CRIP, HOSE
96134-41900

3CE..CM7#,8#

 6
90467-20005

3CE..CM7#,8#

 6
15777G - CLAMP OR CRIP, HOSE
96134-41900

3CE..CM7#,8#

 6
90467-20005

3CE..CM7#,8#

 6
15777G - CLAMP OR CRIP, HOSE
96134-41900

3CE..CM7#,8#

 6
90467-20005

3CE..CM7#,8#

 6
15777G - CLAMP OR CRIP, HOSE
96134-41900

3CE..CM7#,8#

 6
90467-20005

3CE..CM7#,8#

 6
15777G - CLAMP OR CRIP, HOSE
96134-41900

3CE..CM7#,8#

 6
90467-20005

3CE..CM7#,8#

 6
15777J - BOLT, UNION(FOR OIL COOLER PIPE)
90401-20004

3CE..CM7#,8#

 1
90401-20004

3CE..CM7#,8#

 1
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
90430-20014

3CE..CM7#,8#

 2
90430-20014

3CE..CM7#,8#

 2
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
90430-20014

3CE..CM7#,8#

 2
90430-20014

3CE..CM7#,8#

 2
Common parts
90099-05261
90116-10145
90179-10098
90461-10621
91621-J0612
91651-B0814
Linked diagrams
1603
