KMA10-AWDBS (2021)
Toyota Lexus Ux300e
Production
Feb 2021
-
Sep 9999
Engine
4KM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(2102- )
Click highlighted areas on diagram
ﾋｰﾀｰｺﾝﾄﾛｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-76130 |
KMA10 |
1 | ||
| Common parts | ||||
| 90467-05172 | ||||
| 93568-55014 | ||||

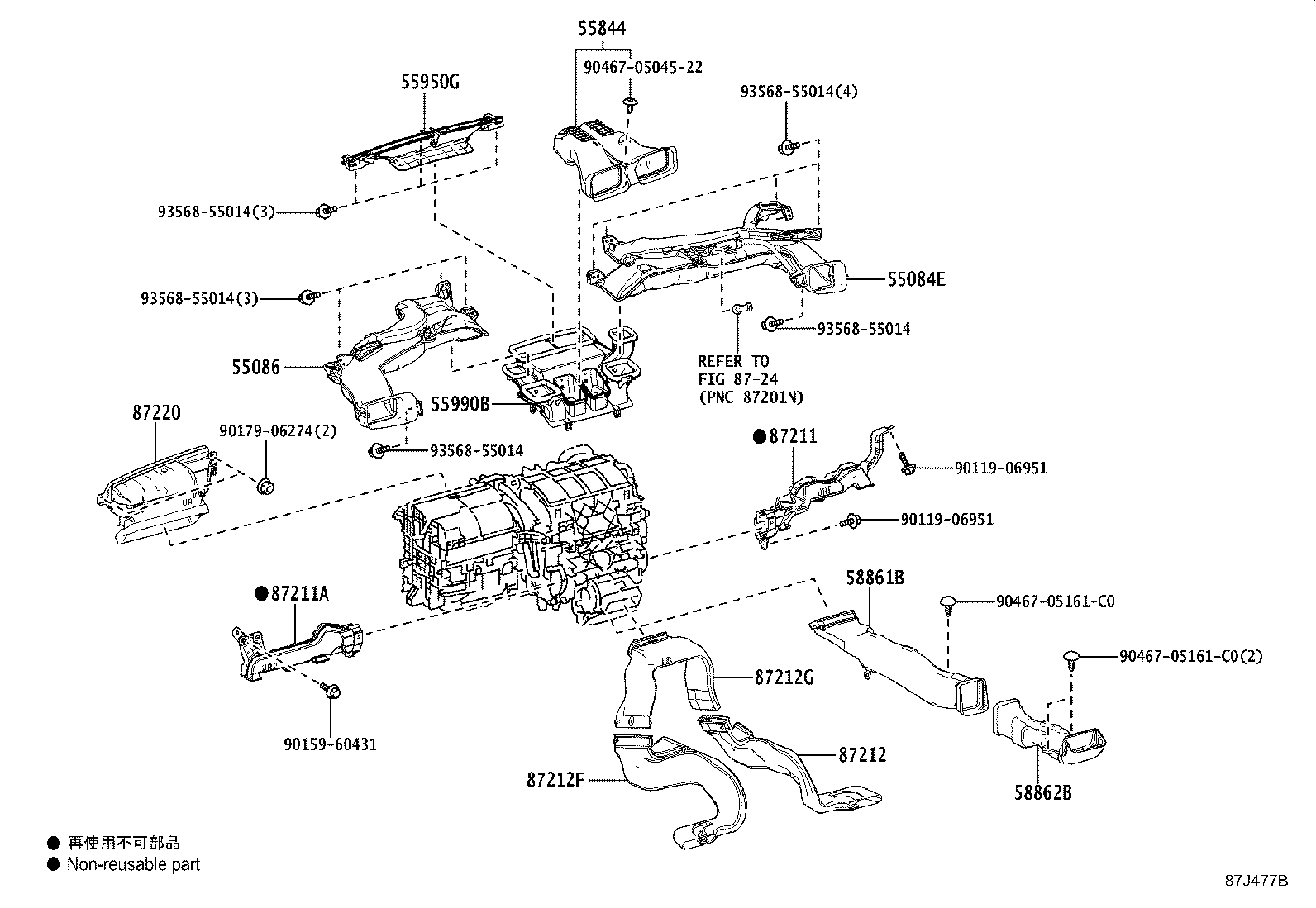

ILLUST NO. 2 OF 3(2102- )
Click highlighted areas on diagram
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-76110 |
KMA10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
2 | ||
| 55084-76072 |
KMA10 |
1 | ||
| 55084-76070 |
KMA10 |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-76050 |
KMA10 |
1 | ||
| 55086-76052 |
KMA10 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-76040 |
KMA10 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-76040 |
KMA10 |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-76040 |
KMA10 |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-76050 |
KMA10 |
1 | ||
| 58862B - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-76030 |
KMA10 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-76020 |
KMA10 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-76030 |
KMA10 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-76010 |
KMA10 |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87213-76010 |
KMA10 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87215-12070 |
KMA10 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-76030 |
KMA10 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60431 | ||||
| 90179-06274 | ||||
| 90467-0504522 | ||||
| 90467-05161C0 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8724 | ||||

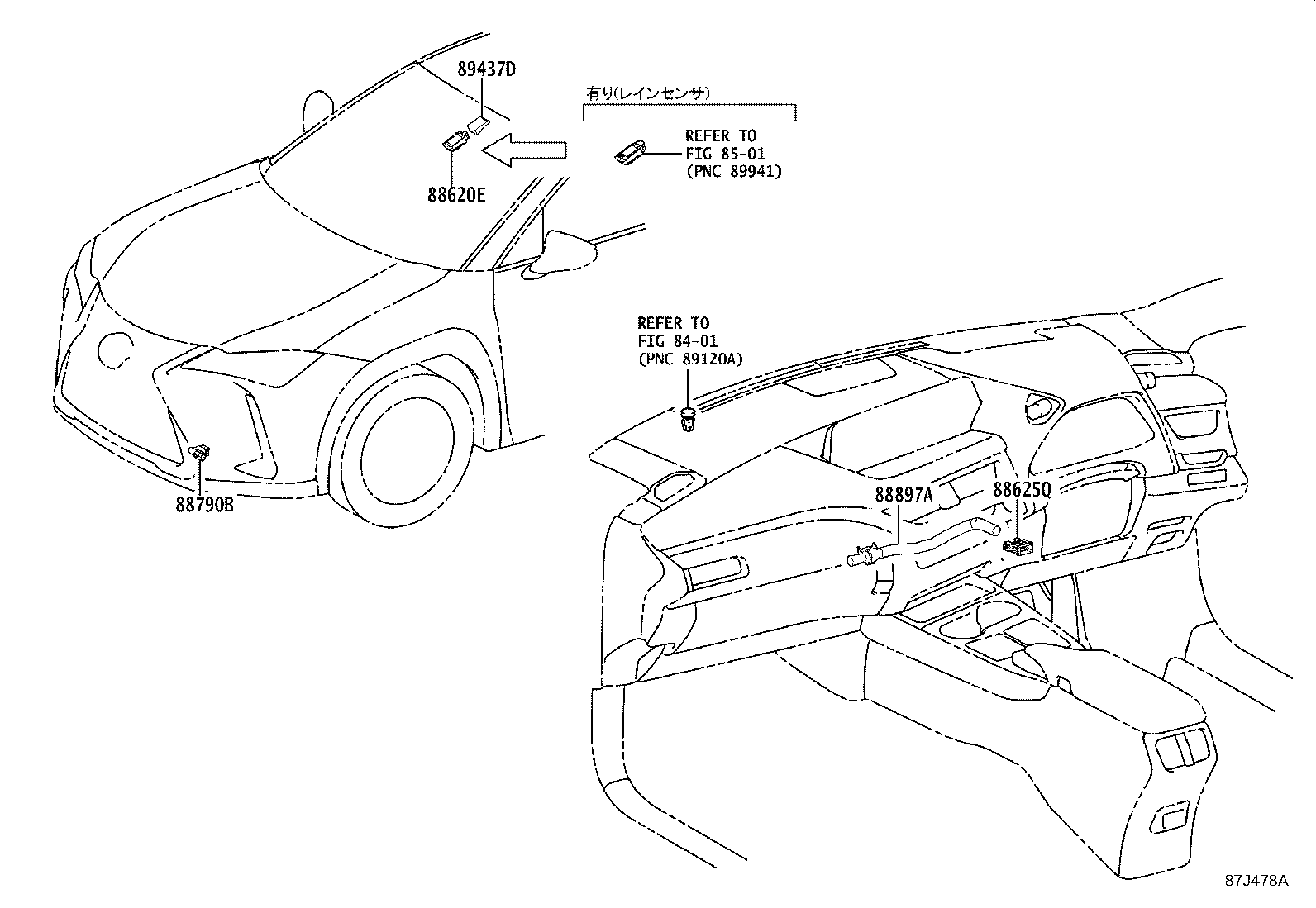

ILLUST NO. 3 OF 3(2102- )
Click highlighted areas on diagram
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88620E - THERMISTOR ASSY, AIR CONDITIONER | ||||
| 89941-76010 |
KMA10 |
1 | ||
| 89941-76010 |
KMA10 ﾜｲﾊﾟ制御−ｵｰﾄ(雨滴感応式) |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
KMA10 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28100 |
KMA10 |
1 | ||
| 88897A - PIPE, ASPIRATOR | ||||
| 88505-76030 |
KMA10 |
1 | ||
| 89437D - COVER, SENSOR | ||||
| 89943-76020 |
KMA10 ﾜｲﾊﾟ制御−ｵｰﾄ(雨滴感応式) |
1 | ||
| 89943-76020 |
KMA10 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
| 8501 | ||||
