KMA10-AWDBS (2021)

Toyota Lexus Ux300e

Production Feb 2021 - Sep 9999
Engine 4KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2102- )

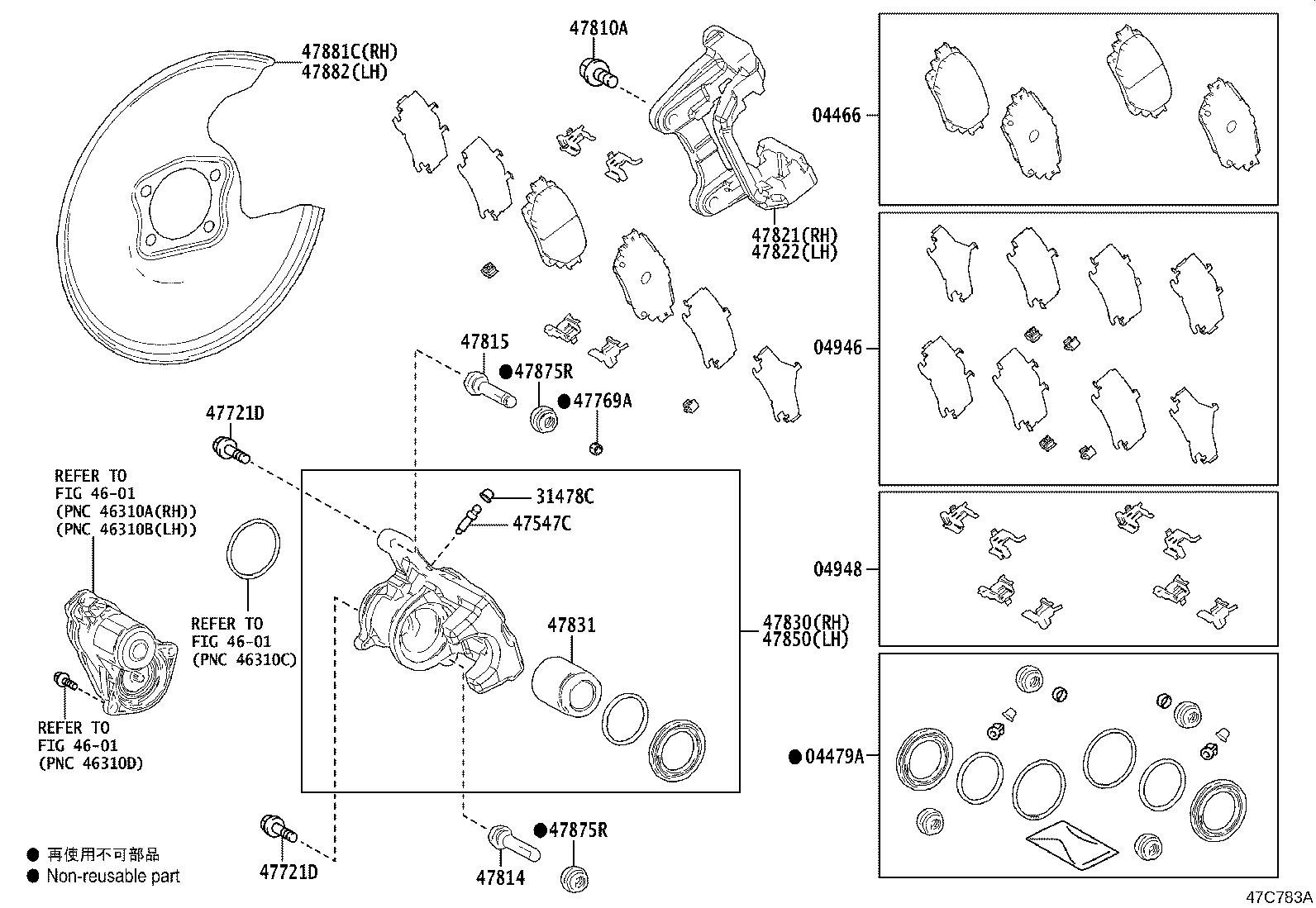

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 4601 4601 4601 47547C 47721D 47721D 47769A 47810A 47814 47815 47821 47822 47830 47831 47850 47875R 47875R 47881C 47882
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-F4020

KMA10

ﾏｰｸ NBK D6361

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-42110

KMA10

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-F4020

KMA10

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-12070

KMA10

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

KMA10

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

KMA10

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA603

KMA10

*8−1.00PX23−12.5

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA603

KMA10

*8−1.00PX23−12.5

 4
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-50010

KMA10

 2
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-14212

KMA10

 4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47814-78010

KMA10

 2
47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47815-78010

KMA10

 2
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-42110

KMA10

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-42100

KMA10

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-42100

KMA10

 1
47831 - PISTON, REAR DISC BRAKE
47831-42100

KMA10

 2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-42090

KMA10

 1
47875R - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-33270

KMA10

 4
47875R - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-33270

KMA10

 4
47881C - COVER, DISC BRAKE DUST, REAR RH
47881-42040

KMA10

 1
47882 - COVER, DISC BRAKE DUST, REAR LH
47882-42040

KMA10

 1
