GYL25W-AWXGB (2015)

Toyota Lexus Rx Series

Production Oct 2015 - Aug 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )GYL2#

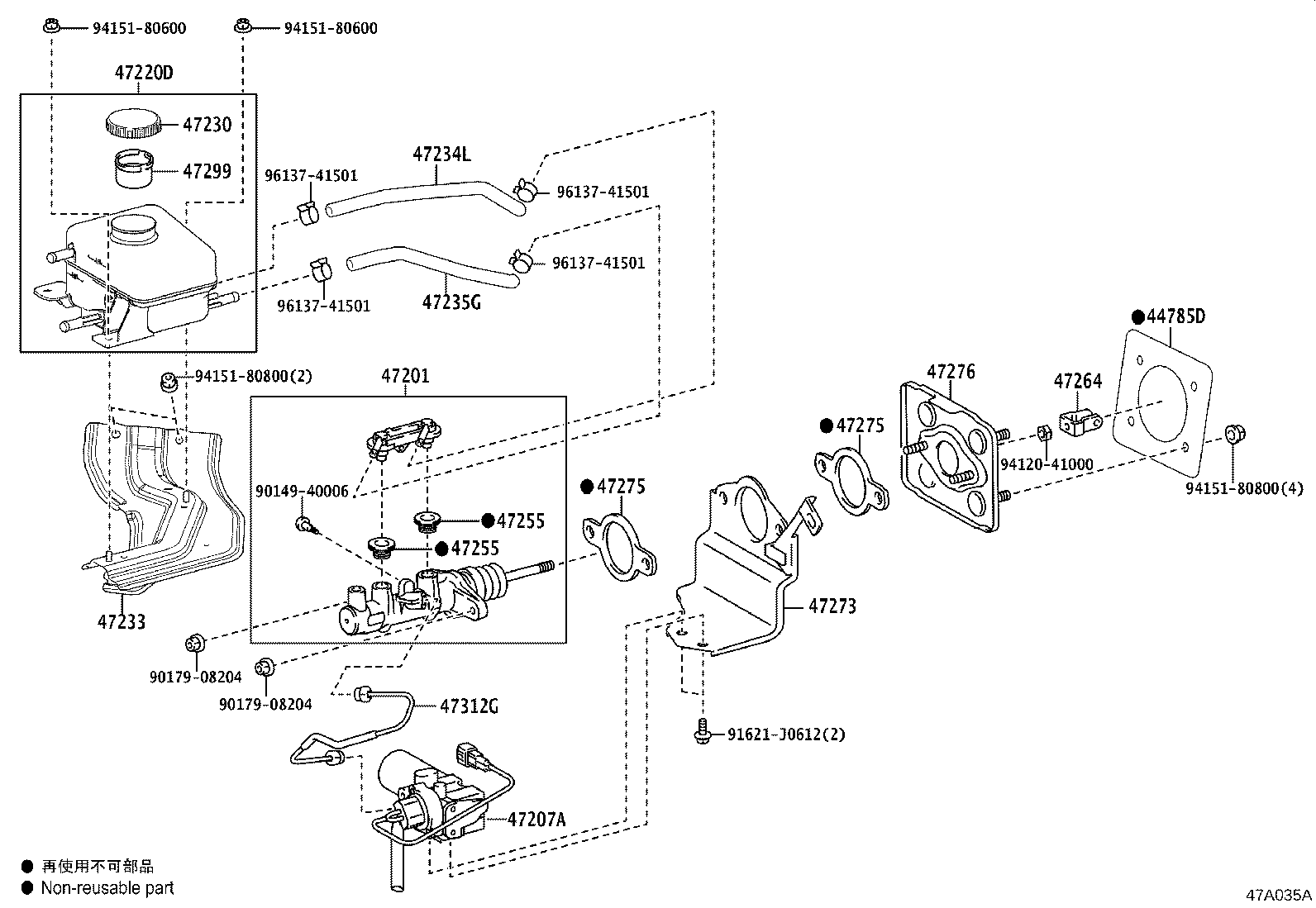

Click highlighted areas on diagram

diagram 44785D 47201 47207A 47220D 47230 47233 47234L 47235G 47255 47255 47264 47273 47275 47275 47276 47299 47312G 9014940006 9017908204 9017908204 91621J0612 9412041000 9415180600 9415180600 9415180800 9415180800 9613741501 9613741501 9613741501 9613741501
Part # Description Qty Price
44785D - GASKET, BRAKE MASTER CYLINDER
44785-47010

GYL2#

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-48230

GYL2#

 1
47207A - CYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR
47207-48090

GYL2#

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-48271

GYL2#

 1
47220-48270

GYL2#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-58010

AGL2#,GYL2#

 1
47230-47090

GYL2#

 1
47230-11010

GYL2#

 1
47233 - BRACKET, RESERVOIR
47233-48190

GYL2#

 1
47234L - HOSE, RESERVOIR, NO.1
47234-48280

GYL2#

 1
47235G - HOSE, RESERVOIR, NO.2
47235-48150

GYL2#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

GYL2#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

GYL2#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-63020

GYL2#

 1
47273 - BRACKET, BRAKE STROKE SIMULATOR
47273-48020

GYL2#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-48010

GYL2#

 2
47275 - GASKET, BRAKE MASTER CYLINDER
47275-48010

GYL2#

 2
47276 - BRACKET, BRAKE MASTER CYLINDER
47276-30040

GYL2#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-30190

GYL2#

 1
47312G - TUBE, BRAKE STROKE SIMULATOR
44255-48090

GYL2#

 1
Common parts
90149-40006
90179-08204
91621-J0612
94120-41000
94151-80600
94151-80800
96137-41501
