GYL20W-AWXGB (2015)
Toyota Lexus Rx Series
Production
Oct 2015
-
Aug 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

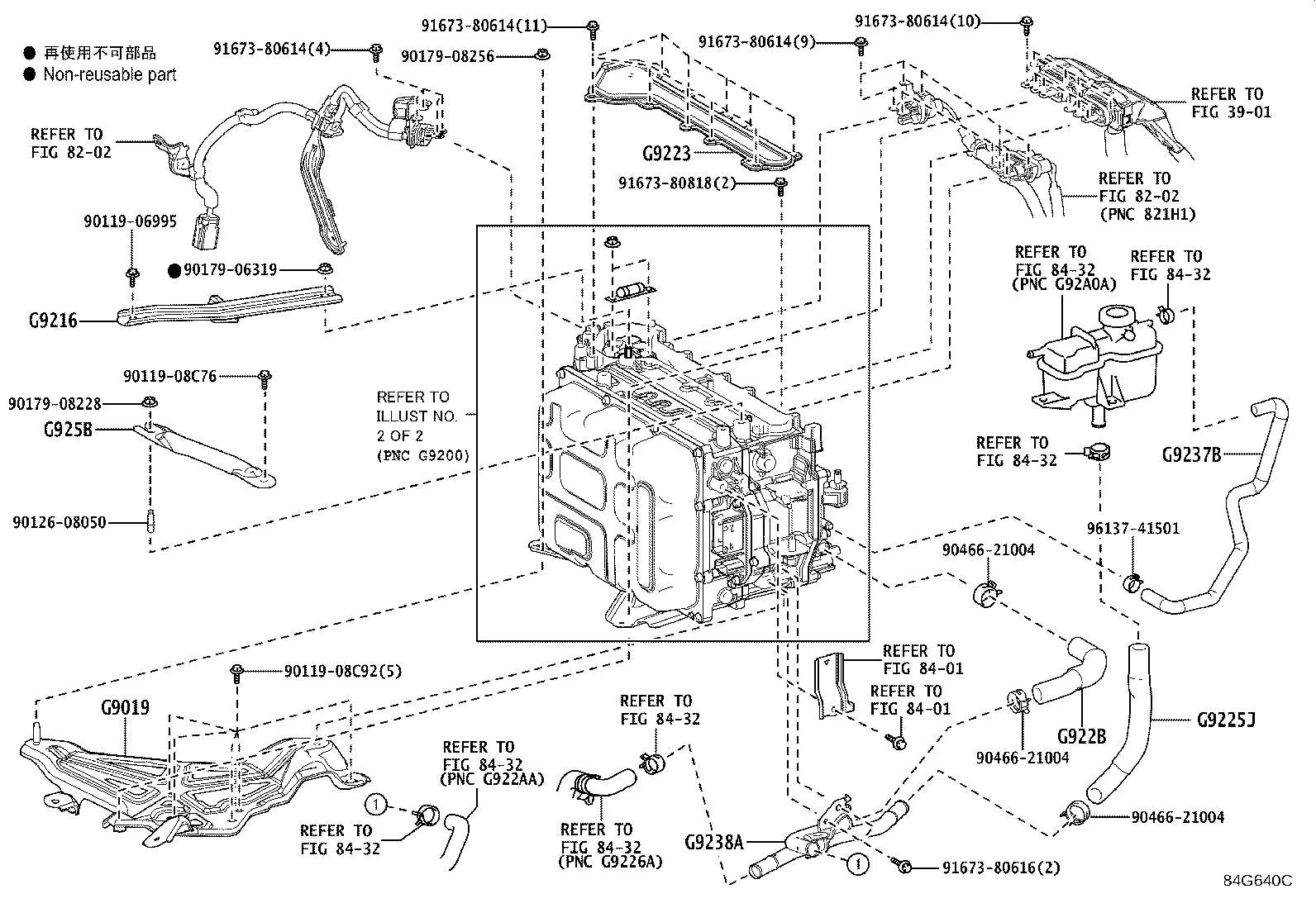

ILLUST NO. 1 OF 2(1510- )GYL2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G9019 - BRACKET SUB-ASSY, INVERTER TRAY | ||||
| G9019-48010 |
GYL2# |
1 | ||
| G9216 - BRACKET, INVERTER, NO.3 | ||||
| G9016-48010 |
GYL2# |
1 | ||
| G9223 - COVER, INVERTER TERMINAL | ||||
| G9223-48041 |
GYL2# |
1 | ||
| G9225J - HOSE, INVERTER COOLING, NO.1 | ||||
| G9225-48050 |
GYL2# |
1 | ||
| G922B - HOSE, INVERTER COOLING INLET, NO.2 | ||||
| G922B-48010 |
GYL2# |
1 | ||
| G9237B - HOSE, INVERTER DRAIN | ||||
| G9237-48020 |
GYL2# |
1 | ||
| G9238A - PIPE, INVERTER COOLING | ||||
| G9238-48090 |
GYL2# |
1 | ||
| G925B - BRACKET, INVERTER, NO.6 | ||||
| G925B-48050 |
GYL2# |
1 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 90119-08C76 | ||||
| 90119-08C92 | ||||
| 90126-08050 | ||||
| 90179-06319 | ||||
| 90179-08228 | ||||
| 90179-08256 | ||||
| 90466-21004 | ||||
| 91673-80614 | ||||
| 91673-80616 | ||||
| 91673-80818 | ||||
| 96137-41501 | ||||
| Linked diagrams | ||||
| 3901 | ||||
| 8202 | ||||
| 8401 | ||||
| 8432 | ||||

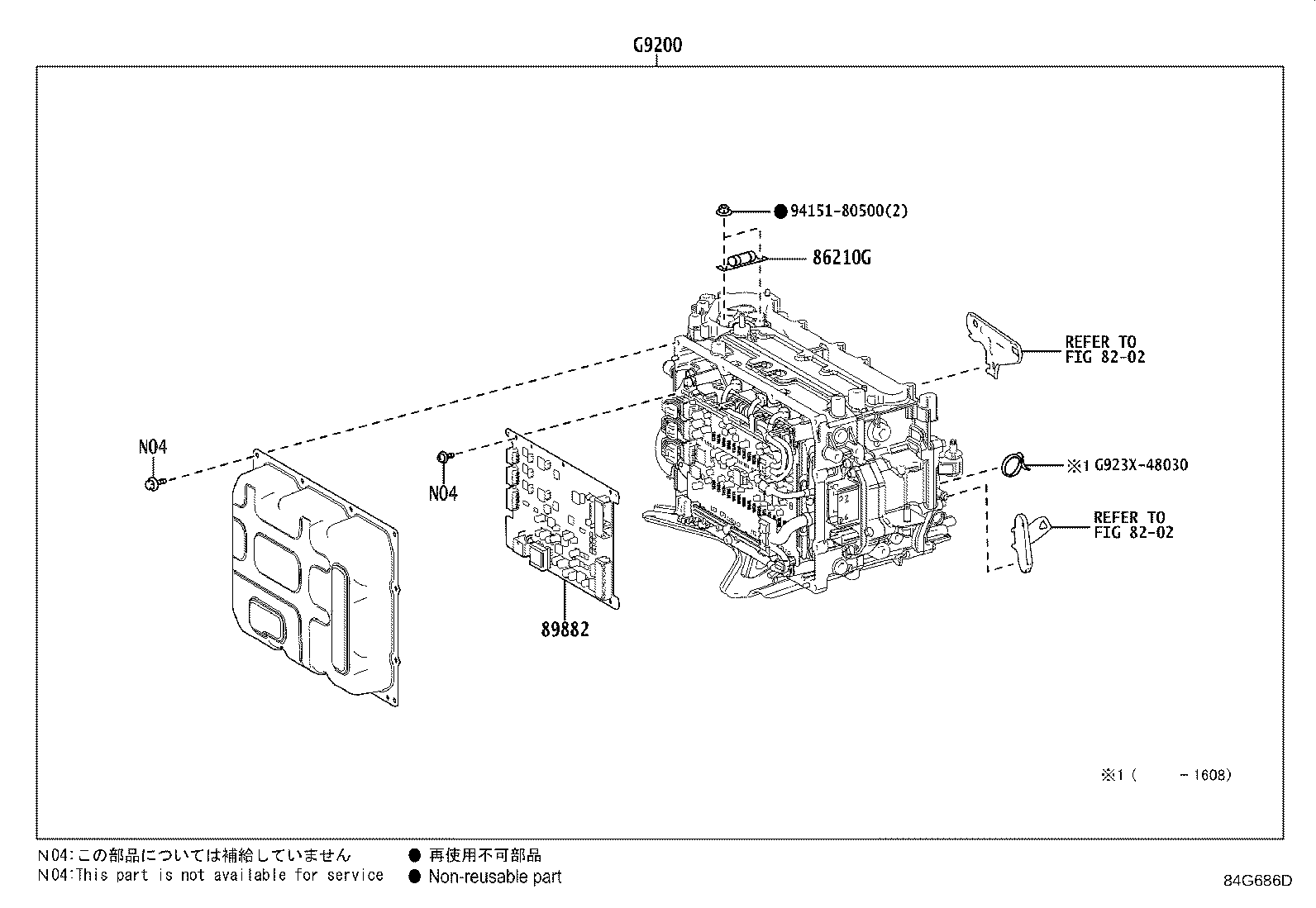

ILLUST NO. 2 OF 2(1510- )GYL2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86210G - FUSE, HIGH VOLTAGE | ||||
| 90982-11050 |
GYL2# |
1 | ||
| 89882 - COMPUTER, MOTOR GENERATOR CONTROL | ||||
| 89882-48110 |
GYL20 |
1 | ||
| G9200 - INVERTER ASSY, W/CONVERTER | ||||
| G92A0-48230 |
GYL20 |
1 | ||
| Common parts | ||||
| 94151-80500 | ||||
| G923X-48030 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
