GYL20W-AWXGB (2015)
Toyota Lexus Rx Series

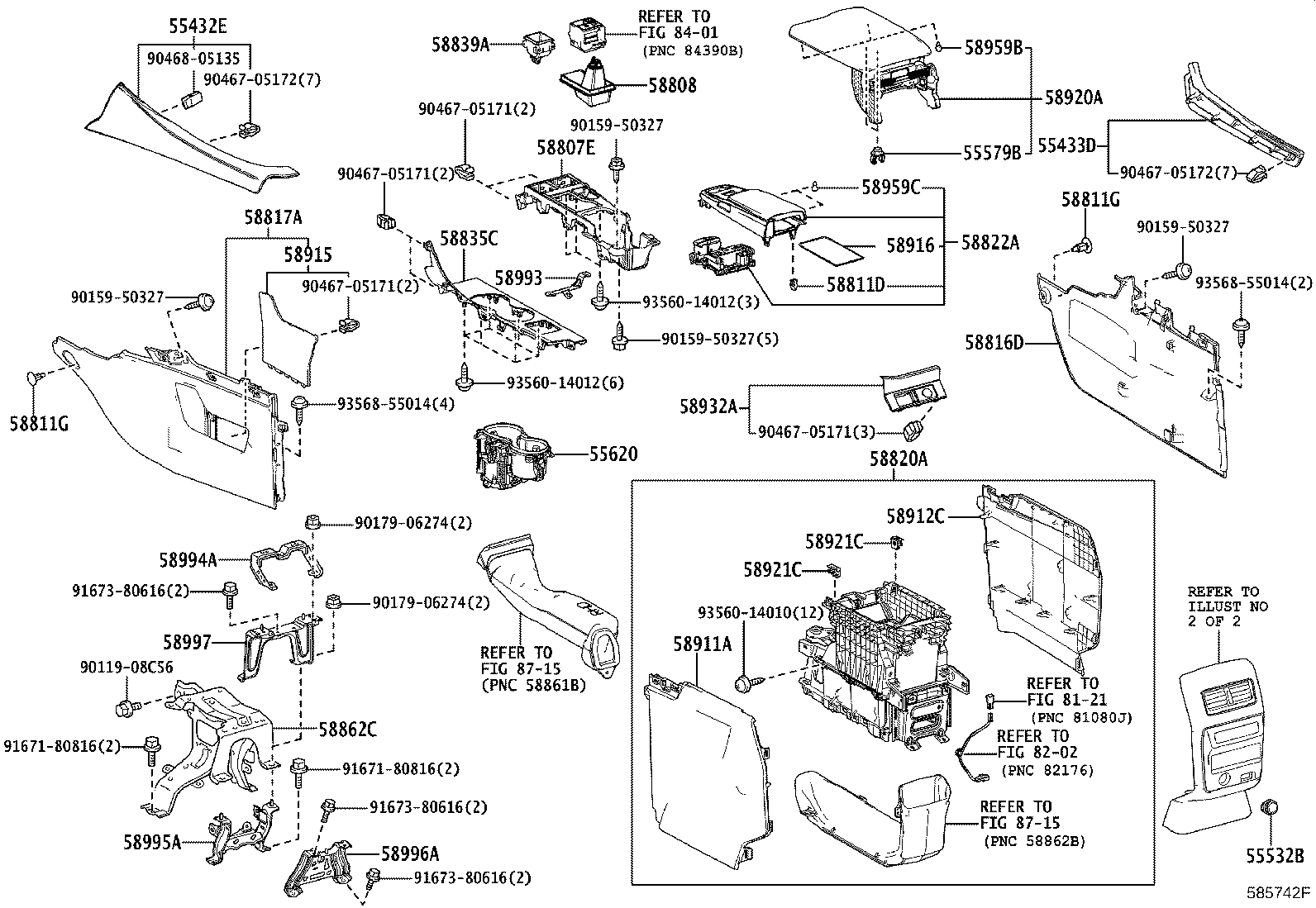

ILLUST NO. 1 OF 2(1509-1908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55432E - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-48420F0 |
AGL2#,GYL2# TOPAZ BROWN,TRIM5# |
1 | ||
| 55432-48420A1 |
AGL2#,GYL2# RICH CREAM,TRIM6# |
1 | ||
| 55432-48420E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM4# |
1 | ||
| 55432-48420C0 |
AGL2#,GYL2# BLACK,TRIM2# |
1 | ||
| 55432-48420D0 |
AGL2#,GYL2# DK.ROSE,TRIM3# |
1 | ||
| 55432-48420A0 |
AGL2#,GYL2# WHITE,TRIM05,06 |
1 | ||
| 55432-48420A2 |
AGL2#,GYL2# IVORY,TRIM00,01,02,03,04 |
1 | ||
| 55433D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55431-48040C0 |
AGL2#,GYL2# BLACK,TRIM2# |
1 | ||
| 55431-48040A2 |
AGL2#,GYL2# IVORY,TRIM00,01,02,03,04 |
1 | ||
| 55431-48040D0 |
AGL2#,GYL2# DK.ROSE,TRIM3# |
1 | ||
| 55431-48040F0 |
AGL2#,GYL2# TOPAZ BROWN,TRIM5# |
1 | ||
| 55431-48040A0 |
AGL2#,GYL2# WHITE,TRIM05,06 |
1 | ||
| 55431-48040E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM4# |
1 | ||
| 55431-48040A1 |
AGL2#,GYL2# RICH CREAM,TRIM6# |
1 | ||
| 55532B - COVER, CIGAR LIGHTER HOLE | ||||
| 55532-48010 |
AGL2#,GYL2# |
1 | ||
| 55579B - BAND, GLOVE COMPARTMENT BOX | ||||
| 55579-48010 |
AGL2#,GYL2# |
2 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-48170 |
AGL2#,GYL2# |
1 | ||
| 58807E - FRAME SUB-ASSY, SHIFTING HOLE | ||||
| 58807-48020 |
AGL2#,GYL2# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-48020C1 |
AGL2#,GYL2# BLACK/LT.GRAY,TRIM05,06,2#,3# |
1 | ||
| 58808-48020E0 |
AGL2#,GYL2# NOBLE BROWN/IVORY,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 58808-48020C0 |
AGL2#,GYL2# BLACK/CRIMSON,TRIM4# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05172 |
AGL2#,GYL2# |
3 | ||
| 58811G - CLIP(CONSOL BOX) | ||||
| 90467-06020L8 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
2 | ||
| 90467-06020C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
2 | ||
| 58811G - CLIP(CONSOL BOX) | ||||
| 90467-06020L8 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
2 | ||
| 90467-06020C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
2 | ||
| 58816D - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-48110C0 |
GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 58816-48110E0 |
GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-48110E0 |
GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 58817-48110C0 |
GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 58820A - BOX ASSY, CONSOLE COMPARTMENT | ||||
| 58820-48020E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 58820-48020C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 84781-48070A0 |
AGL2#,GYL2# WHITE/LT.GRAY,TRIM05,06 |
1 | ||
| 84781-48070A2 |
AGL2#,GYL2# IVORY,TRIM00,01,02,03,04 |
1 | ||
| 84781-48070F0 |
AGL2#,GYL2# TOPAZ BROWN,TRIM5# |
1 | ||
| 84781-48070D0 |
AGL2#,GYL2# DK.ROSE/BLACK,TRIM3# |
1 | ||
| 84781-48070C0 |
AGL2#,GYL2# BLACK/LT.GRAY,TRIM2# |
1 | ||
| 84781-48071A0 |
AGL2#,GYL2# WHITE/LT.GRAY,TRIM05,06 |
1 | ||
| 84781-48071F0 |
AGL2#,GYL2# TOPAZ BROWN,TRIM5# |
1 | ||
| 84781-48071C0 |
AGL2#,GYL2# BLACK/LT.GRAY,TRIM2# |
1 | ||
| 84781-48071A1 |
AGL2#,GYL2# RICH CREAM/TERRA COTTA,TRIM6# |
1 | ||
| 84781-48071A2 |
AGL2#,GYL2# IVORY,TRIM00,01,02,03,04 |
1 | ||
| 84781-48070A1 |
AGL2#,GYL2# RICH CREAM/TERRA COTTA,TRIM6# |
1 | ||
| 84781-48070E0 |
AGL2#,GYL2# NOBLE BROWN/CRIMSON,TRIM4# |
1 | ||
| 84781-48071E0 |
AGL2#,GYL2# NOBLE BROWN/CRIMSON,TRIM4# |
1 | ||
| 84781-48071D0 |
AGL2#,GYL2# DK.ROSE/BLACK,TRIM3# |
1 | ||
| 58835C - ORNAMENT, CONSOLE BOX | ||||
| 58835-48190C0 |
AGL20,GYL20 “version L”*(L)&ｻﾝｼｪｰﾄﾞ−有り&ﾄﾞｱﾄﾘﾑ−本杢加飾(ｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き),DK.GRAY AND SILVER,TRIM00,06,20,26,3#,40,50,60 |
1 | ||
| 58835-48190E0 |
AGL20,GYL20 “version L”*(L)&ｻﾝｼｪｰﾄﾞ−有り&ﾄﾞｱﾄﾘﾑ−本杢加飾(ｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き),DK.BROWN,TRIM03,23,42,53,62 |
1 | ||
| 58835-48190F0 |
AGL20,GYL20 “version L”*(L)&ｻﾝｼｪｰﾄﾞ−有り&ﾄﾞｱﾄﾘﾑ−本杢加飾(ｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き),NATURAL BROWN,TRIM02,22,52 |
1 | ||
| 58835-48190E1 |
AGL20,GYL20 “version L”*(L)&ｻﾝｼｪｰﾄﾞ−有り&ﾄﾞｱﾄﾘﾑ−本杢加飾(ｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き),DK.BROWN,TRIM01,21,41,51,61 |
1 | ||
| 58835-48180C0 |
AGL2#,GYL2# BLACK,TRIM0#,2#,4#,5# |
1 | ||
| 58835-0E060B0 |
AGL20,GYL20 “F SPORT”*(F)&ﾄﾞｱﾄﾘﾑ−ｱﾙﾐ(ｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き),MD.SILVER ALUMINUM,TRIM0#,2#,3# |
1 | ||
| 58835-48190C0 |
AGL20,GYL20 “version L”*(L)&ﾄﾞｱﾄﾘﾑ−本杢加飾(ｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き),DK.GRAY AND SILVER,TRIM00,06,20,26,3#,40,50,60 |
1 | ||
| 58835-48190E0 |
AGL20,GYL20 “F SPORT”*(F)&ﾄﾞｱﾄﾘﾑ−本杢加飾(ｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き),DK.BROWN,TRIM03,23,42,53,62 |
1 | ||
| 58835-48190C0 |
AGL20,GYL20 “F SPORT”*(F)&ﾄﾞｱﾄﾘﾑ−本杢加飾(ｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き),DK.GRAY AND SILVER,TRIM00,06,20,26,3#,40,50,60 |
1 | ||
| 58835-48190E0 |
AGL20,GYL20 “version L”*(L)&ﾄﾞｱﾄﾘﾑ−本杢加飾(ｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き),DK.BROWN,TRIM03,23,42,53,62 |
1 | ||
| 58835-48190F0 |
AGL20,GYL20 “F SPORT”*(F)&ﾄﾞｱﾄﾘﾑ−本杢加飾(ｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き),NATURAL BROWN,TRIM02,22,52 |
1 | ||
| 58835-48190E1 |
AGL20,GYL20 “F SPORT”*(F)&ﾄﾞｱﾄﾘﾑ−本杢加飾(ｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き),DK.BROWN,TRIM01,21,41,51,61 |
1 | ||
| 58835-48190E1 |
AGL20,GYL20 “version L”*(L)&ﾄﾞｱﾄﾘﾑ−本杢加飾(ｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き),DK.BROWN,TRIM01,21,41,51,61 |
1 | ||
| 58835-48190F0 |
AGL20,GYL20 “version L”*(L)&ﾄﾞｱﾄﾘﾑ−本杢加飾(ｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き),NATURAL BROWN,TRIM02,22,52 |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-48090 |
AGL2#,GYL2# ｼｰﾄ表皮−本革(ｽﾑｰｽ)&ｼｰﾄﾋｰﾀ−有り(ﾌﾛﾝﾄ&ﾘﾔ) |
1 | ||
| 58839-48090 |
AGL2#,GYL2# ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ｼｰﾄﾋｰﾀ−有り(ﾌﾛﾝﾄ&ﾘﾔ) |
1 | ||
| 58839-48090 |
AGL2#,GYL2# |
1 | ||
| 58839-48090 |
AGL2#,GYL2# ｼｰﾄﾋｰﾀ−有り(ﾌﾛﾝﾄのみ) |
1 | ||
| 58862C - SUPPORT, CONSOLE BOX, NO.2 | ||||
| 58123-48050 |
AGL2#,GYL2# |
1 | ||
| 58911A - PANEL, BOX SIDE, NO.1 | ||||
| 58911-48070E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 58911-48070C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-48150E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 58912-48150C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 58915 - PANEL, BOX BOTTOM | ||||
| 58915-48070C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 58915-48070E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-48060 |
AGL2#,GYL2# |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-48020C0 |
AGL2#,GYL2# BLACK,TRIM2# |
1 | ||
| 58920-48020A2 |
AGL2#,GYL2# IVORY,TRIM00,01,02,03,04 |
1 | ||
| 58920-48020A0 |
AGL2#,GYL2# WHITE,TRIM05,06 |
1 | ||
| 58920-48020E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM4# |
1 | ||
| 58920-48020D0 |
AGL2#,GYL2# DK.ROSE,TRIM3# |
1 | ||
| 58920-48020F0 |
AGL2#,GYL2# TOPAZ BROWN,TRIM5# |
1 | ||
| 58920-48020A1 |
AGL2#,GYL2# RICH CREAM,TRIM6# |
1 | ||
| 58921C - PLATE, BOX, UPPER NO.1 | ||||
| 58921-48100 |
AGL2#,GYL2# |
2 | ||
| 58921C - PLATE, BOX, UPPER NO.1 | ||||
| 58921-48100 |
AGL2#,GYL2# |
2 | ||
| 58932A - GARNISH, REAR CONSOLE BOX | ||||
| 58932-48030 |
AGL2#,GYL2# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
AGL2#,GYL2# |
2 | ||
| 58959C - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
AGL2#,GYL2# |
2 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-48030 |
AGL2#,GYL2# |
1 | ||
| 58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4 | ||||
| 58994-48030 |
AGL2#,GYL2# |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-48060 |
AGL2#,GYL2# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-48070 |
AGL2#,GYL2# |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-48040 |
AGL2#,GYL2# |
1 | ||
| Common parts | ||||
| 90119-08C56 | ||||
| 90159-50327 | ||||
| 90179-06274 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 91671-80816 | ||||
| 91673-80616 | ||||
| 93560-14010 | ||||
| 93560-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
| 8715 | ||||

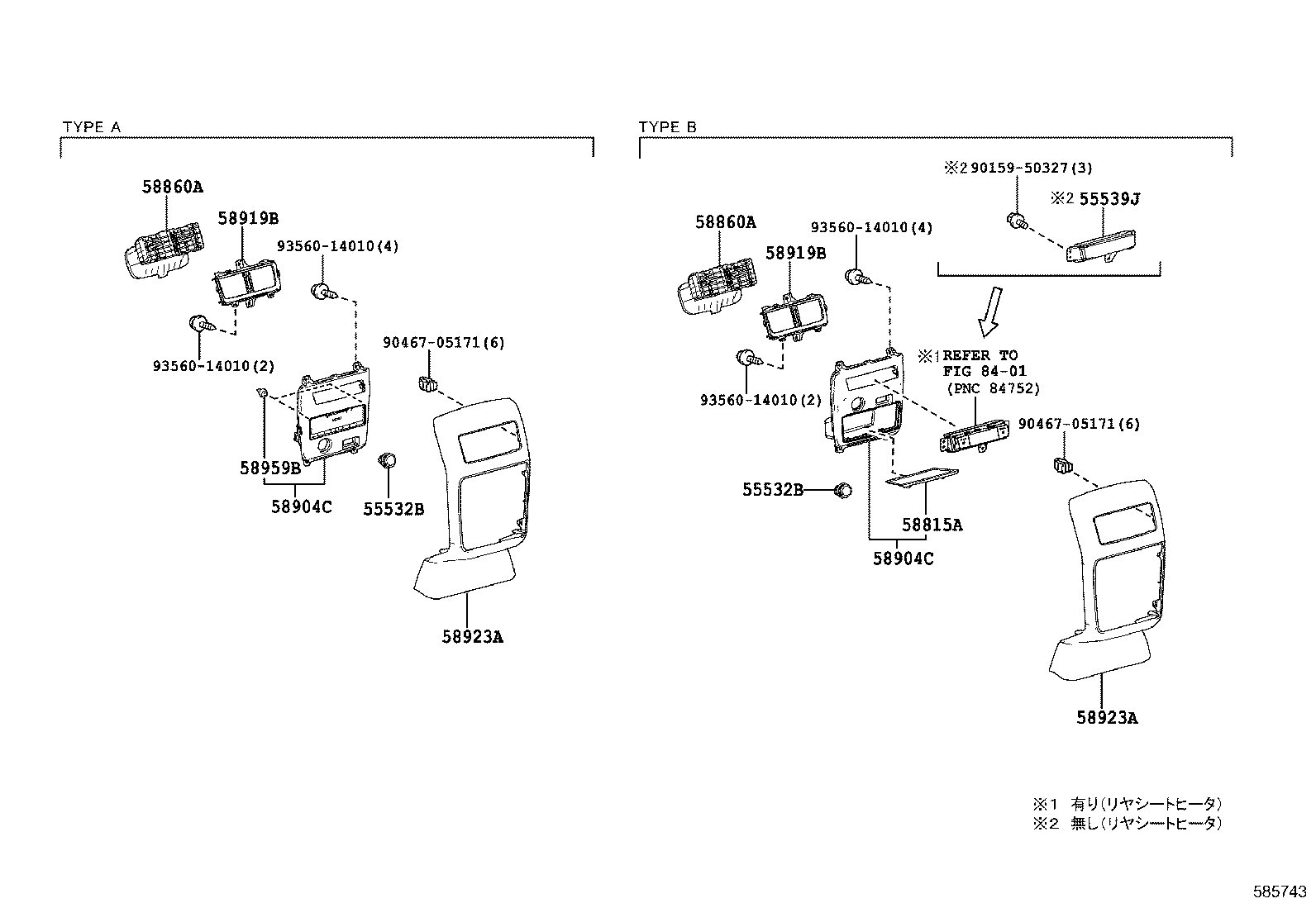

ILLUST NO. 2 OF 2(1509-1908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55532B - COVER, CIGAR LIGHTER HOLE | ||||
| 55532-48010 |
AGL2#,GYL2# |
1 | ||
| 55532B - COVER, CIGAR LIGHTER HOLE | ||||
| 55532-48010 |
AGL2#,GYL2# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-48060C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55539-48060E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-48020 |
AGL2#,GYL2# |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-48060 |
AGL2#,GYL2# |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-48060 |
AGL2#,GYL2# |
1 | ||
| 58904C - PANEL SUB-ASSY, CONSOLE REAR END, NO.2 | ||||
| 58904-48030E0 |
AGL20,GYL20 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 58904-48030C0 |
AGL20,GYL20 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 58904-48030E0 |
AGL20,GYL20 NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 58904-48020C0 |
AGL2#,GYL2# ｼｰﾄﾋｰﾀ−有り(ﾌﾛﾝﾄ&ﾘﾔ)&ﾃﾚﾋﾞ & DVDﾌﾟﾚｰﾔ−有り(*RSE),BLACK,TRIM2#,4# |
1 | ||
| 58904-48020E0 |
AGL2#,GYL2# ｼｰﾄﾋｰﾀ−有り(ﾌﾛﾝﾄ&ﾘﾔ)&ﾃﾚﾋﾞ & DVDﾌﾟﾚｰﾔ−有り(*RSE),NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 58904-48030C0 |
AGL20,GYL20 BLACK,TRIM2#,4# |
1 | ||
| 58904C - PANEL SUB-ASSY, CONSOLE REAR END, NO.2 | ||||
| 58904-48030E0 |
AGL20,GYL20 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 58904-48030C0 |
AGL20,GYL20 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 58904-48030E0 |
AGL20,GYL20 NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 58904-48020C0 |
AGL2#,GYL2# ｼｰﾄﾋｰﾀ−有り(ﾌﾛﾝﾄ&ﾘﾔ)&ﾃﾚﾋﾞ & DVDﾌﾟﾚｰﾔ−有り(*RSE),BLACK,TRIM2#,4# |
1 | ||
| 58904-48020E0 |
AGL2#,GYL2# ｼｰﾄﾋｰﾀ−有り(ﾌﾛﾝﾄ&ﾘﾔ)&ﾃﾚﾋﾞ & DVDﾌﾟﾚｰﾔ−有り(*RSE),NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 58904-48030C0 |
AGL20,GYL20 BLACK,TRIM2#,4# |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-48080 |
AGL2#,GYL2# |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-48080 |
AGL2#,GYL2# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-48170E0 |
AGL20,GYL20 NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 58923-48170C0 |
AGL20,GYL20 BLACK,TRIM2#,4# |
1 | ||
| 58923-48170C0 |
AGL20,GYL20 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 58923-48170E0 |
AGL20,GYL20 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-48170E0 |
AGL20,GYL20 NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 58923-48170C0 |
AGL20,GYL20 BLACK,TRIM2#,4# |
1 | ||
| 58923-48170C0 |
AGL20,GYL20 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 58923-48170E0 |
AGL20,GYL20 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
AGL2#,GYL2# |
2 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
