GYL20W-AWXGB (2015)
Toyota Lexus Rx Series

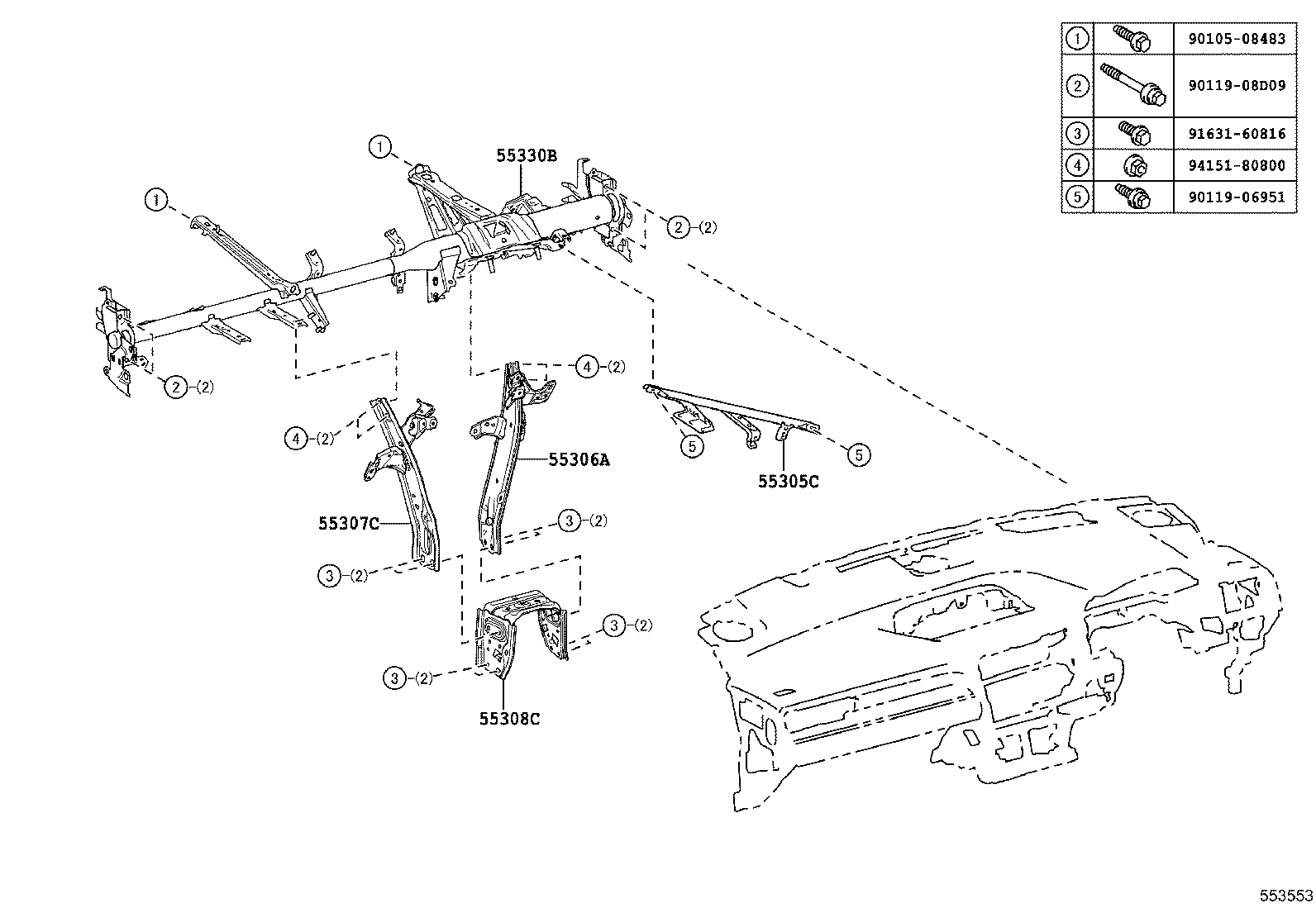

ILLUST NO. 1 OF 3(1509-1908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55305C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL | ||||
| 55305-48030 |
AGL2#,GYL2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-48170 |
AGL2#,GYL2# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-48170 |
AGL2#,GYL2# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-48090 |
AGL2#,GYL2# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-48230 |
AGL2#,GYL2# |
1 | ||
| Common parts | ||||
| 90105-08483 | ||||
| 90119-06951 | ||||
| 90119-08D09 | ||||
| 91631-60816 | ||||
| 94151-80800 | ||||
ILLUST NO. 2 OF 3(1509-1908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-28130 |
AGL2#,GYL2# |
4 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-48190C0 |
GYL2# BLACK/BLACK,TRIM05,06,2#,3# |
1 | ||
| 55401-48190E0 |
GYL2# NOBLE BROWN/NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55401-48190C1 |
GYL2# BLACK/NOBLE BROWN,TRIM4# |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-16010 |
AGL2#,GYL2# |
2 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-16010 |
AGL2#,GYL2# |
2 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-48060E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55408-48050E0 |
AGL2#,GYL2# ｽﾋﾟｰｶ−15ｽﾋﾟｰｶ&*MAR,NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55408-48060C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55408-48050C0 |
AGL2#,GYL2# ｽﾋﾟｰｶ−15ｽﾋﾟｰｶ&*MAR,BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55408M - CLIP(FOR INSTRUMENT PANEL SPEAKER PANEL) | ||||
| 90467-13082A0 |
AGL2#,GYL2# MELLOW WHITE |
4 | ||
| 55408M - CLIP(FOR INSTRUMENT PANEL SPEAKER PANEL) | ||||
| 90467-13082A0 |
AGL2#,GYL2# MELLOW WHITE |
4 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-48050C0 |
AGL2#,GYL2# ｽﾋﾟｰｶ−15ｽﾋﾟｰｶ&*MAR,BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55409-48050E0 |
AGL2#,GYL2# ｽﾋﾟｰｶ−15ｽﾋﾟｰｶ&*MAR,NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55409-48060C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55409-48060E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-48050 |
AGL2#,GYL2# |
2 | ||
| 55443 - GARNISH, INSTRUMENT PANEL, RH | ||||
| 55443-48120E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55443-48120C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55444 - GARNISH, INSTRUMENT PANEL, LH | ||||
| 55444-48070C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55444-48070E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55474A - CLIP(FOR INSTRUMENT PANEL SPEAKER PANEL) | ||||
| 90467-13082A0 |
AGL2#,GYL2# MELLOW WHITE |
4 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-48080E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55510-48080C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-48060 |
AGL2#,GYL2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-48060 |
AGL2#,GYL2# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-48100E0 |
GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55981-48100C0 |
GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-48100E0 |
GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55981-48100C0 |
GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-48100 |
AGL2#,GYL2# |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

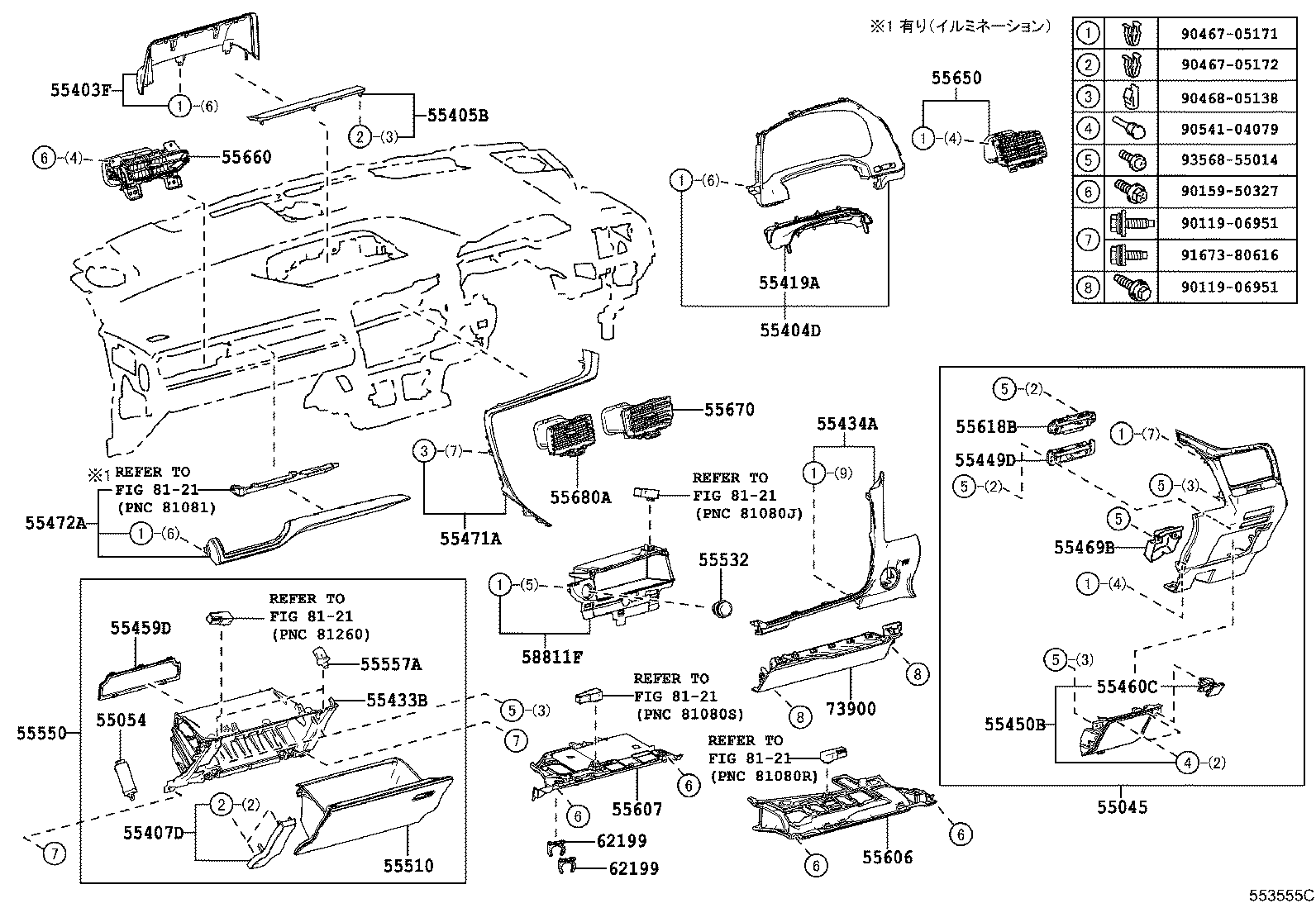

ILLUST NO. 3 OF 3(1509-1908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-48200C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55045-48200E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-75020 |
AGL2#,GYL2# |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-48120C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3# |
1 | ||
| 55403-48120E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,4#,5#,6# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-48090 |
AGL2#,GYL2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-48230E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,4#,5#,6# |
1 | ||
| 55405-48230C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3# |
1 | ||
| 55407D - PAD SUB-ASSY, INSTRUMENT PANEL, END | ||||
| 55407-48020C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55407-48020E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-48030 |
AGL2#,GYL2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-48190C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55433-48190E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55434A - PANEL, INSTRUMENT FINISH, LOWER SUB | ||||
| 55434-48080C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55434-48080E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-48150 |
AGL2#,GYL2# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-48150E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55450-48150C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-30070 |
AGL2#,GYL2# |
1 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-48020E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55460-48020C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55469B - INSERT, INSTRUMENT PANEL LOWER PAD SUB | ||||
| 55469-48030 |
AGL2#,GYL2# |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-48050 |
AGL2#,GYL2# |
1 | ||
| 55472A - MOULDING, INSTRUMENT CLUSTER, NO.2 | ||||
| 55472-48080 |
AGL2#,GYL2# |
1 | ||
| 55472-48090 |
AGL20,GYL20 “F SPORT”*(F) |
1 | ||
| 55472-48090 |
AGL2#,GYL2# “version L”*(L) |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-48250C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55501-48250E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55532 - COVER, CIGAR LIGHTER HOLE | ||||
| 55532-48010 |
AGL2#,GYL2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-48091E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55550-48091C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
AGL2#,GYL2# |
2 | ||
| 55557-78010 |
AGL2#,GYL2# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-48060 |
AGL2#,GYL2# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-48260E0 |
GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55607-48250E0 |
GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| 55607-48260C0 |
GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55607-48250C0 |
GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55618B - BASE, SWITCH HOLE, NO.3 | ||||
| 55618-48220 |
AGL2#,GYL2# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-48110 |
AGL2#,GYL2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-48110 |
AGL2#,GYL2# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-48140 |
AGL2#,GYL2# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-48090 |
AGL2#,GYL2# |
1 | ||
| 58811F - BOX, CONSOL | ||||
| 58813-48070 |
AGL2#,GYL2# おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 58813-48070 |
AGL2#,GYL2# |
1 | ||
| 62199 - HOLDER, FUSEE | ||||
| 62199-48010 |
AGL2#,GYL2# |
2 | ||
| 62199 - HOLDER, FUSEE | ||||
| 62199-48010 |
AGL2#,GYL2# |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-48090C0 |
AGL2#,GYL2# BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 73900-48090E0 |
AGL2#,GYL2# NOBLE BROWN,TRIM00,01,02,03,04,5#,6# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05138 | ||||
| 90541-04079 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
