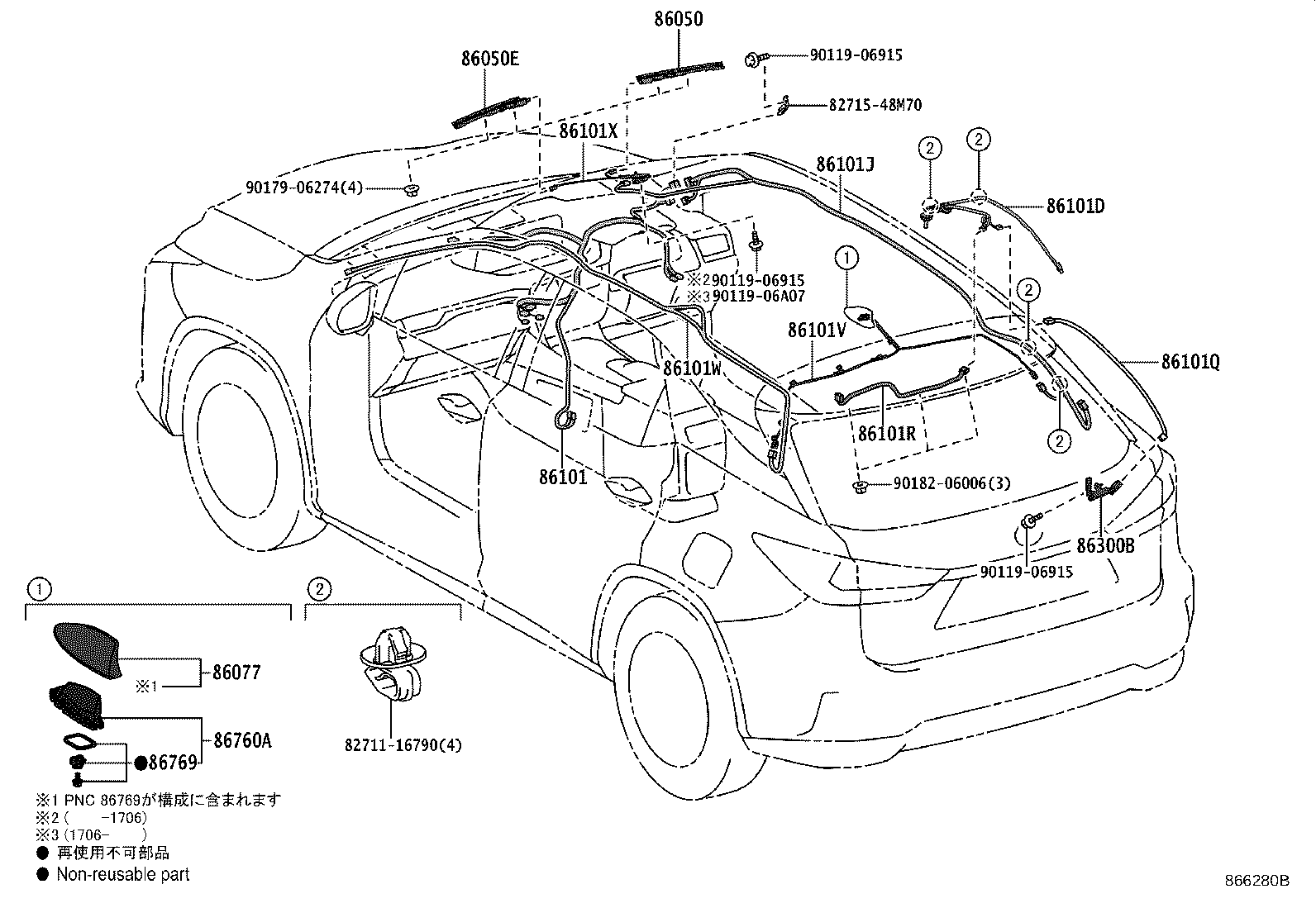

Toyota Lexus rx series AGL25 ANTENNA

Part #	Description	Period	Qty
86050 - ANTENNA ASSY, TELEVISION
86050-48140	AGL2#,GYL2#	09/2015 - 08/2019	1
86050E - ANTENNA ASSY, TELEVISION
86050-48170	AGL2#,GYL2#	09/2015 - 08/2019	1
86077 - COVER KIT, ANTENNA
86077-48020B2	AGL2#,GYL2# SONIC TITANIUM,1J7	09/2015 - 08/2019	1
86077-48020B1	AGL2#,GYL2# PLATINUM SILVER ME.,1J4	09/2015 - 08/2019	1
86077-48020C3	AGL2#,GYL2# GRAPHITE BLACK GF.,223	09/2015 - 08/2019	1
86077-48020D0	AGL2#,GYL2# RED MC.CS.,3R1	09/2015 - 08/2019	1
86077-48020E0	AGL2#,GYL2# SLEEK ECRU ME.,4U7	09/2015 - 08/2019	1
86077-48020E2	AGL2#,GYL2# AMBER CS.,4X2	09/2015 - 08/2019	1
86077-48020C1	AGL2#,GYL2# BLACK,212	09/2015 - 08/2019	1
86077-48020A1	AGL2#,GYL2# WHITE NOVA GF.,083	09/2015 - 08/2019	1
86077-48020A2	AGL2#,GYL2# SONIC QUARTZ,085	09/2015 - 08/2019	1
86077-48020J1	AGL2#,GYL2# HEAT BLUE CONTRAST LAYERI,8X1	08/2016 - 08/2019	1
86077-48020J0	AGL2#,GYL2# DEEP BLUE MC.,8X5	09/2015 - 08/2019	1
86101 - CORD SUB-ASSY, ANTENNA
86101-48B50	AGL2#,GYL2#	12/2017 - 08/2019	1
86101-48M40	AGL2#,GYL2#	09/2015 - 12/2017	1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-48B60	AGL2#,GYL2#	09/2015 - 08/2019	1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-48M50	AGL2#,GYL2# ﾑｰﾝﾙｰﾌ−有り	09/2015 - 08/2019	1
86101-48M80	AGL2#,GYL2# ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ)	09/2015 - 08/2019	1
86101-48M20	AGL2#,GYL2#	09/2015 - 08/2019	1
86101-48M50	AGL2#,GYL2# ﾑｰﾝﾙｰﾌ−有り&ｲﾝﾌﾗ協調ｼｽﾃﾑ−有り	09/2015 - 08/2019	1
86101-48M30	AGL2#,GYL2# ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ)&ｲﾝﾌﾗ協調ｼｽﾃﾑ−有り	09/2015 - 08/2019	1
86101Q - CORD SUB-ASSY, ANTENNA, NO.4
86101-48Q90	AGL2#,GYL2#	09/2015 - 08/2019	1
86101R - CORD SUB-ASSY, ANTENNA, NO.5
86101-48F80	AGL2#,GYL2#	09/2015 - 08/2019	1
86101V - CORD SUB-ASSY, ANTENNA, NO.6
86101-48E30	AGL2#,GYL2# ｲﾝﾌﾗ協調ｼｽﾃﾑ−有り	09/2015 - 08/2019	1
86101-48E20	AGL2#,GYL2#	09/2015 - 08/2019	1
86101W - CORD SUB-ASSY, ANTENNA, NO.7
86101-48M80	AGL2#,GYL2# ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ)&ｲﾝﾌﾗ協調ｼｽﾃﾑ−有り	09/2015 - 08/2019	1
86101-48M30	AGL2#,GYL2# ｲﾝﾌﾗ協調ｼｽﾃﾑ−有り	09/2015 - 08/2019	1
86101-48M60	AGL2#,GYL2# ﾑｰﾝﾙｰﾌ−有り&ｲﾝﾌﾗ協調ｼｽﾃﾑ−有り	09/2015 - 08/2019	1
86101X - CORD SUB-ASSY, ANTENNA, NO.8
86101-48E00	AGL2#,GYL2#	09/2015 - 08/2019	1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-48380	AGL2#,GYL2#	09/2015 - 08/2019	1
86760A - ANTENNA ASSY, TELEPHONE
86760-48070	AGL2#,GYL2#	09/2015 - 08/2019	1
86760-48060	AGL2#,GYL2# ｲﾝﾌﾗ協調ｼｽﾃﾑ−有り	09/2015 - 01/2016	1
86760-48061	AGL2#,GYL2# ｲﾝﾌﾗ協調ｼｽﾃﾑ−有り	02/2016 - 08/2019	1
86769 - HOUSING, ROOF ANTENNA
86769-53010	AGL2#,GYL2#	09/2015 - 08/2019	1
Common parts
82711-16790
82715-48M70
90119-06915
90119-06A07
90179-06274
90182-06006

AGL25W-AWTGZ (2015)

(1509-1908)
