AGL25W-AWTGZ (2015)
Toyota Lexus Rx Series

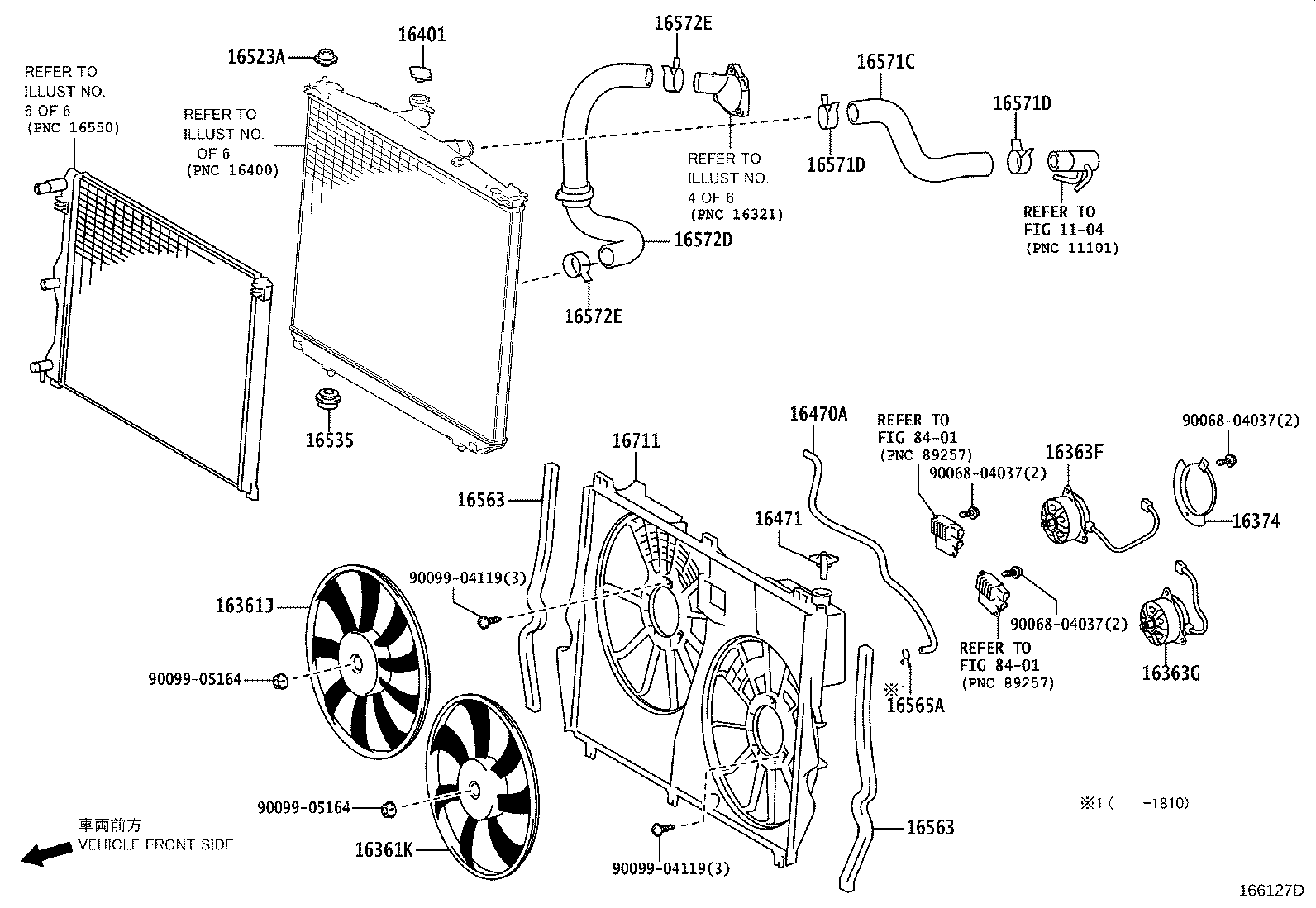

ILLUST NO. 2 OF 6(1509- )8ARFTS
ﾗｼﾞｴｰﾀｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361J - FAN, RH | ||||
| 16361-31460 |
8ARFTS..AGL2# |
1 | ||
| 16361K - FAN, LH | ||||
| 16361-31370 |
8ARFTS..AGL2# |
1 | ||
| 16363F - MOTOR, COOLING FAN, RH | ||||
| 16363-36260 |
8ARFTS..AGL2# |
1 | ||
| 16363G - MOTOR, COOLING FAN, LH | ||||
| 16363-36090 |
8ARFTS..AGL2# |
1 | ||
| 16374 - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-31490 |
8ARFTS..AGL2# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31520 |
8ARFTS..AGL2# |
1 | ||
| 16401-36020 |
8ARFTS..AGL2# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-31460 |
8ARFTS..AGL2# |
1 | ||
| 16377-31490 |
8ARFTS..AGL2# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-31100 |
8ARFTS..AGL2# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-20020 |
8ARFTS..AGL2# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-28030 |
8ARFTS..AGL2# |
2 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-31060 |
8ARFTS..AGL2# |
2 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-31060 |
8ARFTS..AGL2# |
2 | ||
| 16565A - CLIP | ||||
| 90467-11085 |
8ARFTS..AGL2# |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-36230 |
8ARFTS..AGL2# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-35001 |
8ARFTS..AGL2# |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-35001 |
8ARFTS..AGL2# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-36200 |
8ARFTS..AGL2# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-35001 |
8ARFTS..AGL2# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-35001 |
8ARFTS..AGL2# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-36230 |
8ARFTS..AGL2# |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8401 | ||||

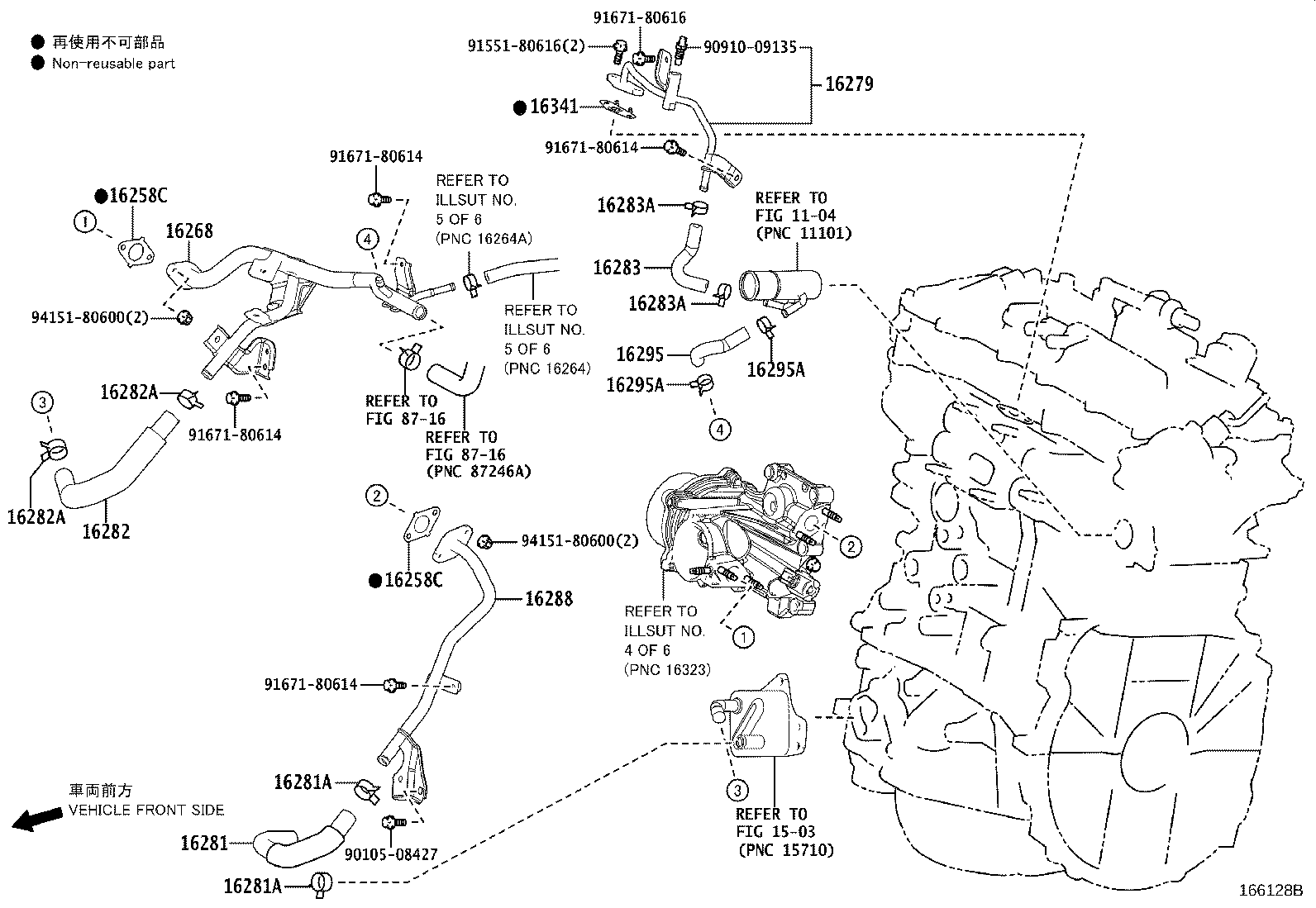

ILLUST NO. 3 OF 6(1509- )8ARFTS
ｴﾝｼﾞﾝﾖｳﾊｲｶﾝ(1/3)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-36040 |
8ARFTS..AGL2# |
2 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-36040 |
8ARFTS..AGL2# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-36170 |
8ARFTS..AGL2# |
1 | ||
| 16268-36171 |
8ARFTS..AGL2# |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-36040 |
8ARFTS..AGL2# |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-36040 |
8ARFTS..AGL2# |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
8ARFTS..AGL2# |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
8ARFTS..AGL2# |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-36080 |
8ARFTS..AGL2# |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
8ARFTS..AGL2# |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
8ARFTS..AGL2# |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-36070 |
8ARFTS..AGL2# |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
8ARFTS..AGL2# |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
8ARFTS..AGL2# |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-36020 |
8ARFTS..AGL2# |
1 | ||
| 16288-36021 |
8ARFTS..AGL2# |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-36020 |
8ARFTS..AGL2# |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-41501 |
8ARFTS..AGL2# |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-41501 |
8ARFTS..AGL2# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-36020 |
8ARFTS..AGL2# |
1 | ||
| Common parts | ||||
| 90105-08427 | ||||
| 90910-09135 | ||||
| 91551-80616 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1503 | ||||
| 8716 | ||||

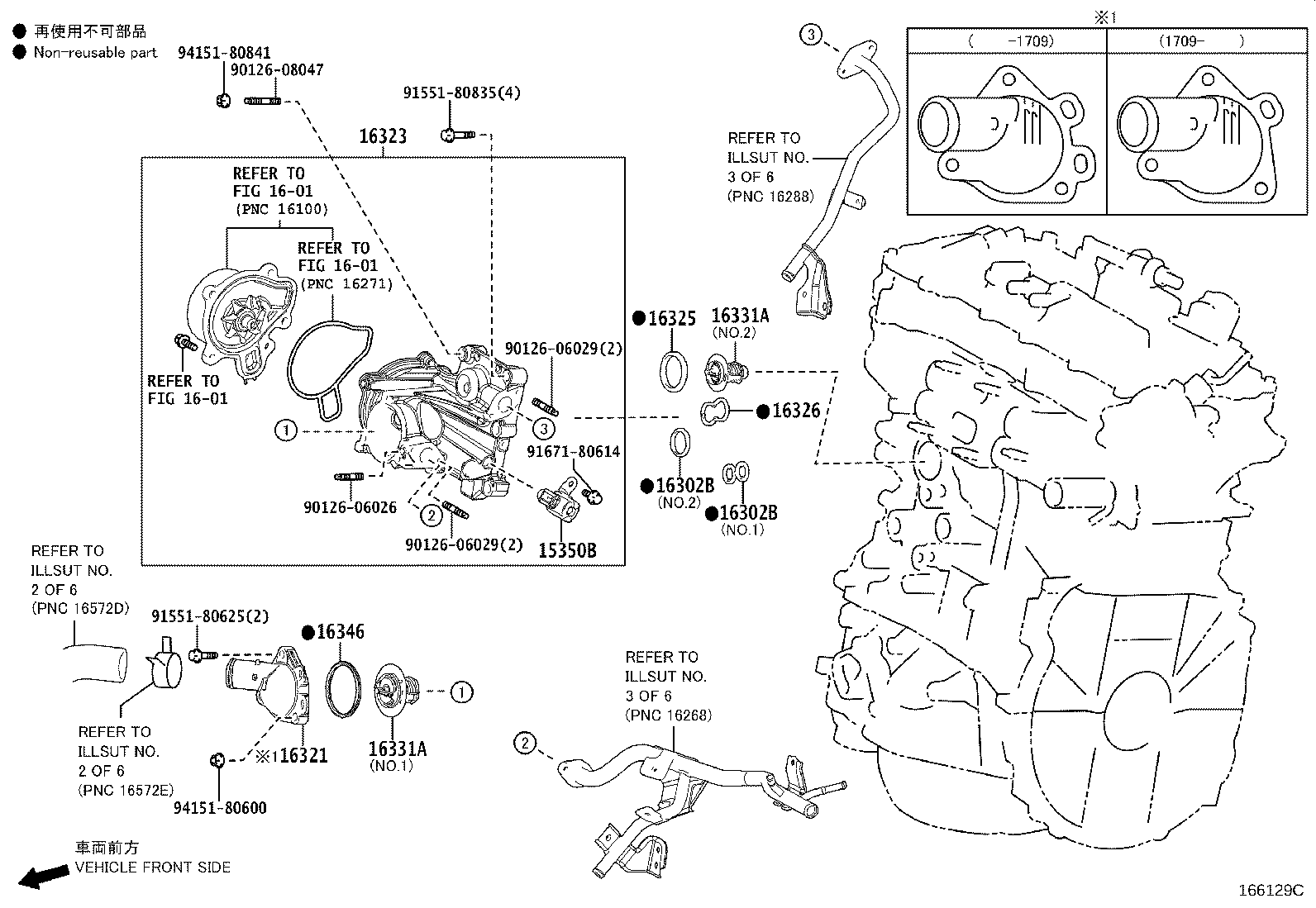

ILLUST NO. 4 OF 6(1509- )8ARFTS
ｴﾝｼﾞﾝﾖｳﾊｲｶﾝ(2/3)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15350B - VALVE ASSY, OIL PRESSURE SWITCHING | ||||
| 15350-33012 |
8ARFTS..AGL2# |
1 | ||
| 16302B - GASKET(FOR WATER INLET HOUSING) | ||||
| 16258-36060 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16258-36050 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16302B - GASKET(FOR WATER INLET HOUSING) | ||||
| 16258-36060 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16258-36050 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-36041 |
8ARFTS..AGL2# |
1 | ||
| 16321-36040 |
8ARFTS..AGL2# |
1 | ||
| 16321-36070 |
8ARFTS..AGL2# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-36060 |
8ARFTS..AGL2# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-36051 |
8ARFTS..AGL2# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-36030 |
8ARFTS..AGL2# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03154 |
8ARFTS..AGL2# *WAX 78−91,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90916-03156 |
8ARFTS..AGL2# *WAX 82−95,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03154 |
8ARFTS..AGL2# *WAX 78−91,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90916-03156 |
8ARFTS..AGL2# *WAX 82−95,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-36011 |
8ARFTS..AGL2# |
1 | ||
| Common parts | ||||
| 90126-06026 | ||||
| 90126-06029 | ||||
| 90126-08047 | ||||
| 91551-80625 | ||||
| 91551-80835 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 94151-80841 | ||||
| Linked diagrams | ||||
| 1601 | ||||

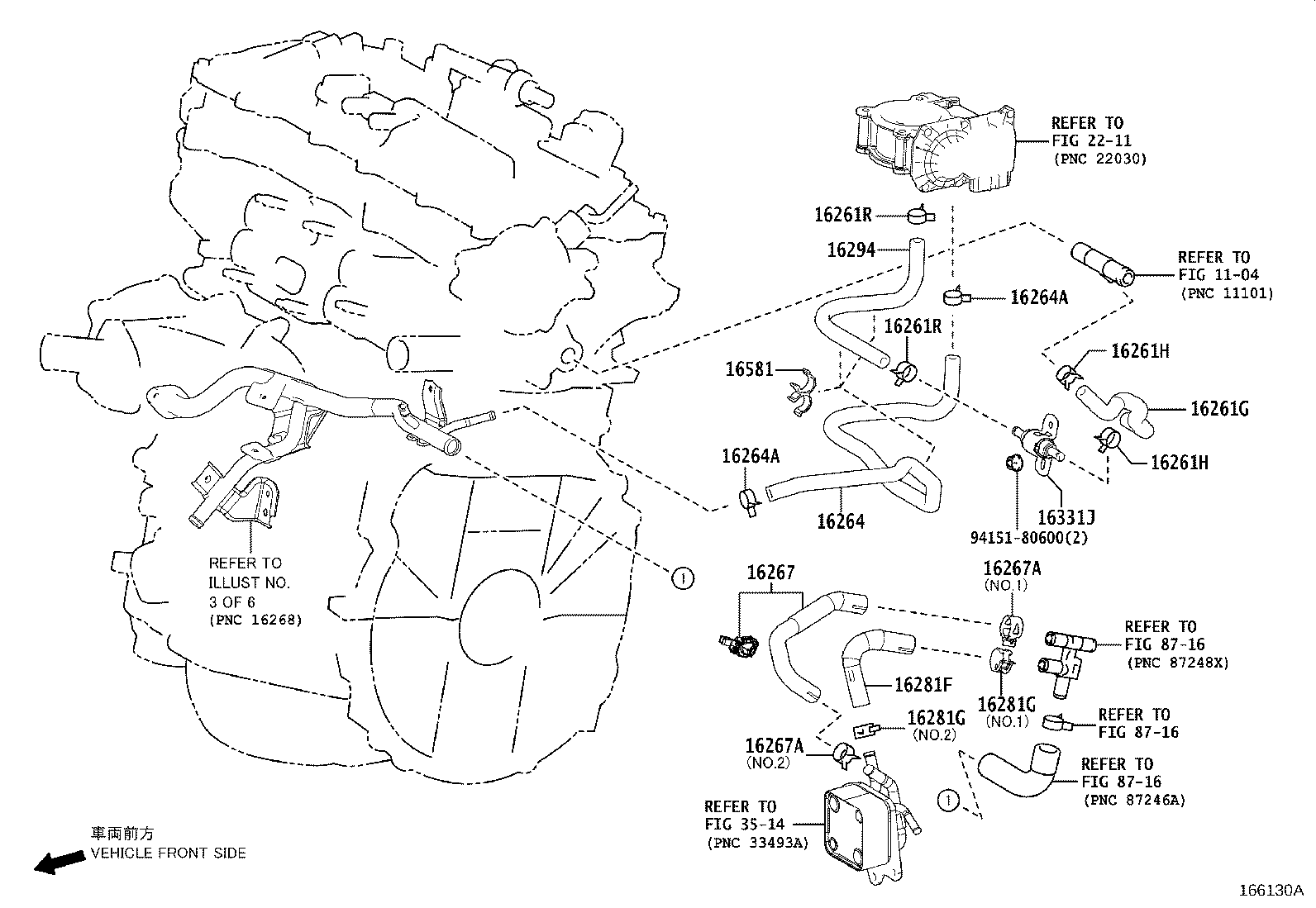

ILLUST NO. 5 OF 6(1509- )8ARFTS
ｴﾝｼﾞﾝﾖｳﾊｲｶﾝ(3/3)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-36100 |
8ARFTS..AGL2# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-41501 |
8ARFTS..AGL2# |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-41501 |
8ARFTS..AGL2# |
2 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
8ARFTS..AGL2# |
2 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
8ARFTS..AGL2# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-36090 |
8ARFTS..AGL2# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
8ARFTS..AGL2# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
8ARFTS..AGL2# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-36100 |
8ARFTS..AGL2# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42101 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42501 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42101 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42501 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16281-36100 |
8ARFTS..AGL2# |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42101 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42101 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16294 - HOSE, WATER BY-PASS, NO.11 | ||||
| 16294-36020 |
8ARFTS..AGL2# |
1 | ||
| 16331J - THERMOSTAT, MANIFOLD | ||||
| 90916-03155 |
8ARFTS..AGL2# |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-33080 |
8ARFTS..AGL2# |
3 | ||
| Common parts | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2211 | ||||
| 3514 | ||||
| 8716 | ||||

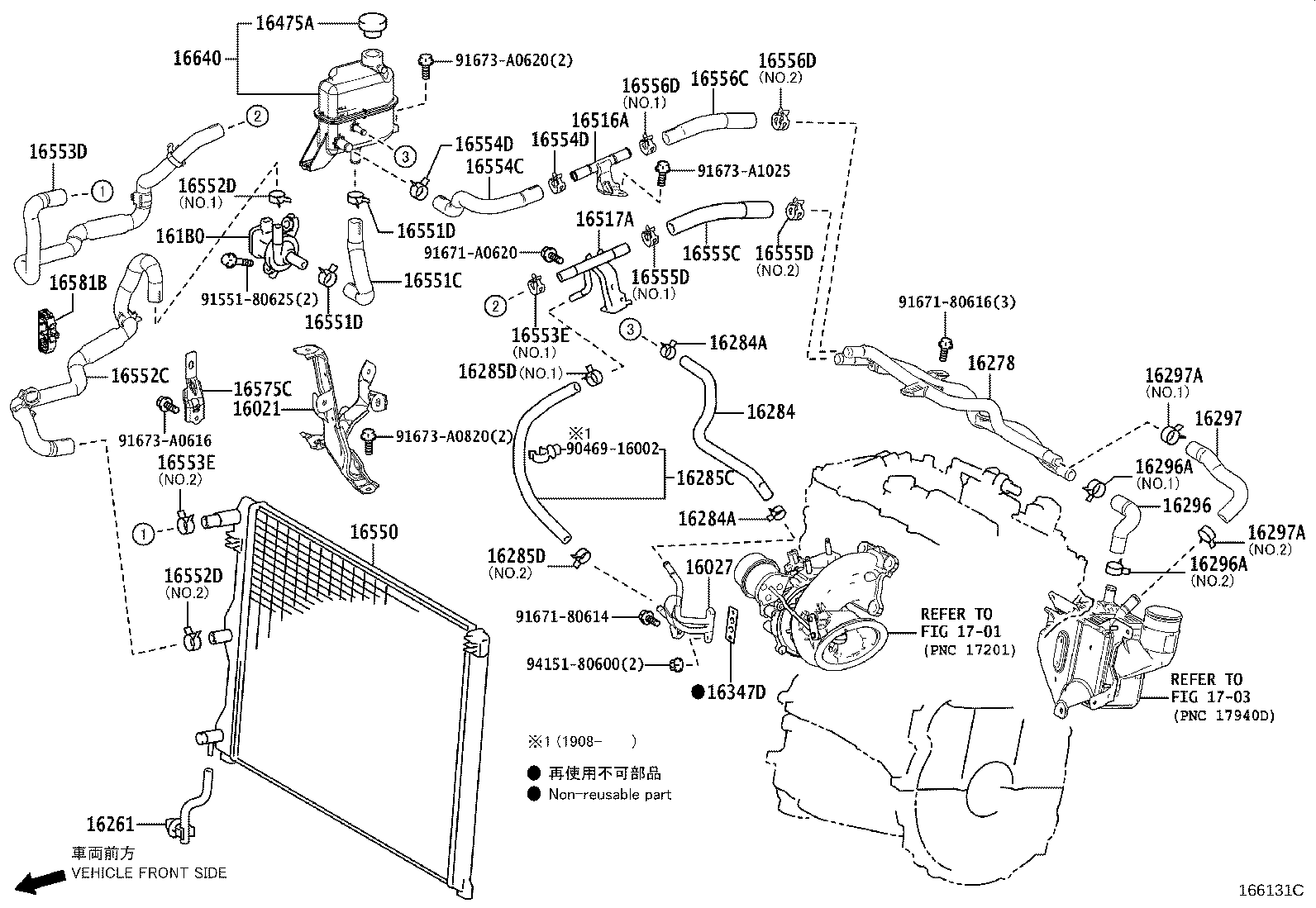

ILLUST NO. 6 OF 6(1509- )8ARFTS
ｲﾝﾀｰｸｰﾗｰﾖｳﾊｲｶﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16021 - BRACKET SUB-ASSY, WATER PUMP | ||||
| 16021-36020 |
8ARFTS..AGL2# |
1 | ||
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-36010 |
8ARFTS..AGL2# |
1 | ||
| 161B0 - PUMP ASSY, ELECTRIC WATER | ||||
| 161B0-36010 |
8ARFTS..AGL2# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-36150 |
8ARFTS..AGL2# |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-36030 |
8ARFTS..AGL2# |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-36020 |
8ARFTS..AGL2# |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41701 |
8ARFTS..AGL2# |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41701 |
8ARFTS..AGL2# |
2 | ||
| 16285C - HOSE, INTERCOOLER WATER, NO.2 | ||||
| 16285-36010 |
8ARFTS..AGL2# |
1 | ||
| 16285D - CLIP(FOR INTERCOOLER WATER HOSE NO.2) | ||||
| 96137-41701 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90467-15022 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16285D - CLIP(FOR INTERCOOLER WATER HOSE NO.2) | ||||
| 96137-41701 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90467-15022 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-36030 |
8ARFTS..AGL2# |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42501 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42701 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42501 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42701 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-36030 |
8ARFTS..AGL2# |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42701 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42501 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42701 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42501 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-36020 |
8ARFTS..AGL2# |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-28140 |
8ARFTS..AGL2# |
1 | ||
| 16475-37011 |
8ARFTS..AGL2# |
1 | ||
| 16516A - PIPE, INTERCOOLER COOLING WATER, NO.2 | ||||
| 16516-36020 |
8ARFTS..AGL2# |
1 | ||
| 16517A - PIPE, INTERCOOLER COOLING WATER, NO.3 | ||||
| 16517-36030 |
8ARFTS..AGL2# |
1 | ||
| 16550 - RADIATOR ASSY, INTERCOOLER COOLING | ||||
| 16550-36020 |
8ARFTS..AGL2# |
1 | ||
| 16551C - HOSE, INTERCOOLER COOLING WATER, NO.1 | ||||
| 16551-36020 |
8ARFTS..AGL2# |
1 | ||
| 16551D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1) | ||||
| 96138-42501 |
8ARFTS..AGL2# |
2 | ||
| 16551D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1) | ||||
| 96138-42501 |
8ARFTS..AGL2# |
2 | ||
| 16552C - HOSE, INTERCOOLER COOLING WATER, NO.2 | ||||
| 16552-36020 |
8ARFTS..AGL2# |
1 | ||
| 16552D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2) | ||||
| 96138-42501 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96136-52701 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16552D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2) | ||||
| 96138-42501 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96136-52701 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16553D - HOSE, INTERCOOLER COOLING WATER, NO.3 | ||||
| 16553-36020 |
8ARFTS..AGL2# |
1 | ||
| 16553E - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3) | ||||
| 96136-52701 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96138-42501 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16553E - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3) | ||||
| 96136-52701 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96138-42501 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16554C - HOSE, INTERCOOLER COOLING WATER, NO.4 | ||||
| 16554-36020 |
8ARFTS..AGL2# |
1 | ||
| 16554D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4) | ||||
| 96138-42501 |
8ARFTS..AGL2# |
2 | ||
| 16554D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4) | ||||
| 96138-42501 |
8ARFTS..AGL2# |
2 | ||
| 16555C - HOSE, INTERCOOLER COOLING WATER, NO.5 | ||||
| 16555-36030 |
8ARFTS..AGL2# |
1 | ||
| 16555D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5) | ||||
| 96136-42701 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42501 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16555D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5) | ||||
| 96136-42701 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42501 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16556C - HOSE, INTERCOOLER COOLING WATER, NO.6 | ||||
| 16556-36030 |
8ARFTS..AGL2# |
1 | ||
| 16556D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6) | ||||
| 96136-42501 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42701 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16556D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6) | ||||
| 96136-42501 |
8ARFTS..AGL2# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42701 |
8ARFTS..AGL2# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-36030 |
8ARFTS..AGL2# |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-36050 |
8ARFTS..AGL2# |
1 | ||
| 16640 - TANK ASSY, INTERCOOLER RESERVE | ||||
| 16640-36020 |
8ARFTS..AGL2# |
1 | ||
| Common parts | ||||
| 90469-16002 | ||||
| 91551-80625 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-A0620 | ||||
| 91673-A0616 | ||||
| 91673-A0620 | ||||
| 91673-A0820 | ||||
| 91673-A1025 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1703 | ||||

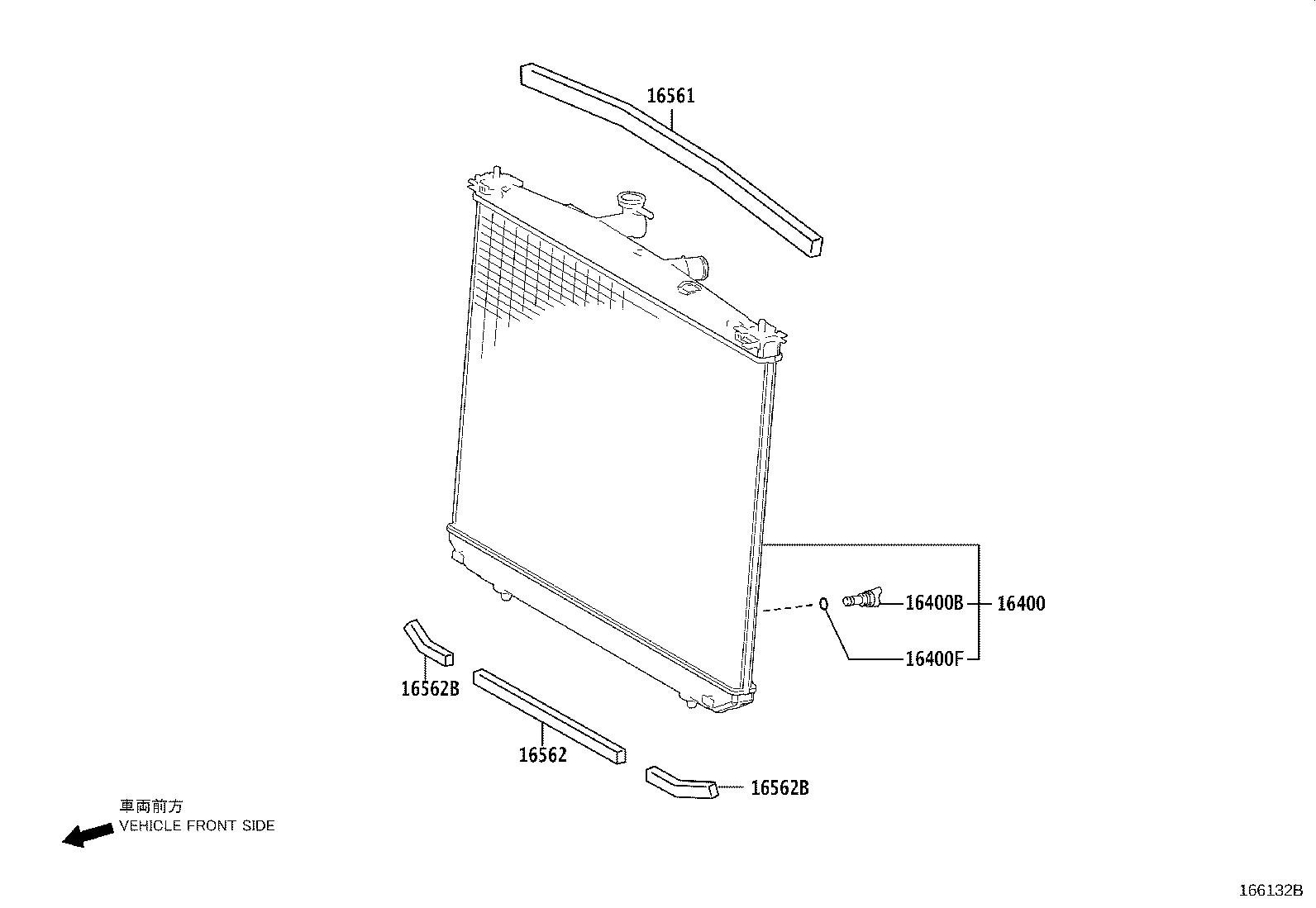

ILLUST NO. 1 OF 6(1509- )8ARFTS
ﾗｼﾞｴｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-36120 |
8ARFTS..AGL2# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
8ARFTS..AGL2# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
8ARFTS..AGL2# |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31120 |
8ARFTS..AGL2# |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-31140 |
8ARFTS..AGL2# |
1 | ||
| 16562B - SEAL, RADIATOR TO SUPPORT, NO.4 | ||||
| 16562-31150 |
8ARFTS..AGL2# |
2 | ||
| 16562B - SEAL, RADIATOR TO SUPPORT, NO.4 | ||||
| 16562-31150 |
8ARFTS..AGL2# |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
