AGL25W-AWTGZ (2015)

Toyota Lexus Rx Series

Production Sep 2015 - Aug 2019
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )8ARFTS

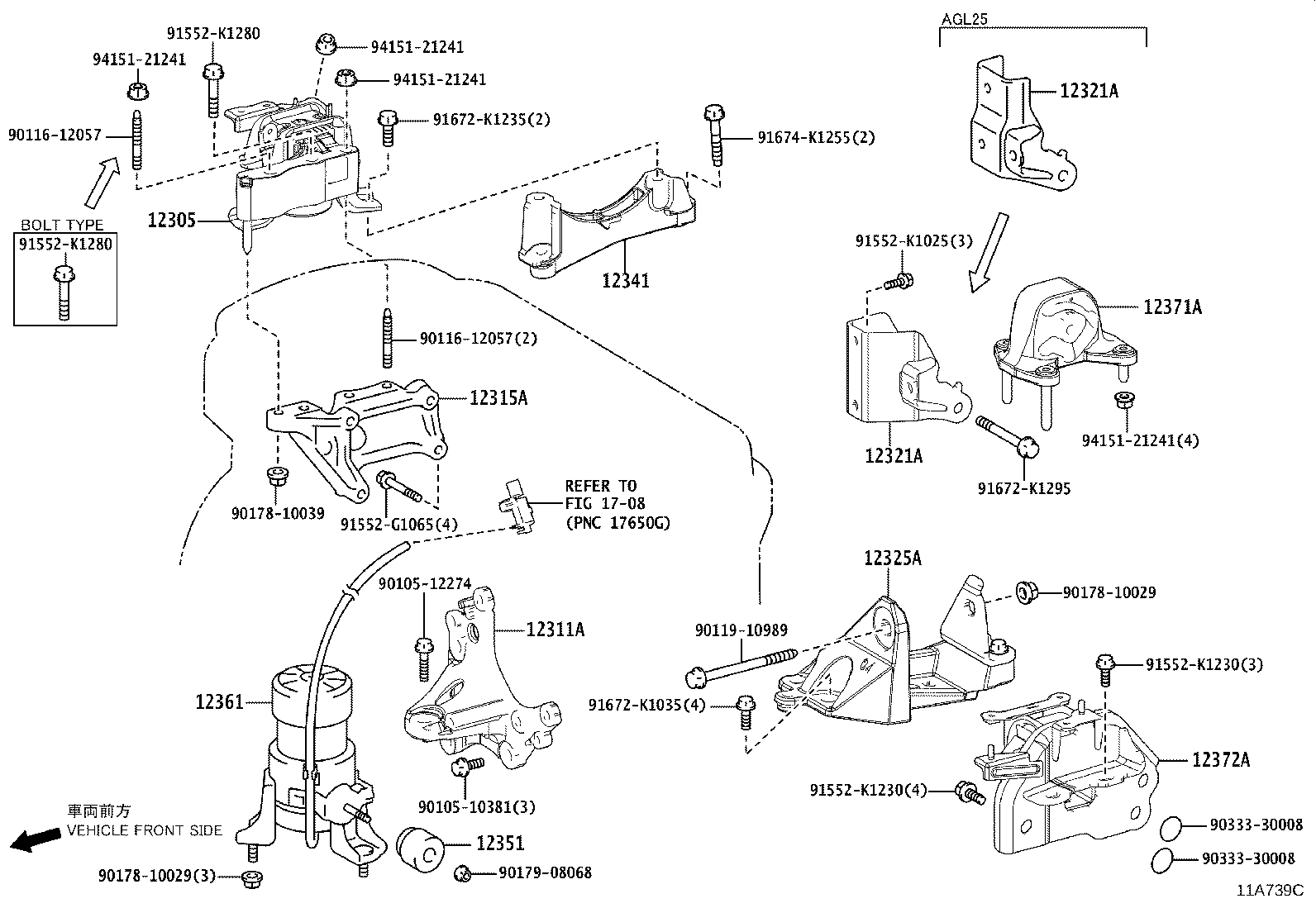

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12321A 12325A 12341 12351 12361 12371A 12372A 1708 9010510381 9010512274 9011612057 9011612057 9011910989 9017810029 9017810029 9017810039 9017908068 9033330008 9033330008 91552G1065 91552K1025 91552K1230 91552K1230 91552K1280 91552K1280 91672K1035 91672K1235 91672K1295 91674K1255 9415121241 9415121241 9415121241 9415121241
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-36100

8ARFTS..AGL2#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-36160

8ARFTS..AGL2#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-36030

8ARFTS..AGL2#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-36160

8ARFTS..AGL25

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-36160

8ARFTS..AGL25

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12304-36050

8ARFTS..AGL2#

 1
12341 - SPACER, ENGINE MOUNTING
12341-31040

8ARFTS..AGL2#

 1
12351 - DAMPER, ENGINE MOUNTING
12351-36080

8ARFTS..AGL2#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-36210

8ARFTS..AGL2#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-36200

8ARFTS..AGL2#

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-36110

8ARFTS..AGL2#

 1
Common parts
90105-10381
90105-12274
90116-12057
90119-10989
90178-10029
90178-10039
90179-08068
90333-30008
91552-G1065
91552-K1025
91552-K1230
91552-K1280
91672-K1035
91672-K1235
91672-K1295
91674-K1255
94151-21241
Linked diagrams
1708
