AGL25W-AWTGZ (2019)

Toyota Lexus Rx Series

Production Aug 2019 - Sep 9999
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

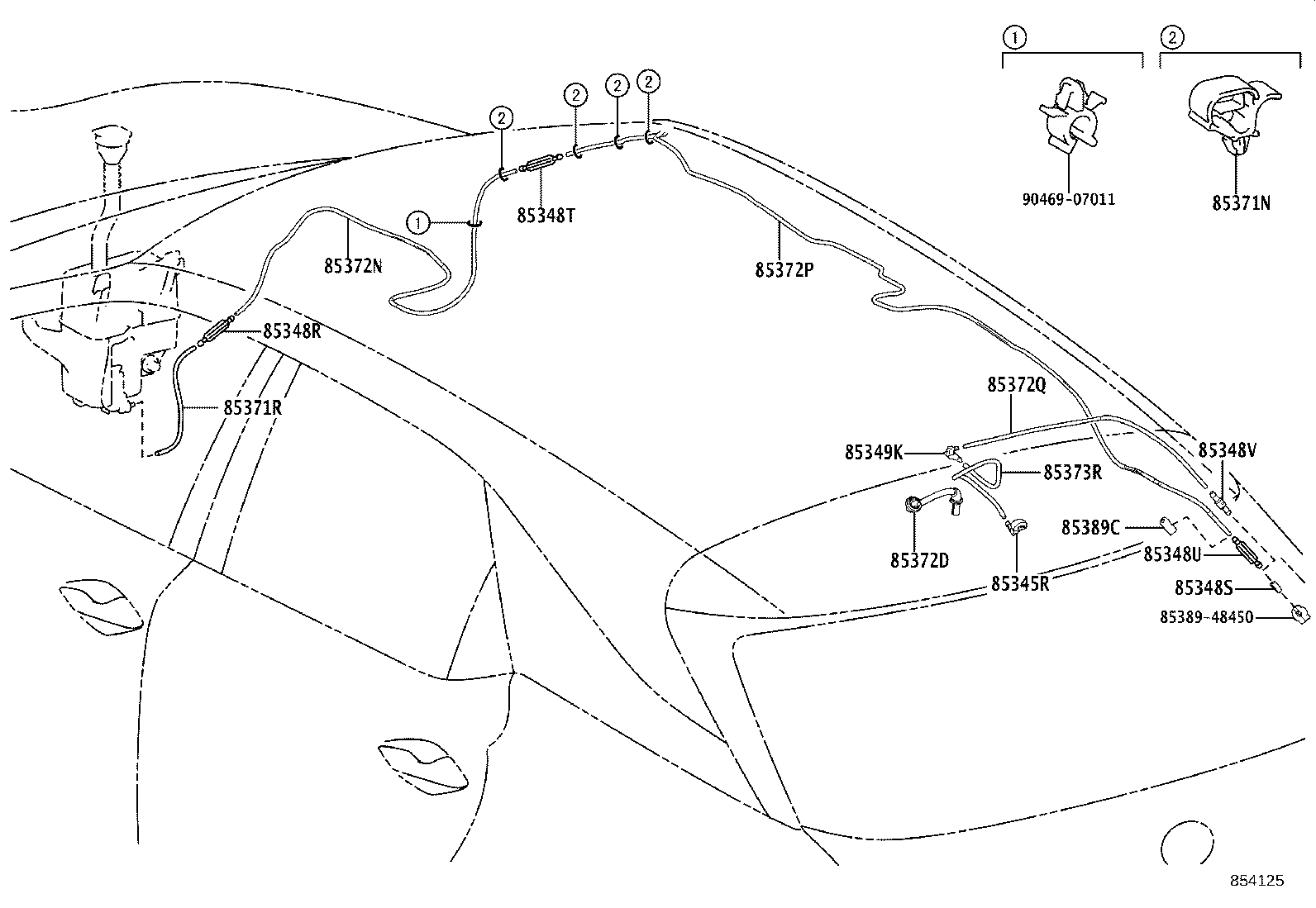

Click highlighted areas on diagram

diagram 85345R 85348R 85348S 85348T 85348U 85348V 85349K 85371N 85371R 85372D 85372N 85372P 85372Q 85373R 8538948450 85389C 9046907011
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85391-48080

AGL2#,GYL2#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85385-48320

AGL2#,GYL2#

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85375-33040

AGL2#,GYL2#

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-32150

AGL2#,GYL2#

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-32150

AGL2#,GYL2#

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

AGL2#,GYL2#

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85378-12480

AGL2#,GYL2#

 1
85371N - CLAMP, REAR WASHER HOSE
85371-48030

AGL2#,GYL2#

 4
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

AGL2#,GYL2#

*H,L=280

 1
90099-33080

AGL2#,GYL2#

*H,L=280,寒冷地仕様

 1
90099-33080

AGL2#,GYL2#

*H,L=280,ﾍｯﾄﾞﾗﾝﾌﾟ−LED多灯式&有り(*AHS)

 1
90099-33080

AGL2#,GYL2#

*H,L=280,寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED多灯式&有り(*AHS)

 1
85372D - GROMMET, REAR WASHER HOSE
85373-48020

AGL2#,GYL2#

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-62083

AGL2#,GYL2#

長さ=1430

 1
90099-62083

AGL2#,GYL2#

長さ=1430,ﾑｰﾝﾙｰﾌ−有り

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33803

AGL2#,GYL2#

長さ=2850,ﾑｰﾝﾙｰﾌ−有り

 1
90099-33803

AGL2#,GYL2#

*H,L=2750

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-62151

AGL2#,GYL2#

長さ=580,ﾑｰﾝﾙｰﾌ−有り

 1
90099-62151

AGL2#,GYL2#

長さ=580

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

AGL2#,GYL2#

*H,L=380,ﾑｰﾝﾙｰﾌ−有り

 1
90099-33080

AGL2#,GYL2#

*H,L=380

 1
85389C - PROTECTOR, WASHER
85389-48440

AGL2#,GYL2#

 1
Common parts
85389-48450
90469-07011
