AGL20W-AWTGZ (2015)
Toyota Lexus Rx Series
Production
Sep 2015
-
Aug 2019
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1509-1908)AGL2#

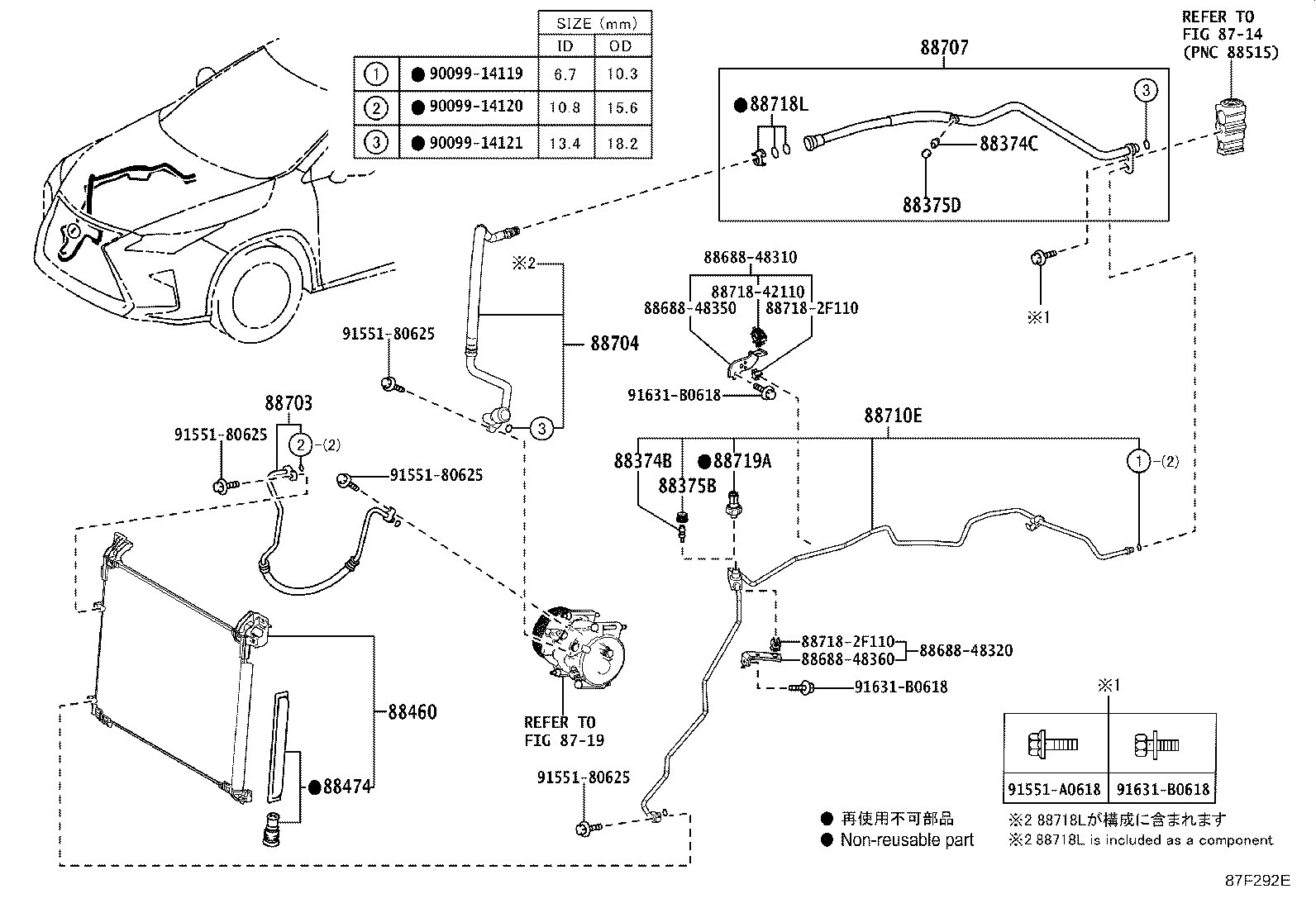

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AGL2#,GYL2# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
AGL2#,GYL2# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
AGL2#,GYL2# |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
AGL2#,GYL2# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-48230 |
AGL2# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
AGL2# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-48340 |
AGL2# |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-48320 |
AGL2# |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-48241 |
AGL2# |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-48630 |
AGL2# |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
AGL2#,GYL2# |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
AGL2#,GYL2# |
1 | ||
| Common parts | ||||
| 88688-48310 | ||||
| 88688-48320 | ||||
| 88688-48350 | ||||
| 88688-48360 | ||||
| 88718-2F110 | ||||
| 88718-42110 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91551-80625 | ||||
| 91551-A0618 | ||||
| 91631-B0618 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
