AGL20W-AWTGZ (2015)

Toyota Lexus Rx Series

Production Sep 2015 - Aug 2019
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509-1908)

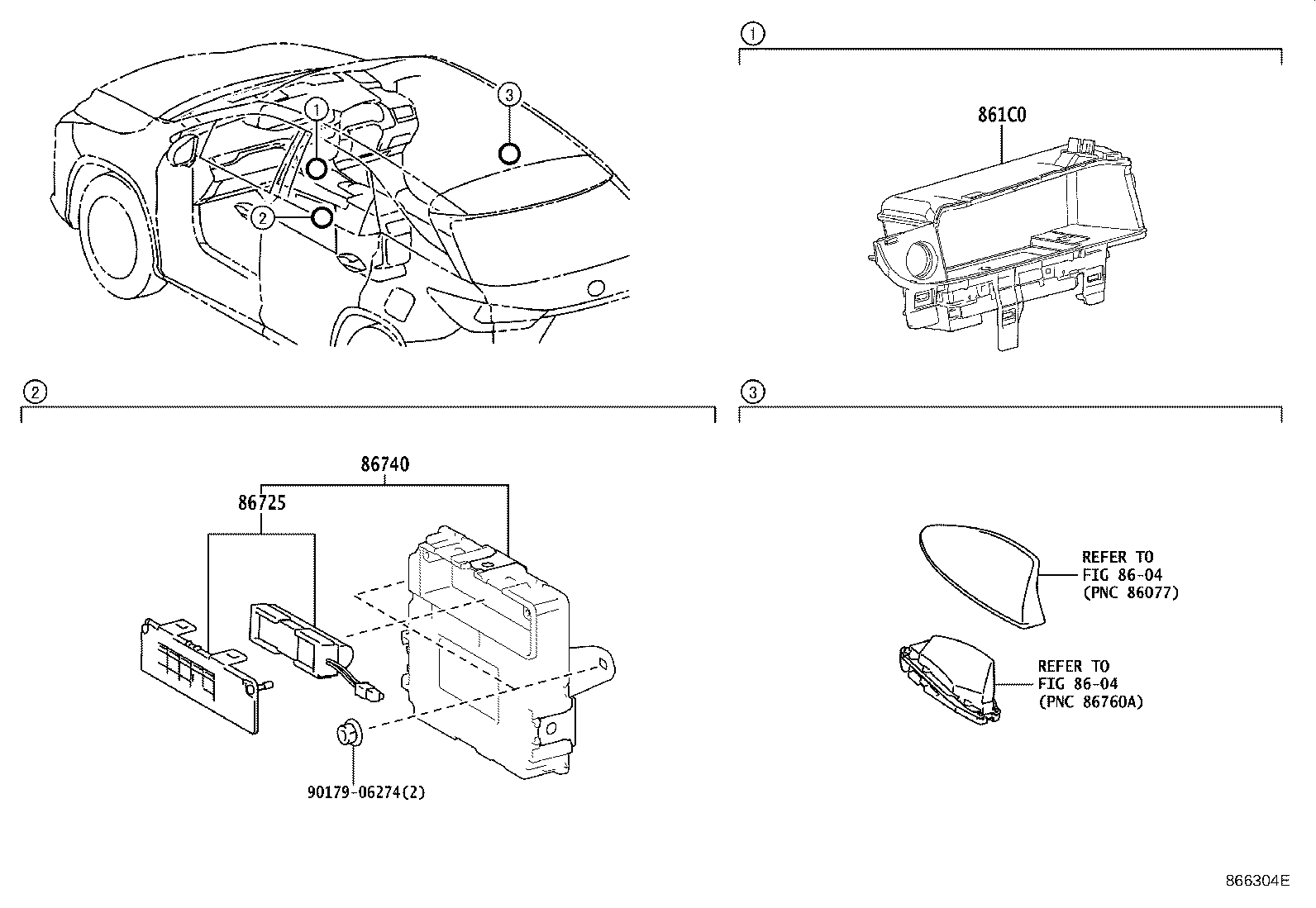

Click highlighted areas on diagram

diagram 8604 8604 861C0 86725 86740 9017906274
Part # Description Qty Price
861C0 - CRADLE ASSY, MOBILE WIRELESS CHARGER
861C0-48020

AGL2#,GYL2#

おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り

 1
86725 - BATTERY, MOBILEPHONE
86725-48010

AGL2#,GYL2#

 1
86740 - TRANSCEIVER ASSY, TELEPHONE
86740-48150

AGL2#,GYL2#

 1
Common parts
90179-06274
Linked diagrams
8604
