AGL20W-AWTGZ (2015)

Toyota Lexus Rx Series

Production Sep 2015 - Aug 2019
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )

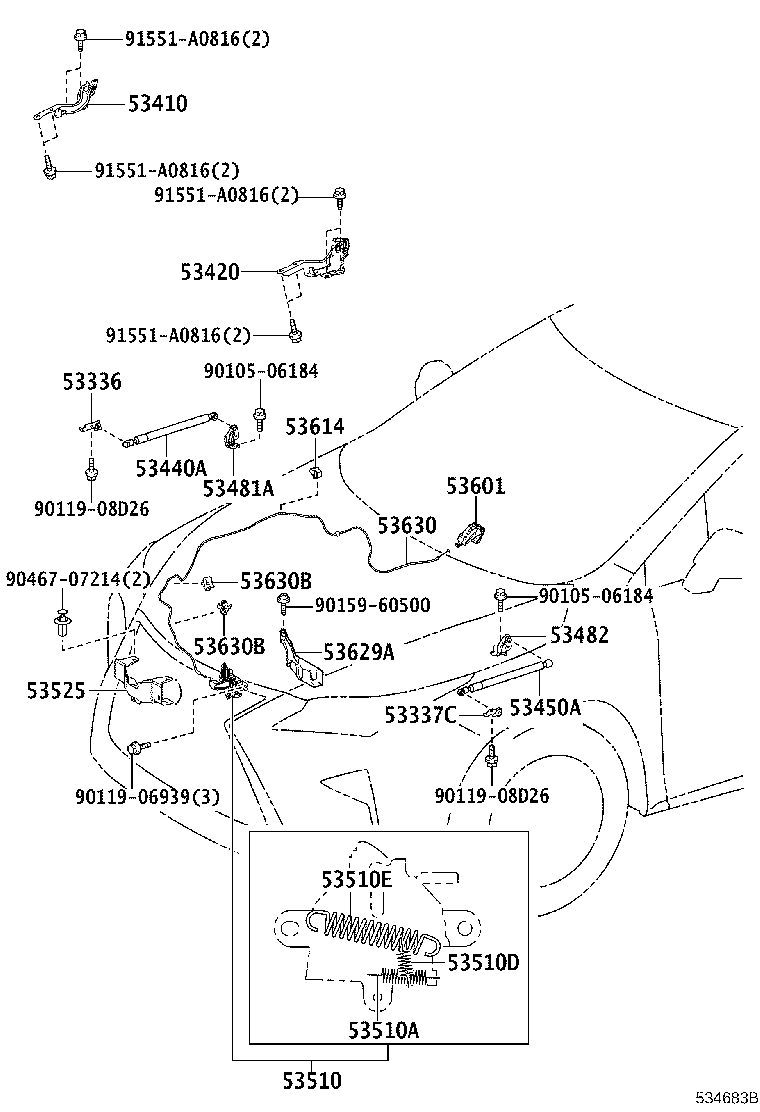

Click highlighted areas on diagram

diagram 53336 53337C 53410 53420 53440A 53450A 53481A 53482 53510 53510A 53510D 53510E 53525 53601 53614 53629A 53630 53630B 53630B 9010506184 9010506184 9011906939 9011908D26 9011908D26 9015960500 9046707214 91551A0816 91551A0816 91551A0816 91551A0816
Part # Description Qty Price
53336 - BRACKET, HOOD STAY, RH
53337-53020

AGL2#,GYL2#

 1
53337C - BRACKET, HOOD STAY, LH
53336-53030

AGL2#,GYL2#

 1
53410 - HINGE ASSY, HOOD, RH
53410-48150

AGL2#,GYL2#

 1
53420 - HINGE ASSY, HOOD, LH
53420-48150

AGL2#,GYL2#

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-0E070

AGL2#,GYL2#

 1
53450A - SUPPORT ASSY, HOOD, LH
53440-0E070

AGL2#,GYL2#

 1
53481A - BRACKET, HOOD SUPPORT, RH
53481-48060

AGL2#,GYL2#

 1
53482 - BRACKET, HOOD SUPPORT, LH
53482-48050

AGL2#,GYL2#

 1
53510 - LOCK ASSY, HOOD
53510-48240

AGL2#,GYL2#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

AGL2#,GYL2#

線径=0.9,ｺｲﾙ巻数=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

AGL2#,GYL2#

線径=1.2,ｺｲﾙ巻数=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-14085

AGL2#,GYL2#

線径=1.4,ｺｲﾙ巻数=12

 1
53525 - PROTECTOR, HOOD LOCK RELEASE LEVER
53525-48040

AGL2#,GYL2#

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-30090C0

AGL2#,GYL2#

BLACK,TRIM05,06,2#,3#,4#

 1
53601-30090C1

AGL2#,GYL2#

BLACK,TRIM05,06,2#,3#,4#

 1
53601-30110C0

AGL2#,GYL2#

BLACK,TRIM05,06,2#,3#,4#

 1
53601-30090E2

AGL2#,GYL2#

NOBLE BROWN,TRIM00,01,02,03,04,5#,6#

 1
53601-30110E0

AGL2#,GYL2#

NOBLE BROWN,TRIM00,01,02,03,04,5#,6#

 1
53614 - CLAMP, HOOD LOCK CONTROL CABLE
64618-22020

AGL2#,GYL2#

 1
53629A - COVER, HOOD LOCK CONTROL CABLE
53629-48040

AGL2#,GYL2#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-48090

AGL2#,GYL2#

 1
53630-48091

AGL2#,GYL2#

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90959-01369

AGL2#,GYL2#

 2
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90959-01369

AGL2#,GYL2#

 2
Common parts
90105-06184
90119-06939
90119-08D26
90159-60500
90467-07214
91551-A0816
