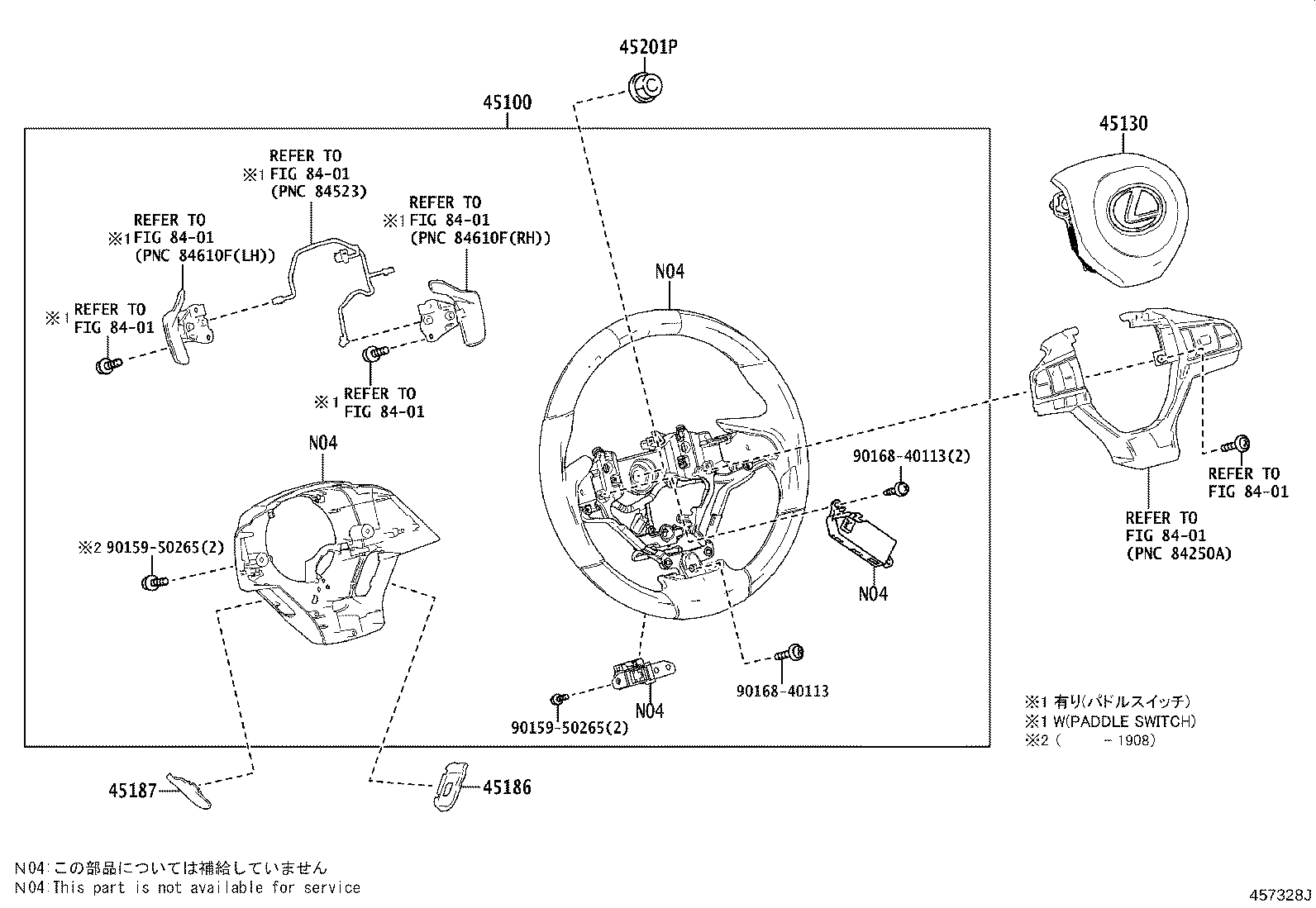

GYL26W-ARXGB (2017)
Toyota Lexus Rx450hl
(1712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-48581C6 |
GYL26 3本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK.BROWN/BLACK/LT.GRAY,TRIM23 |
1 | ||
| 45100-48581E2 |
GYL26 3本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK.BROWN/NOBLEBROWN/IVORY,TRIM01,51,61 |
1 | ||
| 45100-48581E0 |
GYL26 3本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK.GRAY/NOBLE BROWN/IVORY,TRIM00,50,60 |
1 | ||
| 45100-48581C3 |
GYL26 3本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK.BROWN/BLACK/CRIMSON,TRIM41 |
1 | ||
| 45100-48581C1 |
GYL26 3本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,BLACK & DK.GRAY,TRIM20 |
1 | ||
| 45100-48581C0 |
GYL26 3本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK.GRAY/BLACK/CRIMSON,TRIM40 |
1 | ||
| 45100-48581C2 |
GYL26 3本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,NATURAL BROWN/BLK/LT.GRAY,TRIM22 |
1 | ||
| 45100-48581C4 |
GYL26 3本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK.BROWN/BLACK/LT.GRAY,TRIM21 |
1 | ||
| 45100-48581C5 |
GYL26 3本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK.BROWN/BLACK/CRIMSON,TRIM42 |
1 | ||
| 45100-48581E3 |
GYL26 3本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK.BROWN/NOBLEBROWN/IVORY,TRIM03,53,62 |
1 | ||
| 45100-48581E1 |
GYL26 3本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,NATURAL/NOBLE BROWN/IVORY,TRIM02,52 |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-48330C0 |
GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 45130-48330E0 |
GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-48060C0 |
GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 45186-48060E0 |
GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-48050C0 |
GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 45187-48050E0 |
GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
GYL26 |
1 | ||
| Common parts | ||||
| 90159-50265 | ||||
| 90168-40113 | ||||
| Linked diagrams | ||||
| 8401 | ||||
