GYL26W-ARXGB (2017)

Toyota Lexus Rx450hl

Production Dec 2017 - Aug 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )

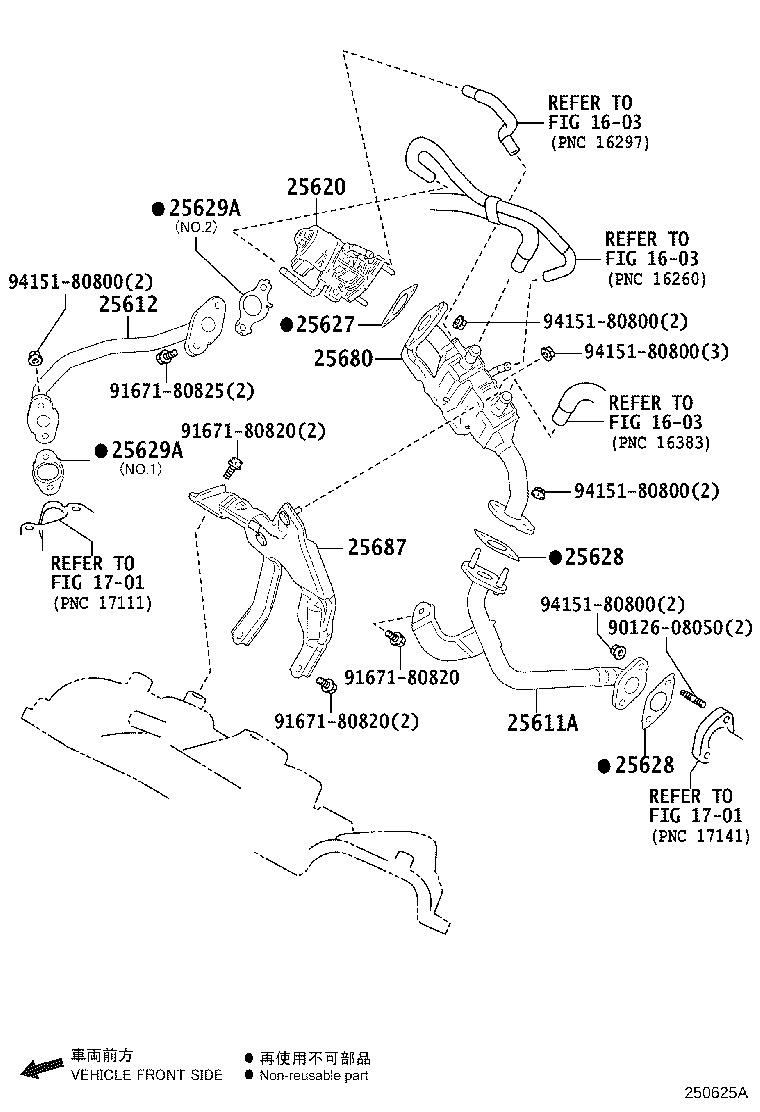

Click highlighted areas on diagram

diagram 1603 1603 1603 1701 1701 25611A 25612 25620 25627 25628 25628 25629A 25629A 25680 25687 9012608050 9167180820 9167180820 9167180820 9167180825 9415180800 9415180800 9415180800 9415180800 9415180800
Part # Description Qty Price
25611A - PIPE, EGR, NO.1
25611-31060

2GRFXS..GYL26

 1
25612 - PIPE, EGR, NO.2
25612-31040

2GRFXS..GYL26

 1
25620 - VALVE ASSY, EGR
25620-31080

2GRFXS..GYL26

 1
25627 - GASKET, EGR VALVE
25627-31040

2GRFXS..GYL26

 1
25628 - GASKET, EGR INLET
25628-31030

2GRFXS..GYL26

 2
25628 - GASKET, EGR INLET
25628-31030

2GRFXS..GYL26

 2
25629A - GASKET, EGR PIPE, NO.2
25629-36020

2GRFXS..GYL26

NO.2

 1
25629-31040

2GRFXS..GYL26

NO.1

 1
25629A - GASKET, EGR PIPE, NO.2
25629-36020

2GRFXS..GYL26

NO.2

 1
25629-31040

2GRFXS..GYL26

NO.1

 1
25680 - COOLER ASSY, EGR
25680-31050

2GRFXS..GYL26

 1
25687 - BRACKET, EGR COOLER, NO.1
25687-31020

2GRFXS..GYL26

 1
Common parts
90126-08050
91671-80820
91671-80825
94151-80800
Linked diagrams
1603
1701
