GYL16W-AWXGK (2012)
Toyota Lexus Rx270/350/450h

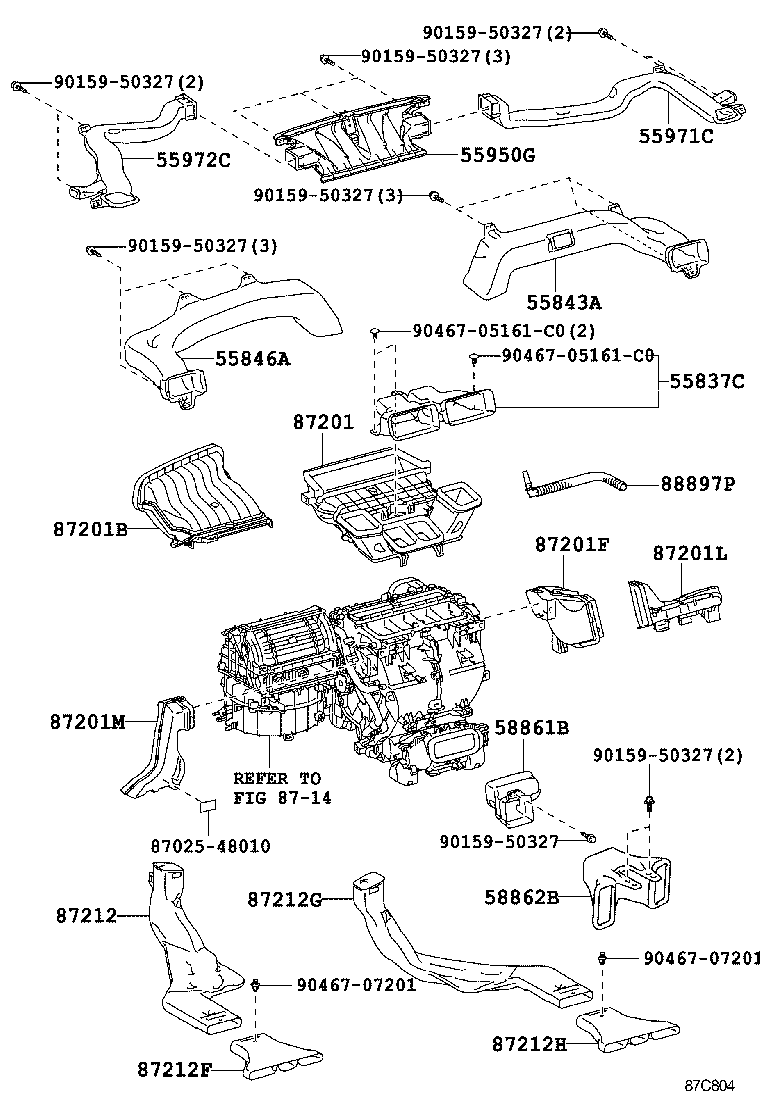

ILLUST NO. 2 OF 3(1203- )
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55837C - DUCT, HEATER TO REGISTER CENTER SUB | ||||
| 55837-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 55837-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-48110 |
GYL1# |
1 | ||
| 55843-48120 |
GYL1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 55843-48120 |
GYL1# |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-48080 |
AGL10,GGL1#,GYL1# |
1 | ||
| 55846-48080 |
AGL10,GGL1#,GYL1# |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 55950-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 55971-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 55972-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-48070 |
AGL10,GGL1#,GYL1# |
1 | ||
| 58861-48070 |
AGL10,GGL1#,GYL1# |
1 | ||
| 58862B - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 58862-48070 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-48130 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87201-48130 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-48140 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87201-48140 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87211-48170 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87211-48170 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87201L - DUCT SUB-ASSY, AIR, NO.4 | ||||
| 87211-48180 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87211-48180 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87201M - DUCT SUB-ASSY, AIR, NO.5 | ||||
| 87201-33320 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87201-33320 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87213-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87213-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87218-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87218-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87212-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87212-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87217-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87217-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 88897P - ASPIRATOR | ||||
| 87201-48160 |
AGL10,GGL1#,GYL1# |
1 | ||
| 87201-48160 |
AGL10,GGL1#,GYL1# |
1 | ||
| Common parts | ||||
| 87025-48010 | ||||
| 90159-50327 | ||||
| 90467-05161C0 | ||||
| 90467-07201 | ||||
| Linked diagrams | ||||
| 8714 | ||||
