GYL16W-AWXGK (2012)
Toyota Lexus Rx270/350/450h

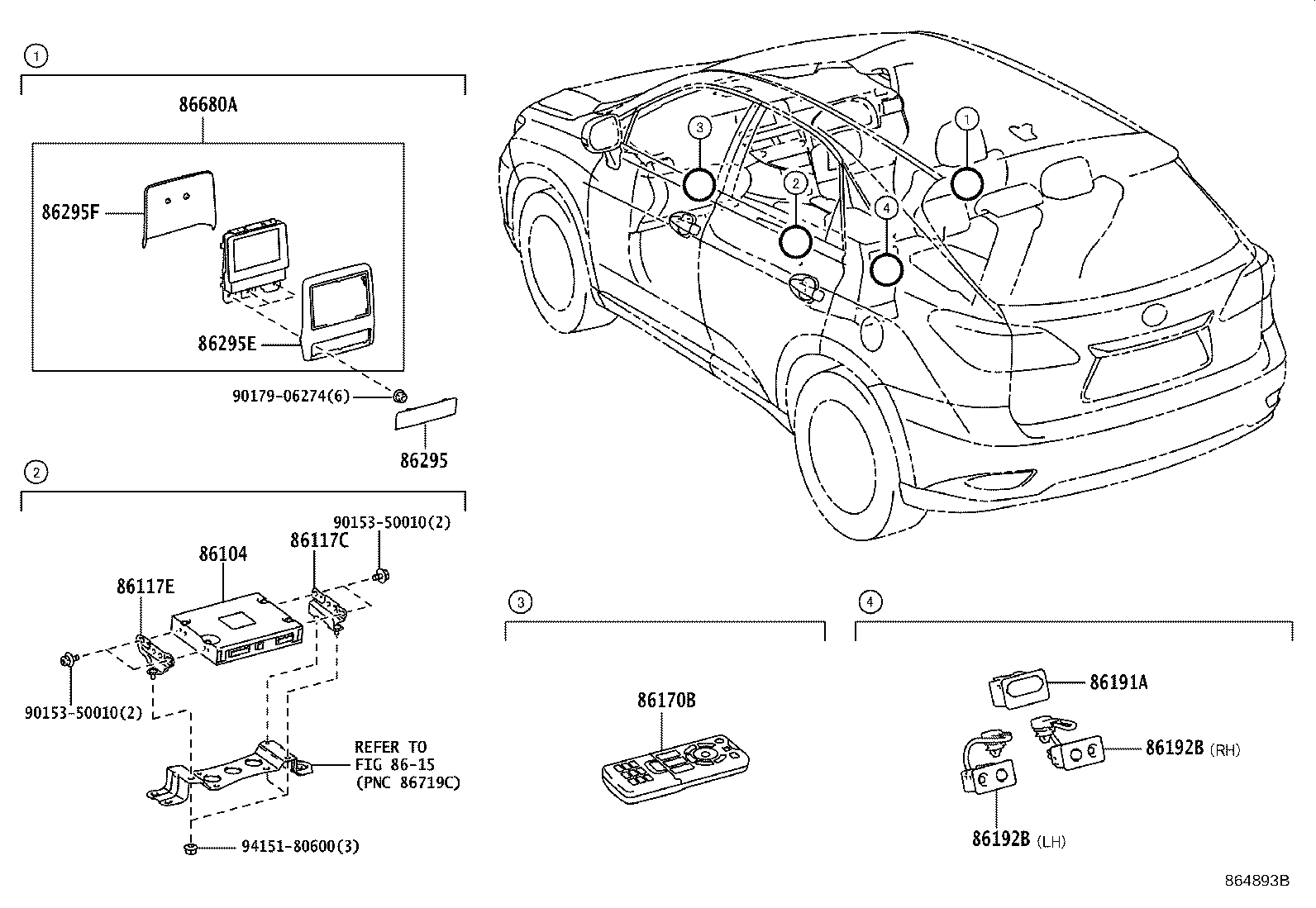

ILLUST NO. 2 OF 2(1203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86104 - CONTROLLER SUB-ASSY, MULTI-DISPLAY | ||||
| 86104-60010 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2 | ||||
| 86117-48120 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86117E - BRACKET, MULTI-DISPLAY CONTROLLER, NO.3 | ||||
| 86118-48090 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86170B - SWITCH & VOLUME ASSY, TELEVISION | ||||
| 86170-48050 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86191A - TERMINAL, VIDEO(VIDEO ADAPTER) | ||||
| 86191-48050C0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 86191-48050A0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),IVORY,TRIM0# |
1 | ||
| 86192B - TERMINAL, HEADPHONE | ||||
| 86192-48020C0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),BLACK,TRIM1#,2#,3#,4#,右側 |
1 | ||
| 86192-48010A0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),IVORY,TRIM0#,左側 |
1 | ||
| 86192-48010C0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),BLACK,TRIM1#,2#,3#,4#,左側 |
1 | ||
| 86192-48020A0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),IVORY,TRIM0#,右側 |
1 | ||
| 86192B - TERMINAL, HEADPHONE | ||||
| 86192-48020C0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),BLACK,TRIM1#,2#,3#,4#,右側 |
1 | ||
| 86192-48010A0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),IVORY,TRIM0#,左側 |
1 | ||
| 86192-48010C0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),BLACK,TRIM1#,2#,3#,4#,左側 |
1 | ||
| 86192-48020A0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),IVORY,TRIM0#,右側 |
1 | ||
| 86295 - BASE, TELEVISION | ||||
| 86295-48080A0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),IVORY,TRIM0# |
2 | ||
| 86295-48080C0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),BLACK,TRIM2#,3#,4# |
2 | ||
| 86295-48080B0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),LT.GRAY,TRIM1# |
2 | ||
| 86295E - BASE, TELEVISION, NO.2 | ||||
| 86295-48060B0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),LT.GRAY,TRIM1# |
2 | ||
| 86295-48060C0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),BLACK,TRIM2#,3#,4# |
2 | ||
| 86295-48060A0 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),IVORY,TRIM0# |
2 | ||
| 86295F - BASE, TELEVISION, NO.3 | ||||
| 86295-48070 |
AGL10,GGL1#,GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ) |
2 | ||
| 86680A - DISPLAY ASSY, TELEVISION | ||||
| 86430-48200B0 |
AGL10,GGL1#,GYL1# PANASONIC,有り(後席ﾃﾞｨｽﾌﾟﾚｲ),LT.GRAY,TRIM1# |
2 | ||
| 86430-48200C0 |
AGL10,GGL1#,GYL1# PANASONIC,有り(後席ﾃﾞｨｽﾌﾟﾚｲ),BLACK,TRIM2#,3#,4# |
2 | ||
| 86430-48200A0 |
AGL10,GGL1#,GYL1# PANASONIC,有り(後席ﾃﾞｨｽﾌﾟﾚｲ),IVORY,TRIM0# |
2 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8615 | ||||

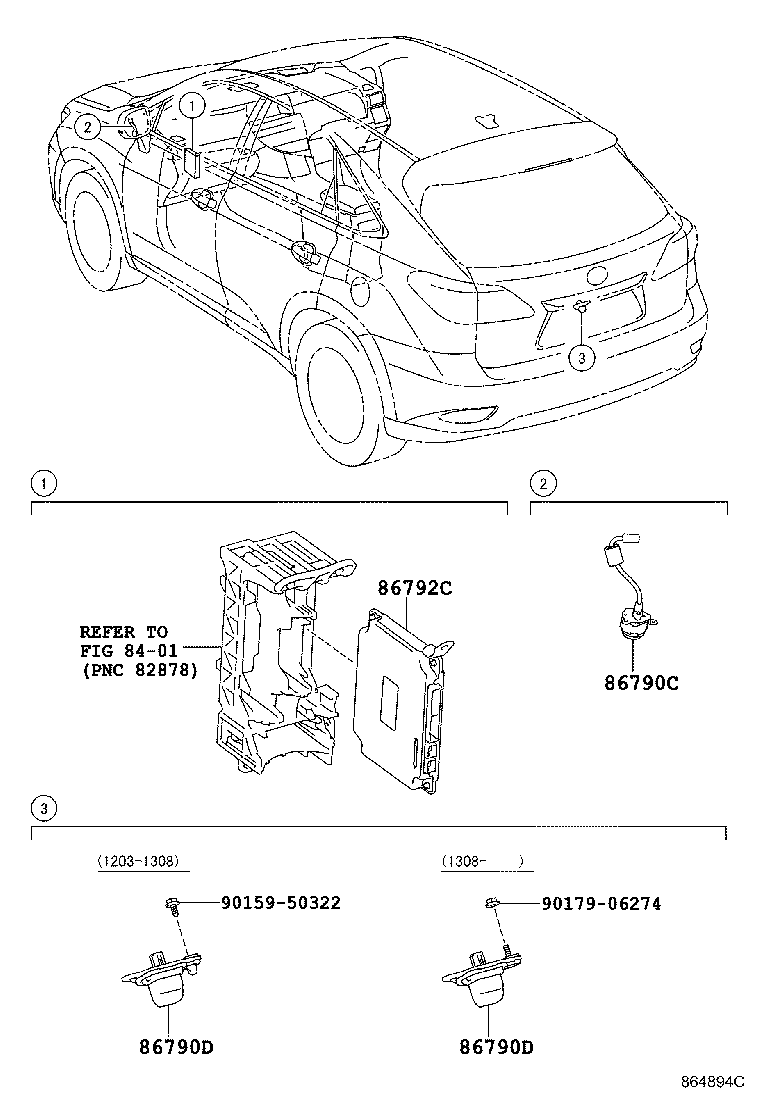

ILLUST NO. 1 OF 2(1203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86790C - CAMERA ASSY, TELEVISION, SIDE | ||||
| 86790-48100 |
AGL10,GGL1#,GYL1# |
1 | ||
| 86790-48100 |
AGL10,GGL1#,GYL1# |
1 | ||
| 86790D - CAMERA ASSY, TELEVISION, RR | ||||
| 86790-48090 |
GGL1#,GYL1# |
1 | ||
| 86790-48141 |
AGL10,GGL1#,GYL1# |
1 | ||
| 86790-48140 |
AGL10,GGL1#,GYL1# |
1 | ||
| 86790-48142 |
AGL10,GGL1#,GYL1# |
1 | ||
| 86790D - CAMERA ASSY, TELEVISION, RR | ||||
| 86790-48090 |
GGL1#,GYL1# |
1 | ||
| 86790-48141 |
AGL10,GGL1#,GYL1# |
1 | ||
| 86790-48140 |
AGL10,GGL1#,GYL1# |
1 | ||
| 86790-48142 |
AGL10,GGL1#,GYL1# |
1 | ||
| 86792C - COMPUTER, PARKING ASSIST | ||||
| 86792-48110 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 86792-48310 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 86792-48210 |
AGL10,GGL1#,GYL1# |
1 | ||
| 86792-48320 |
AGL10,GGL1#,GYL1# |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8401 | ||||
