GYL16W-AWXGK (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1203- )

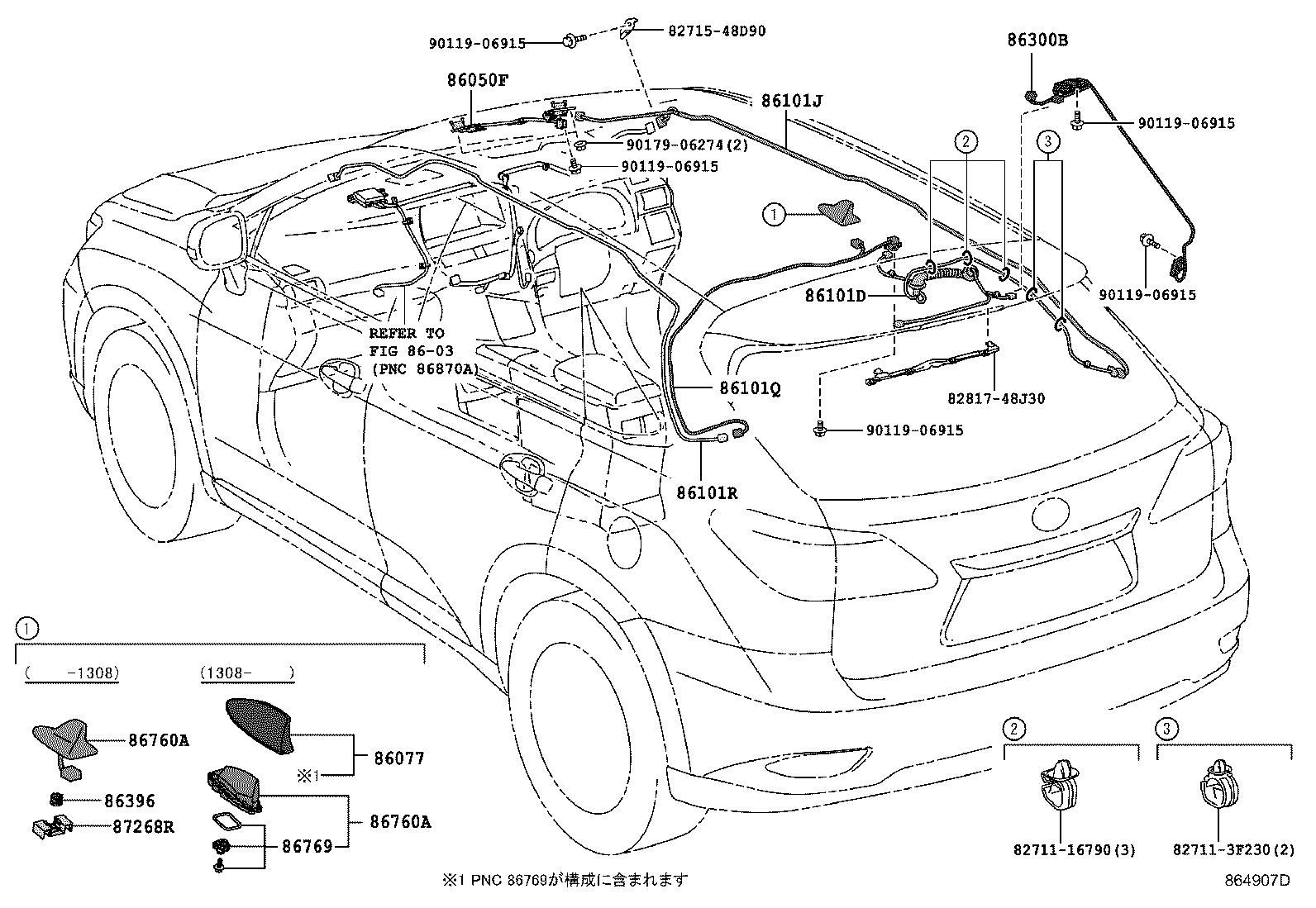

Click highlighted areas on diagram

diagram 8271116790 827113F230 8271548D90 8281748J30 8603 86050F 86077 86101D 86101J 86101Q 86101R 86300B 86396 86760A 86760A 86769 87268R 9011906915 9011906915 9011906915 9011906915 9011906915 9017906274
Part # Description Qty Price
86050F - ANTENNA ASSY, TELEVISION
86050-48160

AGL10,GGL1#,GYL1#

 1
86050-48130

AGL10,GGL1#,GYL1#

 1
86077 - COVER KIT, ANTENNA
86077-76010D2

AGL10,GGL1#,GYL1#

GARNET RED MC.,3S0

 1
86077-76010C0

AGL10,GGL1#,GYL1#

BLACK,212

 1
86077-76010B0

AGL10,GGL1#,GYL1#

MERCURY GRAY MC.,1H9

 1
86077-76010E1

AGL10,GGL1#,GYL1#

SLEEK ECRU ME.,4U7

 1
86077-76010A0

AGL10,GGL1#,GYL1#

WHITE PEARL CS.,077

 1
86077-76010C2

AGL10,GGL1#,GYL1#

STARLIGHT BLACK GF.,217

 1
86077-76010J1

AGL10,GGL1#,GYL1#

LAPIS LAZULI MC.,8V3

 1
86077-76010E0

AGL10,GGL1#,GYL1#

FIRE AGATE M.M.,4V3

 1
86077-76010B1

AGL10,GGL1#,GYL1#

PLATINUM SILVER ME.,1J4

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-48F00

AGL10,GGL1#,GYL1#

 1
86101-48B20

AGL10,GGL1#,GYL1#

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-48E70

AGL10,GGL1#,GYL1#

有り(ﾑｰﾝﾙｰﾌ)

 1
86101-48F10

AGL10,GGL1#,GYL1#

 1
86101-48A00

AGL10,GGL1#,GYL1#

 1
86101-48A10

AGL10,GGL1#,GYL1#

有り(ﾑｰﾝﾙｰﾌ)

 1
86101Q - CORD SUB-ASSY, ANTENNA, NO.4
86101-48K60

AGL10,GGL1#,GYL1#

 1
86101-48E90

AGL10,GGL1#,GYL1#

 1
86101-48B10

AGL10,GGL1#,GYL1#

 1
86101R - CORD SUB-ASSY, ANTENNA, NO.5
86101-48F20

AGL10,GGL1#,GYL1#

 1
86101-48A80

AGL10,GGL1#,GYL1#

 1
86101-48A90

AGL10,GGL1#,GYL1#

有り(ﾑｰﾝﾙｰﾌ)

 1
86101-48E80

AGL10,GGL1#,GYL1#

有り(ﾑｰﾝﾙｰﾌ)

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-48310

AGL10,GGL1#,GYL1#

 1
86300-48270

AGL10,GGL1#,GYL1#

 1
86396 - NUT, ANTENNA
86396-47010

AGL10,GGL1#,GYL1#

 1
86396-30050

AGL10,GGL1#,GYL1#

 1
86760A - ANTENNA ASSY, TELEPHONE
86760-48020E1

GGL1#,GYL1#

SABLE M.M.,4T5

 1
86760-48020J1

AGL10,GGL1#,GYL1#

SILVERY BLUE ME.,8U9

 1
86760-48020C0

AGL10,GGL1#,GYL1#

BLACK,212

 1
86760-48020B0

AGL10,GGL1#,GYL1#

DK.GRAY MC.,1G0

 1
86760-48020A0

AGL10,GGL1#,GYL1#

WHITE PEARL CS.,077

 1
86760-48020E0

GGL1#,GYL1#

BEIGE ME.,4T1

 1
86760-48020D0

AGL10,GGL1#,GYL1#

RED MC.CS.,3R1

 1
86760-48020A0

AGL10,GGL1#,GYL1#

WHITE PEARL CS.,077

 1
86760-48020B2

AGL10,GGL1#,GYL1#

SILVER M.M.,1G1

 1
86760-48020B3

AGL10,GGL1#,GYL1#

MERCURY GRAY MC.,1H9

 1
86760-48020J0

GGL1#,GYL1#

DK.BLUE MC. CC.,8U0

 1
86760-48020A1

AGL10,GGL1#,GYL1#

QUARTZ WHITE C.S.,078

 1
86760-48020C0

AGL10,GGL1#,GYL1#

BLACK,212

 1
86760-48020J2

AGL10,GGL1#,GYL1#

LAPIS LAZULI MC.,8V3

 1
86760-48020E2

AGL10,GGL1#,GYL1#

SLEEK ECRU ME.,4U7

 1
86760-48020D1

AGL10,GGL1#,GYL1#

GARNET RED MC.,3S0

 1
86760-53100

AGL10,GGL1#,GYL1#

 1
86760-48020E3

AGL10,GGL1#,GYL1#

FIRE AGATE M.M.,4V3

 1
86760-48020B4

AGL10,GGL1#,GYL1#

PLATINUM SILVER ME.,1J4

 1
86760-48020C2

AGL10,GGL1#,GYL1#

STARLIGHT BLACK GF.,217

 1
86760A - ANTENNA ASSY, TELEPHONE
86760-48020E1

GGL1#,GYL1#

SABLE M.M.,4T5

 1
86760-48020J1

AGL10,GGL1#,GYL1#

SILVERY BLUE ME.,8U9

 1
86760-48020C0

AGL10,GGL1#,GYL1#

BLACK,212

 1
86760-48020B0

AGL10,GGL1#,GYL1#

DK.GRAY MC.,1G0

 1
86760-48020A0

AGL10,GGL1#,GYL1#

WHITE PEARL CS.,077

 1
86760-48020E0

GGL1#,GYL1#

BEIGE ME.,4T1

 1
86760-48020D0

AGL10,GGL1#,GYL1#

RED MC.CS.,3R1

 1
86760-48020A0

AGL10,GGL1#,GYL1#

WHITE PEARL CS.,077

 1
86760-48020B2

AGL10,GGL1#,GYL1#

SILVER M.M.,1G1

 1
86760-48020B3

AGL10,GGL1#,GYL1#

MERCURY GRAY MC.,1H9

 1
86760-48020J0

GGL1#,GYL1#

DK.BLUE MC. CC.,8U0

 1
86760-48020A1

AGL10,GGL1#,GYL1#

QUARTZ WHITE C.S.,078

 1
86760-48020C0

AGL10,GGL1#,GYL1#

BLACK,212

 1
86760-48020J2

AGL10,GGL1#,GYL1#

LAPIS LAZULI MC.,8V3

 1
86760-48020E2

AGL10,GGL1#,GYL1#

SLEEK ECRU ME.,4U7

 1
86760-48020D1

AGL10,GGL1#,GYL1#

GARNET RED MC.,3S0

 1
86760-53100

AGL10,GGL1#,GYL1#

 1
86760-48020E3

AGL10,GGL1#,GYL1#

FIRE AGATE M.M.,4V3

 1
86760-48020B4

AGL10,GGL1#,GYL1#

PLATINUM SILVER ME.,1J4

 1
86760-48020C2

AGL10,GGL1#,GYL1#

STARLIGHT BLACK GF.,217

 1
86769 - HOUSING, ROOF ANTENNA
86769-53010

AGL10,GGL1#,GYL1#

 1
87268R - PROTECTOR, TELEPHONE ANTENNA
87268-50020

GGL1#,GYL1#

 1
87268-50021

AGL10,GGL1#,GYL1#

 1
Common parts
82711-16790
82711-3F230
82715-48D90
82817-48J30
90119-06915
90179-06274
Linked diagrams
8603
