GYL16W-AWXGK (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1203- )

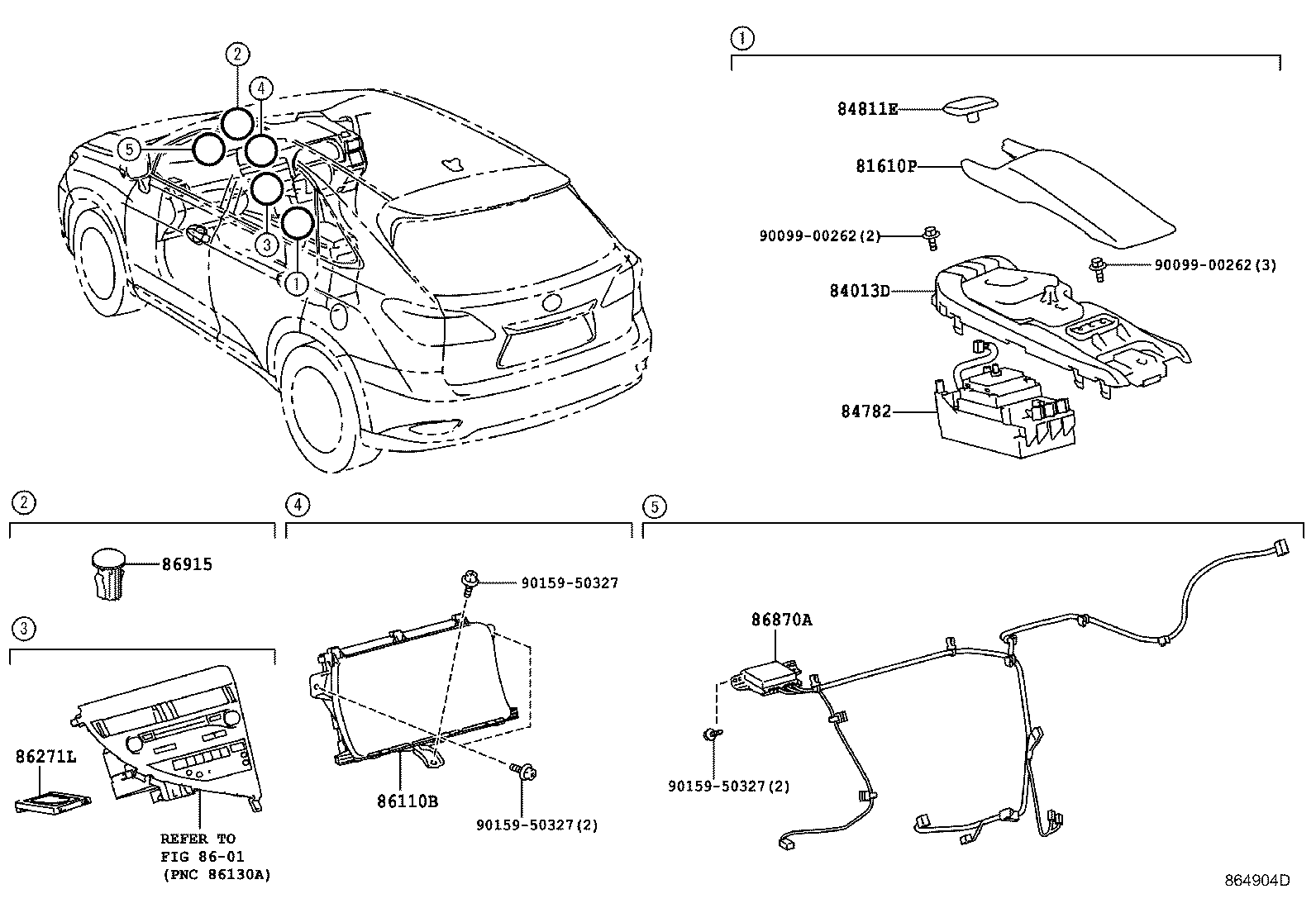

Click highlighted areas on diagram

diagram 81610P 84013D 84782 84811E 8601 86110B 86271L 86870A 86915 9009900262 9009900262 9015950327 9015950327 9015950327
Part # Description Qty Price
81610P - COVER ASSY, RH
81610-48020C0

AGL10,GGL1#,GYL1#

BLACK,TRIM1#,2#,3#,4#

 1
81610-48020E0

AGL10,GGL1#,GYL1#

DK. BROWN,TRIM0#

 1
84013D - PANEL SUB-ASSY, INTEGRATION
84013-48060C0

AGL10,GGL1#,GYL1#

BLACK,TRIM1#,2#,3#,4#

 1
84013-48050C0

AGL10,GGL1#,GYL1#

ﾅﾋﾞ遠隔操作装置−英語表示,BLACK,TRIM1#,2#,3#,4#

 1
84013-48060E0

AGL10,GGL1#,GYL1#

DK. BROWN,TRIM0#

 1
84013-48050E0

AGL10,GGL1#,GYL1#

ﾅﾋﾞ遠隔操作装置−英語表示,DK. BROWN,TRIM0#

 1
84782 - BOARD, REMOTE OPERATION
84782-48030

AGL10,GGL1#,GYL1#

 1
84782-48010

AGL10,GGL1#,GYL1#

 1
84782-48031

AGL10,GGL1#,GYL1#

 1
84811E - KNOB, SWITCH
84811-48021E0

AGL10,GGL1#,GYL1#

DK. BROWN,TRIM0#

 1
84811-48020E0

AGL10,GGL1#,GYL1#

DK. BROWN,TRIM0#

 1
84811-48021C0

AGL10,GGL1#,GYL1#

BLACK,TRIM1#,2#,3#,4#

 1
84811-48020C0

AGL10,GGL1#,GYL1#

BLACK,TRIM1#,2#,3#,4#

 1
86110B - MULTI-DISPLAY ASSY
86110-48460

AGL10,GGL1#,GYL1#

DENSO

 1
86110-48580

AGL10,GGL1#,GYL1#

DENSO

 1
86271L - HARD DISC
86271-30663

AGL10,GGL1#,GYL1#

 1
86271-30661

AGL10,GGL1#,GYL1#

 1
86271-30667

AGL10,GGL1#,GYL1#

 1
86271-30666

AGL10,GGL1#,GYL1#

 1
86271-30662

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86271-30662

AGL10,GGL1#,GYL1#

 1
86271-30664

AGL10,GGL1#,GYL1#

 1
86271-30660

AGL10,GGL1#,GYL1#

 1
86271-30665

AGL10,GGL1#,GYL1#

 1
86870A - ANTENNA ASSY, GPS & VICS
86870-48010

AGL10,GGL1#,GYL1#

 1
86880-48010

AGL10,GGL1#,GYL1#

 1
86915 - TRANSCEIVER, OPTICAL BEACON
86915-60010

AGL10,GGL1#,GYL1#

 1
86915-60010

AGL10,GGL1#,GYL1#

 1
Common parts
90099-00262
90159-50327
Linked diagrams
8601
