GYL16W-AWXGK (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

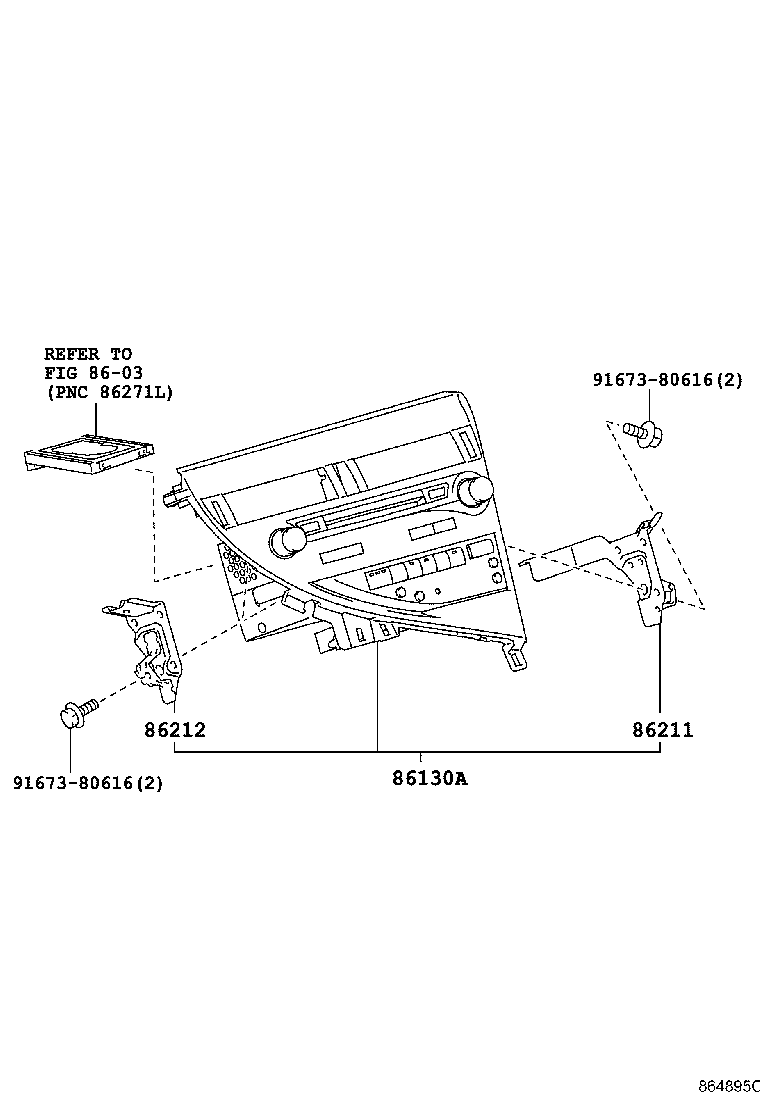

ILLUST NO. 1 OF 4(1203- )

Click highlighted areas on diagram

diagram 8603 86130A 86211 86212 9167380616 9167380616
Part # Description Qty Price
86130A - RECEIVER ASSY, MULTI-MEDIA MODULE
86804-48101

AGL10,GGL1#,GYL1#

PIONEER,ID=P10260,ﾀｲﾌﾟ A

 1
86804-48102

AGL10,GGL1#,GYL1#

PIONEER,ID=P10260,ﾀｲﾌﾟ A

 1
86804-48100

AGL10,GGL1#,GYL1#

PIONEER,ID=P10260,ﾀｲﾌﾟ A

 1
86804-48111

AGL10,GGL1#,GYL1#

PIONEER,ID=P10259,ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,P5ｽﾋﾟｰｶ,ﾀｲﾌﾟ B

 1
86804-48110

AGL10,GGL1#,GYL1#

PIONEER,ID=P10259,ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,P5ｽﾋﾟｰｶ,ﾀｲﾌﾟ B

 1
86804-48112

AGL10,GGL1#,GYL1#

PIONEER,ID=P10259,ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,P5ｽﾋﾟｰｶ,ﾀｲﾌﾟ B

 1
86211 - BRACKET, RADIO, NO.1
86211-48140

AGL10,GGL1#,GYL1#

 1
86211-48140

AGL10,GGL1#,GYL1#

 1
86211-48140

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86211-48140

AGL10,GGL1#,GYL1#

 2
86212 - BRACKET, RADIO, NO.2
86212-48140

AGL10,GGL1#,GYL1#

 1
86212-48140

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86212-48140

AGL10,GGL1#,GYL1#

 2
86212-48140

AGL10,GGL1#,GYL1#

 1
Common parts
91673-80616
Linked diagrams
8603

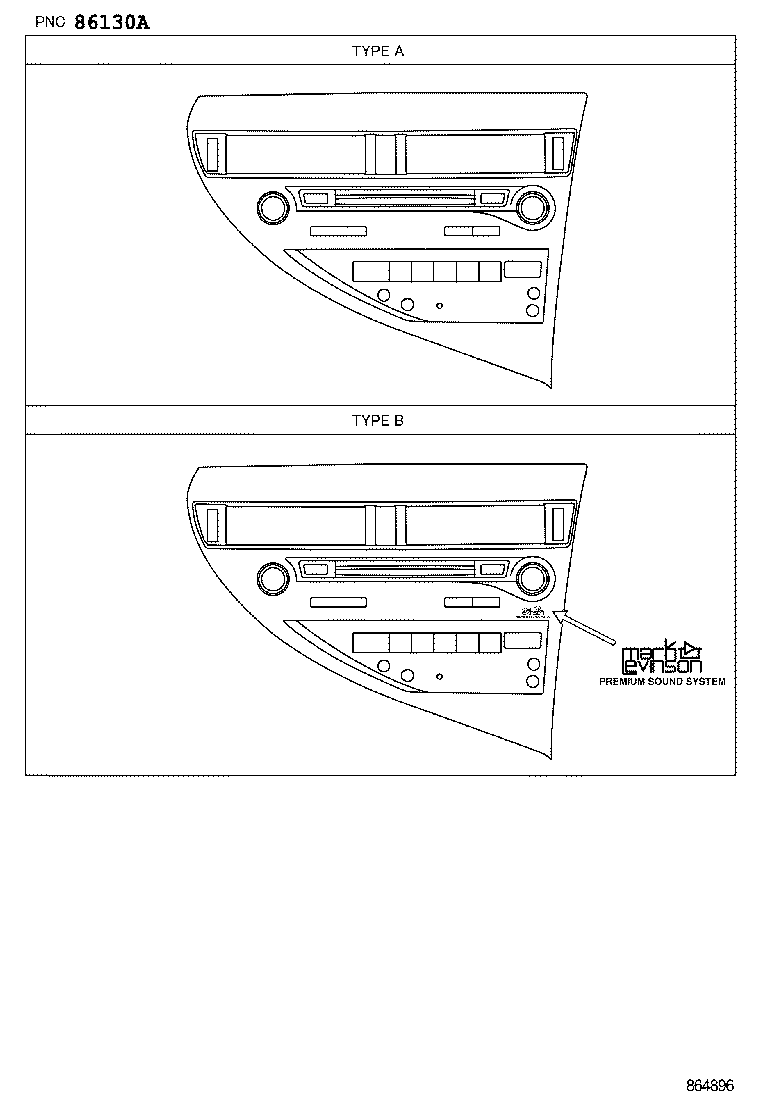

ILLUST NO. 2 OF 4(1203- )

Click highlighted areas on diagram

diagram 86130A
Part # Description Qty Price
86130A - RECEIVER ASSY, MULTI-MEDIA MODULE
86804-48101

AGL10,GGL1#,GYL1#

PIONEER,ID=P10260,ﾀｲﾌﾟ A

 1
86804-48102

AGL10,GGL1#,GYL1#

PIONEER,ID=P10260,ﾀｲﾌﾟ A

 1
86804-48100

AGL10,GGL1#,GYL1#

PIONEER,ID=P10260,ﾀｲﾌﾟ A

 1
86804-48111

AGL10,GGL1#,GYL1#

PIONEER,ID=P10259,ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,P5ｽﾋﾟｰｶ,ﾀｲﾌﾟ B

 1
86804-48110

AGL10,GGL1#,GYL1#

PIONEER,ID=P10259,ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,P5ｽﾋﾟｰｶ,ﾀｲﾌﾟ B

 1
86804-48112

AGL10,GGL1#,GYL1#

PIONEER,ID=P10259,ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,P5ｽﾋﾟｰｶ,ﾀｲﾌﾟ B

 1

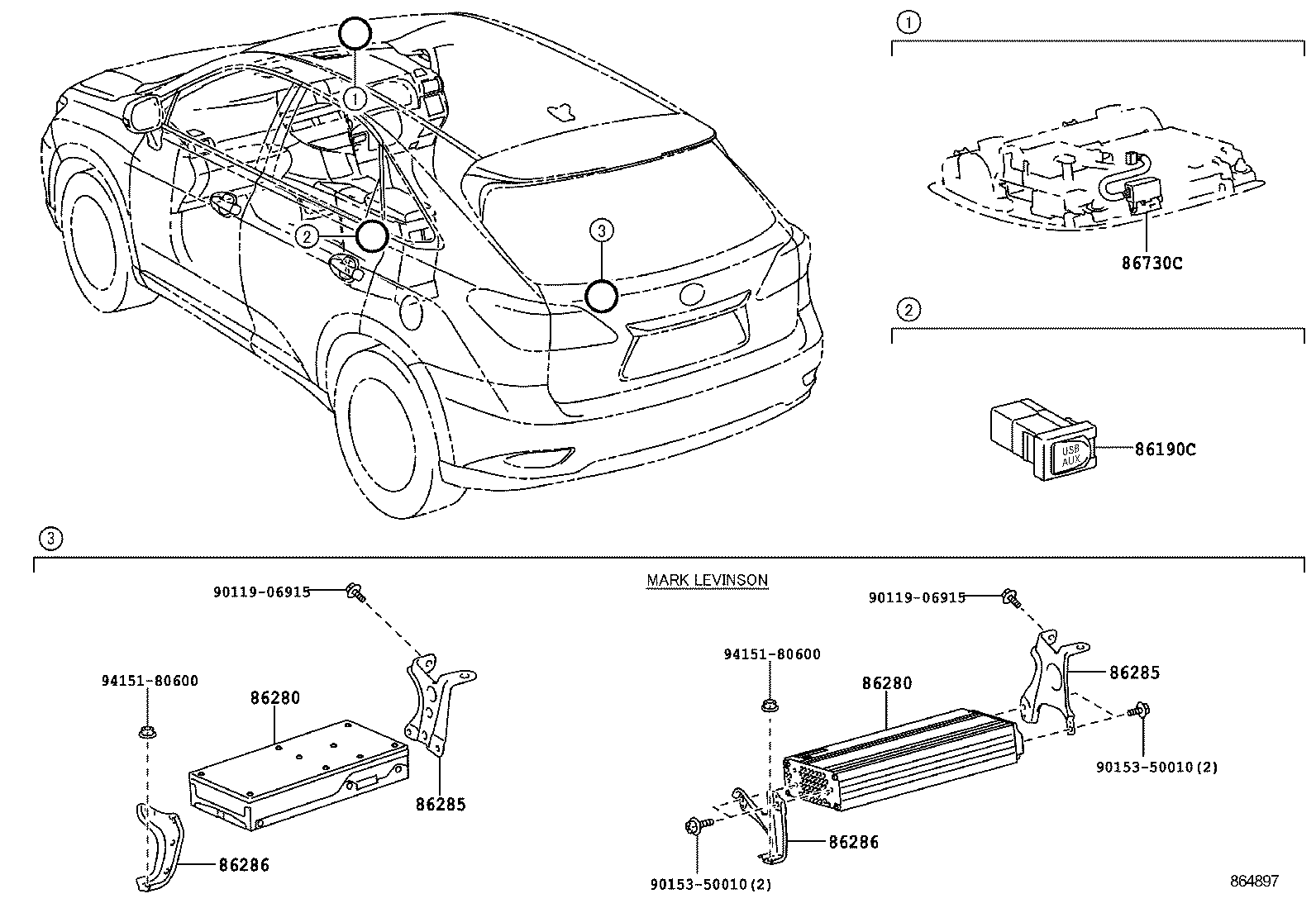

ILLUST NO. 3 OF 4(1203- )

Click highlighted areas on diagram

diagram 86190C 86280 86280 86285 86285 86286 86286 86730C 9011906915 9011906915 9015350010 9015350010 9415180600 9415180600
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-48050

AGL10,GGL1#,GYL1#

 1
86190-48040

GGL1#,GYL1#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-48160

GGL16,GYL16

 1
86280-0WA60

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86280-0W540

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVDﾁｪﾝｼﾞｬ,MD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86280-48180

GYL16

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-48160

GGL16,GYL16

 1
86280-0WA60

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86280-0W540

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVDﾁｪﾝｼﾞｬ,MD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86280-48180

GYL16

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-48100

AGL10,GGL1#,GYL1#

 1
86285-48110

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVDﾁｪﾝｼﾞｬ,MD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86285-48110

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86285-48100

AGL10,GGL1#,GYL1#

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-48100

AGL10,GGL1#,GYL1#

 1
86285-48110

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVDﾁｪﾝｼﾞｬ,MD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86285-48110

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86285-48100

AGL10,GGL1#,GYL1#

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-48090

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86286-48080

AGL10,GGL1#,GYL1#

 1
86286-48080

AGL10,GGL1#,GYL1#

 1
86286-48090

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVDﾁｪﾝｼﾞｬ,MD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-48090

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVD,HDD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86286-48080

AGL10,GGL1#,GYL1#

 1
86286-48080

AGL10,GGL1#,GYL1#

 1
86286-48090

AGL10,GGL1#,GYL1#

ｵｰﾃﾞｨｵ−DVDﾁｪﾝｼﾞｬ,MD,ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ

 1
86730C - MICROPHONE ASSY, TELEPHONE
86730-48050

AGL10,GGL1#,GYL1#

 1
86730-48050

AGL10,GGL1#,GYL1#

 1
86730-48080

AGL10,GGL1#,GYL1#

 1
Common parts
90119-06915
90153-50010
94151-80600

ILLUST NO. 4 OF 4(1203- )GYL1#

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ

diagram 86011Q 86011V 9011906915 9011906915
Part # Description Qty Price
86011Q - CONDENSER, RADIO SETTING
90980-04174

AGL10,GGL1#,GYL1#

 1
90980-04174

AGL10,GGL1#,GYL1#

 1
86011V - CONDENSER, RADIO SETTING
90980-05378

GYL1#

 1
Common parts
90119-06915
